AJR NDT 5500 X Ray Pipeline Crawler
Manufacturer product description

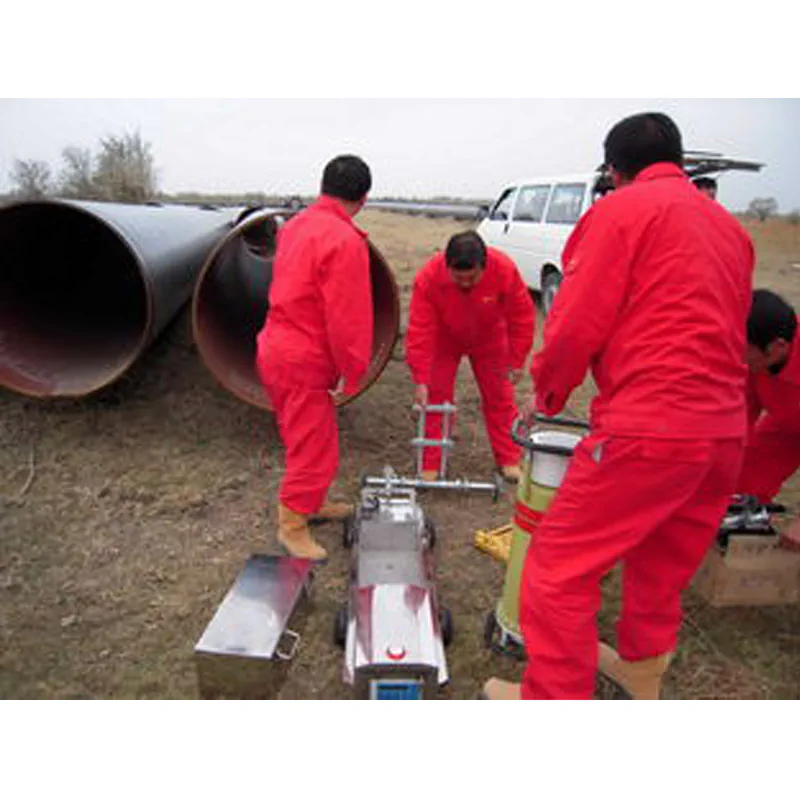

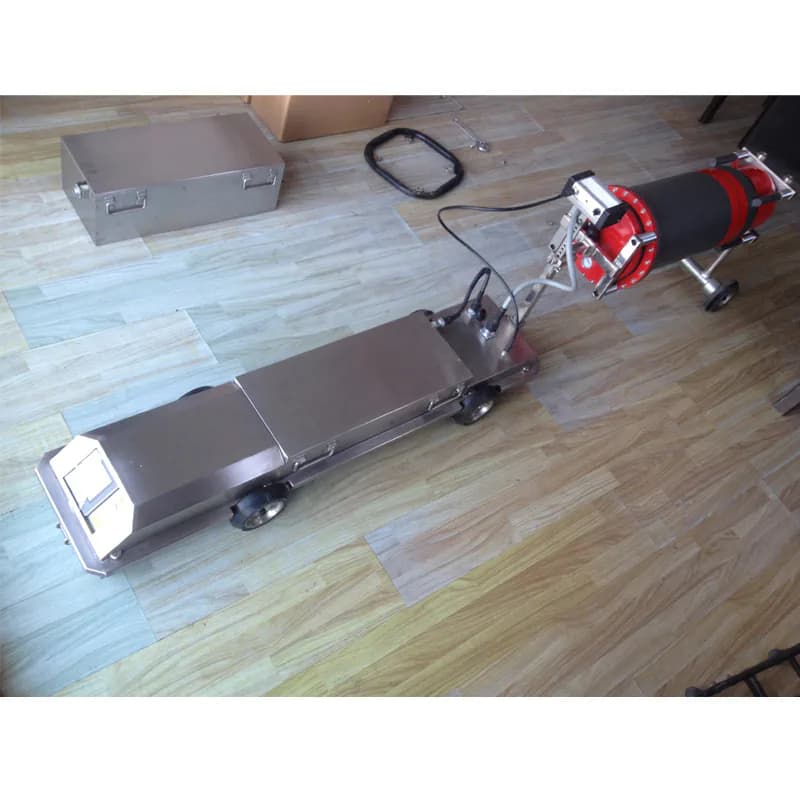

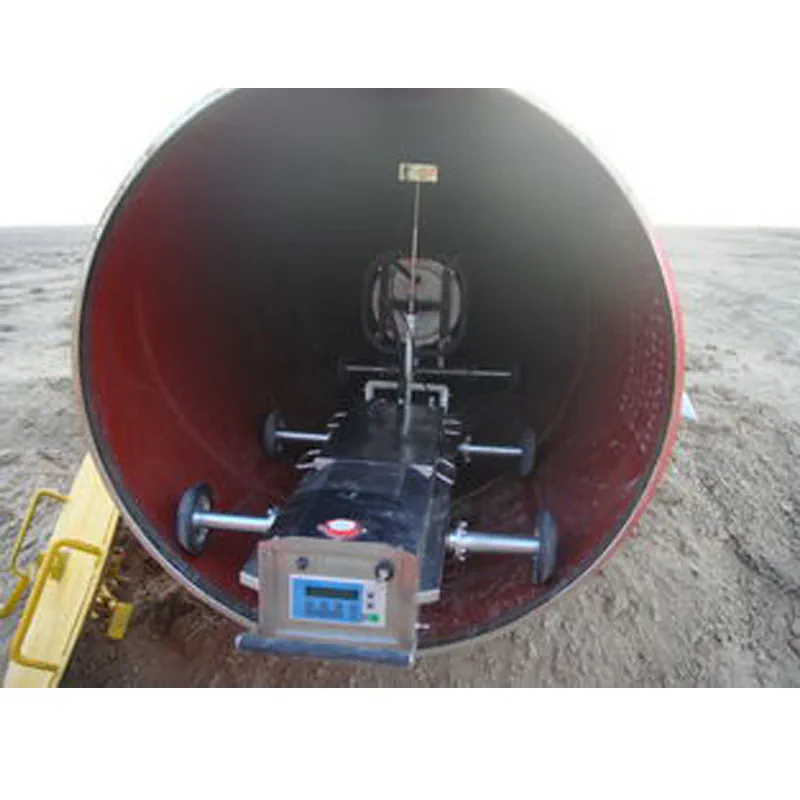

AJR NDT 5500 Series X-ray Pipeline Crawler is a kind of quality inspection equipment which is widely used for long-distance transport pipeline (for gas, oil, chemical, steam, etc.) welding examinations with its characters of high efficiency, excellent radiography quality, and high imaging sensitivity, and low failure rate, as well as its security, reliability and convenience features.
AJR NDT 5500 X Ray Pipeline Crawler
- Brand
- AJR
- Category
- Radiography Testing
- Method / product family
- Model
- AJR-5500
Technical Specifications
| Model | AJR-5500 |
|---|---|
| Pipe Diameter Range | Φ159 mm ~ Φ310 mm |
| Tube (cone) Max. Output Voltage | 100 kv |
| Tube (cone) Max. Output Current | 3 mA |
| Tube (cone) Focal Size | 1.0*2.0 mm |
| Tube (cone) Beam | 360 degree *38 degree |
| Environment Temperature | -40℃-70℃ |
| Relative Humidity | ≤90% |
| Energy Capacity of Battery | 96V, 7Ah |
| Motor Power | 100W Continuous |
| Delay before Exposure | 24 s |
| Exposure time (can be timed outside pipe) | 1-300 s (Continuously Adjustable) |
| Crawling Ability | ≤27 degree |
| Location Accuracy | ± 5 mm |
| Crawling Distance | 5 km |
| Crawling Speed | 12m/min ~ 14m/min |
| Turning Radius | ≥10D |
| Total Weight | About 40 kg |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
