ATG140 UT Thickness Gauge
Manufacturer product description
The UT Gauge can test on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Whether you're in manufacturing, construction, automotive, aerospace, or corrosion inspection, our UT Thickness Gauge provides the accuracy and versatility you need to meet your measurement requirements.
ATG140 UT Thickness Gauge
6 more images are not shown on this page.
- Brand
- AJR
- Category
- Thickness Gauge
- Method / product family
Technical Specifications
| Measuring Range | 0.75mm~300.0mm ( 0.03inch~11.8inch ) |
|---|---|
| Units | Metric / Imperial unit seletable |
| Sound Velocity Range | 1000m/s~9999m/s ( 0.039~0.394 in/μs ) |
| Display Resolution | 0.01mm or 0.1mm ( lower than 100.0mm ) 0.1mm ( more than 99.99mm ) |
| Accuracy | ± (0.5%Thickness+0.04) mm, depends on materials & conditions |

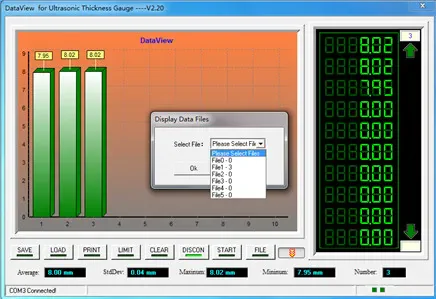

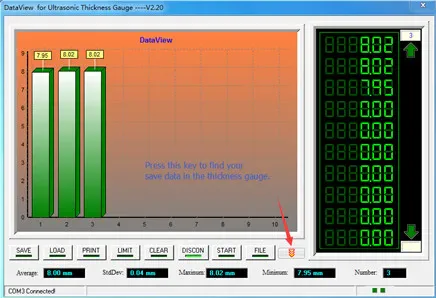

| Data Memory | 5 files ( up to 100 values for each file ) of stored values 5 Sound Velocity of stored values |
| Power Source | 2pcs 1.5V AA size batteries 250 hours typical operating time ( LED backlight off ) |
| Outline Dimensions | 150mm*74mm*32mm |
| Workpiece Surface Temperature | - 10 ~ 60 ℃ |
| Minimum Thickness Value Capture Capacity | With a minimum thickness value capture capacity |
| Measurement Cycle | 4 times / SEC, scanning of single point measurement mode 20 times per second |
| Weight | 238 g |
| P05/90° | General bent probe |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
