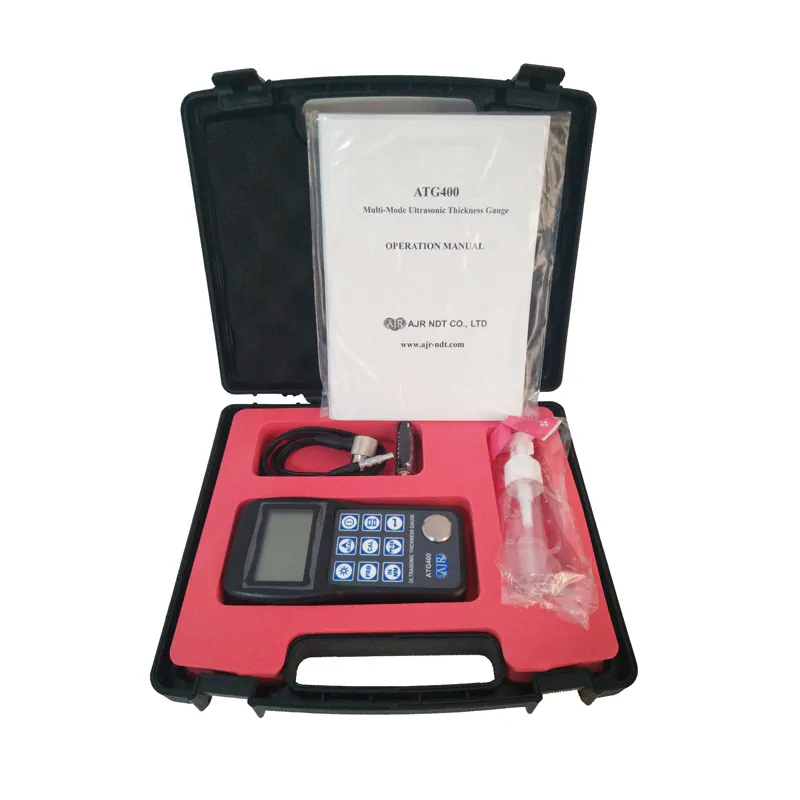

ATG400 Ultrasonic Through Coating Thickness Gauge
Manufacturer product description
The model ATG400 is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters.
ATG400 Ultrasonic Through Coating Thickness Gauge
- Brand
- AJR
- Category
- Thickness Gauge
- Method / product family
Technical Specifications
| Display | 4.5 digits LCD with EL backlight |
|---|---|
| Range | Pulse-Echo mode: (0.65～600)mm (in Steel) Echo-Echo mode: (3～30)mm Through Coating Mode |
| Sound Velocity Range | (1000~9999) m/s |
| Resolution | 0.1mm/0.01mm |
| Accuracy | ±（0.5%Thickness+0.01）mm, depends on materials and conditions |
| Memory | Memory for up to 20 files (up to 99 values for each file) of stored values |
| Power | Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off) |

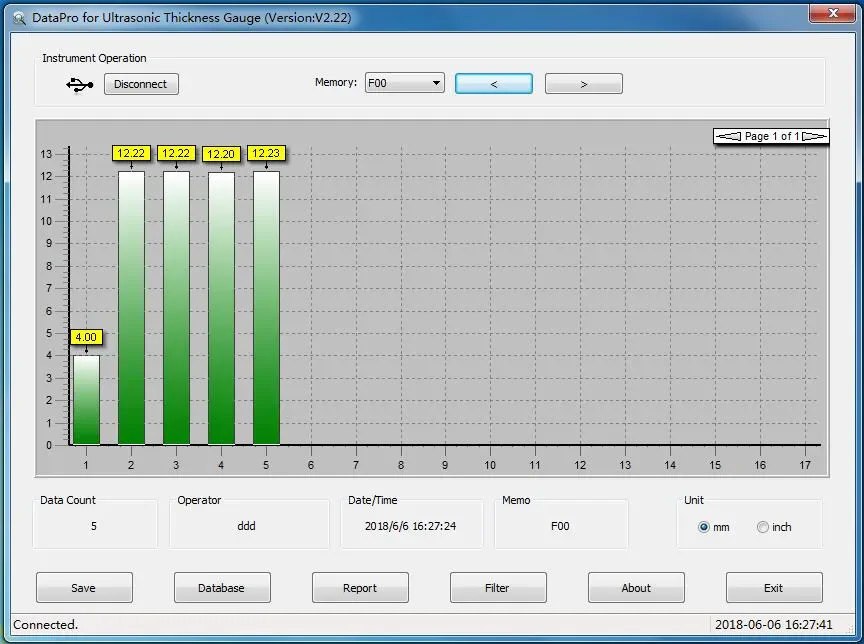

| Data Communication | USB1.1 |
| Outline dimensions | 150mm×74mm×32 mm |
| Weight | 245g |
| Operating Temperature | －20℃～＋60℃ |
| Storage Temperature | -30℃～＋70℃ |
| Relative Humidity | ≤90％ |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
