Scan-I A Scan Handheld Thickness Gauge
Manufacturer product description
SCAN-I ultrasonic thickness gauge made by our factory with OLED true color, built-in A-SCAN snapshot, great capacity data storage and through coating thickness function is a kind of high precision, new-type, and portable industrial nondestructive testing instruments according to ultrasonic measuring principle.
Scan-I A Scan Handheld Thickness Gauge
- Brand
- AJR
- Category
- Thickness Gauge
- Method / product family
Technical Specifications
| A Scan | Amplification Mode |
|---|---|
| Data Memory | Through Coating Mode |
| Color Display | DIFF/RR% |

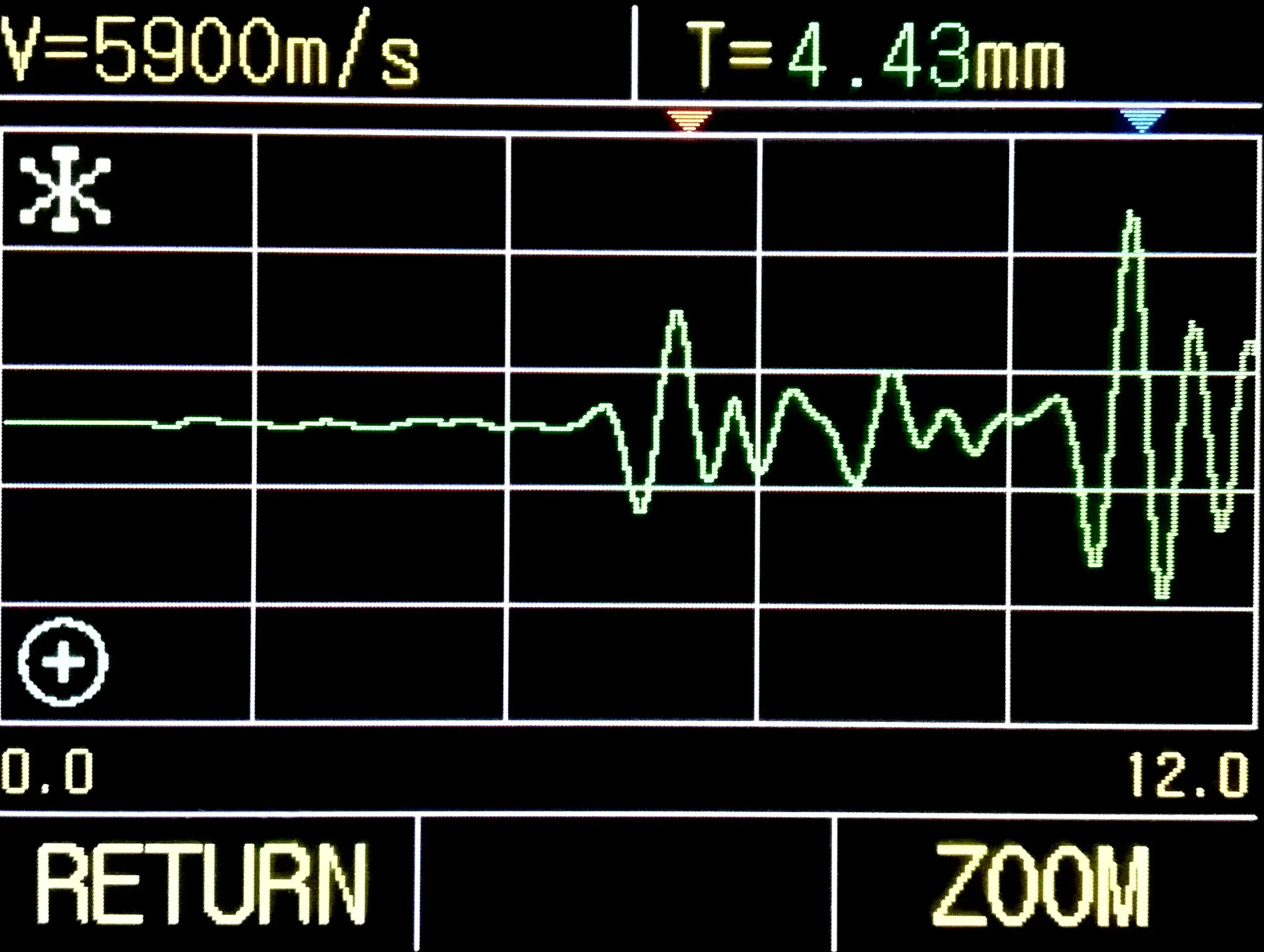

| A-Scan Snapshot | Thru-paint |
| Gain: Low, Medium, High | Data Logger |
| Min/Max Capture | DataView Software |

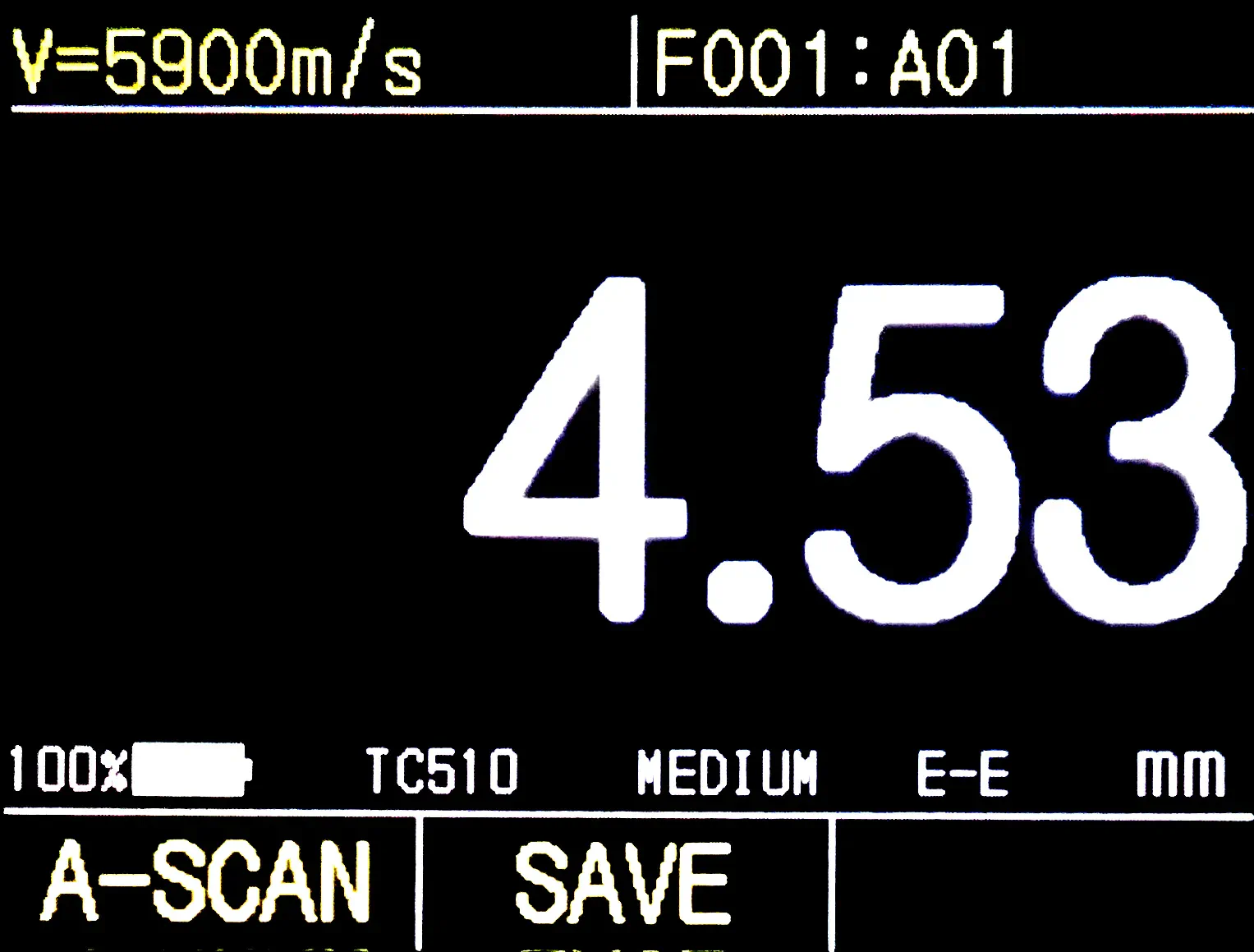

| Display Type | 2.4" color OLED, 320 X 240 pixels, contrast 10,000:1 |
| Operating Principle | Pulse echo with dual element transducers |
| Measuring Range | 0.60mm to 508mm (0.025" to 20.00"), depending on material, probe and surface condition. 3-25mm after through max 2mm coating with standard TC510 probe. |
| Measuring Resolution | Selectable 0.01mm , 0.1mm (selectable 0.001", 0.01") |
| Units | Inch or Millimeter |
| Gain | Low, Medium or High for varying test conditions |
| Display Mode | Normal , Minimum / Maximum capture, DIFF/RR% |
| V-Path Correction | Automatic |
| Update Rate | Selectable 4Hz, 8Hz, 16Hz |
| Material Velocity Range | 500 to 9999m /s (0.0197 to 0.3937in /us) |
| Languages | Selectable Chinese, English, Japanese |
| Alarm Settings | Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm |
| Power Requirements | 2 AA size batteries |
| Operating Time | Approximately 40 hours |
| Instrument Shut-off | Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity |
| Operating Temperature | -10°C to + 50°C (+ 10°F to + 120°F ) |
| Size | 153mm X 76mm X 37mm (H X W X D) |
| Weight | 280g including batteries |
| Capacity | 400 files, 100,000 readings |
| File Structure | Grid file |
| Rows X Columns | 21 X 12 |
| Communication Port | USB 2.0 (Full Speed ) port |

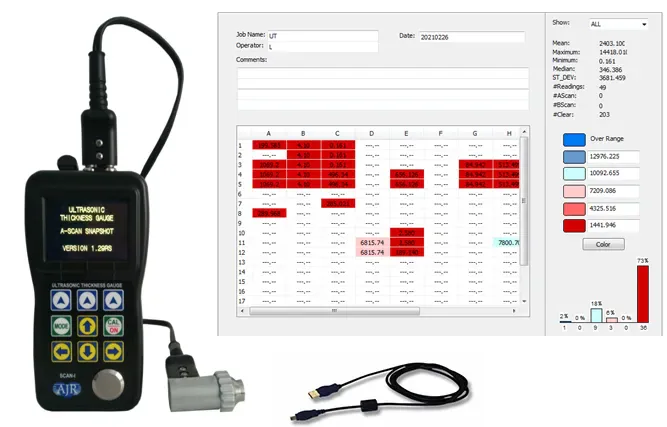

| Software | DataView PC software |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
