AJR
Scan-II Thickness Gauge
Manufacturer product description
SCAN-II ultrasonic thickness gauge, launch the ultrasonic through one side of the test material, measure the digitized thickness real-timely, without cutting the object.
Scan-II Thickness Gauge
5 more images are not shown on this page.
- Brand
- AJR
- Category
- Thickness Gauge
- Method / product family
Technical Specifications
| A Scan | B Scan |
|---|---|
| Data Memory | Blank |
| Color Display | Echo-Echo Mode (Thru Paint & Coatings) |

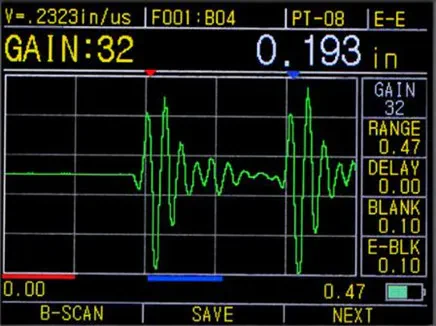

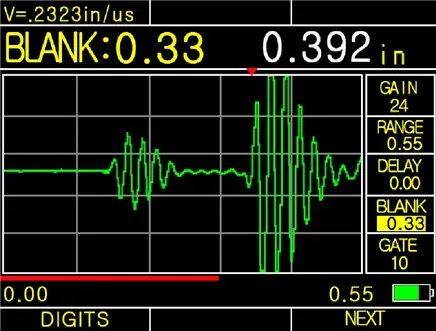

| Live A-Scan | Data Logger |

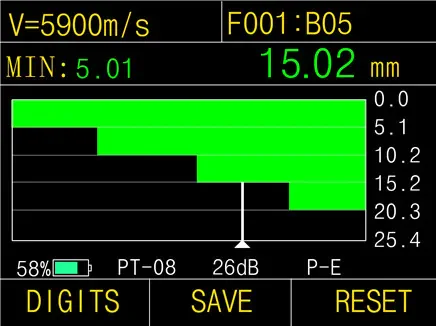

| Time-based B-Scan | DataView Software |
| Display Type | 2.4" color OLED, 320 X 240 pixels, contrast 10,000:1 |
| Operating Principle | Pulse echo with dual element transducers |
| Measuring Range | 0.50mm to 508mm (0.02" to 20.00"), depend on material, probe and surface condition. 3-50mm after through max 8mm coating with standard TC510 probe. 3-110mm after through 2mm coating with standard TC510 probe. |
| Measuring Resolution | Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01") |
| Units | Inch or Millimeter |
| Rectify Modes | RF+, RF-, HALF+, HALF-, FULL |

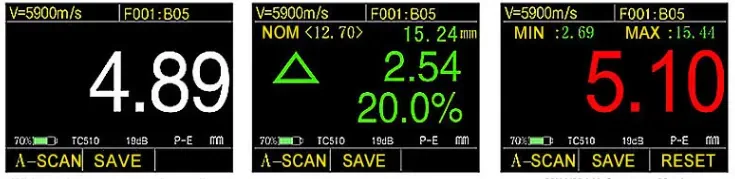

| Display Mode | Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan |
| V-Path Correction | Automatic |
| Update Rate | Selectable 4Hz, 8Hz, 16Hz |
| Material Velocity Range | 500 to 9999m/s (0.0197 to 0.3937in/us) |
| Languages | English |
| Alarm Settings | Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm |
| Power Requirements | 2 AA size batteries |
| Operating Time | Approximately 40 hours |
| Instrument Shut-off | Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity |
| Operating Temperature | -10°C to +50°C (+10°F to +120°F) |
| Size | 153mm X 76mm X 37mm(H X W X D) |
| Weight | 280g including batteries |
| Capacity | 100,000 readings, 1000 waveforms,400 files |

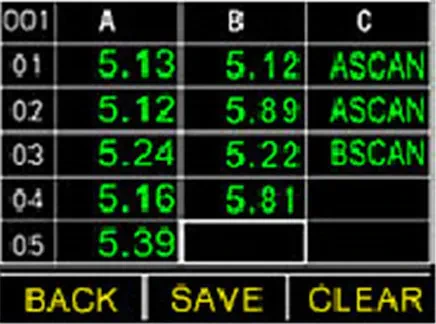

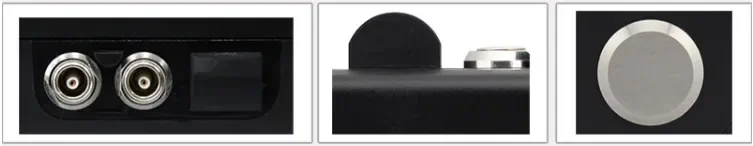

| File Structure | Grid file |
| Rows X Columns | 21 X 12 |
| Communication Port | USB 2.0 (Full Speed ) port |

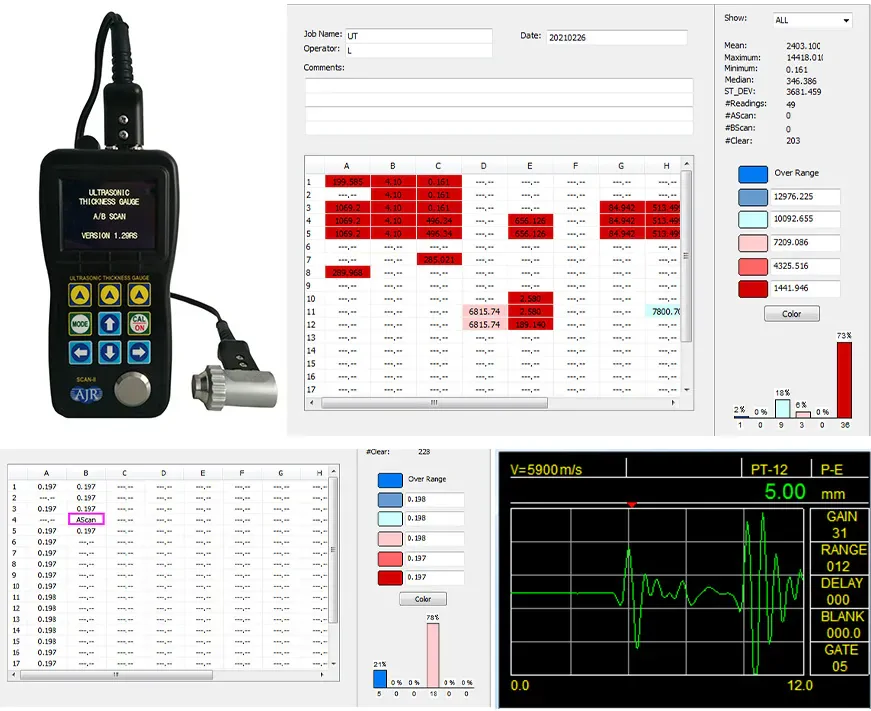

| Software | DataView PC software |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
