AFD860 NDT Flaw Detector
Manufacturer product description
The NDT Flaw Detector is a cutting-edge, non-destructive testing (NDT) tool designed to detect and identify flaws, defects, and anomalies in various types of materials. With its advanced technology and innovative features, this versatile detector offers unparalleled accuracy, efficiency, and reliability in identifying and assessing potential issues before they become serious problems.

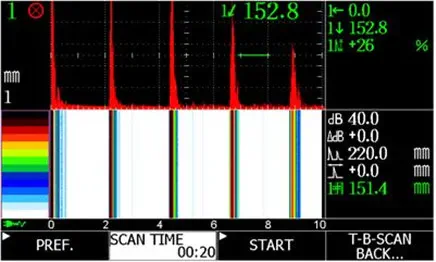

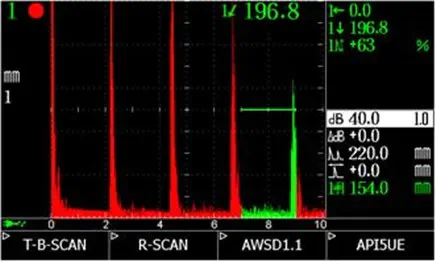

AFD860 NDT Flaw Detector
12 more images are not shown on this page.
- Brand
- AJR
- Category
- Ultrasonic Flaw Detection
- Method / product family
Technical Specifications
| Attenuator Error | Per 12dB ±1dB |
|---|---|
| Equivalent Input Noise | <80×10-9 V/√HZ^ |

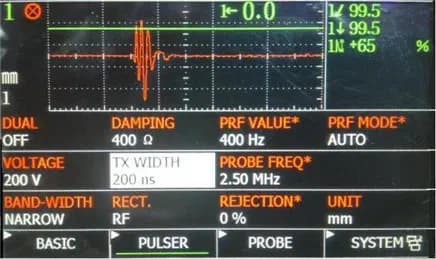

| Pulse Type | -Ve square wave pulse, Transmitter pulse voltage: 25~250V ; tunable with 25V per step Pulse Width: 30-1000ns tunable with 5ns per step, Auto/Manual |
| Working Modes | T/R ; T&R |
| Damping | 400 / 80 Ohm |
| Working Frequency | Broadband / Narrowband Broadband: 0.5~20MHz; Narrowband: 1.5~3MHz |
| Gain | 0.0~110.0 dB; Step: 0.1 / 1.0 / 2.0 / 6.0 dB |
| Material Velocity | 1000～15000m/s tunable; Set-in 30 common material velocities as optional |
| Test Range | 0.0～10000mm Longitudinal wave at steel velocity; Range continuously variable with minimum 0.1mm increments |
| Rectification | Positive wave, Negative wave, Full wave, RF |

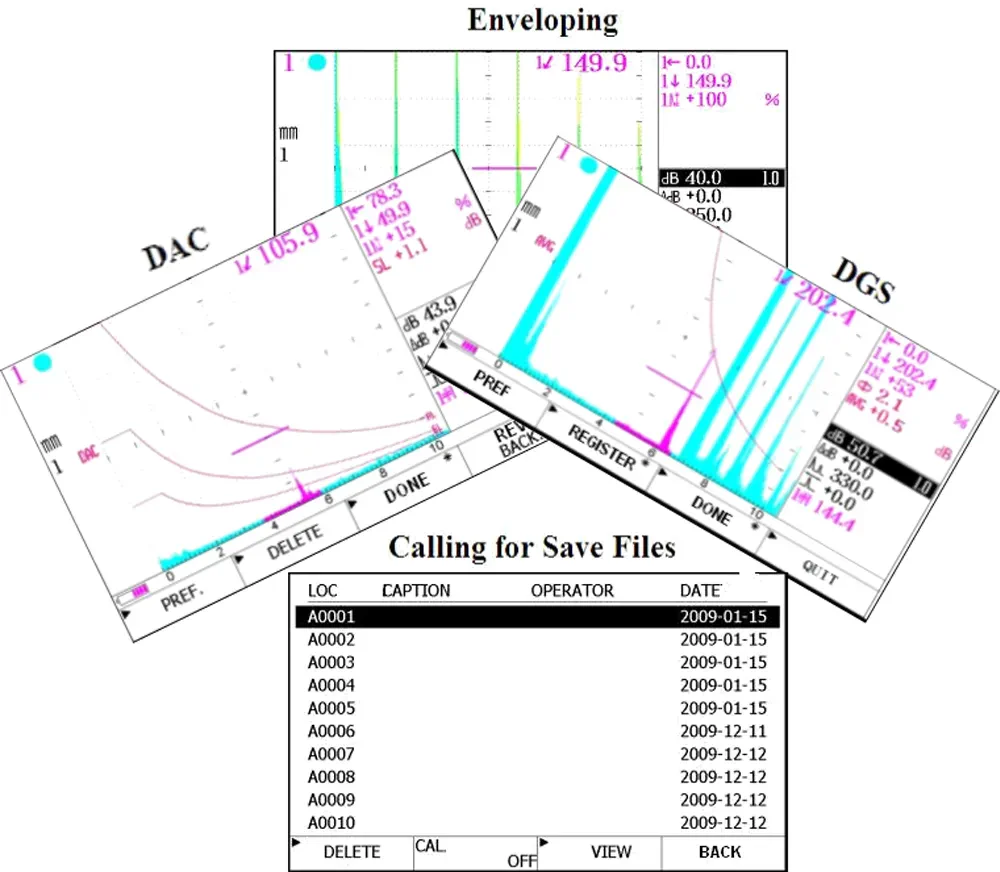

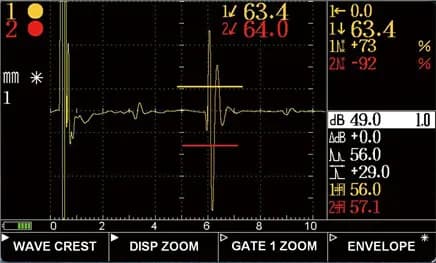

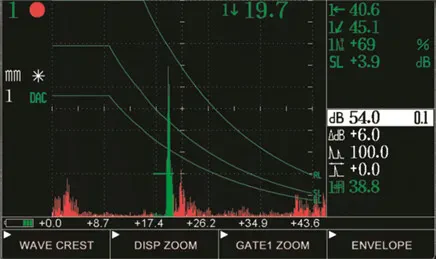

| Gate & Alarm | Real-time alarm signal, positive and negative thresholds, minimum depth, DAC alarm optional |
| Display | TG, TFT 5.6 inch WVGA color display, resolution 800×480 Pixels |
| Pulse Shift | -7.5~3000μs |
| Probe Zero | 0~999.9μs |
| PRF (Pulse Repetition Frequency) | 25~800Hz, auto adaptation/manual adjustment |
| Vertical Linearity Error | ≤3% |
| Horizontal Linearity Error | ≤0.2% |
| Sensitivity Surplus | ≥60dB (200Φ2 FBH) |
| Instrument Resolution | ≥36dB (mated with 5MHzΦ14 transducer) |
| Dynamic Range | ≥32dB |
| Rejection | (0~90) %, without any dent to linearity or gain |
| NL (Electric Noise Level) | ＜10% |
| Ports | BNC/ LEMO |
| Power Supply | Large-capacity Li battery(11.1V, 4400mAh) without memory effect; battery life: 8+ hrs; |
| Dust \ Splash \ Water Proof | IP54 |
| UT Standards | Compatible with EN12668-1 |
| Ambient Temperature | -30~50℃ |
| Relative Humidity | 20%~95% |
| Weight | Around 0.9kg (with battery) |
| Dimension | Upper Part: 215mm×126mm×53mm |
| Higher Resolution | Higher Sensitivity |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
