Crafted Technologies
A25 Rugged Ultrasonic Inspection System
Manufacturer product description

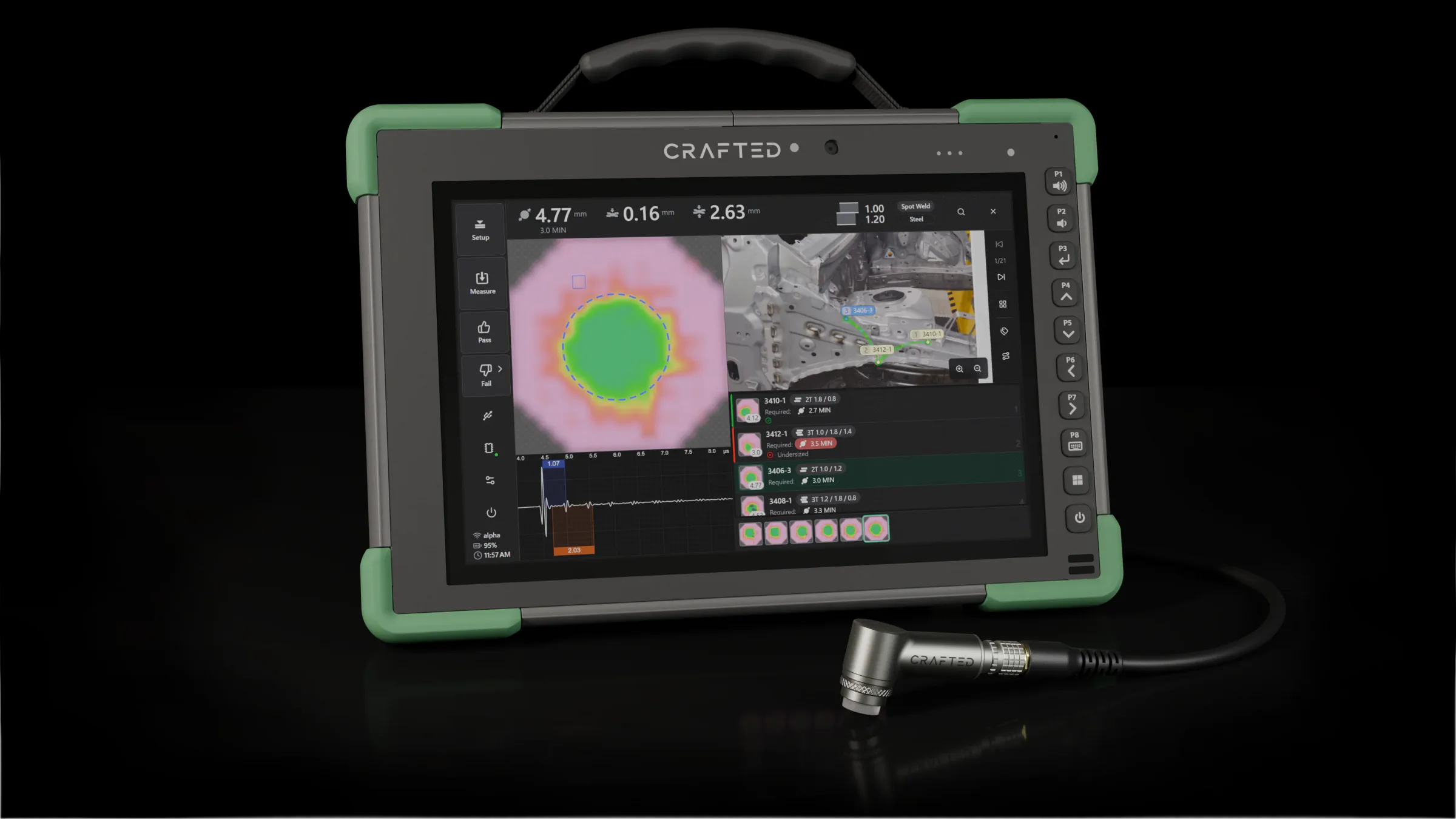

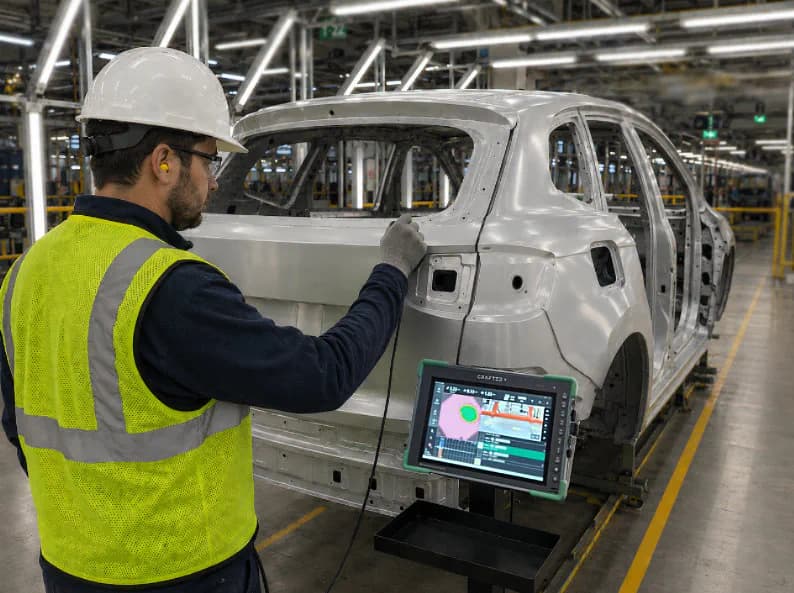

Rugged tablet-based ultrasonic inspection unit for automotive production lines, with a 10.1-inch Dragontrail-covered touchscreen, an integrated adjustable stand with carrying handle and a LEMO probe connector; the page lists spot welds, laser welds and adhesive bonds as application types.
A25 Rugged Ultrasonic Inspection System
- Brand
- Crafted Technologies
- Category
- A25
- Method / product family
- Model
- A25
Technical Specifications
| Processor | Intel Core i5, 11th generation |
|---|---|
| System | Microsoft Windows 11 Enterprise, Multiple languages |
| Display & Touchscreen | 10.1" 1920x1200 resolution, Projected capacitive multitouch, Chemically strengthened Dragontrail cover glass |
| Memory & Storage | 16GB LPDDR4X, 512 GB PCIe |
| Connectivity | WIFI 802.11 a/b/g/n/ac 2.4 and 5GHz, Bluetooth v5.1 (Class 1.5, BLE support) |
| Ports | 19V DC power input, USB C x1, USB 3.1 x2, 3.5mm audio and mic |
| Camera | Rear: 13 MP with LED illumination and auto-focus / Front: 2 MP |
| Probe Interface | LEMO connector, compatible with all Crafted probes |
| Dimensions | 195 x 285 x 30.5 mm / 7.7 x 11.2 x 1.2 in |
| Weight | 2.08 kg / 4.6 lb |
| Operating Temperature | -20 to 50°C / -4 to 122°F |
| Storage Temperature | -30 to 70°C / -22 to 158°F |
| Battery | Removable Li-Ion 43.2Whr x2, Excellent life cycle performance, Hot-swappable capability |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
Product Documents
No verified product document has been published for this product yet.
