DRTECH
EXT 3643S
Manufacturer product description

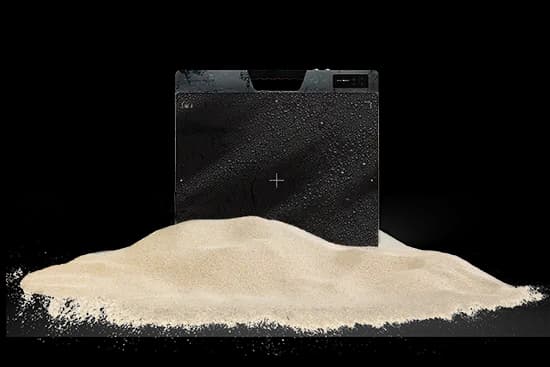

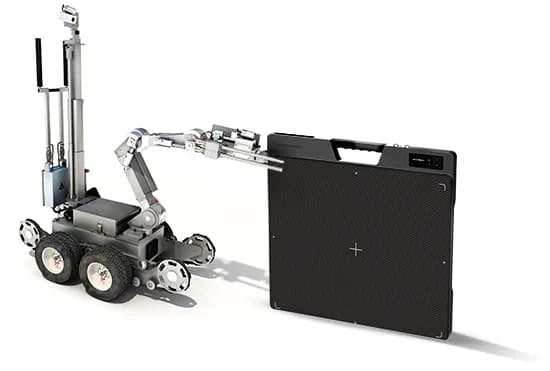

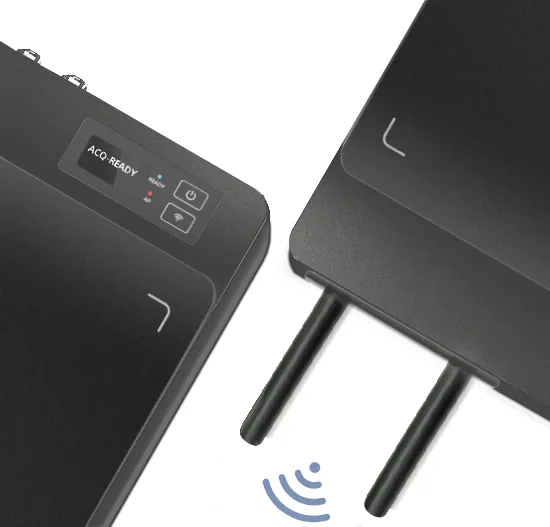

Portable digital X-ray detector with a 430 x 358 mm field of view and 3,072 x 2,560 pixel matrix, available as the standard EXT 3643S (4.4 kg) and the extra-shielded EXT 3643SH (6.8 kg). It has hot-swappable dual batteries, an OLED display, IP67 protection and runs with DRTECH's NDPro acquisition software.
EXT 3643S
- Brand
- DRTECH
- Category
- Detectors > Industrial > Static series - High mobility outdoor panel
- Method / product family
- Model
- EXT 3643S
The supply of products in this category is subject to applicable regulations and licensing requirements.
Technical Specifications
| Model | EXT 3643S |
|---|---|
| Pixel matrix | 3,072 x 2,560 |
| Dimensions | 465(W) x 438.5(H) x 20(D)㎣ |
| Weight | EXT 3643S: 4.4kg; EXT 3643SH: 6.8kg(Extra Shield) |
| IP Rate | IP 67 |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
Product Documents
No verified product document has been published for this product yet.
