Johnson & Allen
Titan UV-A Floodlight
Manufacturer product description

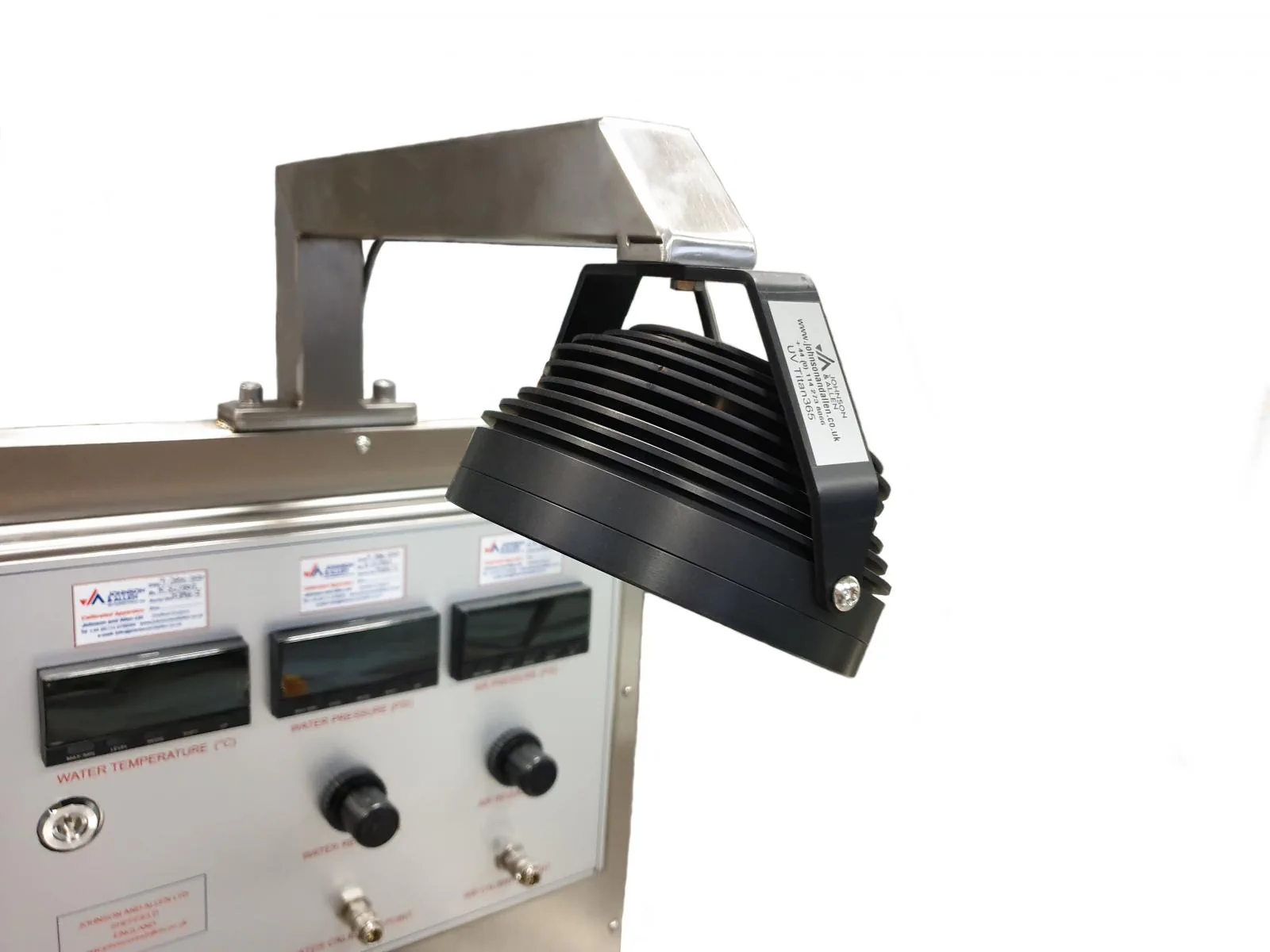

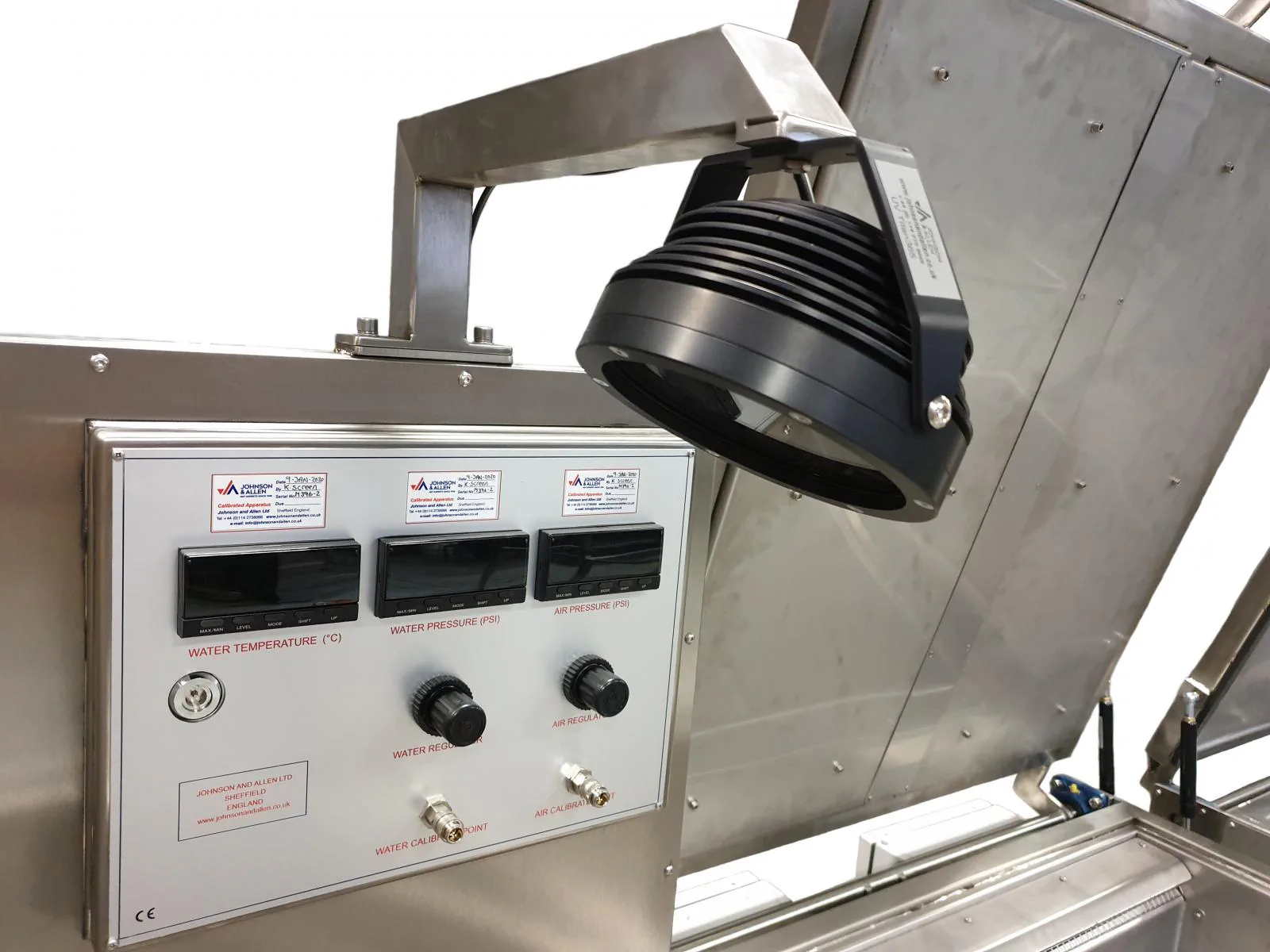

Overhead 365 nm UV-A LED floodlight with 16 LED emitters in an IP67 anodised aluminium housing, used for background UV lighting above penetrant wash stations and inspection benches. It is supplied with a mounting bracket and mains power supply.
Titan UV-A Floodlight
- Brand
- Johnson & Allen
- Category
- Inspection Lamps
- Method / product family
- Model
- Titan
Technical Specifications
| Emitters | 16 x 365 nm LED chips running at 2 W per chip |
|---|---|
| UV Source Lifetime | 25,000 Hours (estimated) |
| Warm-Up | 2 minutes |
| Peak Wavelength | 365nm |
| Wavelength Range | 360 to 370nm |
| Ingress Protection Rating | IP 67 |
| Construction | Anodised Aluminium |
| Weight | 1.5 kg |
| Dimensions | 150mm Dia x 110mm (Approx.) |
| Voltage | 100 to 240V |
| Power | 48W |
| Frequency | 50 or 60Hz |
| Warranty | 12 Months |
| Standards | ISO 3059 / ISO 9934-3: 2015 |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
