Johnson & Allen

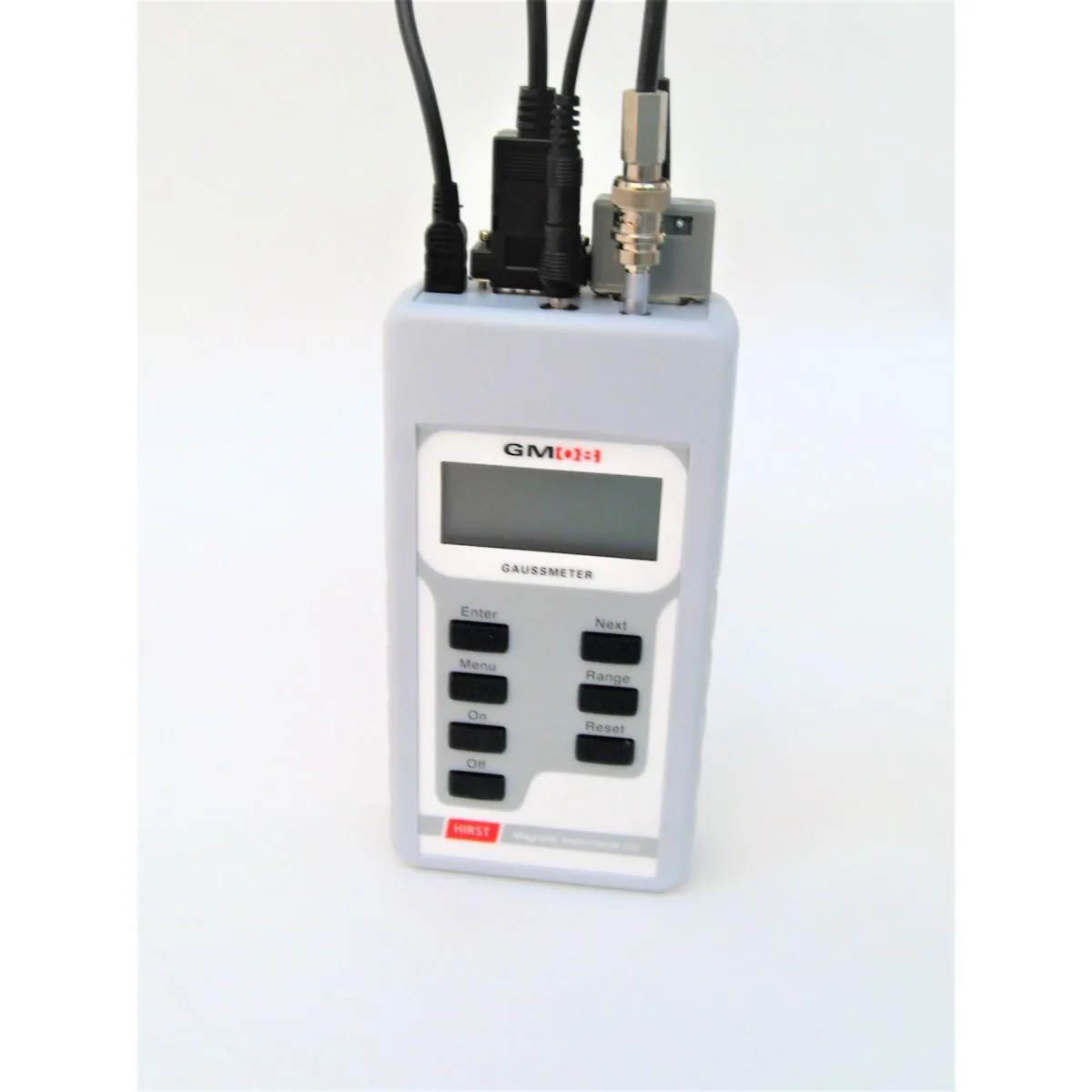

Hirst GM08 Gauss Meter
Manufacturer product description

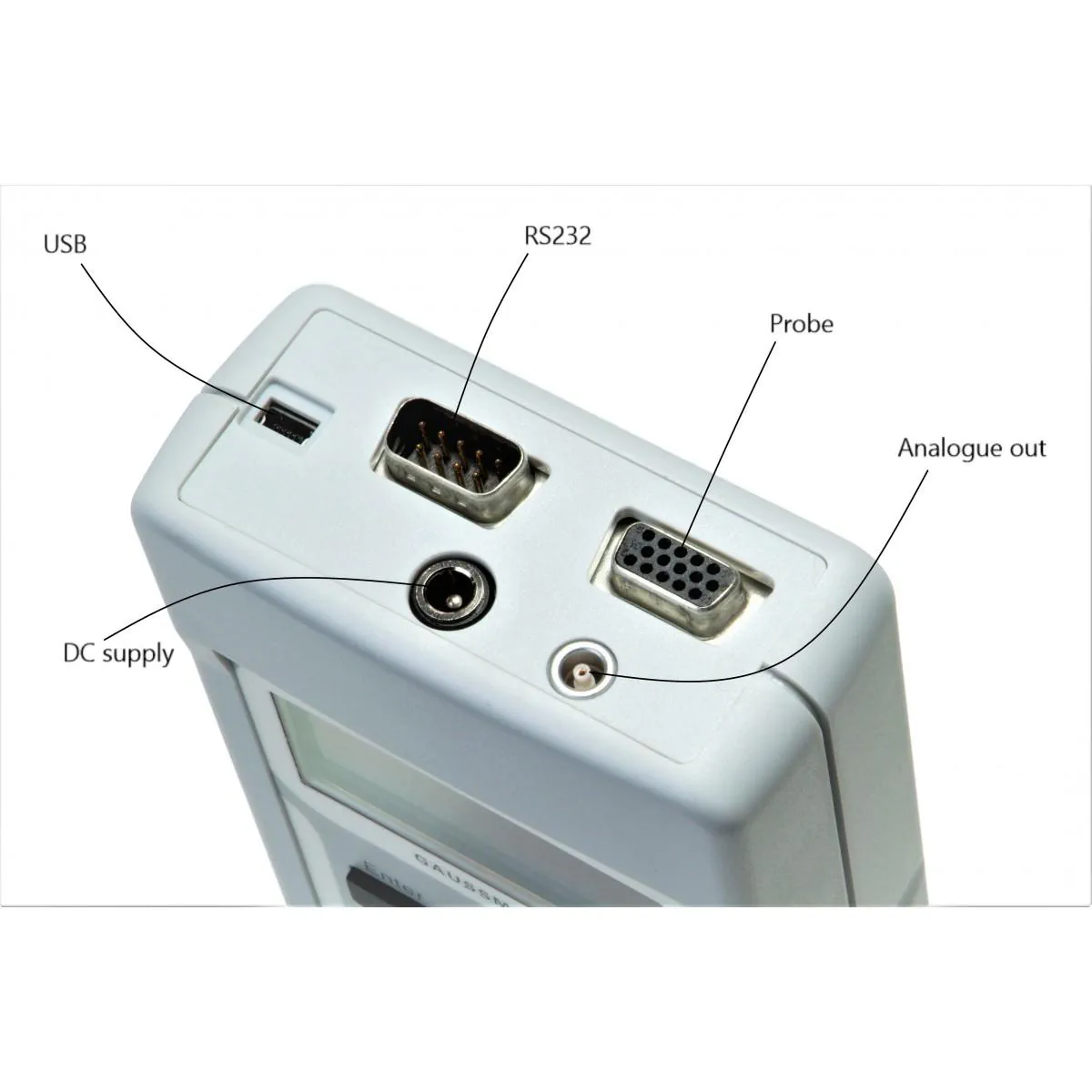

Hand-held digital gaussmeter for magnetic flux density and field strength in DC and AC modes, with PC interface and analogue output in addition to the GM07 functions. It is supplied with a transverse Hall probe, zero gauss chamber and calibration certificate.
Hirst GM08 Gauss Meter
- Brand
- Johnson & Allen
- Category
- MPI / Gauss Meters
- Method / product family
- Model
- GM08
Technical Specifications
| Function – DC | DC magnetic field measurement |
|---|---|
| Function – DC PEAK | Maximum positive peak reading of the DC field |
| Function – AC RMS | True RMS (Root mean Square) of input signal |
| Function – AC MAX RMS | Maximum true RMS (Root mean Square) |
| Function – AC PEAK | Maximum positive peak reading of the AC field |

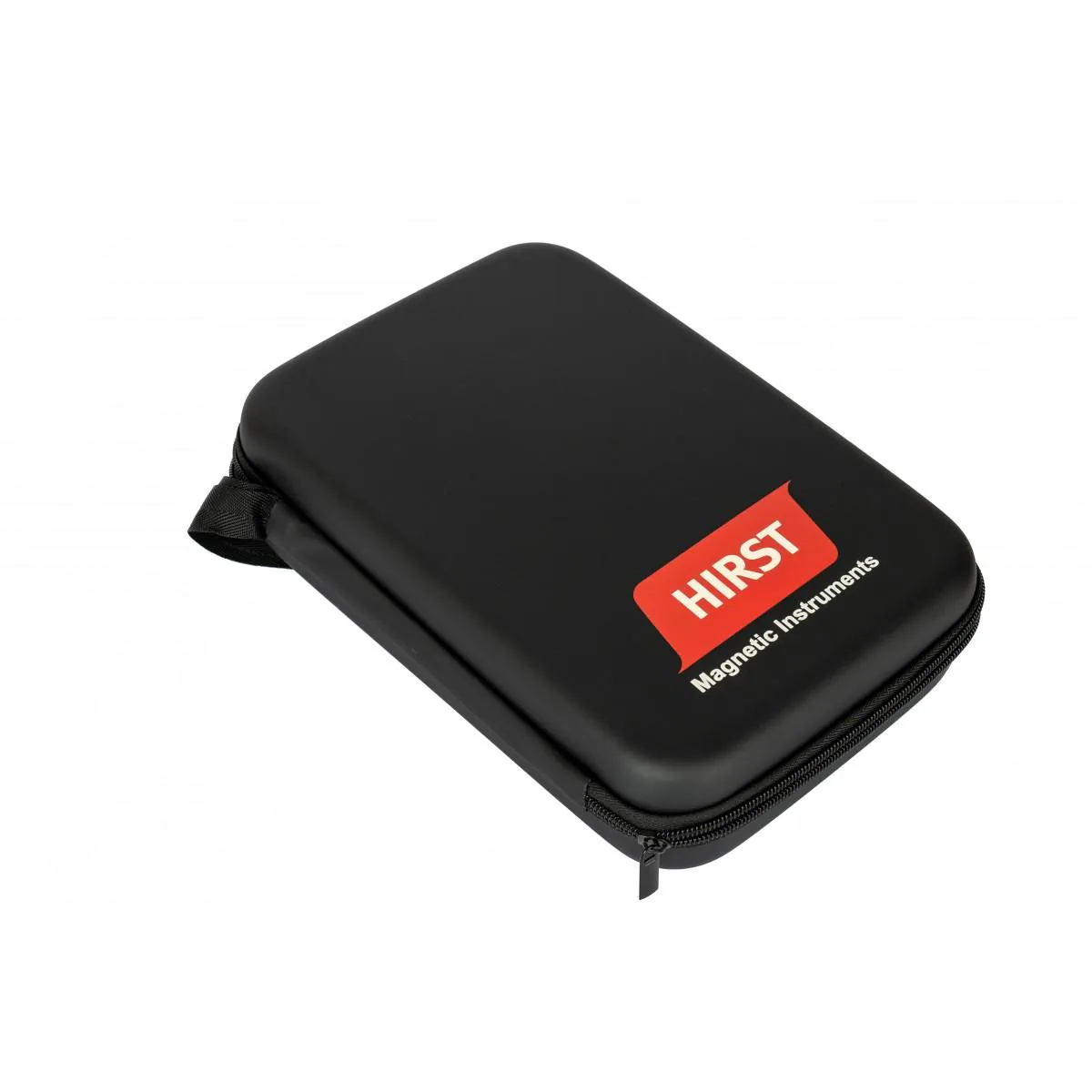

| What is included | GM08 Gauss Meter (1 OFF), Transverse Probe (1 OFF), Probe Protector (1 OFF), Zero Gauss Chamber (1 OFF), Calibration Certificate (ENGLISH) (1 OFF), Case (1 OFF), Scannable QR Code to Operator Manual (ENGLISH) (1 OFF) |
| Frequency Range - DC | DC |
| Frequency Range - AC | 15 Hz to 10 kHz |
| Operating Units | Tesla / Gauss / Amp/m / Oersted |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Battery Type | 4 x AA Batteries |
| Dimensions (LWH) | 175 x 89 x 40mm |
| Weight | 430 g |
| Warranty | 12 Months |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
Product Documents
No verified product document has been published for this product yet.
