Johnson & Allen
LBU Large MPI Bench Unit
Manufacturer product description

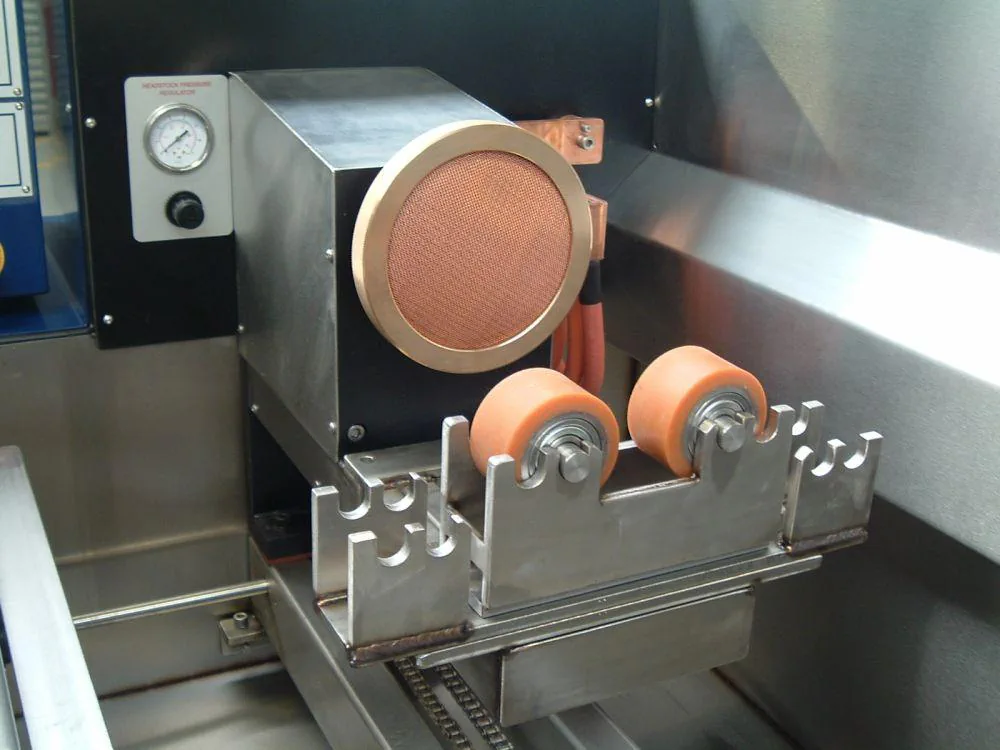

Custom large MPI bench unit with AC current flow and magnetic flow as standard, pneumatic headstock clamping and outputs built from 2,000 A up to 10,000 A for large components. Manual, Start or Plato 3 control systems are offered.
LBU Large MPI Bench Unit
- Brand
- Johnson & Allen
- Category
- MPI / MPI Bench Units
- Method / product family
- Model
- LBU
Technical Specifications
| Input Voltage | 400V |
|---|---|
| Frequency | 50Hz or 60Hz |
| Phase | 3P + N |
| Energising Modes | AC (Standard) / Mag. Flow (Standard) / HWDC (Optional) / FWDC (3Ph) (Optional) |
| Current Flow Output | Up to 10,000A |
| Mag. Flow Output | 33,000 Amp Turns (Optional) |
| Metering | Digital |
| Max. Component Length | Bespoke |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
Product Documents
No verified product document has been published for this product yet.
