JAY Magnetic Particle Inspection Yoke
Manufacturer product description

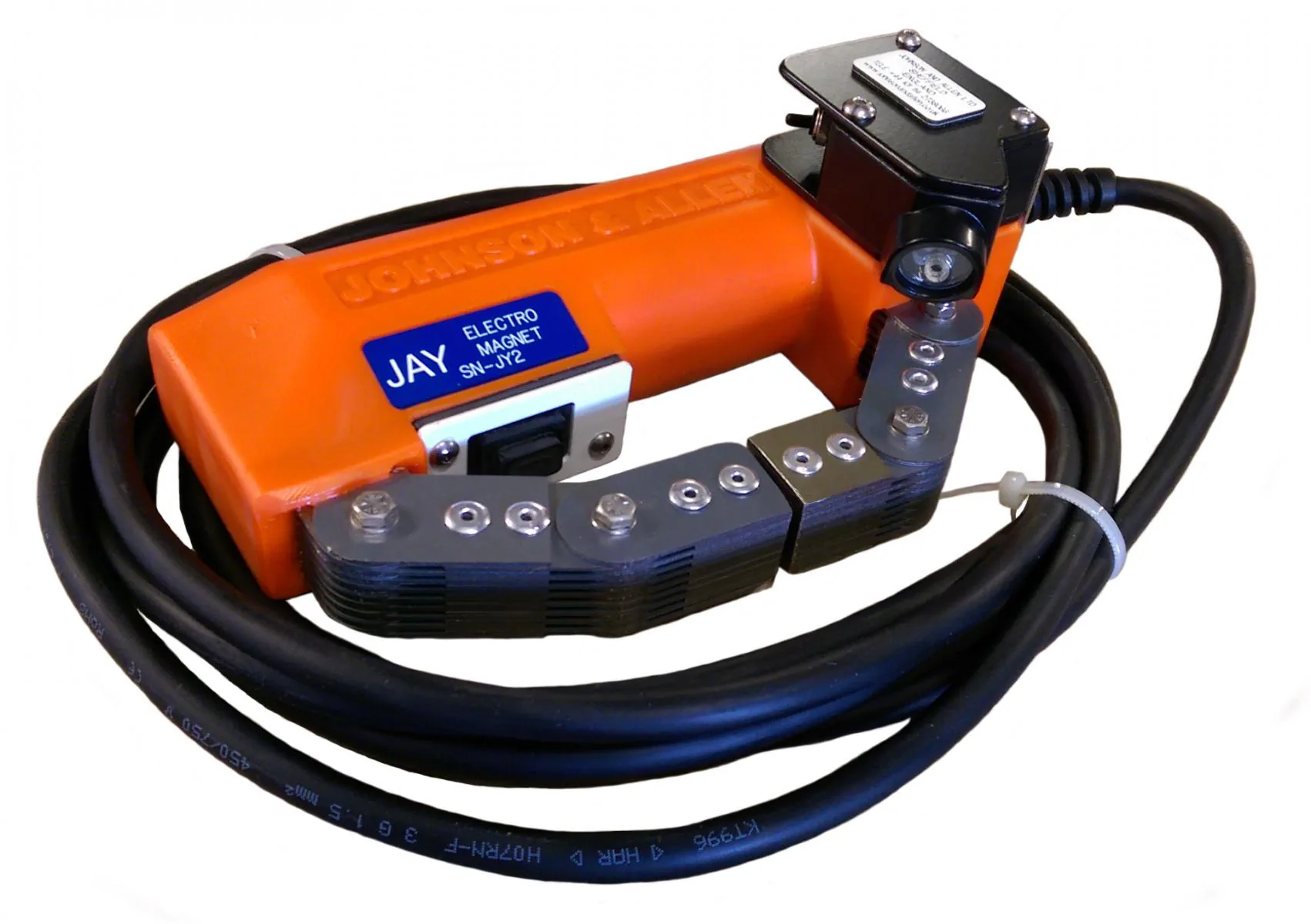

Heavy-duty AC electromagnetic yoke with a polymer-encapsulated core and trigger switch, made in 230 V and 110 V versions. An optional PAL pod adds a permanently attached white LED light between the poles.
JAY Magnetic Particle Inspection Yoke
- Brand
- Johnson & Allen
- Category
- MPI / MPI Equipment
- Method / product family
- Model
- JAY
Technical Specifications
| Voltage Regulation | ±10% of nominal |
|---|---|
| Frequency | 50 / 60 Hz |
| Waveform | AC |
| Switch Position | Trigger Mounted |
| Recommended Pole Spacing | 150mm |
| Pole Spacing Range | 50 to 210mm |
| Leg / Pole Contact Size | 25 x 25mm |
| Duty Cycle | 25% - Max. ON time 30 seconds |
| Lift Strength (100 to 150mm spacing) | > 4.5 kg (Equivalent to 44 N) |
| Magnetic Field | > 2.5 kA/m @ 6 inch / 152mm spacing |
| Dimensions (LWH) | 230 x 60 x 180mm |
| Weight | 3.25 kg |
| Ingress Protection | IP56 |
| Mains Lead | 4 Meters |
| Plug Type | ‘C’ Form - 16A |
| Warranty | 12 Months |
| Conformity | UKCA / CE / RoHS |
| Specification Compliance (List is not exhaustive) | ISO 9934: 2016 / ASTM E 1444-22a / ASTM E 709-21 / ASTM E3024-22a |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
