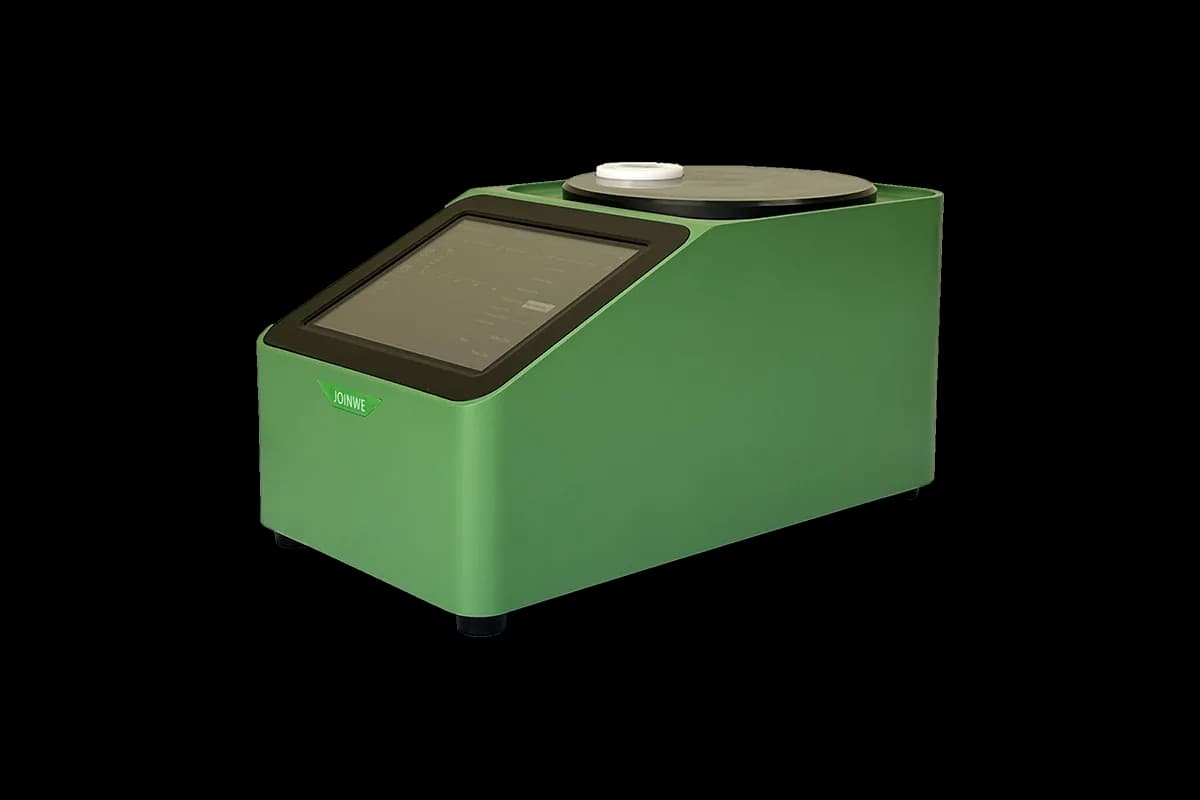

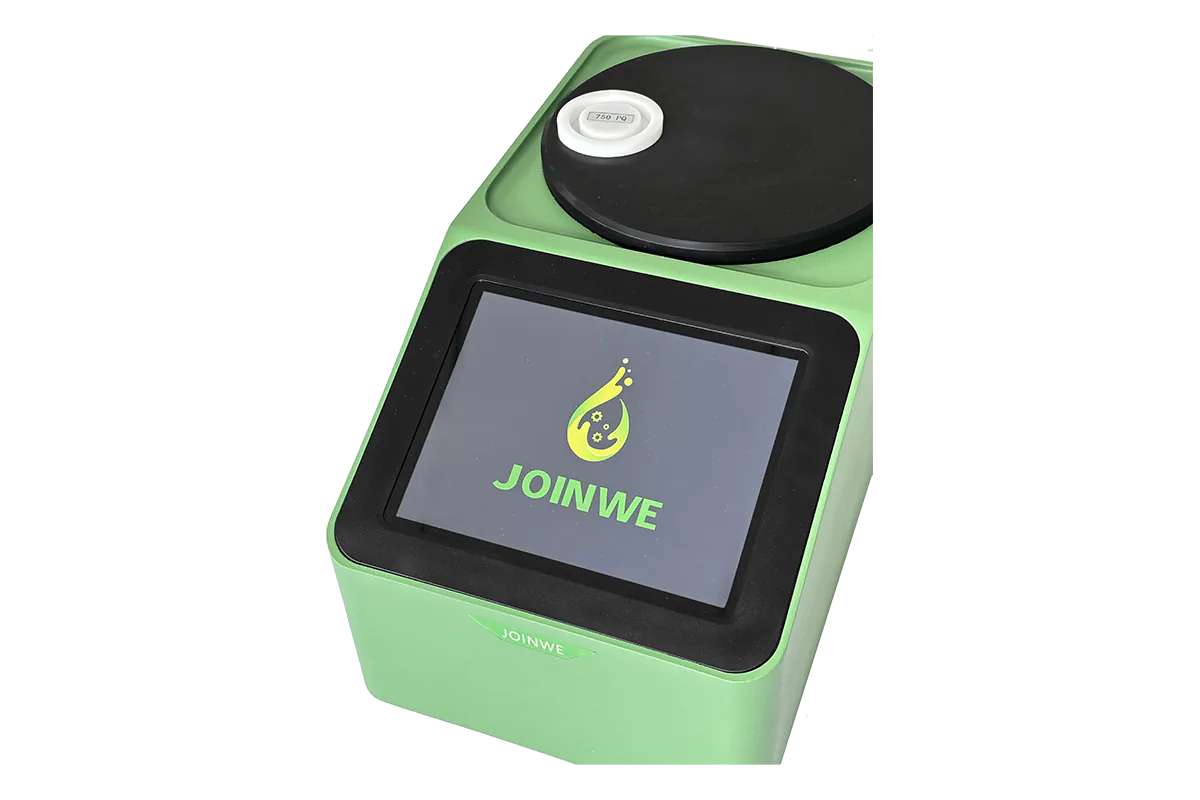

JPL-7 Ferrous Debris Monitor
Manufacturer product description
JPL-7 Ferrous debris monitor measures the content of wear shavings by using the principle of electromagnetic induction and the changes in the magnetic field of the sensor coil caused by ferromagnetic wear shavings in the oil sample. It has a good linear relationship with the iron shavings content and particle size of the oil sample.
JPL-7 Ferrous Debris Monitor
- Brand
- JOINWE
- Category
- Laboratory Oil Analysis Instrument
- Method / product family
- Model
- JPL-7
Technical Specifications
| Usable Range | Lubricating oil and grease |
|---|---|
| Output Result | Total ferromagnetic particle content, ferromagnetic particle concentration |
| Detection Method | ASTM D8184 |
| Detection Range | 0-15000PQ |
| Detection Size | ＞ 1 μm (Ferromagnetic abrasive particles) |
| Resolution | 1PQ (Average resolution 0.1PQ) |
| Detection Accuracy | Measure stable oil samples (such as 750 standard samples), repeat the measurement 100 times, and 90% of the data fall within ±0.5% or ±3PQ |
| Sample Volume | 2mL |
| Detection Speed | ＜ 10 second |
| ·Wheel Speed | 14s/circle |
| Measurement Accuracy | ± 1 % |
| Display | 8-inch touch screen |
| Storage Space | 32G |
| USB Connection | type-A2.0 （ Only for connecting to a USB flash drive ） |
| Working Temperature | 0℃ ～ 50℃ |
| Ambient humidity for use | 30%-80% |
| Host Size | 388 * 260 *1 80 mm |
| Power Supply | AC 100V-240V 50Hz/60Hz |
| Weight (Net weight) | 4 . 5 kg |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
