KOWOTEST
KOWOTHERM K40 Film Drying Cabinet
Manufacturer product description

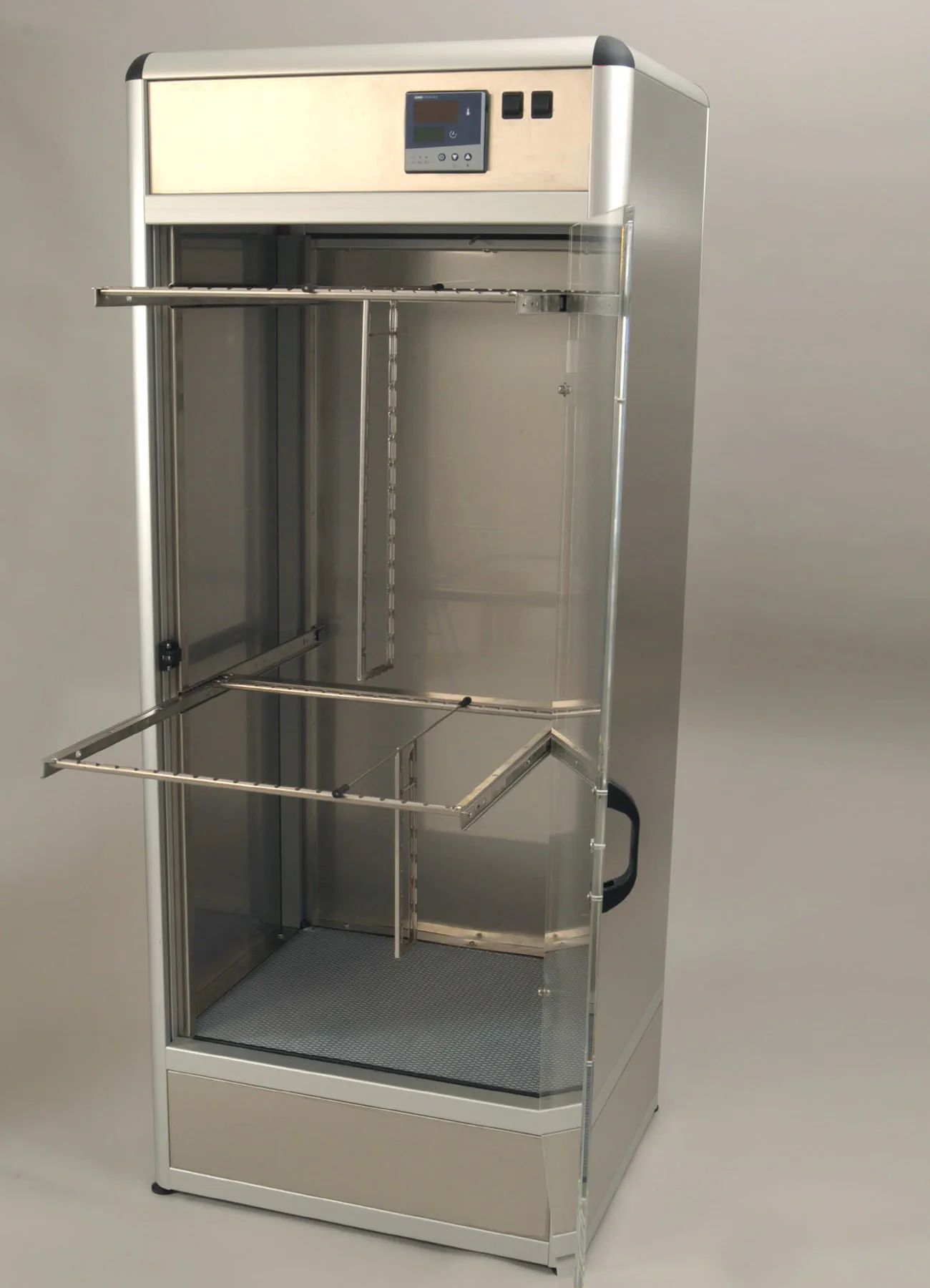

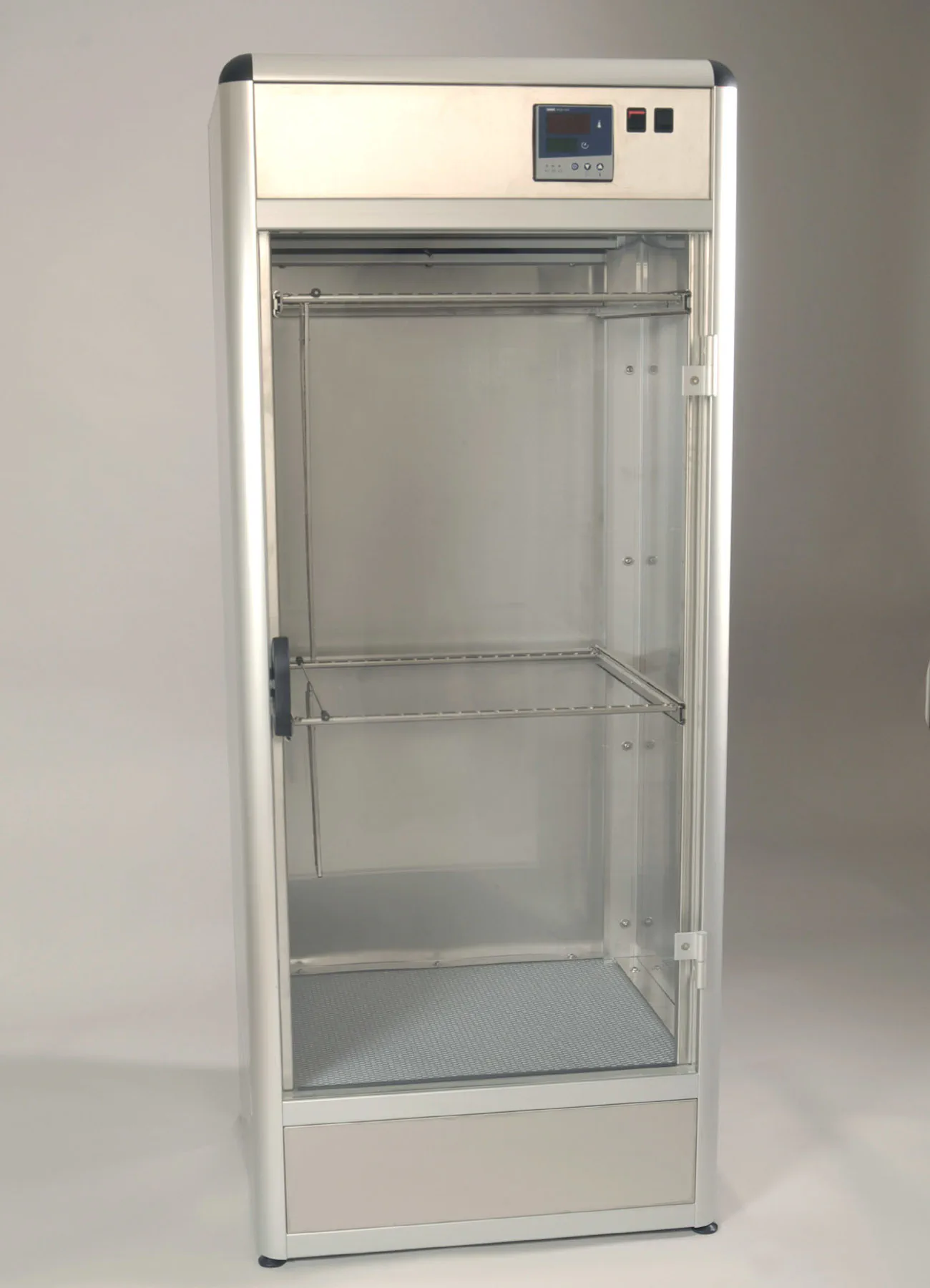

Film drying cabinet with an anodised aluminium frame, stainless steel walls and a microprocessor controller for temperature and time. The K40 has two drawer racks (up to three possible) and is the taller version of the KOWOTHERM K range.
KOWOTHERM K40 Film Drying Cabinet
- Brand
- KOWOTEST
- Category
- RT / Dark Room / Film Dryer
- Method / product family
- Model
- 12 31055
Technical Specifications
| Article No. | 12 31055 |
|---|---|
| Housing – frame | Aluminum profile, anodized |
| Housing – walls | stainless steel |
| Controller | micro processor controller for temerature and time |
| Heating | 1.000 / 2.000 W – selectable with switch |
| Temperature range | 20 … 40°C – selectable with controler |
| Air filter inlet | fine fliter -5 micron |
| Air volume flow | 60 m³ / h |
| Power supply | 230 V / 1 Ph / 2,5kW (11A) |
| Air exchange rate | 190 per hour |
| Drawers | 2 (up to 3 possible – accessories) |
| Number films – max. 35 x 43 cm | 40 – in single channel hanger |
| Number films – max. 15 x 48 cm | 120 – in tripple channel hanger |
| Dimensions drying chamber | 570 x 470 x 120 mm (WxDxH) |
| Dimensions external | 650 x 550 x 1700 mm (WxDxH) |
| Weight | 70 kg |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
