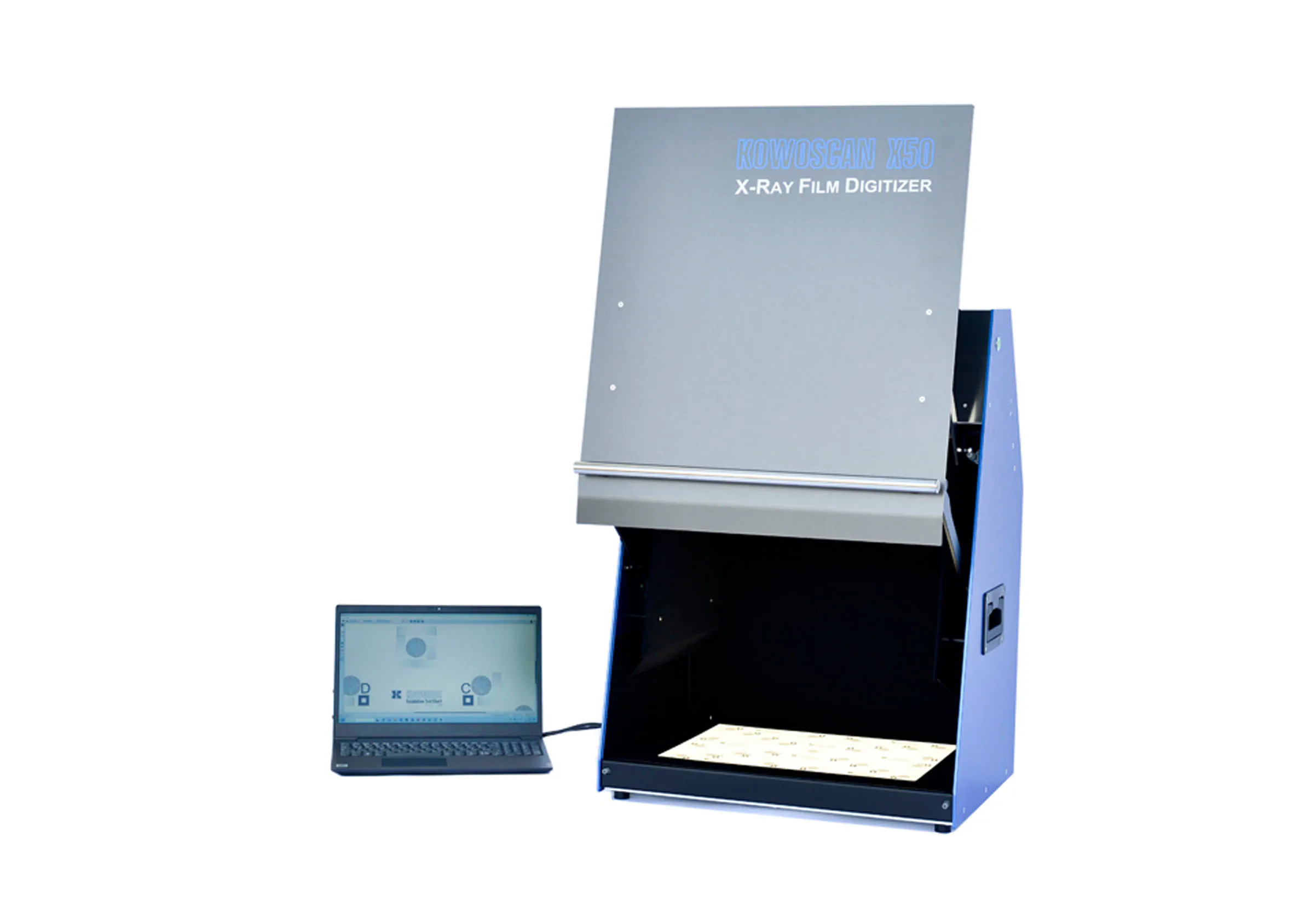

KOWOSCAN X50 Film Digitizer
Manufacturer product description

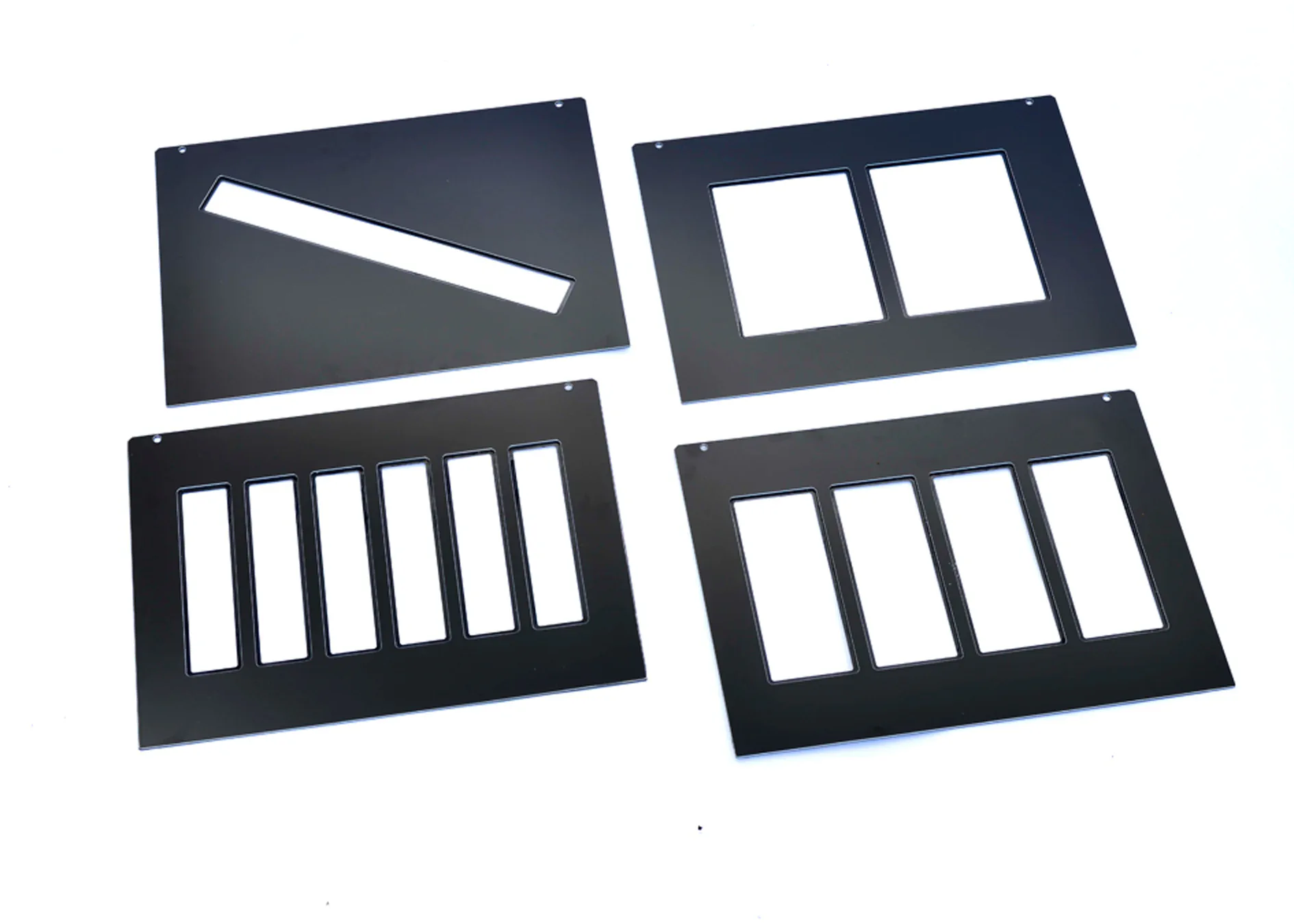

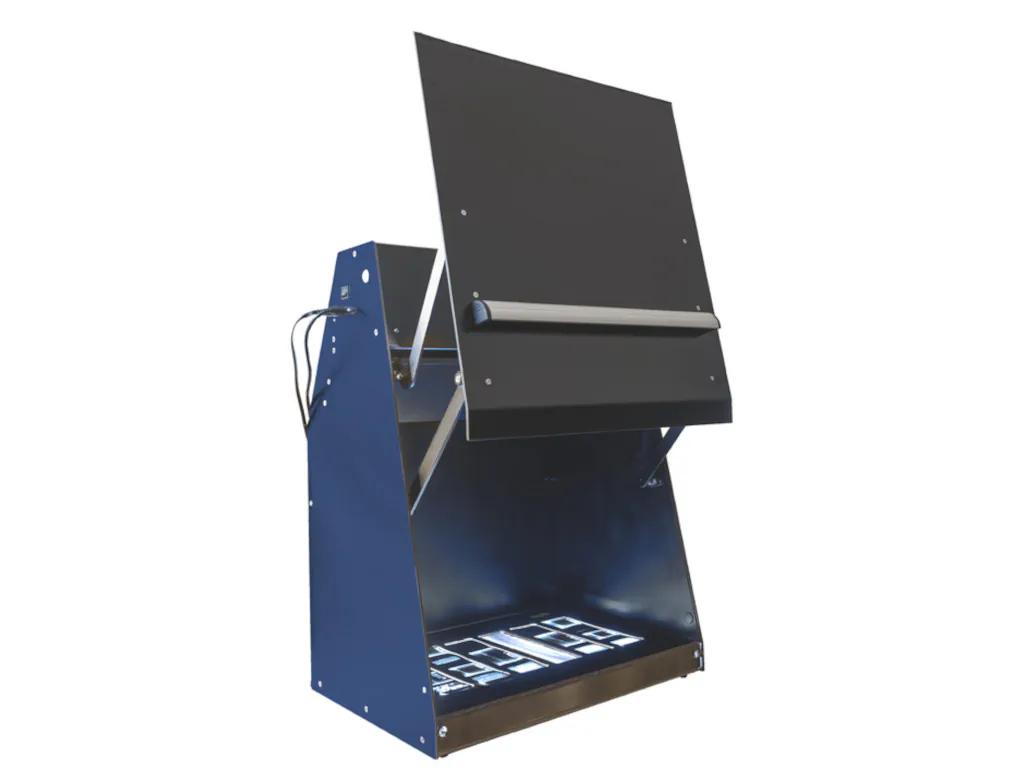

Film digitizer that photographs NDT X-ray films on an evenly illuminated scanning area with a high-resolution 2D camera, so it has no moving scanner parts; several small films can be captured in one shot and are separated automatically by the KowoScan software. The detail page lists a 300 x 450 mm scanning size and DICONDE or TIFF output.
KOWOSCAN X50 Film Digitizer
- Brand
- KOWOTEST
- Category
- RT / Image Evaluation / Film Digitizer
- Method / product family
- Model
- 13 42100
Technical Specifications
| Article No. | 13 42100 |
|---|---|
| Scanning size | 300 x 450 mm – max. max. length: 480 mm (with max. width of 10 cm) |
| Digitization quality class | DS according to DIN EN ISO 14096 and ASTM E1936 (see notes) |
| Scanner pixel sizes | class DS: 30 μm, 60 μm, 100 μm; class DB: 50 μm, 70μm, 85 μm |
| Scanning resolution (v S Rb) | 40 μm (with Duplex wire type IQI using 30 μm pixel size) |
| Scanning time (film 30×40 cm2) | class DS 30 μm: 45 s; 60 μm: 24 s; fast scan (no class): 8 s |
| Opt. Density range (DWR) | D 0.2 … D 5.0 with linearity of D 0.02 (all classes) |
| Contrast sensitivity (ΔD) | D 0.2 … D 4.5 with ΔDCS < 0.02 (class DS) |
| Data format | DICONDE or TIFF (16 Bit density or gray value images) |
| Scanner resolution (30μm) | 14870 x 9920 pixel (full area); 22 Bit image sampling (eff.) |
| Scanner resolution (60μm) | 7435 x 4960 pixel (full area); 22 Bit image sampling (eff.) |
| Communication port | USB 3.0 |
| Power Supply | 100 … 240 V, 50 … 60 Hz / 24 V DC, 120 W |
| Dimensions | 57 x 44 x 79 cm (W x D x H) |
| Weight unit | 29.8 kg plus 1.0 kg (external power supply) |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
