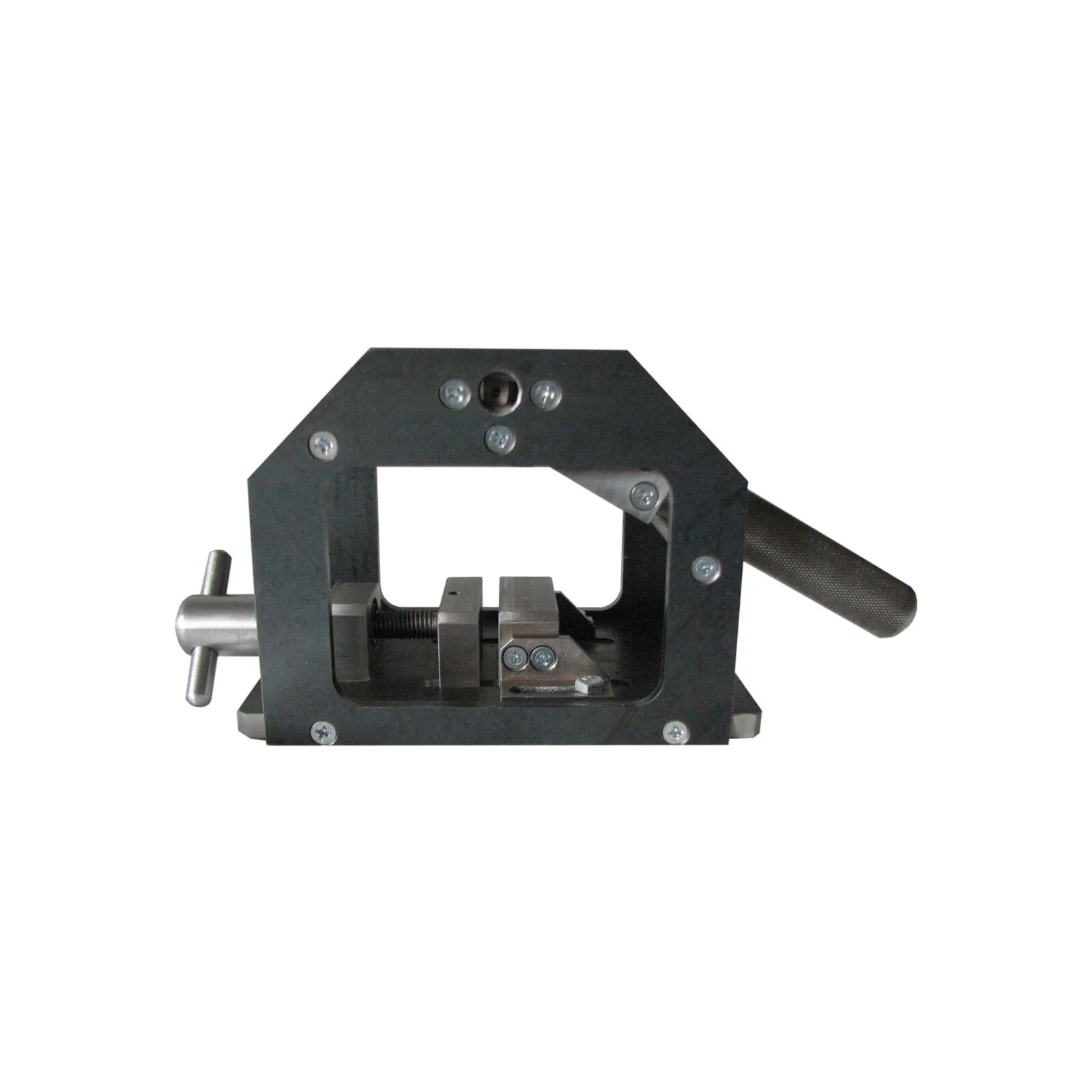

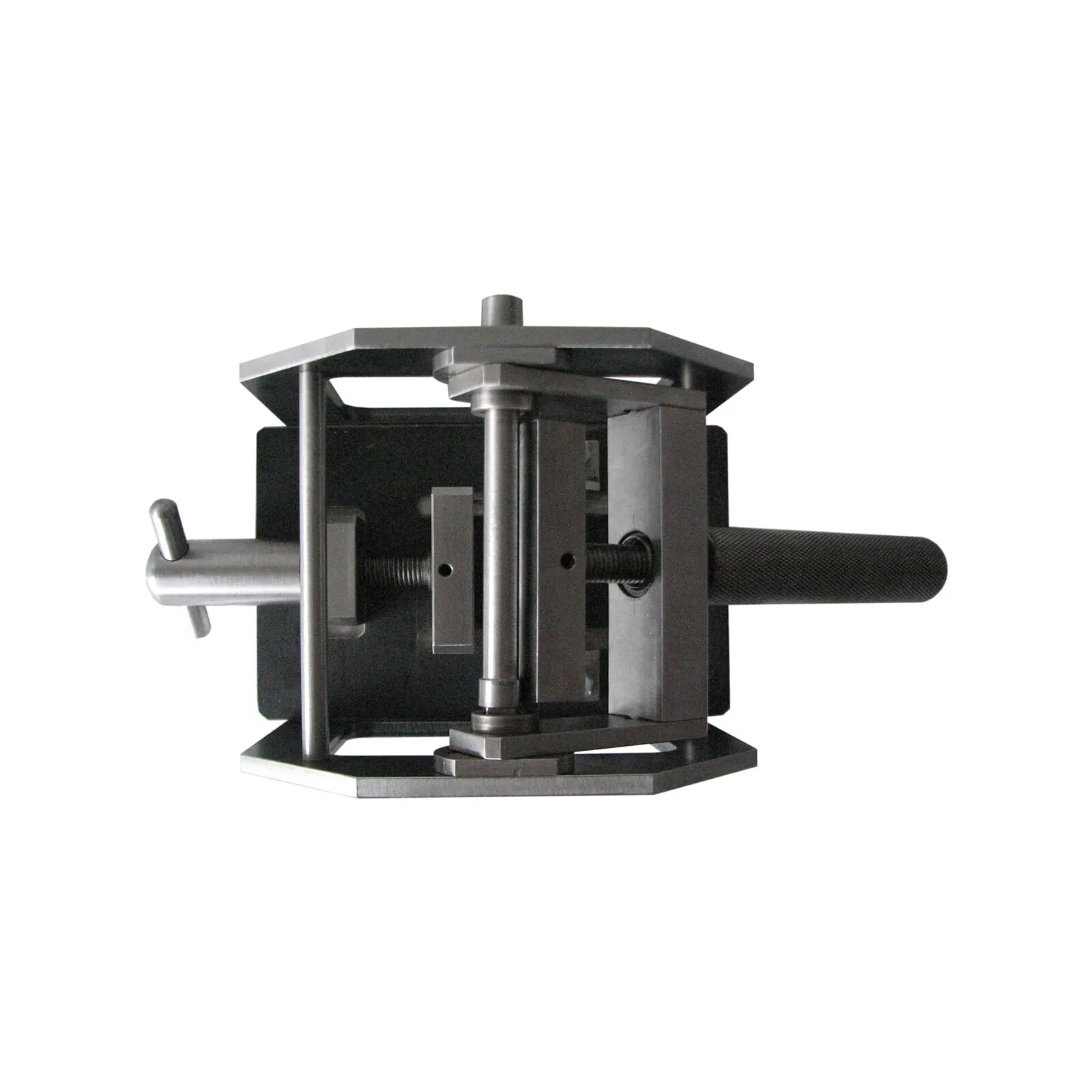

Bending Coating Tester Cylindrical NOVOTEST BEND IR
Manufacturer product description
Cylindrical mandrel bend tester with rods from 2 to 32 mm in diameter for determining the minimum bend diameter at which a coating on a metal plate shows no cracking or delamination.
Bending Coating Tester Cylindrical NOVOTEST BEND IR
- Brand
- NOVOTEST
- Category
- Coating Testing / Strength and hardness testing
- Method / product family
- Model
- BEND IR
Technical Specifications
| Measurement range | from 2 mm to 32 mm (others – on request) |
|---|---|
| The length of the test bars, no more | 80 mm |
| Diameters of cylindrical rods | 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 16 mm, 20 mm … 32 mm |
| The material of rods | steel |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
