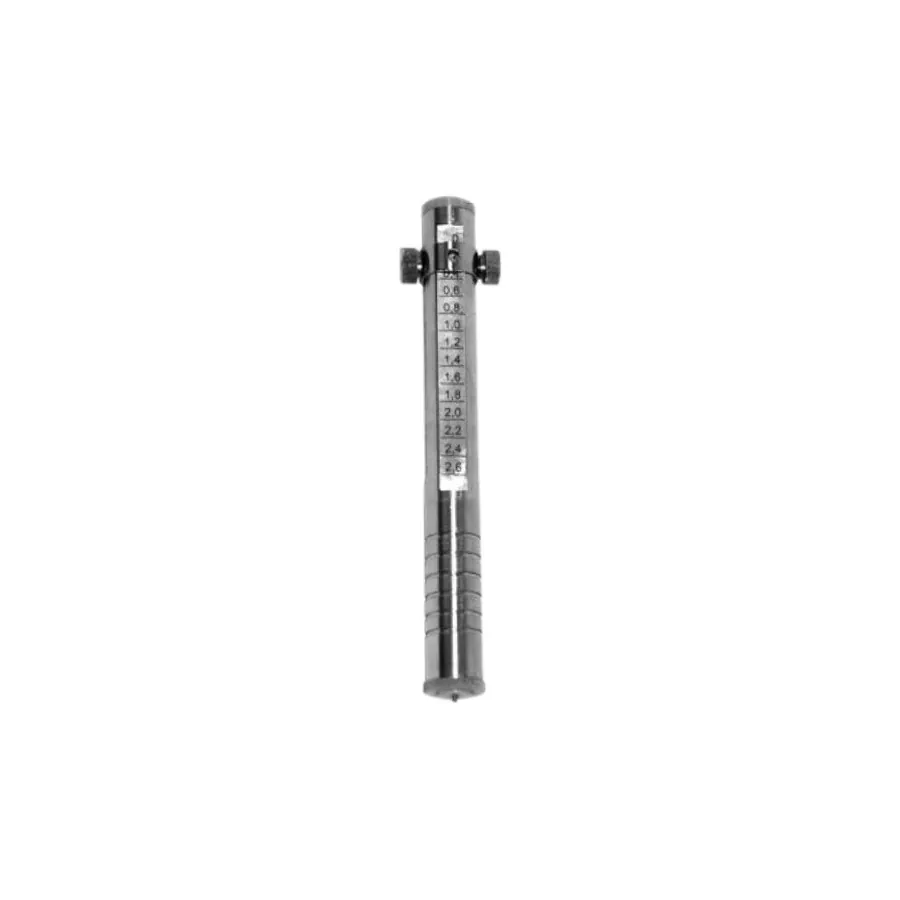

Scratch Hardness Coating Tester NOVOTEST TPP-1518
Manufacturer product description

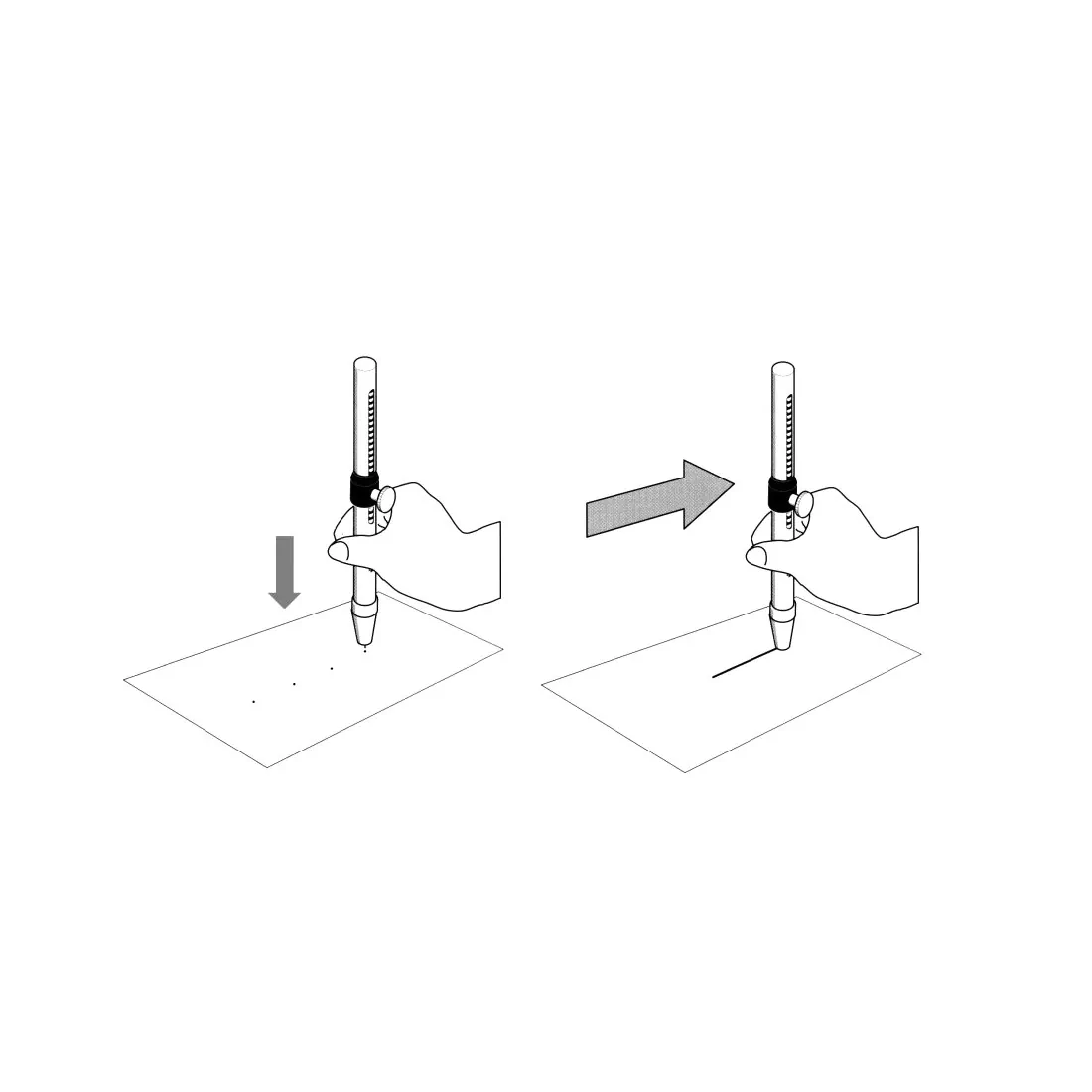

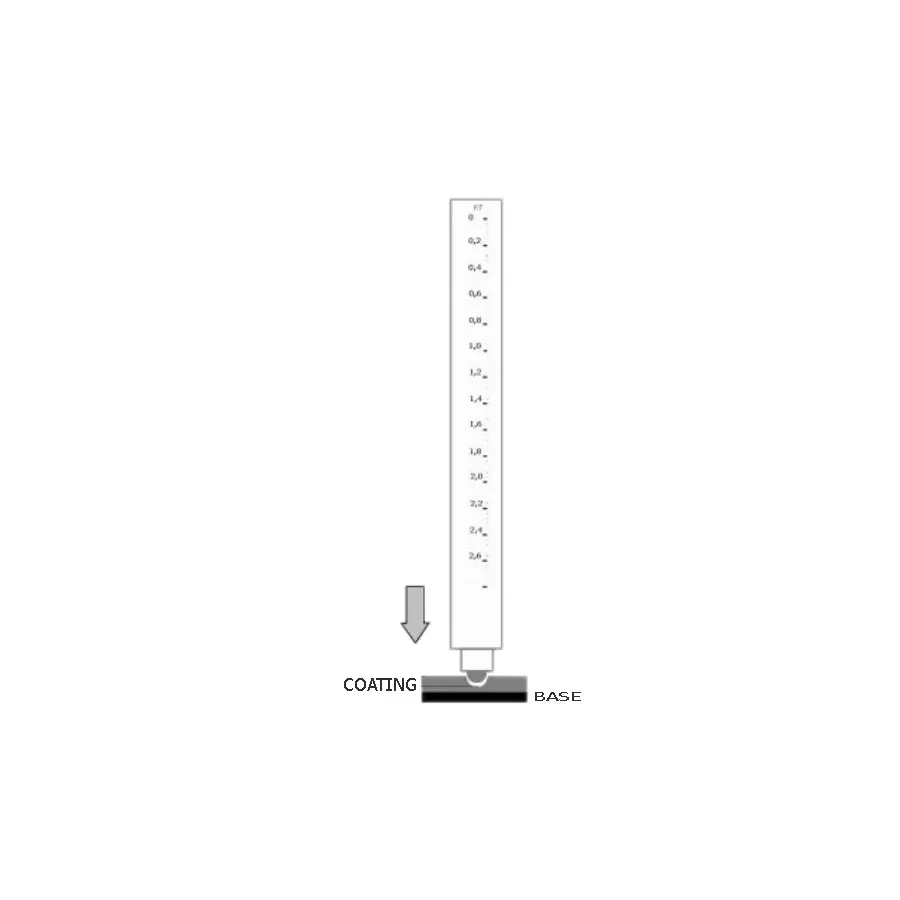

Pocket-size spring-loaded tester with a 1 mm ball tip for assessing the indentation hardness and scratch resistance of coatings, with adjustable load and usable on curved surfaces.
Scratch Hardness Coating Tester NOVOTEST TPP-1518
- Brand
- NOVOTEST
- Category
- Coating Testing / Strength and hardness testing
- Method / product family
- Model
- TPP-1518
Technical Specifications
| Indenter | ball tip with 1 mm diameter |
|---|---|
| The load range, F | up to 2,5 kg (with steps 0,2 kg) – model 1; up to 4,0 kg (with steps 0,4 kg) – model 2 |
| Operating temperature range | -10 ° C to +40 ° C |
| Total length | 160 mm |
| Diameter | 16 mm |
| Weight, net: approx. | 0,25 kg |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
