Combined Hardness Tester NOVOTEST T-UD3
Manufacturer product description

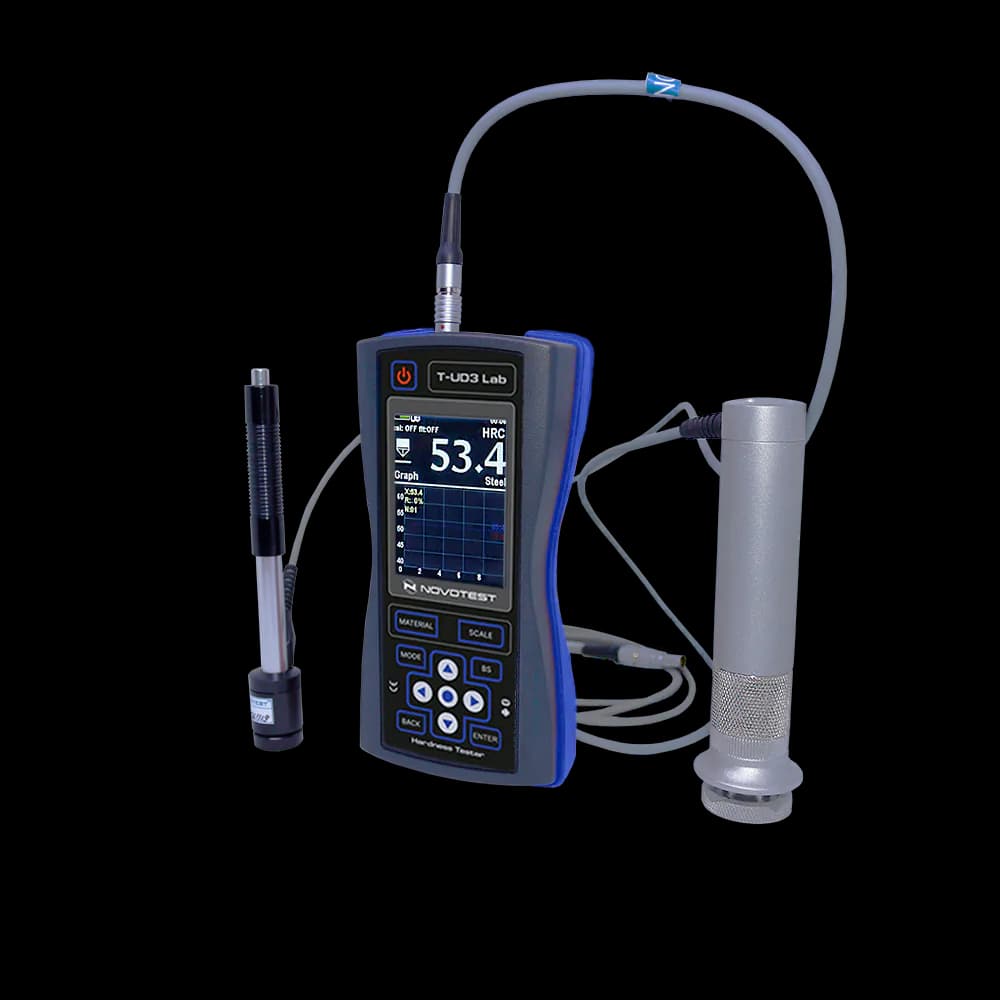

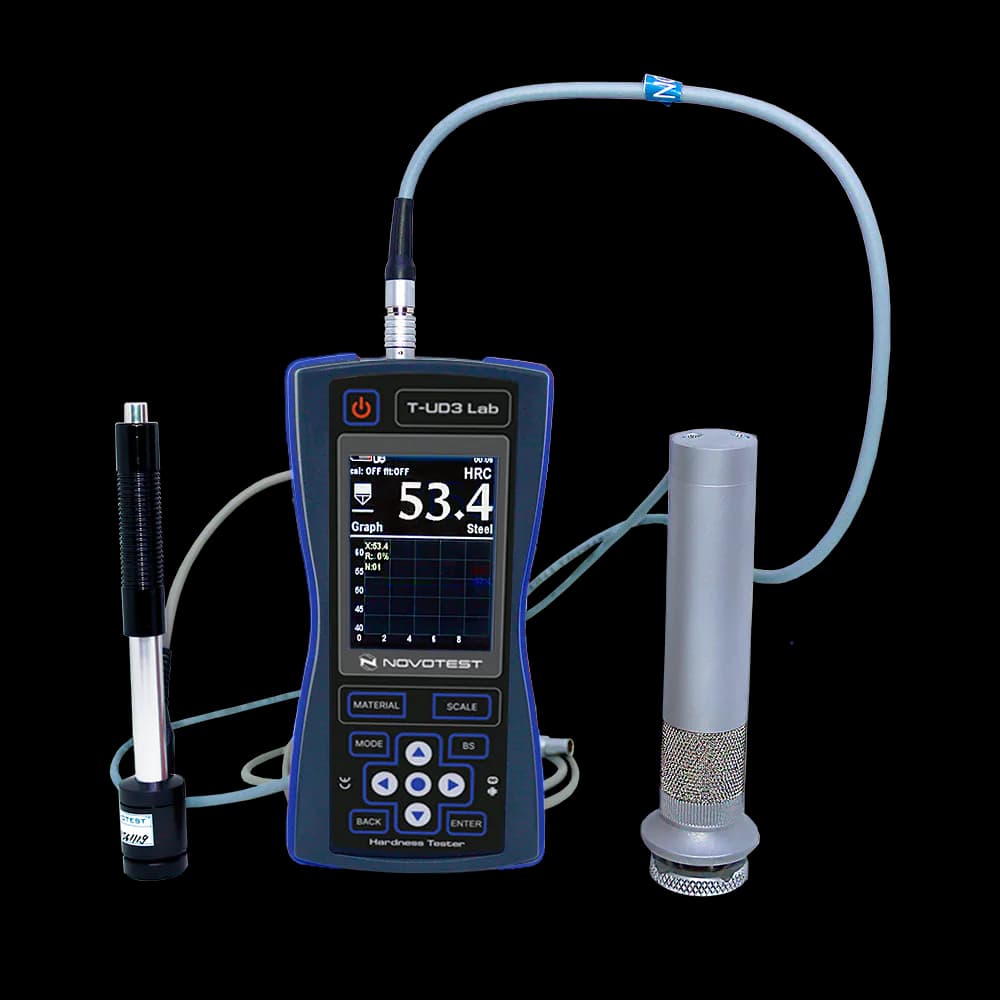

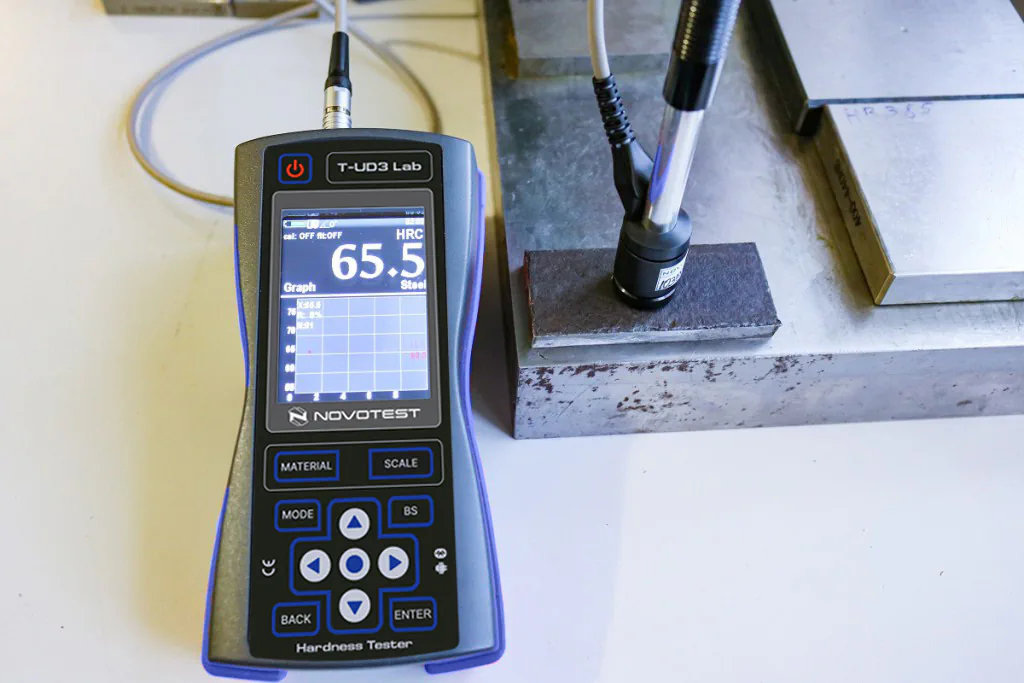

Combined portable hardness tester that accepts both UCI (ASTM A1038) and Leeb rebound (ASTM A956) probes on one electronic unit, with a colour display and three AA batteries; the Lab version adds a Bluetooth link to the NOVOTEST Lab app.
Combined Hardness Tester NOVOTEST T-UD3
- Brand
- NOVOTEST
- Category
- Hardness testing / Portable hardness testers
- Method / product family
- Model
- T-UD3
Technical Specifications
| UCI probe types | 1kgf (10N) 2.2 lbf; 5kgf (50N) 11lbf; 10kgf (98N) 22lbf |
|---|---|
| Leeb probe types | D; DC; DL; C; D+15; E; G |
| Measuring range | HRC:20~70; HB:90~650; HV:230~940; Tensile strength, MPa: 370~1740; User calibrations for any range (for example: HV100-3000) |
| Measuring accuracy | HRC: 2HRC; HB: 10HB; HV: 15HV |
| Standards | ASTM A1038; ASTM A956 |
| Indenter | UCI probe – Diamond indenter; Leeb probe – Hardened ball |
| Measuring direction | Any direction 360° |
| Data storage | Limited only by the memory card up to 32Gb |
| Communication | Upload data to PC and export as a spreadsheet (USB cable and software included ) |
| Hardness scales | UCI probe – HRC, HB, HV, MPa; Leeb probe – HRC, HRB, HB, HV, HL, MPa; Additional custom scales for calibration |
| Materials | Ultrasonic (UCI) probe – pre-calibrated for steel; Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper; Additional custom materials for calibration |
| Data display | Load applied/contact (UCI); Angle (Leeb); Single test result; Max, Min, Average of tests; Number of tests; Deviation; Var. coeff.; Histogram, Signal and Smart Modes (Filter of incorrect measurements). |
| Language | English; German; French; Polish; Russian; *additional languages available by request |
| Indication | Color LCD display (320×240) |
| Operating environment | Temperature:-20°C~40°C; Humidity: 30%~80%R.H. |
| Power supply | DC 4,5V (3 pcs batteries AA) |
| Instrument dimensions | 160x75x30mm |
| Net weight | Approx. 0.3kg (without probe) |
| Gross weight (package) | 2kg |
| Package dimensions, cm | 33*27*10 |
| Battery life | Approx. 10 hours. |
| Warranty | 3 (1+2) years |
| Package gross weight, kg | 1.8-2kg |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
