NOVOTEST

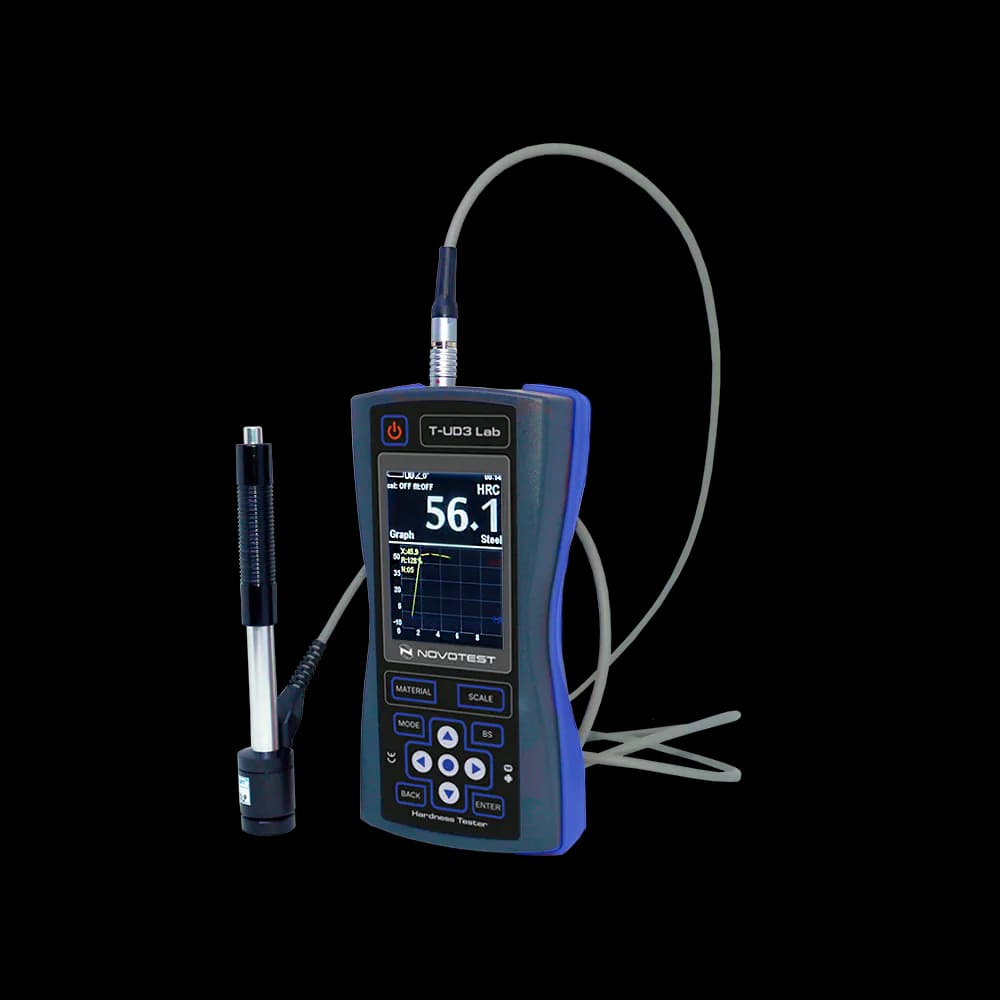

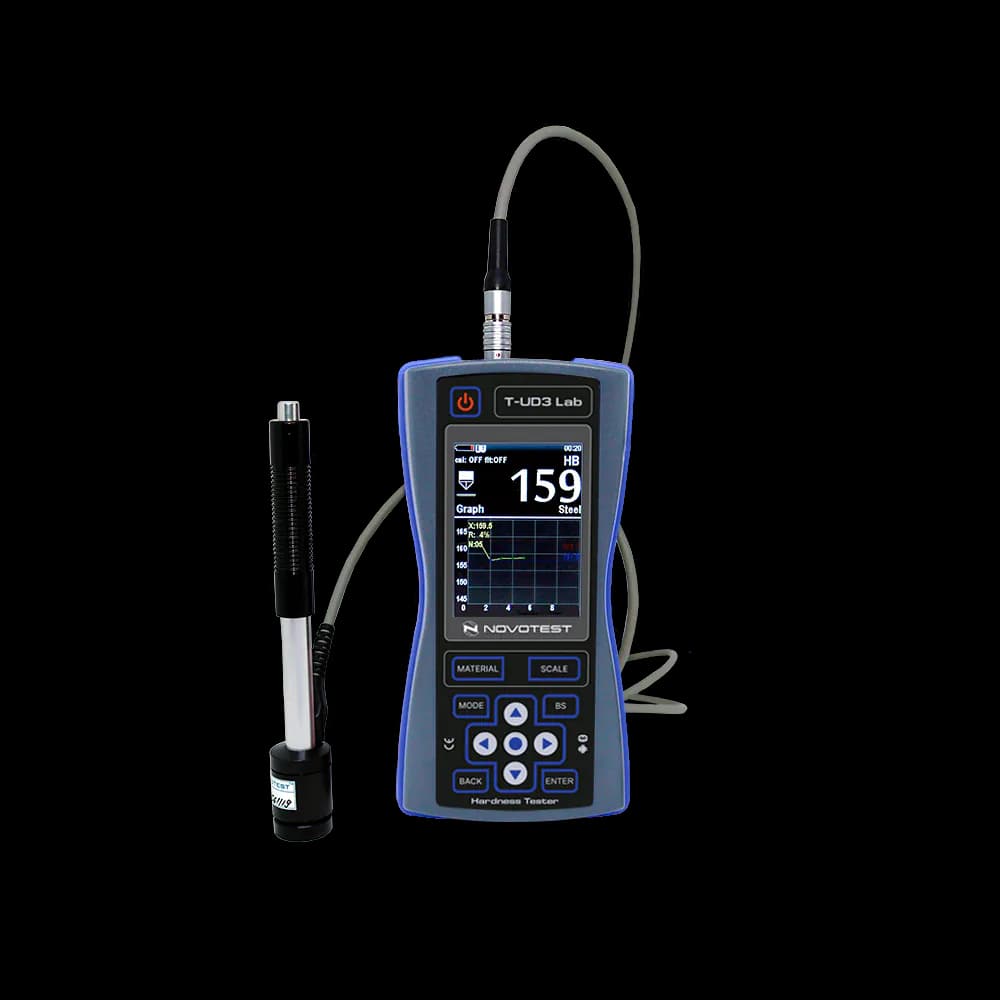

Leeb Hardness Tester NOVOTEST T-D3
Manufacturer product description
Portable Leeb rebound hardness tester (ASTM A956) with a colour display, compatible with D, DC, DL, C, D+15, E and G impact devices and pre-calibrated for common metals; the Lab version adds a Bluetooth app connection.
Leeb Hardness Tester NOVOTEST T-D3
- Brand
- NOVOTEST
- Category
- Hardness testing / Portable hardness testers
- Method / product family
- Model
- T-D3
Technical Specifications
| Leeb probe types | D; DC; DL; C; D+15; E; G |
|---|---|
| Measuring range for steel | HRC:20~70; HB:90~650; HV:230~940; Tensile strength, MPa: 370~1740; User calibrations for any range (for example: HV100-3000) |
| Measuring accuracy | HRC: 2HRC; HB: 10HB; HV: 15HV |
| Standards | ASTM A 956; ASTM E 140; ASTM A 370; ISO 16859; DIN 50156; GB/T 17394; JB/T 9378; ISO 18265 |
| Indenter | Hardened ball (Leeb) |
| Measuring direction | Any direction 360° |
| Data storage | Limited only by the memory card up to 32Gb |
| Communication | Upload data to PC and export as a spreadsheet (USB cable and software included ) |
| Hardness scale | Leeb probe – HRC, HRB, HB, HV, HL, MPa; Additional custom scales for calibration |
| Materials | Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper; Additional custom materials for calibration |
| Data display | Angle (Leeb); Single test result; Max, Min, Average of tests; Number of tests; Deviation; Var. coeff.; Histogram; Signal and Smart Mode (Filter of incorrect measurements) |
| Language | English; German; French; Polish; Russian; *additional languages available by request |
| Indication | Color LCD display (320×240) |
| Operating environment | Temperature:-20°C~40°C; Humidity: 30%~80%R.H. |
| Power supply | DC 4,5V (3 pcs batteries AA) |
| Instrument dimensions | 160x75x30mm |
| Net weight | Approx. 0.3kg (Without probe) |
| Battery life | Approx. 10 hours. |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
