NOVOTEST
UCI Hardness Tester NOVOTEST T-U3
Manufacturer product description

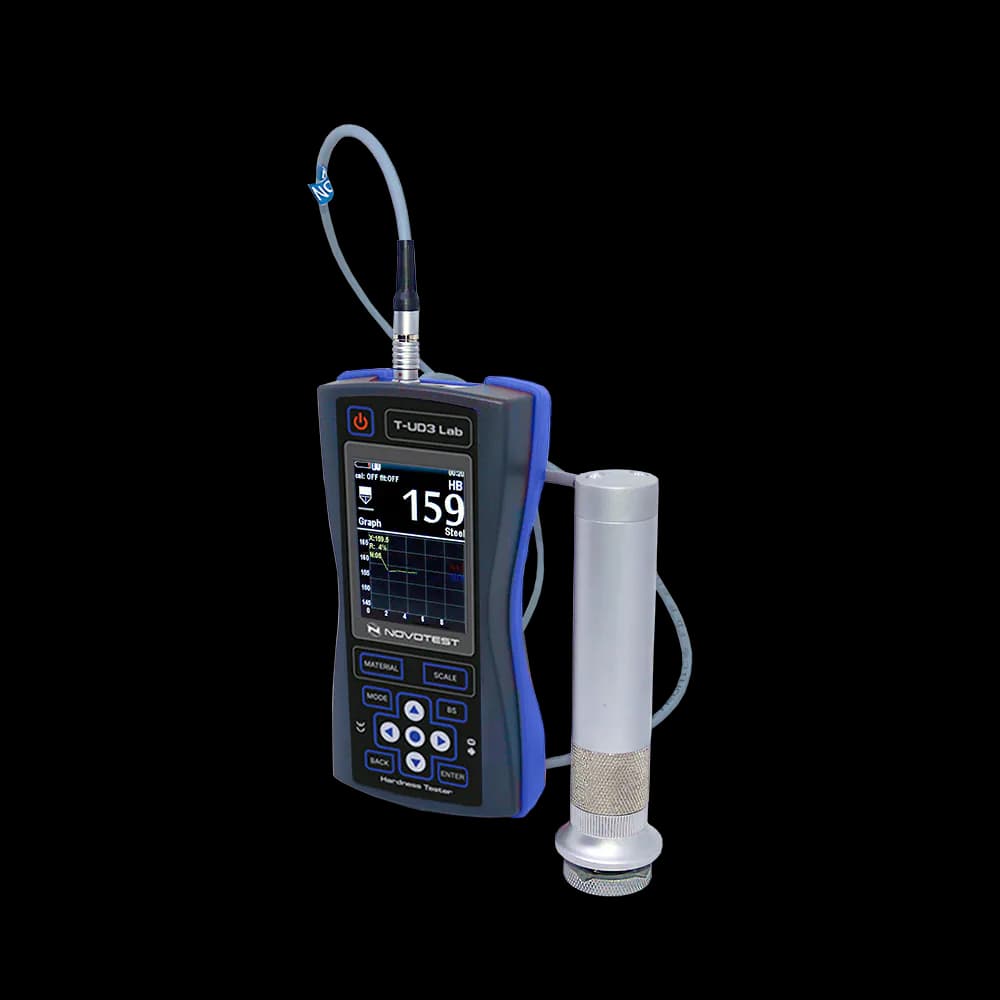

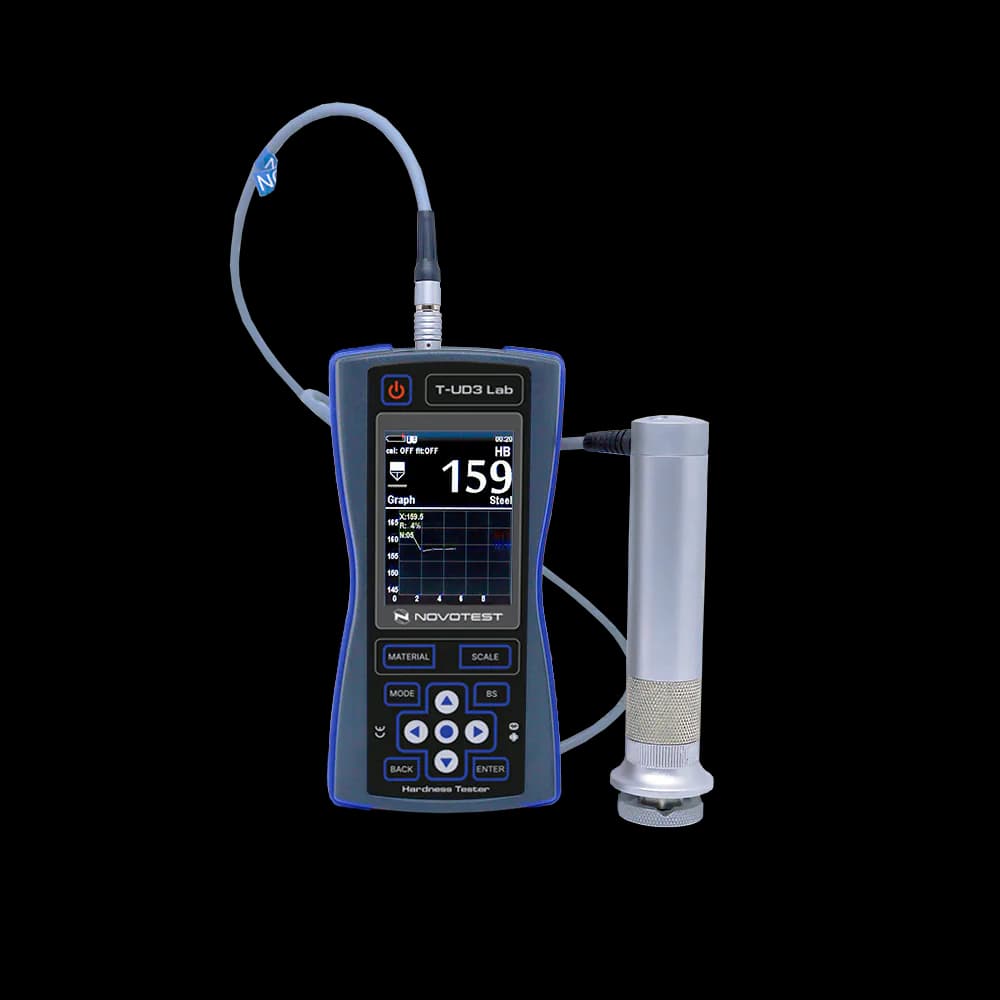

Portable UCI hardness tester using a vibrating rod with a diamond indenter, offered with 10 N, 50 N or 98 N probes, a colour display and AA battery power; a Lab version connects to the NOVOTEST Lab app.
UCI Hardness Tester NOVOTEST T-U3
2 more images are not shown on this page.
- Brand
- NOVOTEST
- Category
- Hardness testing / Portable hardness testers
- Method / product family
- Model
- T-U3
Technical Specifications
| UCI probe types | 10N/1kgf/2.2 lbf/HV1; 50N/5kgf/11lbf/HV5; 98N/10kgf/22lbf/HV10 |
|---|---|
| Measuring range | Factory calibrations: HRC: 20~70; HB: 90~650; HV: 100~750; Tensile strength MPa: 370~1740; User calibrations for any scale and range (for example: 1-3000HV) |
| Measuring accuracy | HRC: 2HRC; HB: 10HB; HV: 15HV |
| Standard | ASTM A1038 |
| Indenter | Diamond indenter (UCI) |
| Measuring direction | Any direction 360° |
| Data storage | Limited only by the memory card |
| Hardness scale | HRC, HB, HV, MPa; Additional custom scales for calibration |
| Materials | Pre-calibrated for steel; Additional custom materials for calibration |
| Data display | Load applied/contact (UCI); Single test result; Max, Min, Average of tests; Number of tests; Deviation; Var. coeff.; Histogram; Signal and Smart Mode (Filter of incorrect measurements) |
| PC cable connection (USB MINI B (to device) – USB A (to PC)) | Online – NOVOTEST.INFO/USB-connect; Offline – NOVOTEST USB-Connect |
| Wireless connection with Android gadgets via NOVOTEST Lab App | T-U3 – No; T-U3 (Lab) – Yes |
| Language | English; German; French; Polish; Portuguese; Ukrainian; Russian; *additional languages available by request |
| Indication | Color LCD display (320×240) |
| Operating environment | Temperature:-20°C~40°C; Humidity: 30%~80%R.H. |
| Power supply | DC 4,5V (3 pcs batteries AA) |
| Batteries life | Approx. 10 hours |
| Instrument dimensions | 160x75x30mm |
| Net weight | Approx. 0.3kg (without probe) |
| Gross weight (package) | 1.7kg |
| Package dimensions | 33*27*10cm |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
