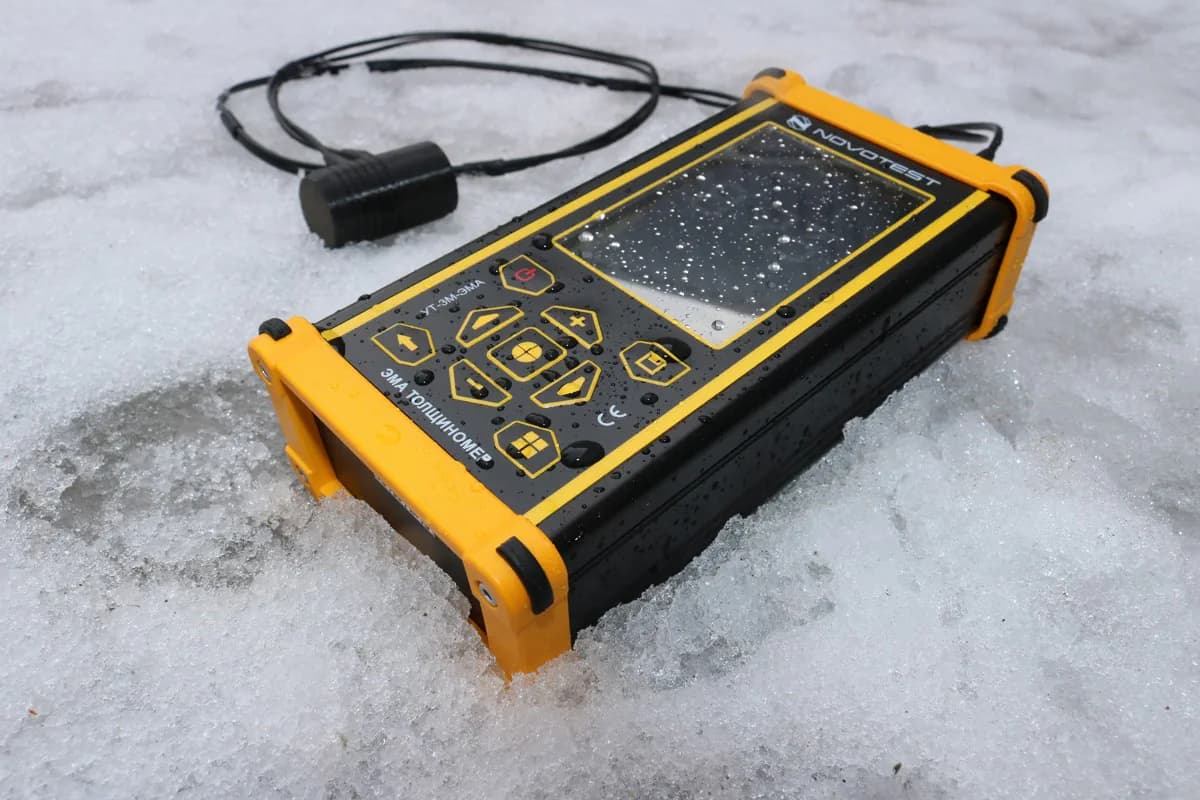

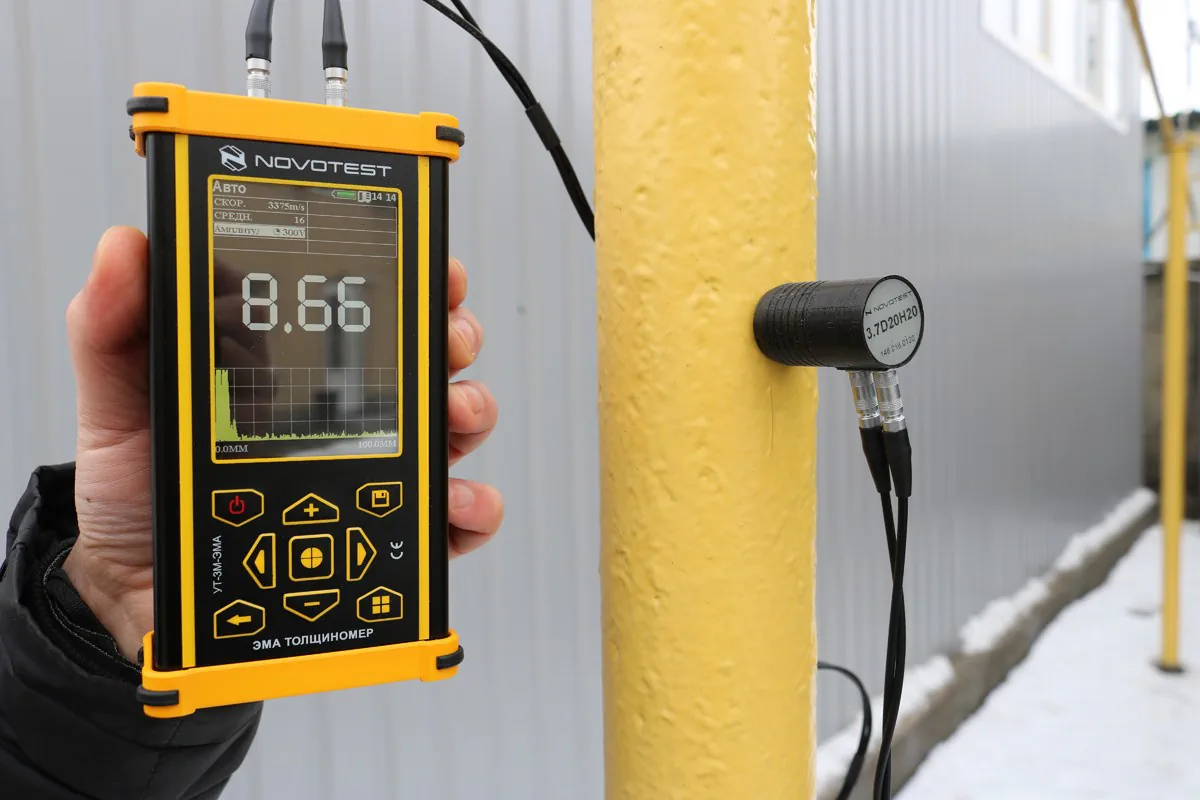

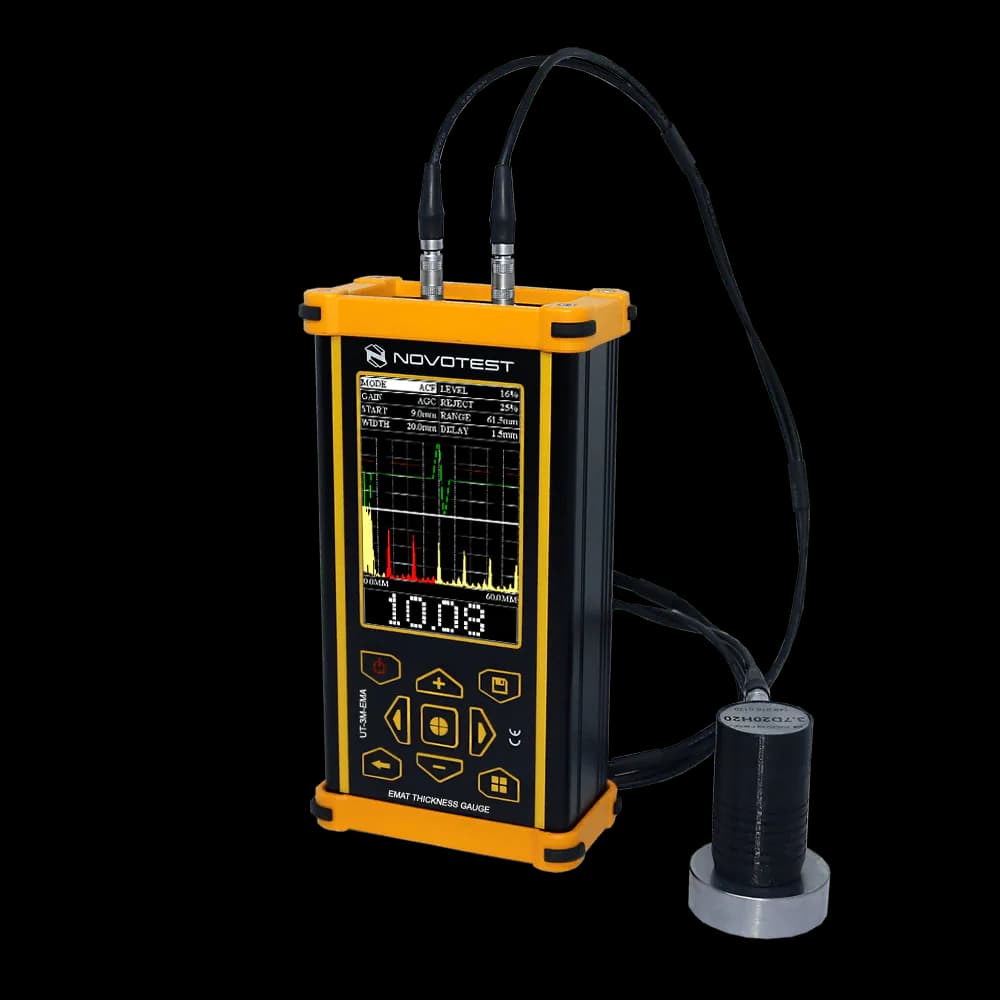

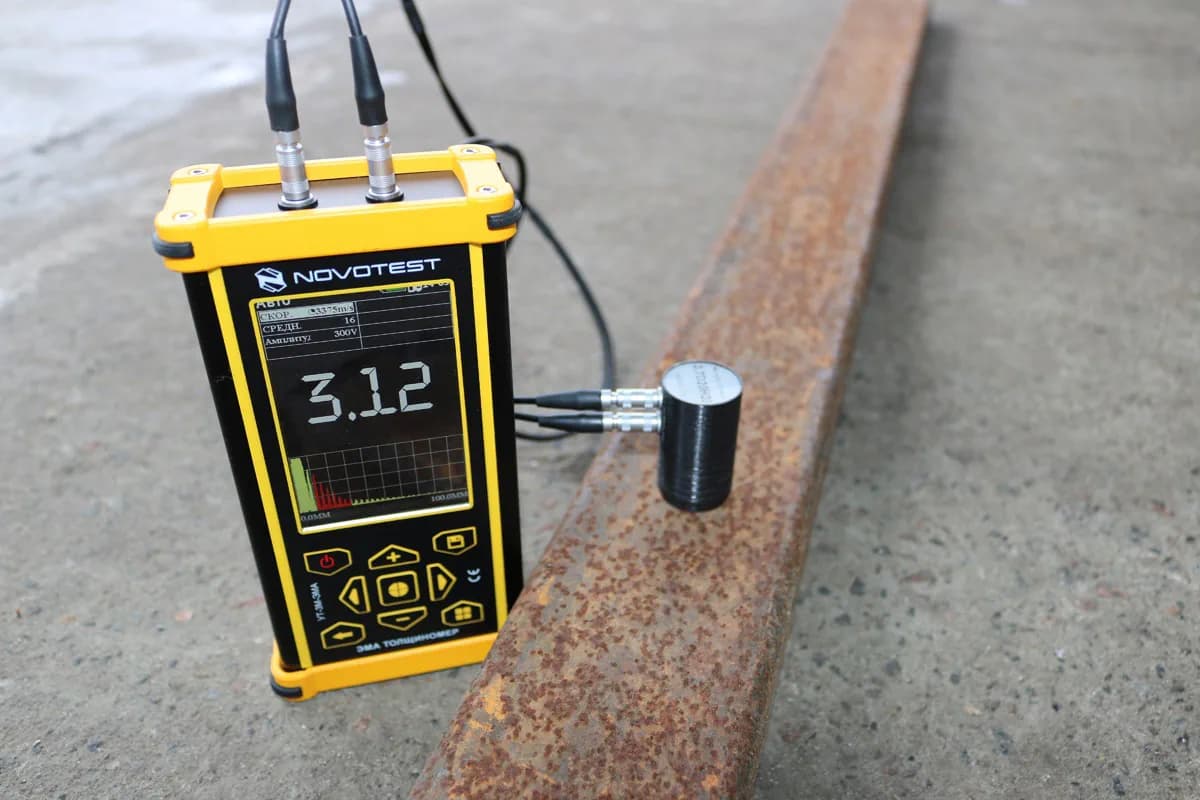

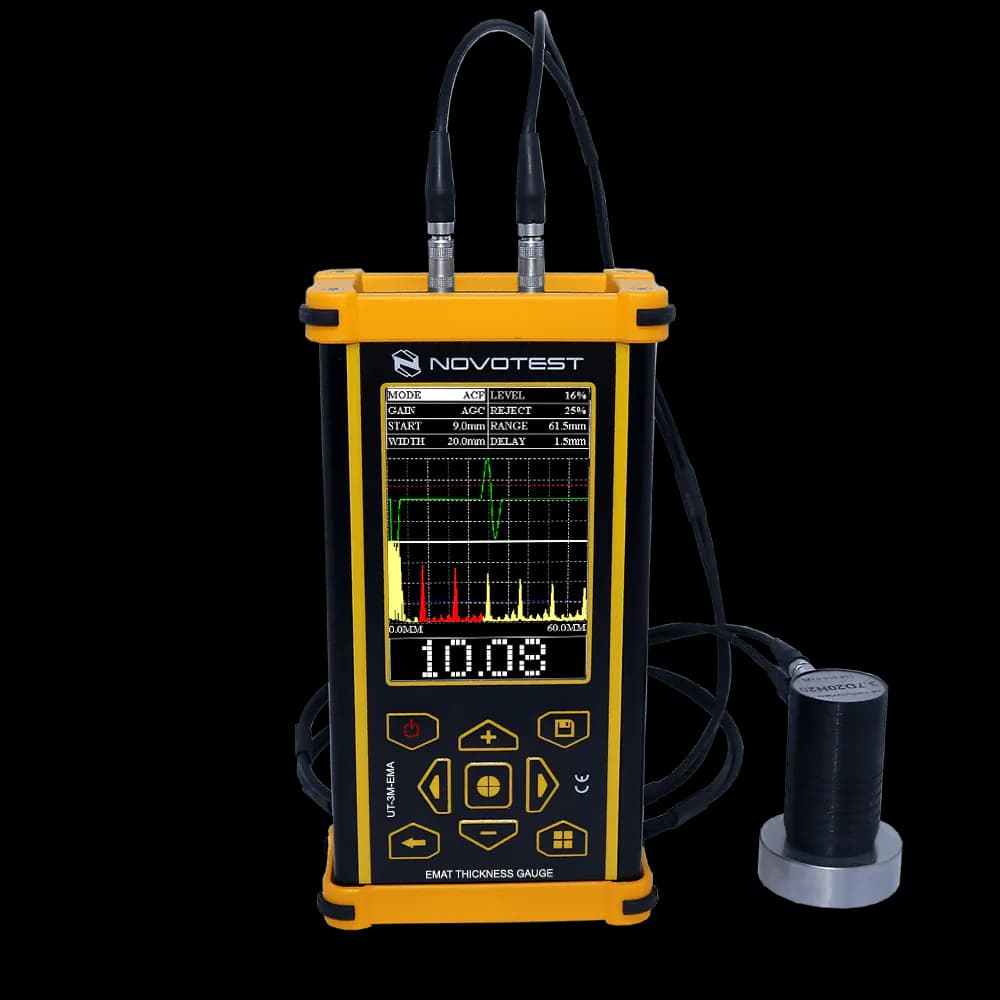

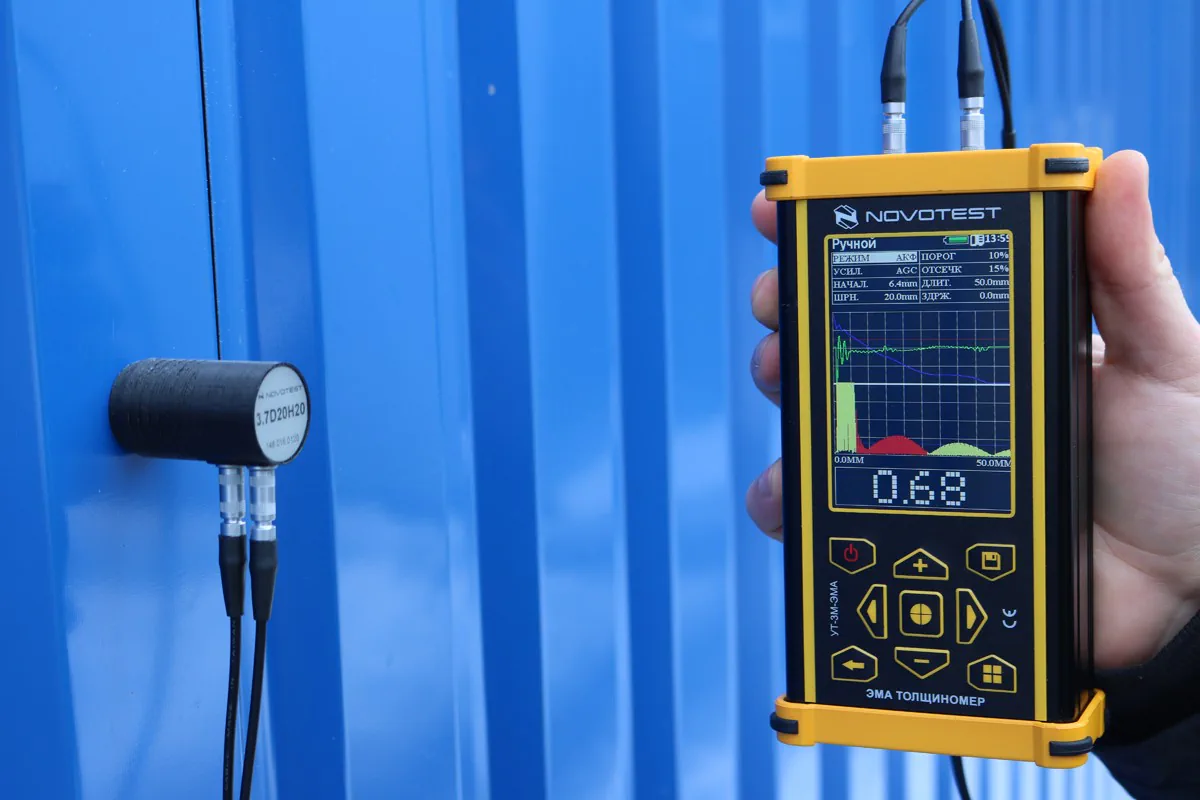

EMAT Thickness Gauge NOVOTEST UT-3M-EMA
Manufacturer product description
Electromagnetic-acoustic (EMAT) thickness gauge that measures metal thickness without couplant, including through coatings or air gaps of up to about 6 mm depending on the object. Its steel range is 0.6–300 mm depending on probe and object, with A-scan and B-scan modes.
EMAT Thickness Gauge NOVOTEST UT-3M-EMA
- Brand
- NOVOTEST
- Category
- Ultrasonic Testing / EMAT Thickness Gauges
- Method / product family
- Model
- UT-3M-EMA
Technical Specifications
| Measuring thicknesses range for steel, mm | 0.6…300.0 (depending on the probe type and object characteristics) |
|---|---|
| Coating thickness or air gap range, mm | up to 6 (depending on the object characteristics) |
| Probes temperature measurement ranges, ° C — Standard probe | -20 to +50 ° C |

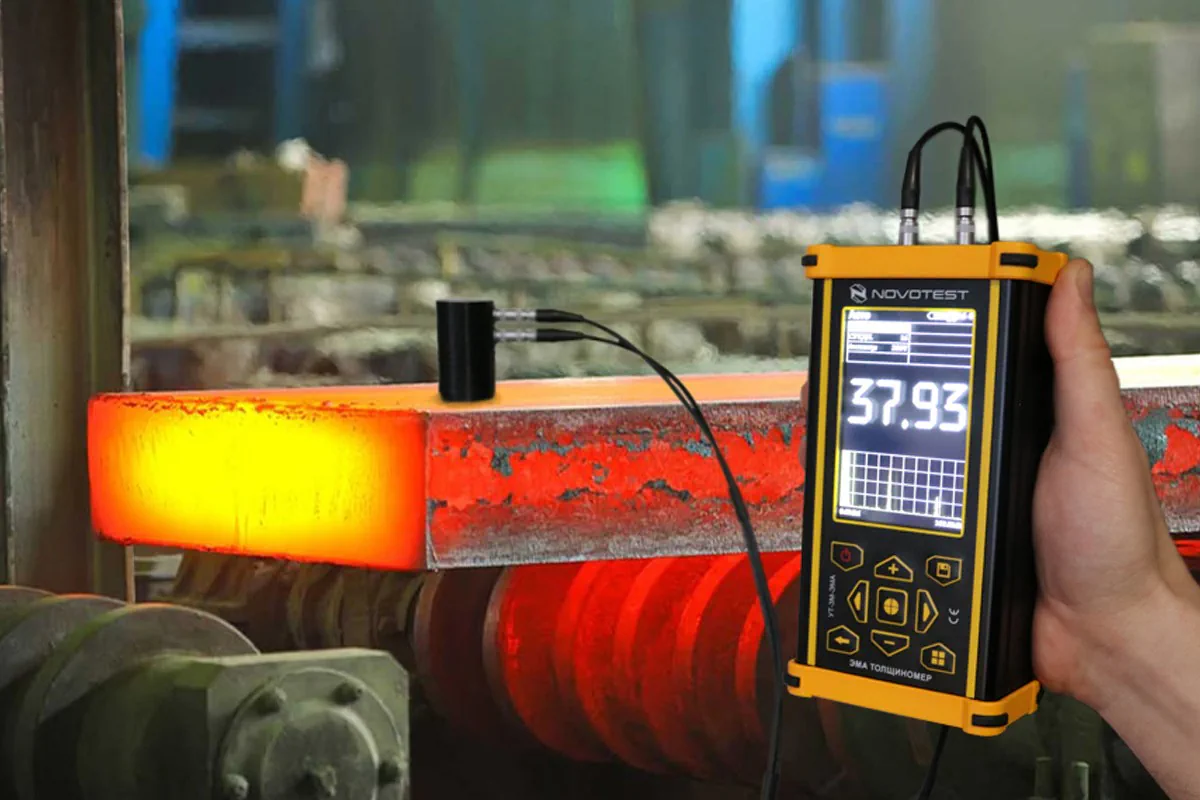

| Probes temperature measurement ranges, ° C — High-temperature probe | -20 to +250 ° C (depending on the conditions and measurement and cooling cycle – up to +500-600 ° C) |
| Measurement units | mm; inch; μs |
| Resolution, mm | 0,01 |
| Type of ultrasonic wave | transverse |
| Manual gain range, d B | 30-100 |
| Ultrasound velocity adjustment range, m/s | 1000-9999 |
| Frequency averaging signal | 1-128 |
| Operating modes | A-scan; B-scan; Control mode |
| Measurement methods | Autocorrelation function (ACF); Echo; Echo Echo (Dual Echo); Peak peak; Front |
| Display | 3.5 inch 320 * 480 |
| Menu Language | English; Ukrainian; Russian; *additional languages available by request |
| Standard | ASTM E797; ISO 16809:2017; EN 14127; EN15317; EN12668-1 |
| Weight of the electronic unit, not more, kg | 0.5 |
| Dimensions of the electronic unit (L x W x H) | 165x90x50 mm |
| Dimensions of the EMAT ST-20 probe (D x H) | 27×45 mm |
| Power supply | Built-in Li-ion Battery |
| Time of continuous work, not less than, h | 8 |
| Operating temperature range for the electronic unit, ° C | -20 to +50 |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
