Ultrasonic Flaw Detector NOVOTEST UD2301
Manufacturer product description
Portable ultrasonic flaw detector with A-scan and B-scan display, two independent gates and DAC/TVG (up to 16 points) and DGS functions for evaluating internal discontinuities. It covers 1–10 MHz and runs on three AA batteries that can be recharged from a USB socket.

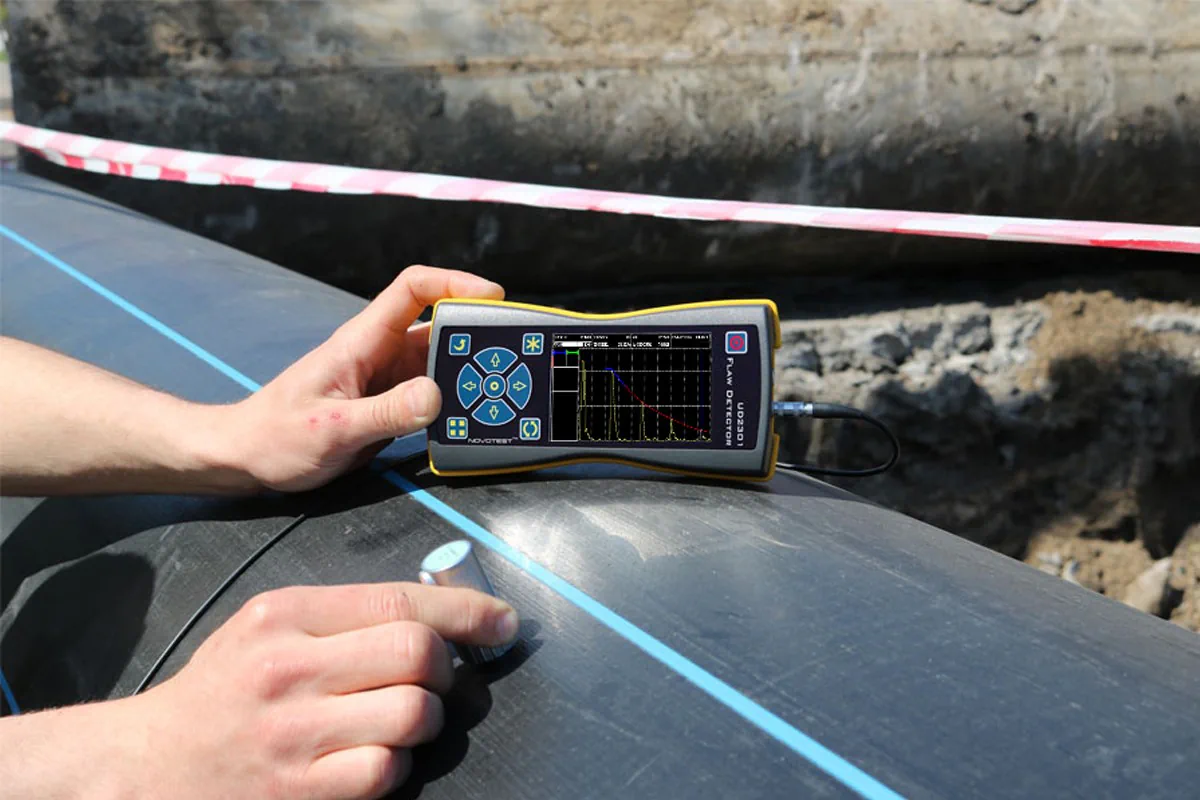

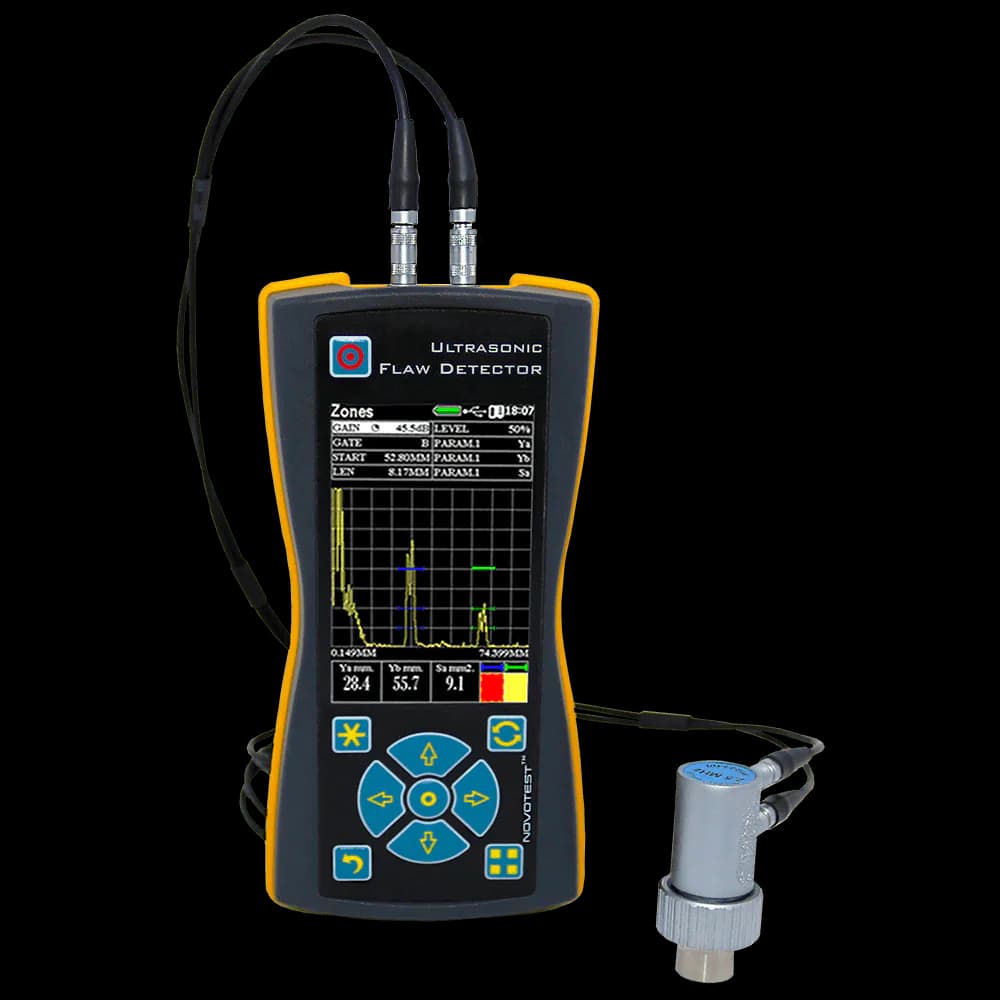

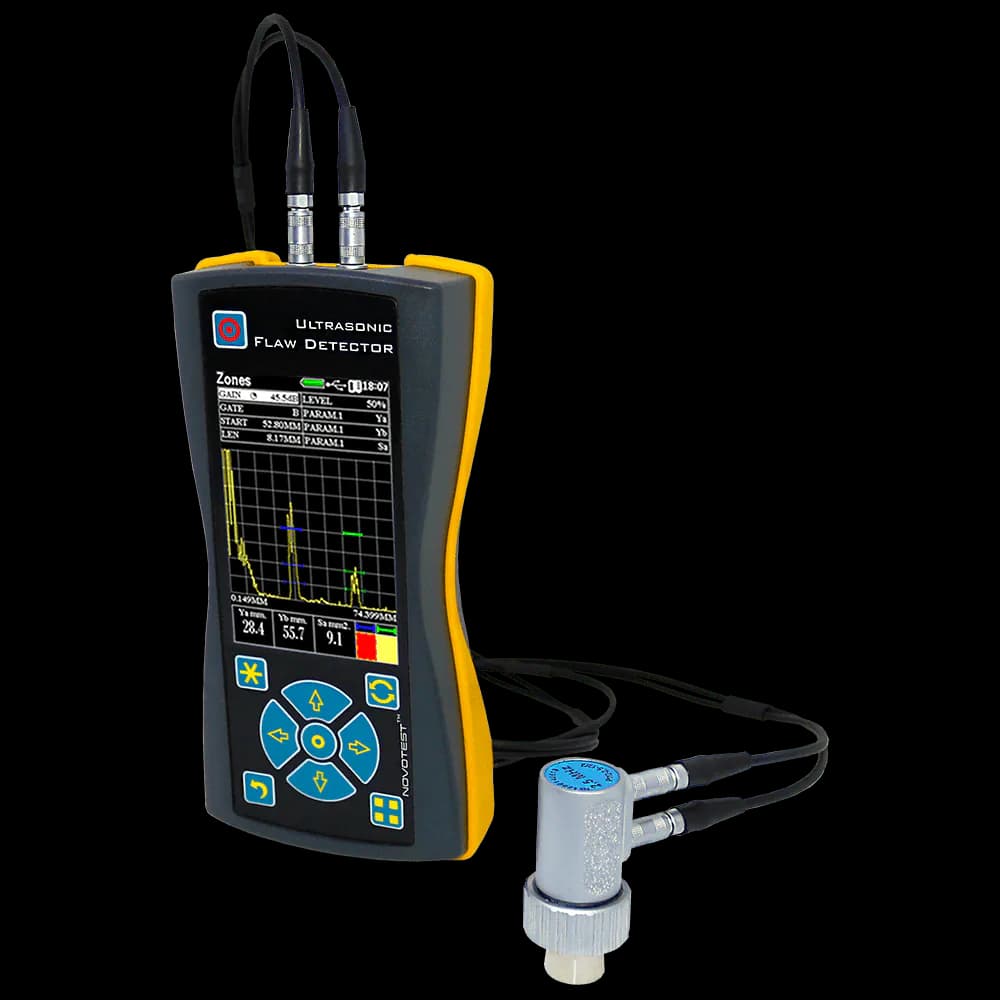

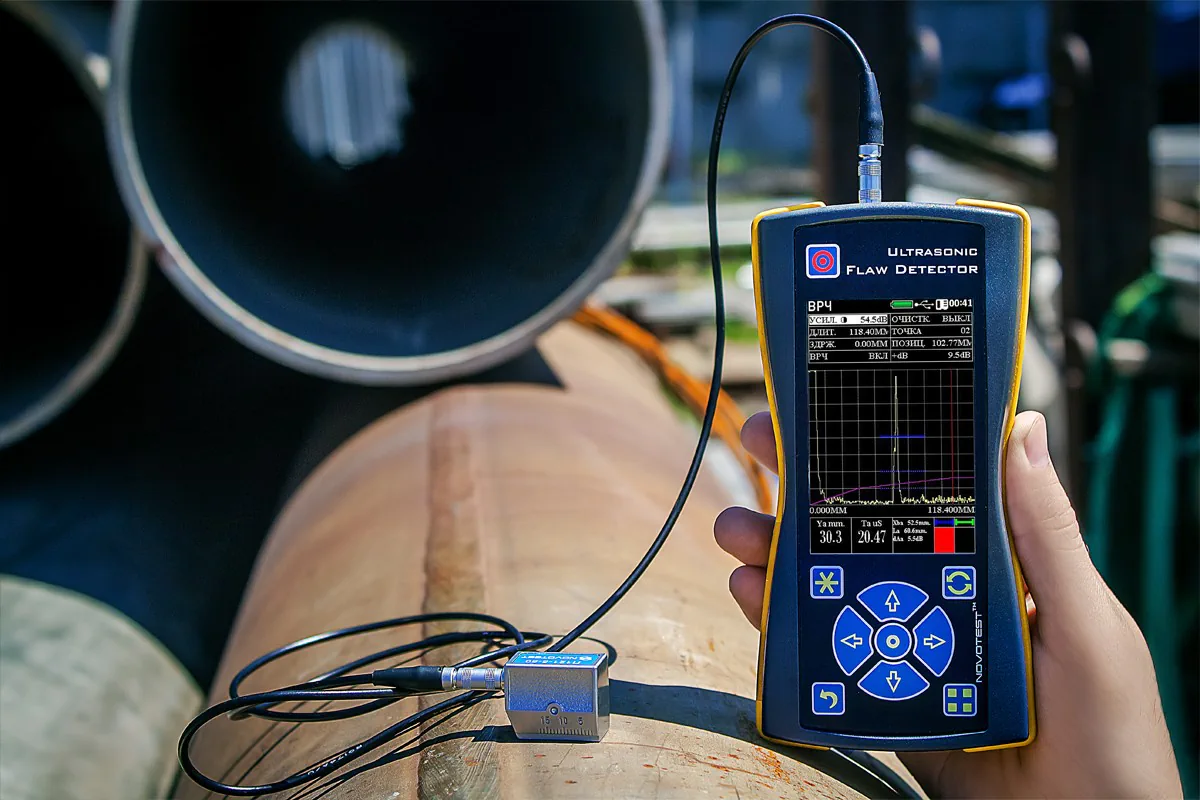

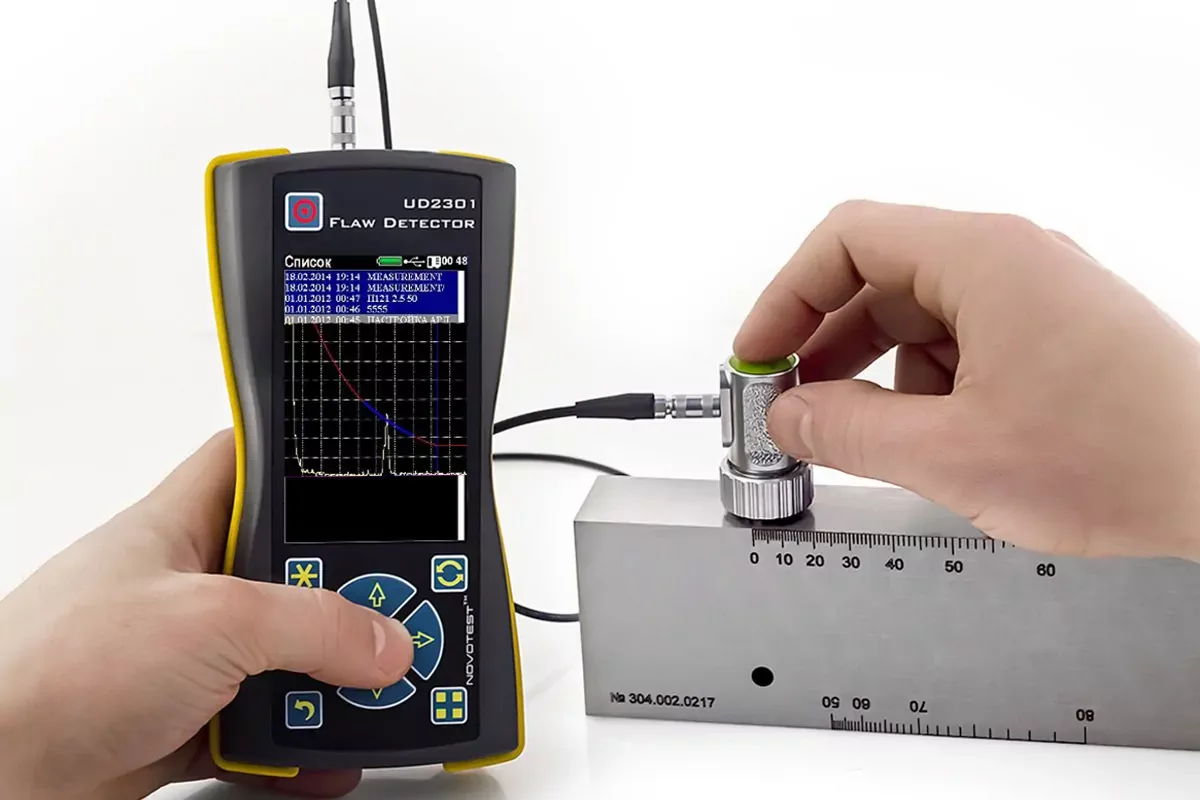

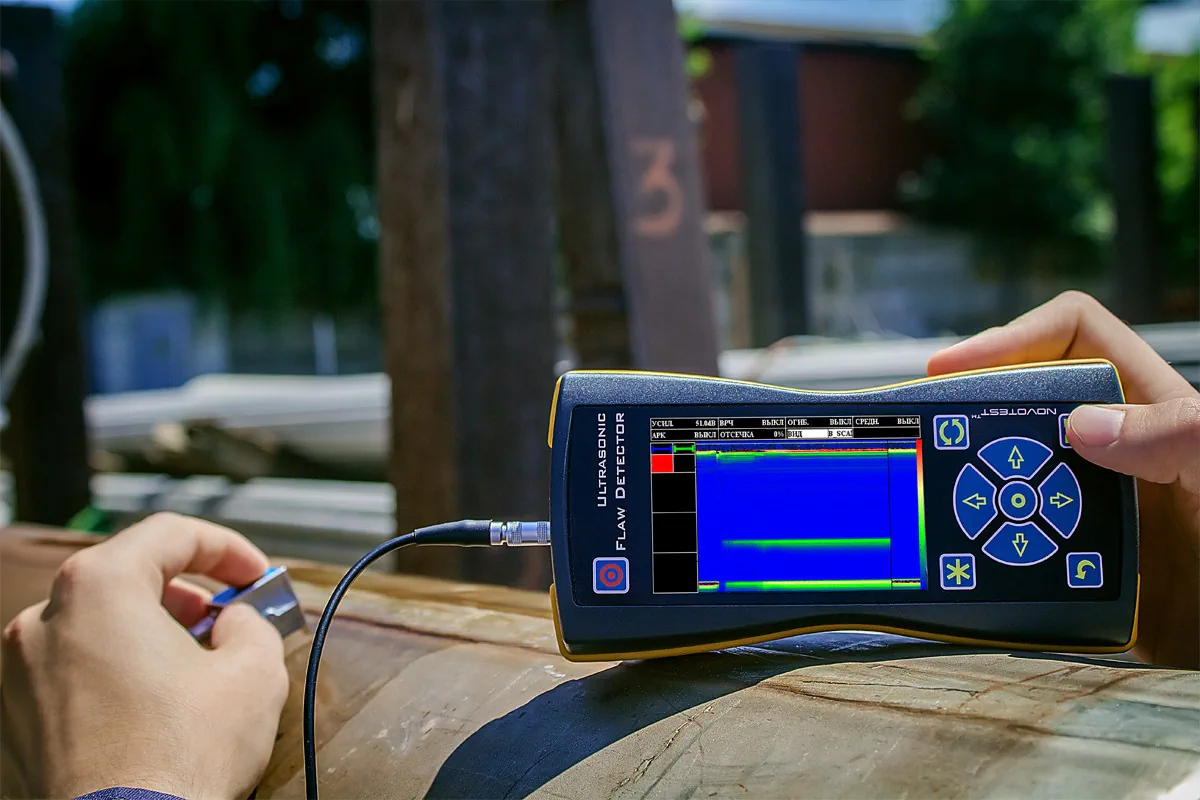

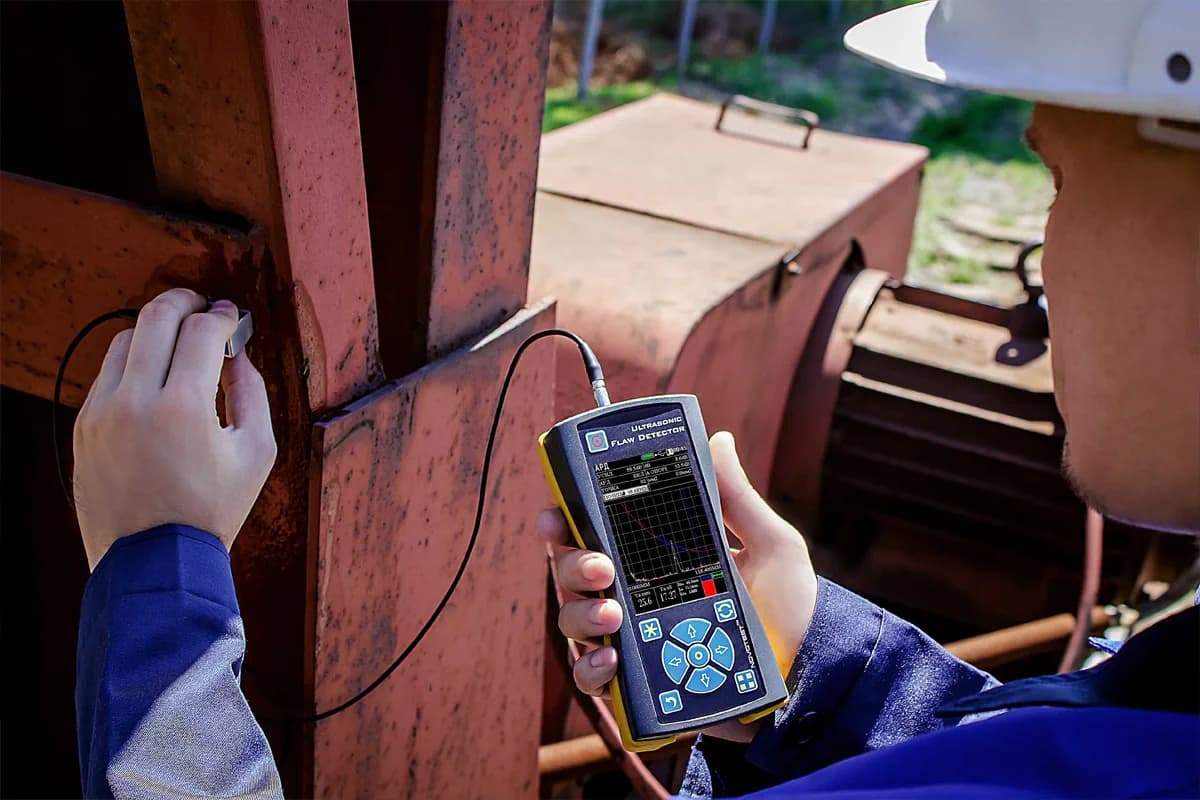

Ultrasonic Flaw Detector NOVOTEST UD2301
2 more images are not shown on this page.
- Brand
- NOVOTEST
- Category
- Ultrasonic Testing / Ultrasonic Flaw Detectors
- Method / product family
- Model
- UD2301
Technical Specifications
| Operating frequency range | from 1 to 10,0 MHz |
|---|---|
| Range of measured time intervals (duration of scanning) | from 6 to 1000 µs |
| Velocity range | 1000 – 9999 m / s |
| Error of measurement of time intervals | not exceed ± 0,025 µs |
| Maximum permissible error of measurement of the amplitudes of the signals at the receiver input in the range from 0 to 110 d B | not exceed ± 0,5 dB |
| Testing gain range | 125 dB |
| Averaging over the quantity of starts | from 1 to 16 |
| Range of variation of temporal sensitivity adjustment (TVG) | 40 dB |
| Number of control points TVG | 16 |
| Duration of the excitation pulse to the load | from 0,0 to 0,5 µs |
| Deviation of the amplitudes of input signals in the range from 10 to 100% of the screen height not more than | 1 dB |
| Setting a delay in the prism of the probe | from 0 to 15 µs |
| Detection of signals | positive half-wave, radio mode |
| Standards | EN 12668; ASTM E1324; EN 55011; EN61000-6-2:2001; EN 61010-1:2014 (EN 61010-1:2010); EN 60529:2014; EN ISO 16810:2016; SOU NNEC 027:2014; SOU NNEC 032:2014; SOU NNEC 038:2017 |
| Dimensions (W*H*L) | 80*162*38 mm |
| Weight, not more | 250 g (without batteries) |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
