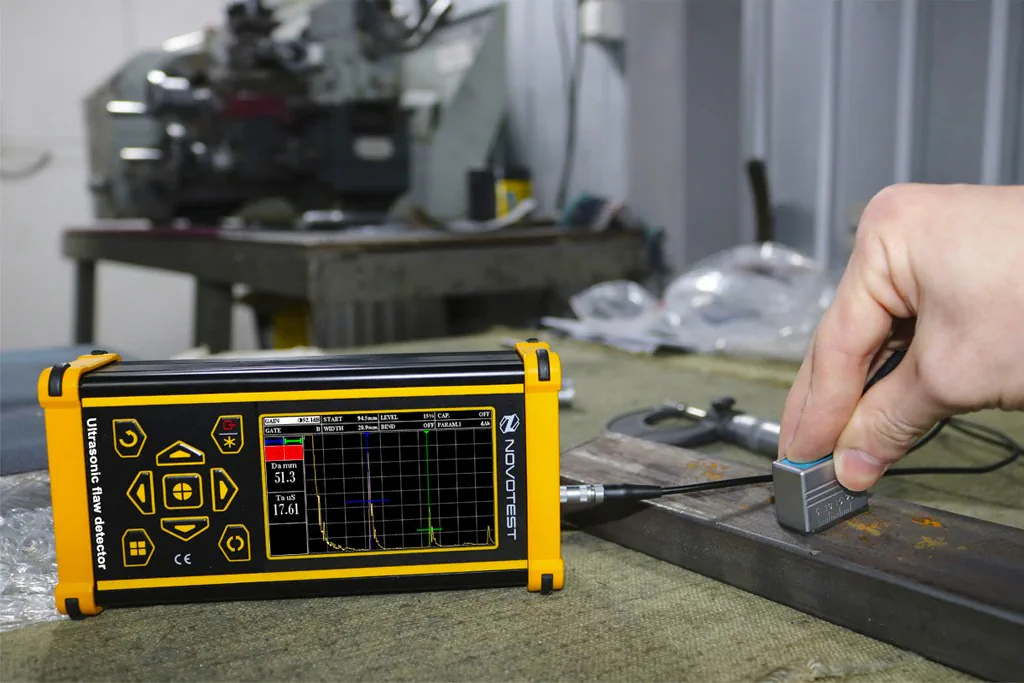

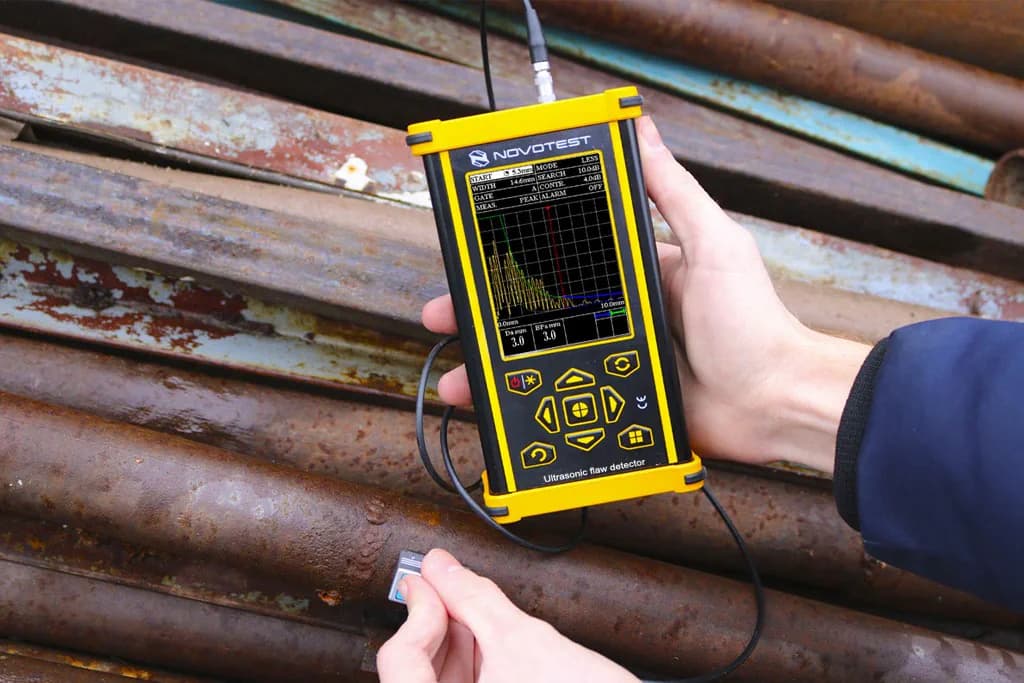

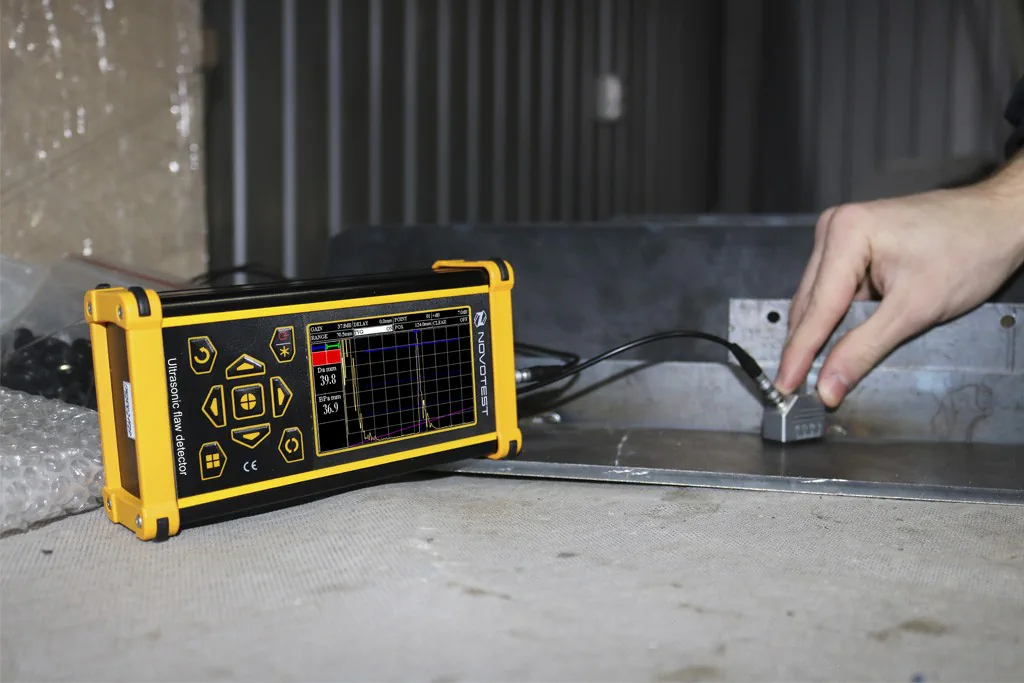

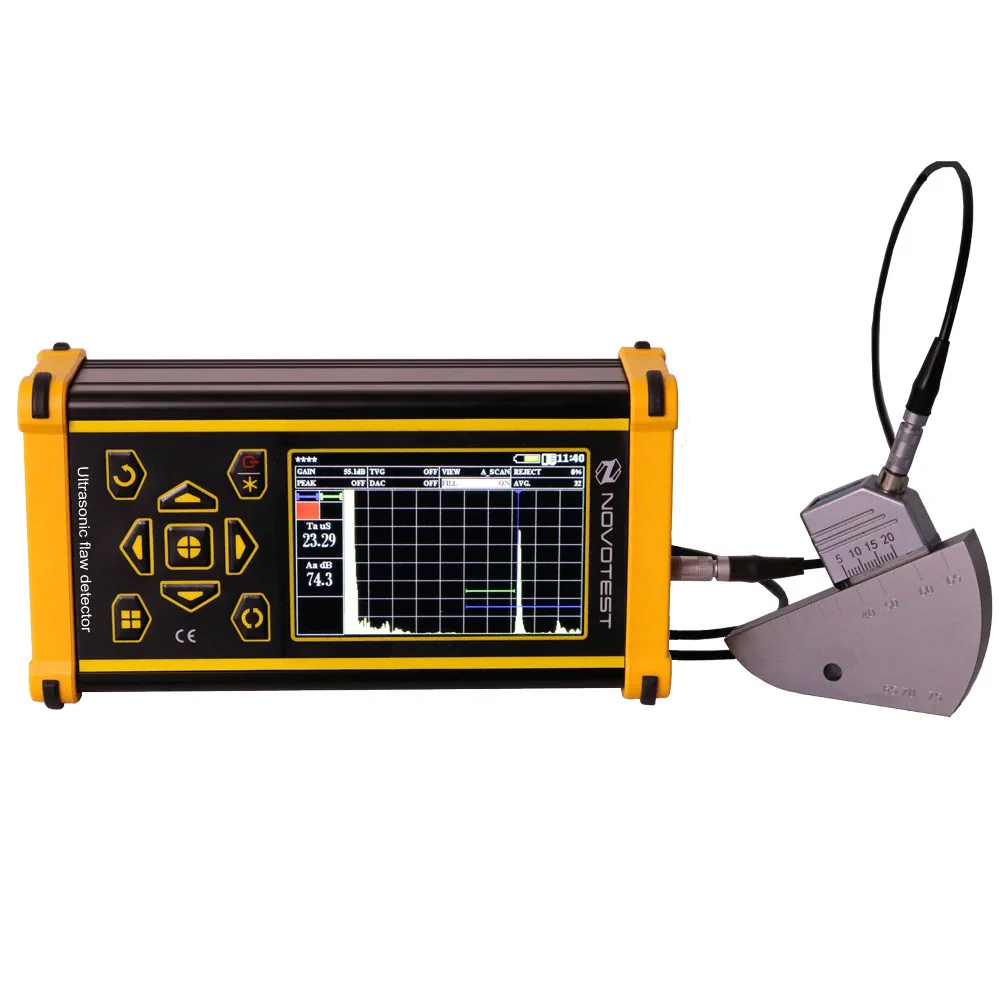

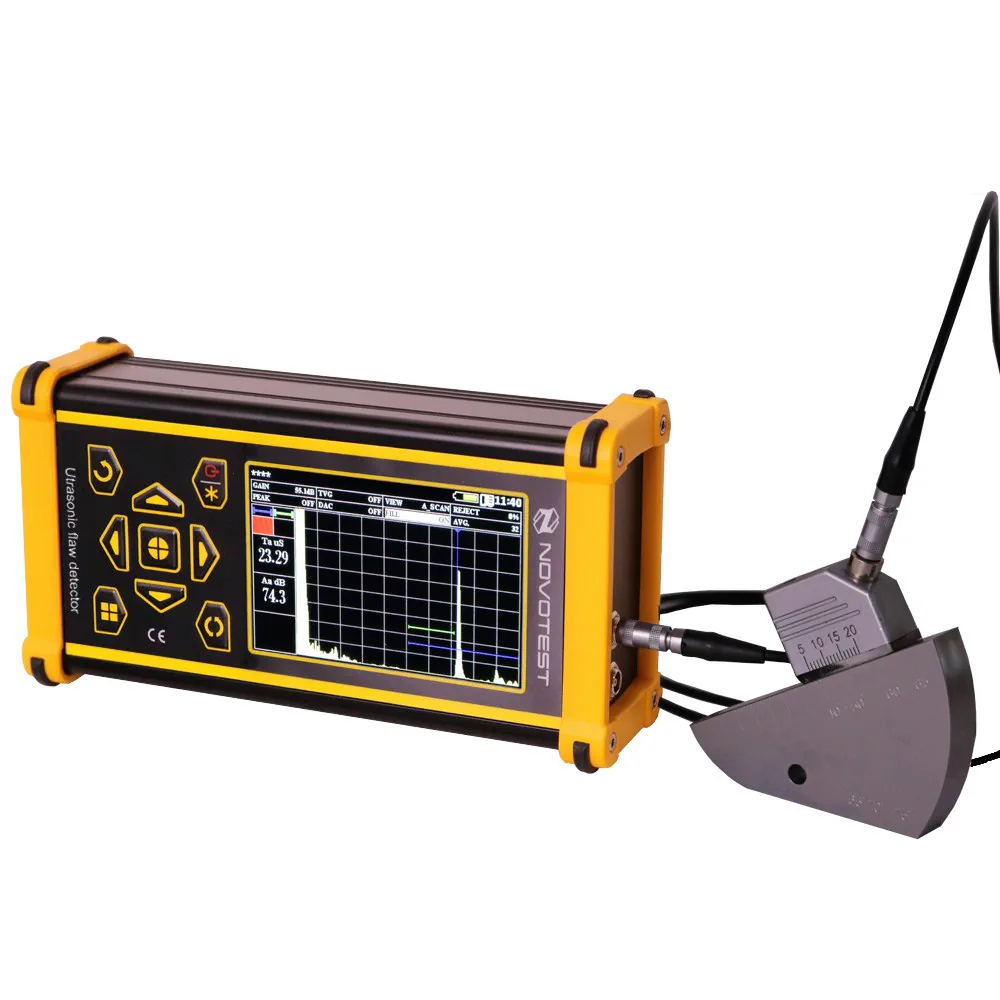

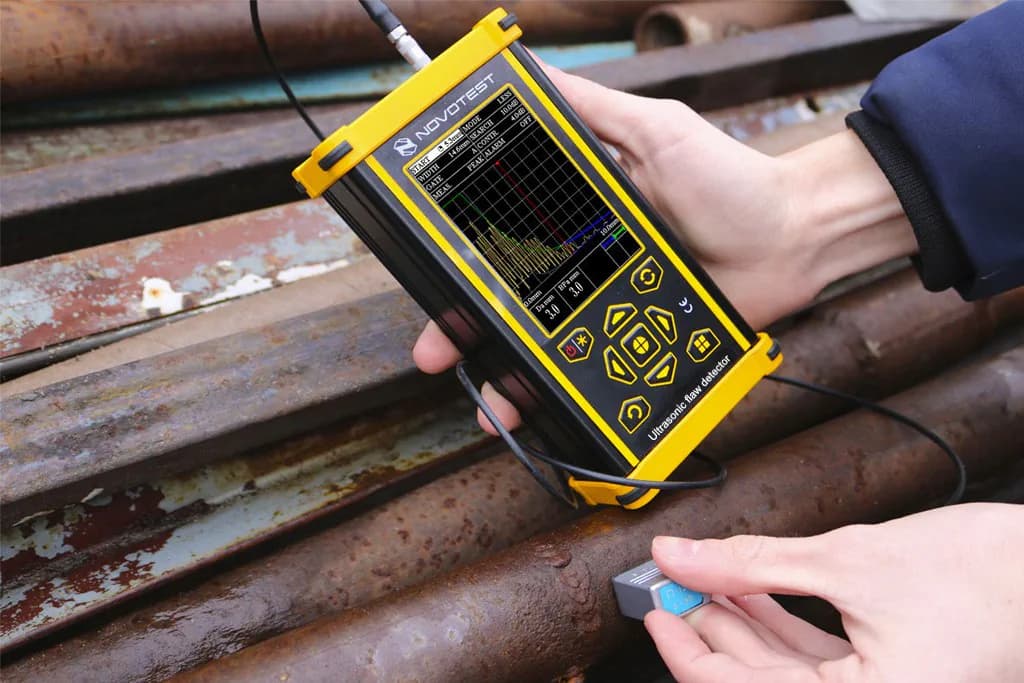

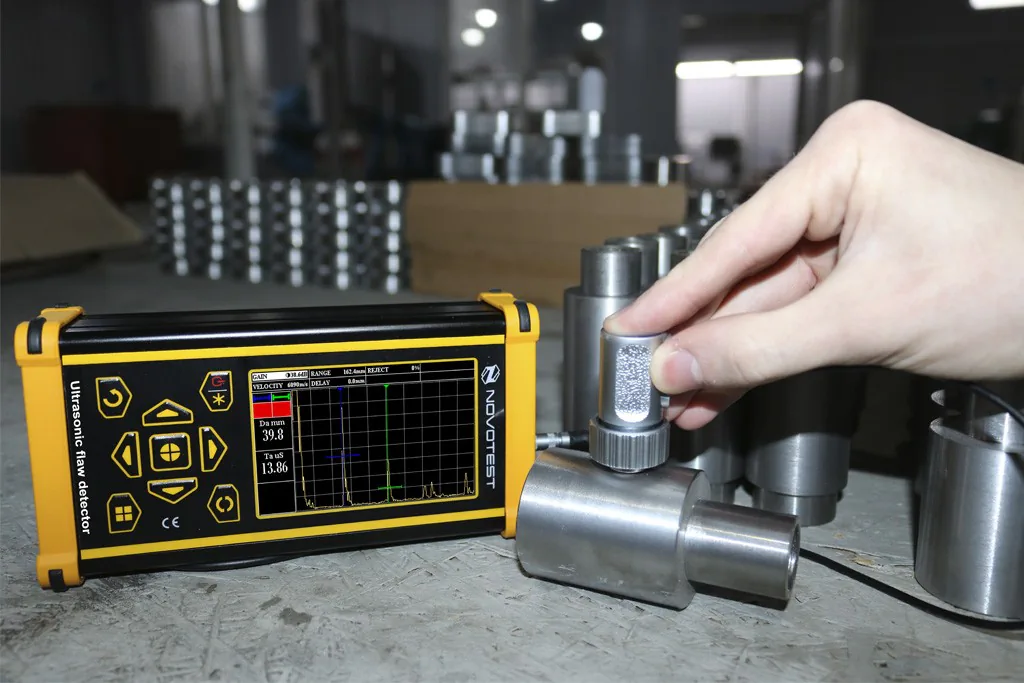

Ultrasonic Flaw Detector NOVOTEST UD2303
Manufacturer product description
Compact ultrasonic flaw detector in a shock-resistant aluminium alloy housing, offering DAC, TVG, DGS, AWS and two-zone automatic defect signalling modes. It works at 1–10 MHz with a built-in Li-ion battery and can also be used for thickness measurement and weld inspection.
Ultrasonic Flaw Detector NOVOTEST UD2303
2 more images are not shown on this page.
- Brand
- NOVOTEST
- Category
- Ultrasonic Testing / Ultrasonic Flaw Detectors
- Method / product family
- Model
- UD2303
Technical Specifications
| Operating frequency range | from 1 to 10,0 MHz |
|---|---|
| Range of measured time intervals (duration of scanning) | from 6 to 1000 µs |
| Velocity range | 1000 – 9999 m / s |
| Error of measurement of time intervals | not exceed ± 0,025 µs |
| Maximum permissible error of measurement of the amplitudes of the signals at the receiver input in the range from 0 to 110 d B | not exceed ± 0,5 dB |
| Testing gain range | 126 dB |
| Averaging over the quantity of starts | from 1 to 128 |
| Range of variation of temporal sensitivity adjustment (TVG) | 1-40 dB |
| Number of control points TVG | 16 |
| Duration of the excitation pulse to the load | from 12.5 to 0,5 µs |
| Scan range | from 8 up to 250 μs (500 and more by special order); or; from 0,48mm up to 1500mm (in Steel V=6000m/s) (3000m and more by special order) |
| Sweep delay range | from 0 up to 1000 μs |
| Measurement range of time intervals | from 8 up to 250 μs (500 and more by special order) |
| Setting the delay in the prism of the transducer | from 0 up to 15 μs |
| Deviation of the amplitudes of input signals in the range from 10 to 100% of the screen height not more than | 1 dB |
| Setting a delay in the prism of the probe | from 0 to 15 µs |
| Automatic signaling of defects (ASD) | Two-zone |
| Detection of signals | positive half-wave, radio mode |
| Operating modes | DAC, TVG, DGS, AWS, AFS, ASD |
| Menu language | English, Russian |
| Dimensions (W*H*L) | 165x90x50 mm |
| Power Supply | Built-in Li-ion Battery |
| Time of continuous work, not less than, h | 8 |
| Operating temperature range for the electronic unit, ° C | -20 to +40 |
| Air moisture, no more | 98 %, at 35 °С |
| Weight, not more | 500 g |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
