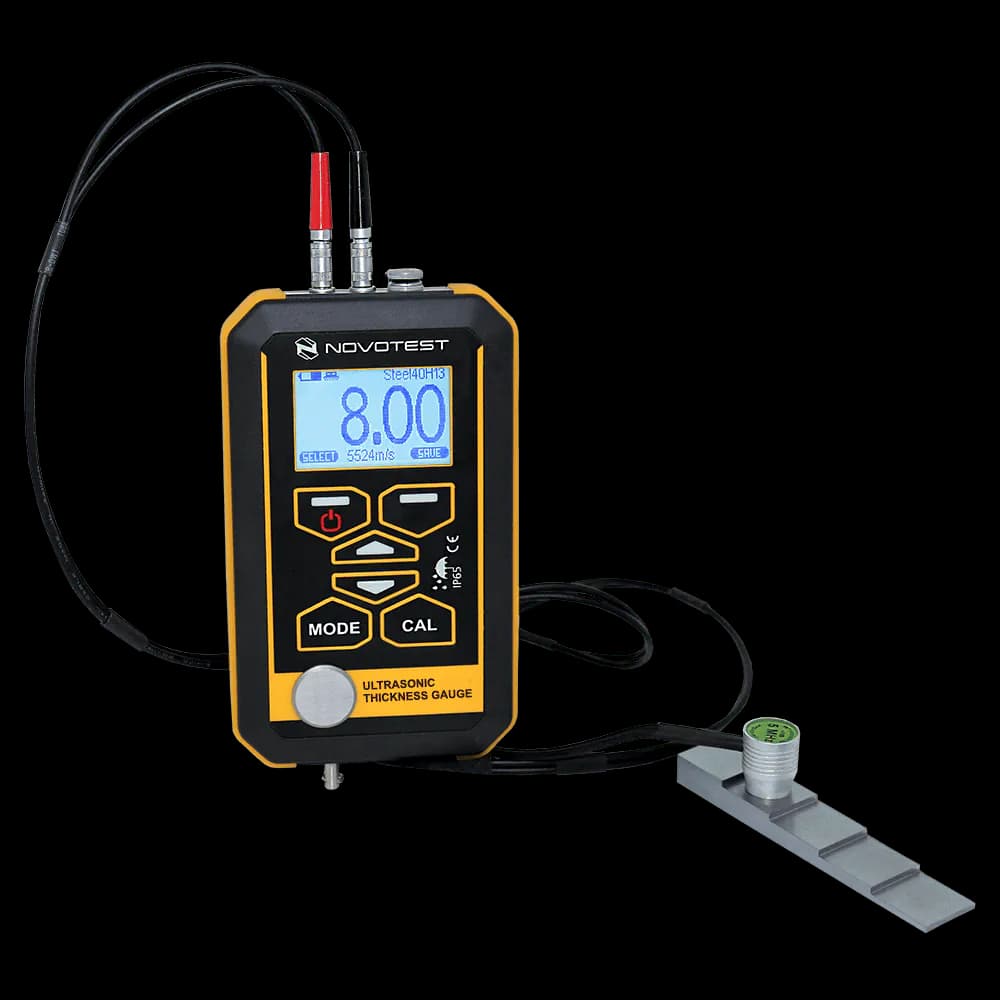

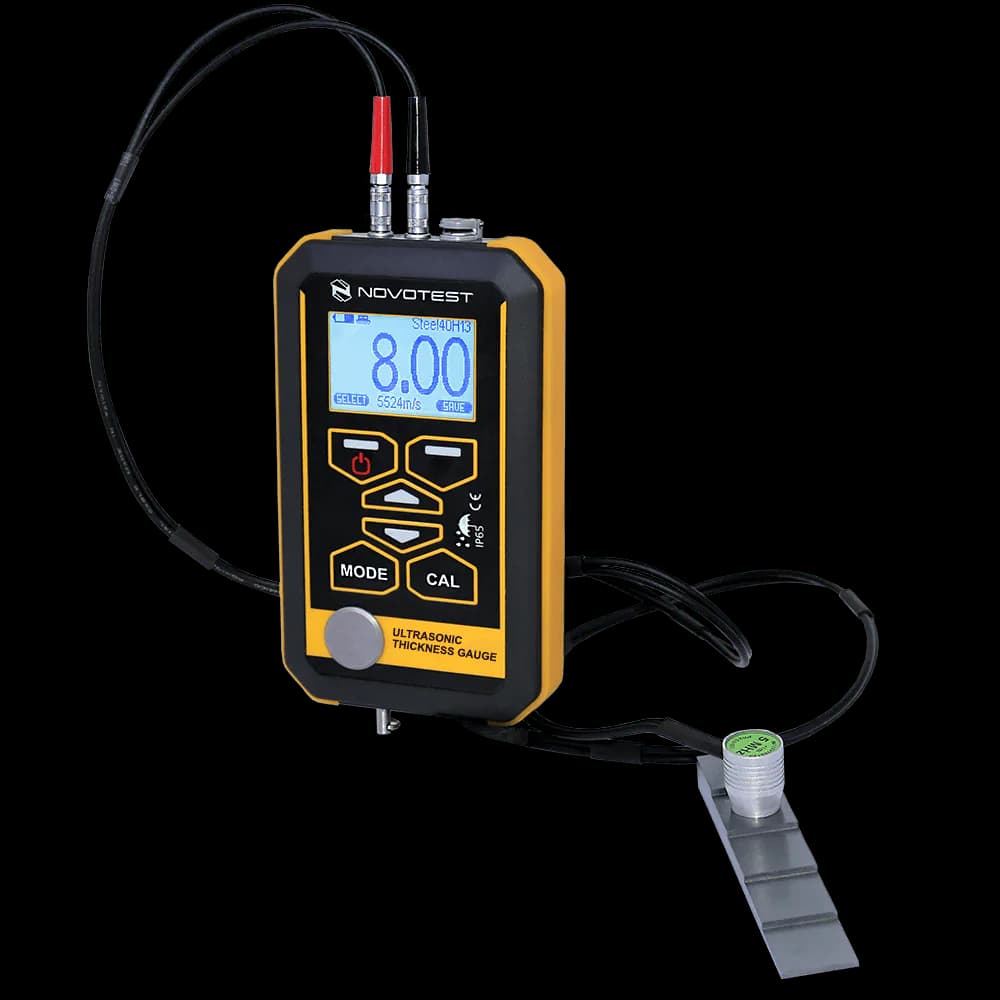

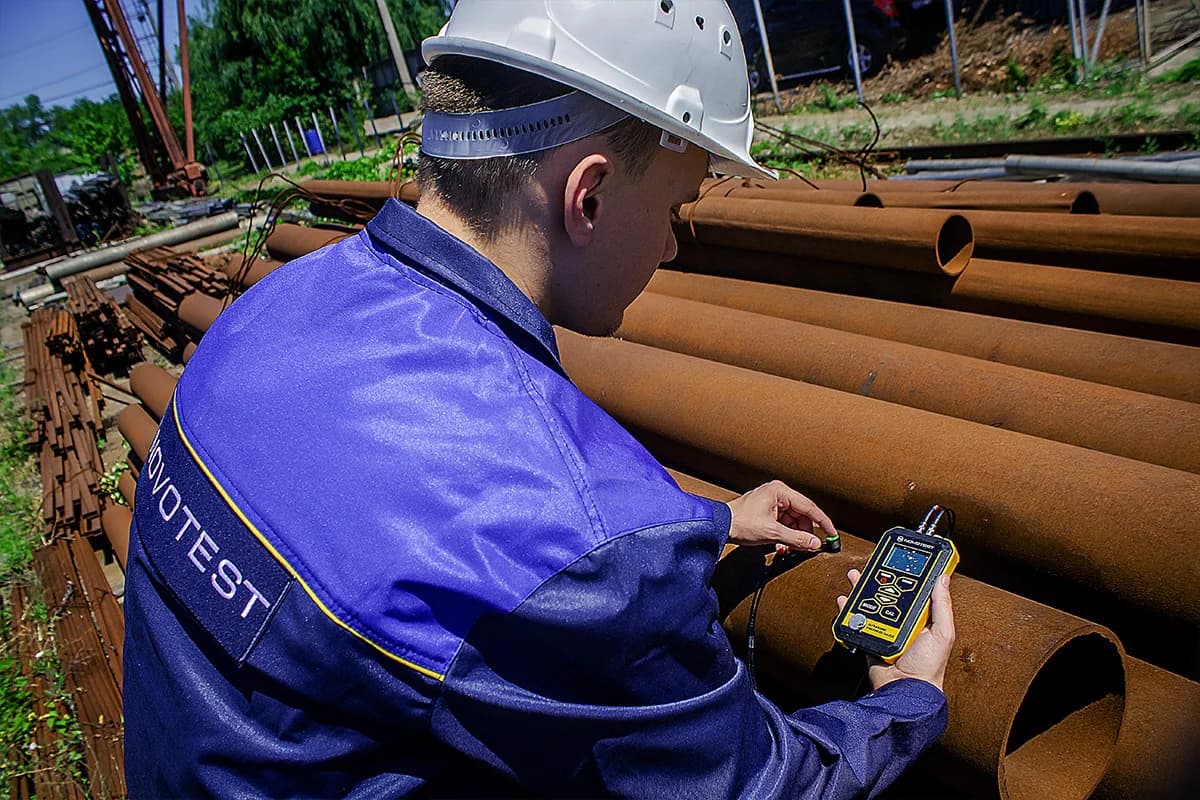

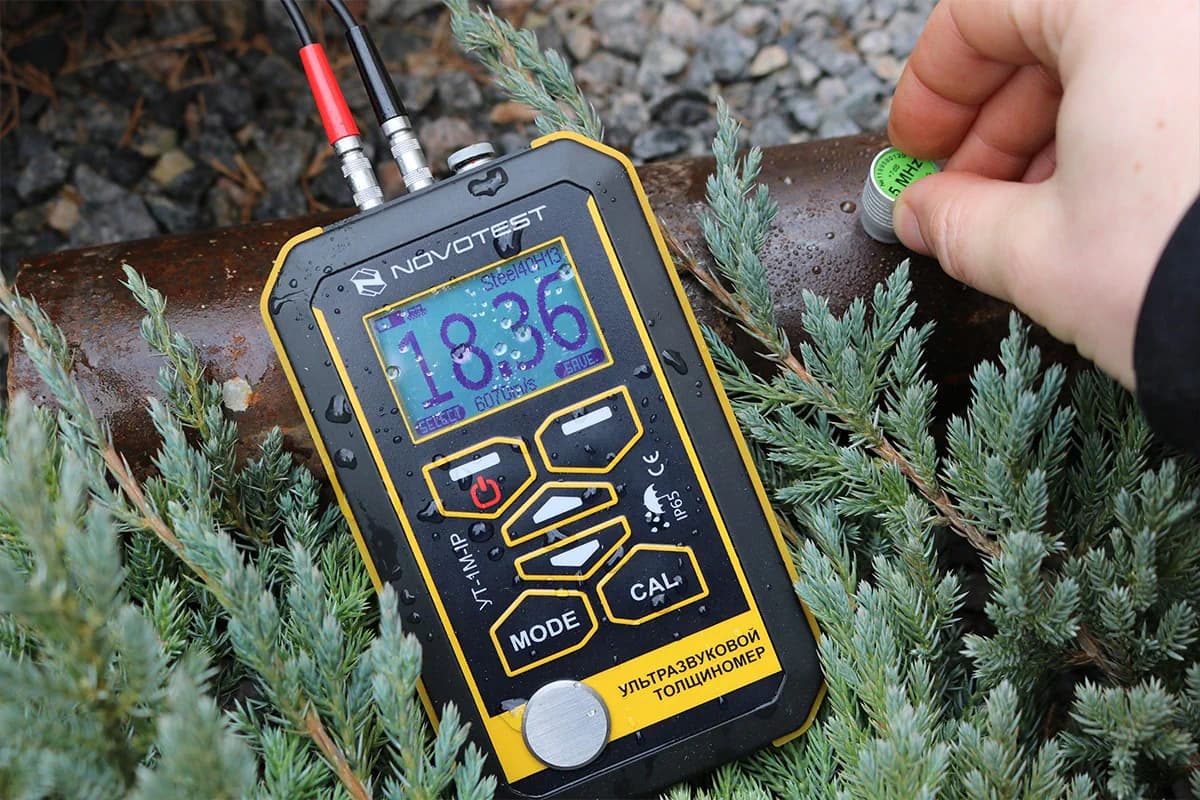

Ultrasonic Thickness Gauge NOVOTEST UT-1M-IP
Manufacturer product description
Sealed version of the UT-1M ultrasonic thickness gauge for dusty, humid or rainy conditions, rated IP65 with optional IP67 water immersion. It uses dual-element probes and three AA batteries; a Lab variant connects wirelessly to the NOVOTEST Lab app.
Ultrasonic Thickness Gauge NOVOTEST UT-1M-IP
- Brand
- NOVOTEST
- Category
- Ultrasonic Testing / Ultrasonic Thickness Gauges
- Method / product family
- Model
- UT-1M-IP
Technical Specifications
| Probe type range for steel, mm — Probe 10 M Hz – P112-10-2×3 | 0.4-15 |
|---|---|
| Probe type range for steel, mm — Probe 10 M Hz – P112-10-6 / 2 | 0.45-300 |
| Probe type range for steel, mm — Probe 5 M Hz – P112-5-10 / 2 | 0.8-500 |
| Probe type range for steel, mm — Probe 2,5 M Hz – P112-2,5-12 / 2 | 2.5-1000 |
| Probe type range for steel, mm — Probe 2 M Hz – P112-2-20 / 2 | 3-1200 |
| Probe type range for steel, mm — Probe 1,25 M Hz – P112-1.25-20 / 2 | 4-1500 |
| Probe dimensions, mm — Probe 10 M Hz – P112-10-2×3 | 4×9×60 |
| Probe dimensions, mm — Probe 10 M Hz – P112-10-6 / 2 | D12×15 |
| Probe dimensions, mm — Probe 5 M Hz – P112-5-10 / 2 | D17×20 |
| Probe dimensions, mm — Probe 2,5 M Hz – P112-2,5-12 / 2 | D20×21 |
| Probe dimensions, mm — Probe 2 M Hz – P112-2-20 / 2 | D30×28 |
| Probe dimensions, mm — Probe 1,25 M Hz – P112-1.25-20 / 2 | D30×35 |
| Dimensions of probe contact area/crystal, mm — Probe 10 M Hz – P112-10-2×3 | 2×7/2×3 |
| Dimensions of probe contact area/crystal, mm — Probe 10 M Hz – P112-10-6 / 2 | D9/D6 |
| Dimensions of probe contact area/crystal, mm — Probe 5 M Hz – P112-5-10 / 2 | D14/D10 |
| Dimensions of probe contact area/crystal, mm — Probe 2,5 M Hz – P112-2,5-12 / 2 | D16/D12 |
| Dimensions of probe contact area/crystal, mm — Probe 2 M Hz – P112-2-20 / 2 | D24/D20 |
| Dimensions of probe contact area/crystal, mm — Probe 1,25 M Hz – P112-1.25-20 / 2 | D24/D20 |
| Compatible probe types | Ultrasonic, dual-element, longitudinal waves; (including probes of other manufacturers) |
| Compatibility with Active EMAT Transducer EMAT-A1 | No |
| Probe calibrations (V-path, TVG, etc.) | factory for NOVOTEST probes; users for probes of other manufacturers |
| Probe cable connector type | 2 Lemo 00 |
| Probe cable length, m | 1,2 |
| Measurement scales | mm (m/s); inch (inch/μs) |
| Measurement resolution, mm/inch | 0.01/0.001; (0.01/0.0001 by request) |
| Basic measurement accuracy, mm | ± (0,01 T+0.05); (*For range 0.8 – 300 mm) |
| Gain range, d B | ± 20 |
| Response time, with no more than, s | 1 |
| Setting range of the ultrasonic velocity, m / s | 1000-17000 |
| Preset velocities for materials | Steel (8 different grades), Aluminum, Iron, Cast Iron, Zinc, Chromium, Copper, Brass, Bronze, Silver, Gold, Nickel, Tungsten, Tin, Lead, Molybdenum, Manganese, Magnesium, Rubber, Polystyrene, Plexiglas, Capron, Caprolon, ED-5, Ebonite, Porcelain, Teflon, Textolite, Silicate Glass, Acrylic glass, User |
| Operating modes | Normal; B-scan; Control mode |
| Standards | ASTM E797; EN 14127; EN15317 |

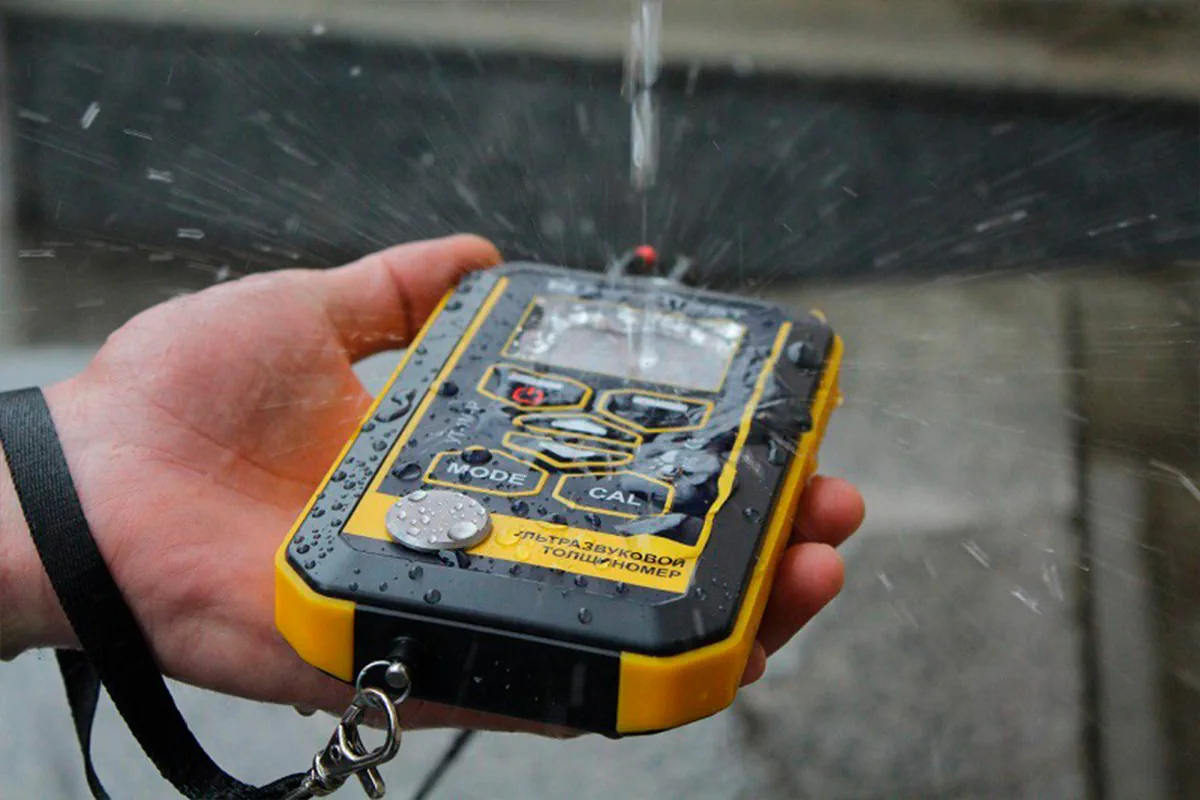

| Body type / Dust and moisture protection level | Plastic, sealed; IP65; Optionally water immersion up to 1m deep for 30 min (IP67) |
| Calibration thickness block on the body | 6 mm (Steel/~6080 m/s) |
| PC cable connection | Online – NOVOTEST.INFO/USB-connect; Offline – NOVOTEST USB-Connect |
| Wireless connection with Android gadgets via NOVOTEST Lab App | UT-1M-IP – No; UT-1M-IP (Lab) – Yes |
| Storage capacity of measurement results | UT-1M-IP – 128; UT-1M-IP (Lab) – 128 in the device + in NOVOTEST Lab App limited only by the memory of the Android gadgets |
| Measurement archives | Device menu; Android smartphone/tablet; Cloud storage/PC; PDF; Excel (CSV) |
| Menu languages | English, Spanish, Ukrainian, Russian (other languages optional) |
| Operating environment | Temperature:-20°C~50°C; Humidity: 30%~80%R.H. |
| Power supply | DC 4.5V (3 pcs standard batteries AA) |
| Time of continuous work hours, not less, h | up to 200 |
| Charging | 5V USB charger |
| Weight of electronic unit with batteries, no more, kg | 0.2 |
| Overall dimensions, mm | 120x60x25 |
| Package weight, kg | 1.5 |
| Package dimensions, cm | 33*27*10 |
| Documents | Operation manual UT-1M-IP; Quick guide UT-1M/-IP; Brochure UT-1M/-2A |
| Country of origin | Made in Ukraine (Europe) |
| Warranty | Basic; 12 months for electronic unit; 6 months for probes; Extended (optional); up to 3 years |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
