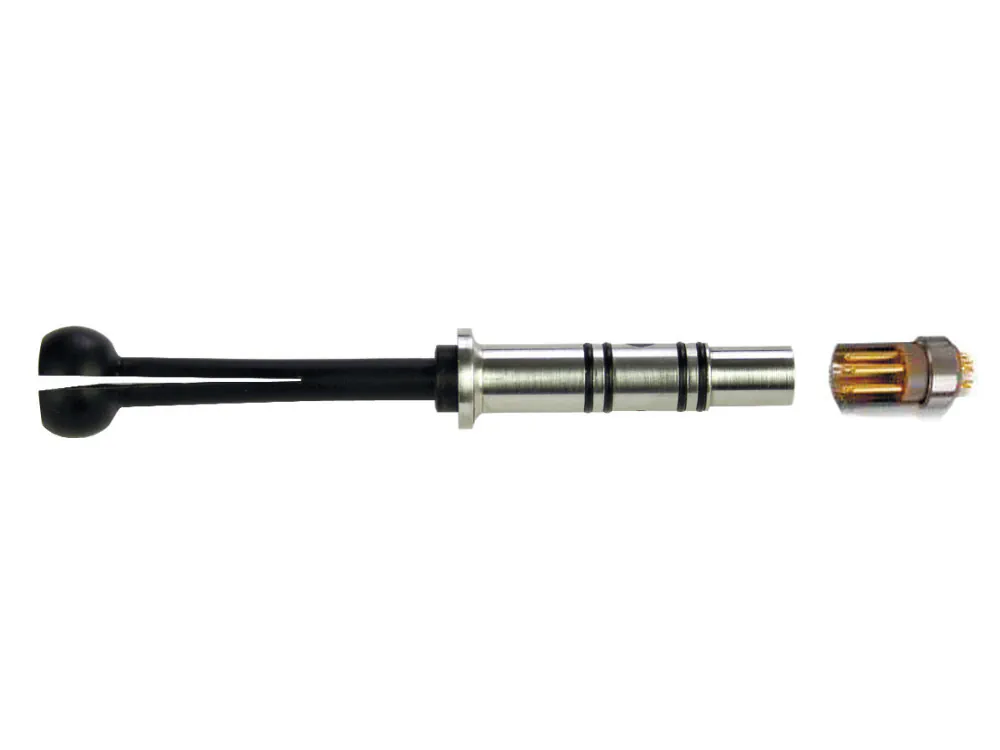

Dynamic Rotating Bolt Hole Probe with Split Tip (coils are positioned at right angles to the probe shaft length; Differential Unshielded)
Manufacturer product description
Dynamic Rotating Eddy Current Bolt Hole Probe with Split Tip (coils are positioned at right angles to the probe shaft length; Differential Unshielded / Shielded)
Dynamic Rotating Bolt Hole Probe with Split Tip (coils are positioned at right angles to the probe shaft length; Differential Unshielded)
- Brand
- OKOndt Group
- Category
- Eddy current testing
- Method / product family
Technical Specifications
| Brochure: Eddy current probes — RO3.1-3.6×85 SD | Tip Ø ‘D’, mm: 3.1-3.6 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: 4-pin Fischer connector (to Hocking, GE, Rohmann and Forester drive units, etc.) | Material: Fe/NFe |
|---|---|
| Brochure: Eddy current probes — RO3.6-4.1×85 SD | Tip Ø ‘D’, mm: 3.6-4.1 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO4.1-4.6×85 SD | Tip Ø ‘D’, mm: 4.1-4.6 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO4.6-5.1×85 SD | Tip Ø ‘D’, mm: 4.6-5.1 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO5.1-5.6×85 SD | Tip Ø ‘D’, mm: 5.1-5.6 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO5.6-6.1×85 SD | Tip Ø ‘D’, mm: 5.6-6.1 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO6.1-6.5×85 SD | Tip Ø ‘D’, mm: 6.1-6.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO6.5-7.5×85 SD | Tip Ø ‘D’, mm: 6.5-7.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO7.5-8.5×85 SD | Tip Ø ‘D’, mm: 7.5-8.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO8.5-9.5×85 SD | Tip Ø ‘D’, mm: 8.5-9.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO9.5-10.5×85 SD | Tip Ø ‘D’, mm: 9.5-10.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO10.5-11.5×85 SD | Tip Ø ‘D’, mm: 10.5-11.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO11.5-12.5×85 SD | Tip Ø ‘D’, mm: 11.5-12.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO12.5-13.5×85 SD | Tip Ø ‘D’, mm: 12.5-13.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO13.5-14.5×85 SD | Tip Ø ‘D’, mm: 13.5-14.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO14.5-15.5×85 SD | Tip Ø ‘D’, mm: 14.5-15.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO15.5-16.5×85 SD | Tip Ø ‘D’, mm: 15.5-16.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO16.5-17.5×85 SD | Tip Ø ‘D’, mm: 16.5-17.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO17.5-18.5×85 SD | Tip Ø ‘D’, mm: 17.5-18.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO18.5-19.5×85 SD | Tip Ø ‘D’, mm: 18.5-19.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO19.5-20.5×85 SD | Tip Ø ‘D’, mm: 19.5-20.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO20.5-21.5×85 SD | Tip Ø ‘D’, mm: 20.5-21.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO21.5-22.5×85 SD | Tip Ø ‘D’, mm: 21.5-22.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO22.5-23.5×85 SD | Tip Ø ‘D’, mm: 22.5-23.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO23.5-24.5×85 SD | Tip Ø ‘D’, mm: 23.5-24.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO24.5-25.5×85 SD | Tip Ø ‘D’, mm: 24.5-25.5 | Working length (WL), mm: 45 | Length, mm: 85 | Frequency: 200 kHz -3 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — RO | Column 2: 3.1-3.6 | Column 3: x | Column 4: 85 | Column 5: SD (Sh) |
| Brochure: Eddy current probes — 1 | Column 2: 2 | Column 4: 3 | Column 5: 4 |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
