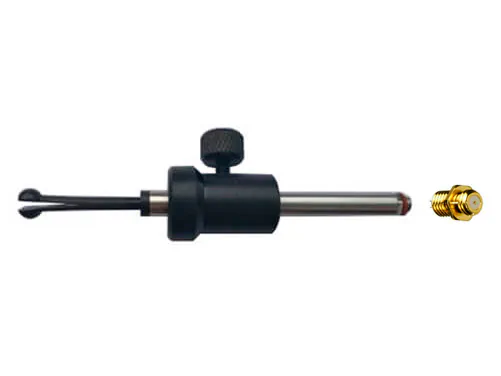

Manual Bolt Hole Probes with Split Tip (coils are positioned at right angles to the probe shaft length; Single Unshielded / Shielded)
Manufacturer product description
Manual Bolt Hole Eddy Current Probes with Split Tip (coils are positioned at right angles to the probe shaft length; Single Unshielded / Shielded)
Manual Bolt Hole Probes with Split Tip (coils are positioned at right angles to the probe shaft length; Single Unshielded / Shielded)
- Brand
- OKOndt Group
- Category
- Eddy current testing
- Method / product family
Technical Specifications
| Brochure: Eddy current probes — ROM3,1-3,6×85/105 SS | Tip Ø ‘D’, mm: 3,1-3,6 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Microdot | Material: Fe/NFe |
|---|---|
| Brochure: Eddy current probes — ROM3,6-4,1×85/105 SS | Tip Ø ‘D’, mm: 3,6-4,1 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM4,1-4,6×85/105 SS | Tip Ø ‘D’, mm: 4.1-4.6 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM4,6-5.1×85/105 SS | Tip Ø ‘D’, mm: 4.6-5.1 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM5,1-5,6×85/105 SS | Tip Ø ‘D’, mm: 5.1-5.6 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM5,6-6,1×85/105 SS | Tip Ø ‘D’, mm: 5.6-6.1 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM6.1-6.5×85/105 SS | Tip Ø ‘D’, mm: 6.1-6.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM6.5-7.5×85/105 SS | Tip Ø ‘D’, mm: 6.5-7.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM7.5-8.5×85/105 SS | Tip Ø ‘D’, mm: 7.5-8.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM8.5-9.5×85/105 SS | Tip Ø ‘D’, mm: 8.5-9.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM9.5-10.5×85/105 SS | Tip Ø ‘D’, mm: 9.5-10.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM10.5-11.5×85/105 SS | Tip Ø ‘D’, mm: 10.5-11.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM11.5-12.5×85/105 SS | Tip Ø ‘D’, mm: 11.5-12.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM12.5-13.5×85/105 SS | Tip Ø ‘D’, mm: 12.5-13.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM13.5-14.5×85/105 SS | Tip Ø ‘D’, mm: 13.5-14.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM14.5-15.5×85/105 SS | Tip Ø ‘D’, mm: 14.5-15.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM15.5-16.5×85/105 SS | Tip Ø ‘D’, mm: 15.5-16.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM16.5-17.5×85/105 SS | Tip Ø ‘D’, mm: 16.5-17.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM17.5-18.5×85/105 SS | Tip Ø ‘D’, mm: 17.5-18.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM18.5-19.5×85/105 SS | Tip Ø ‘D’, mm: 18.5-19.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM19.5-20.5×85/105 SS | Tip Ø ‘D’, mm: 19.5-20.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM20.5-21.5×85/105 SS | Tip Ø ‘D’, mm: 20.5-21.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM21.5-22.5×85/105 SS | Tip Ø ‘D’, mm: 21.5-22.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM22.5-23.5×85/105 SS | Tip Ø ‘D’, mm: 22.5-23.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM23.5-24.5×85/105 SS | Tip Ø ‘D’, mm: 23.5-24.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM24.5-25.5×85/105 SS | Tip Ø ‘D’, mm: 24.5-25.5 | Working length "WL", mm: 35/51 | Length, mm: 85/105 | Frequency: 200 kHz/500 kHz/ 2 MHz | Connector: Fe/NFe |
| Brochure: Eddy current probes — ROM | Column 2: 3.1-3.6 | Column 3: x | Column 4: 85/105 | Column 5: SS (Sh) |
| Brochure: Eddy current probes — 1 | Column 2: 2 | Column 4: 3 | Column 5: 4 |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
