TUZ-5
Manufacturer product description

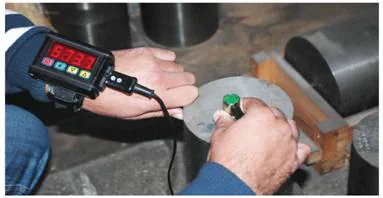

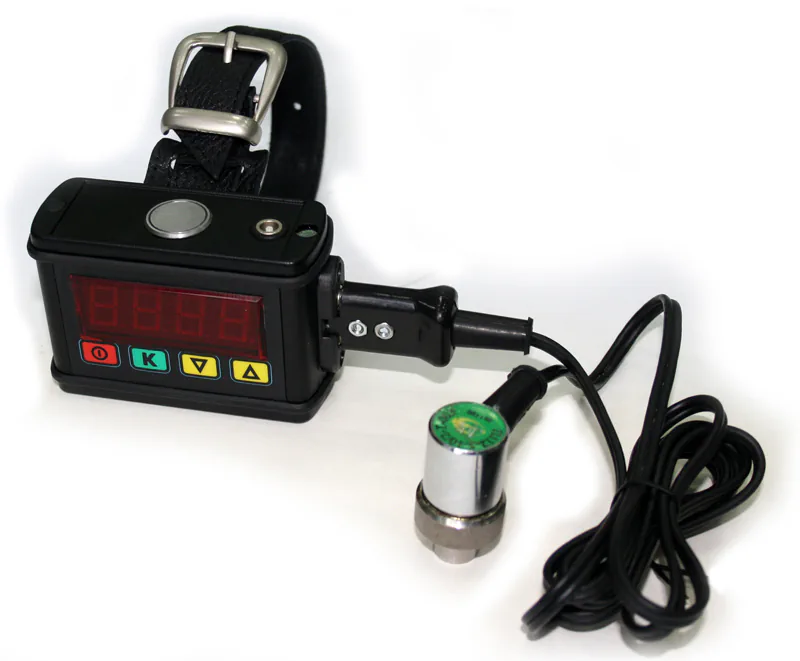

ТUZ-5 portable manual ultrasonic thickness gauge is intended for on-the-fly measurement of thickness of products made from different materials
TUZ-5
- Brand
- OKOndt Group
- Category
- Ultrasonic thickness gauges
- Method / product family
Technical Specifications
| Range of measuring thicknesses | 0.6-300 mm |
|---|---|
| Weight of the thickness gauge with one probe | 0.3 kg |
| Overall dimensions of the thickness gauge | 64х89х36 mm |
| Time of operating mode setup | 10 s |
| Time of continuous operation | 20 hours |
| Sealing protection level | IР 64 |
| Temperature mode | minus 30...+50 ˚С |
| Thickness gauge features | case is made of metal; small overall dimensions; possibility of thickness gauge fastening on the hand. |
| Admissible absolute error ΔН | ± (0.1 + 0.005×Hx) mm |
| Admissible relative error δC | ± 1.5 % |
| Admissible additional error at the surface roughness of Rz=320 µm | ± 0.2 mm |
| Admissible additional error at the surface curvature radius of R=30 mm | ± 0.1 mm |
| ТUZ-5 thickness gauge advantages: — P112-10-6/2-Т-003 | Operating frequency, МHz: 10±1 | Operating range of thickness measurement, mm: 0.6 – 20 | Dimensions of working surface, mm: 9 | Overall dimensions of probes, mm: 22х39 |
| ТUZ-5 thickness gauge advantages: — P112-5-10/2-Т-003 | Operating frequency, МHz: 5±0.5 | Operating range of thickness measurement, mm: 1 – 100 | Dimensions of working surface, mm: 14 | Overall dimensions of probes, mm: 22х42 |
| ТUZ-5 thickness gauge advantages: — P112-2.5-12/2-Т-003 | Operating frequency, МHz: 2.5±0.25 | Operating range of thickness measurement, mm: 3 – 300 | Dimensions of working surface, mm: 16 | Overall dimensions of probes, mm: 24х42 |
| Electronic unit | 1 pc. |
| Probe: P112-5-10/2-Т-004 | 1 pc. 3 |
| Charging device | 1 pc. |
| Hand strap | 1 pc. |
| Operation manual TUZ-5.14327992.01 RE | 1 copy |
| Packing bag | 1 pc. |
| Verification certificate (If required) | 1 copy |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
