Phoenix ISL
PET Scanner
Manufacturer product description

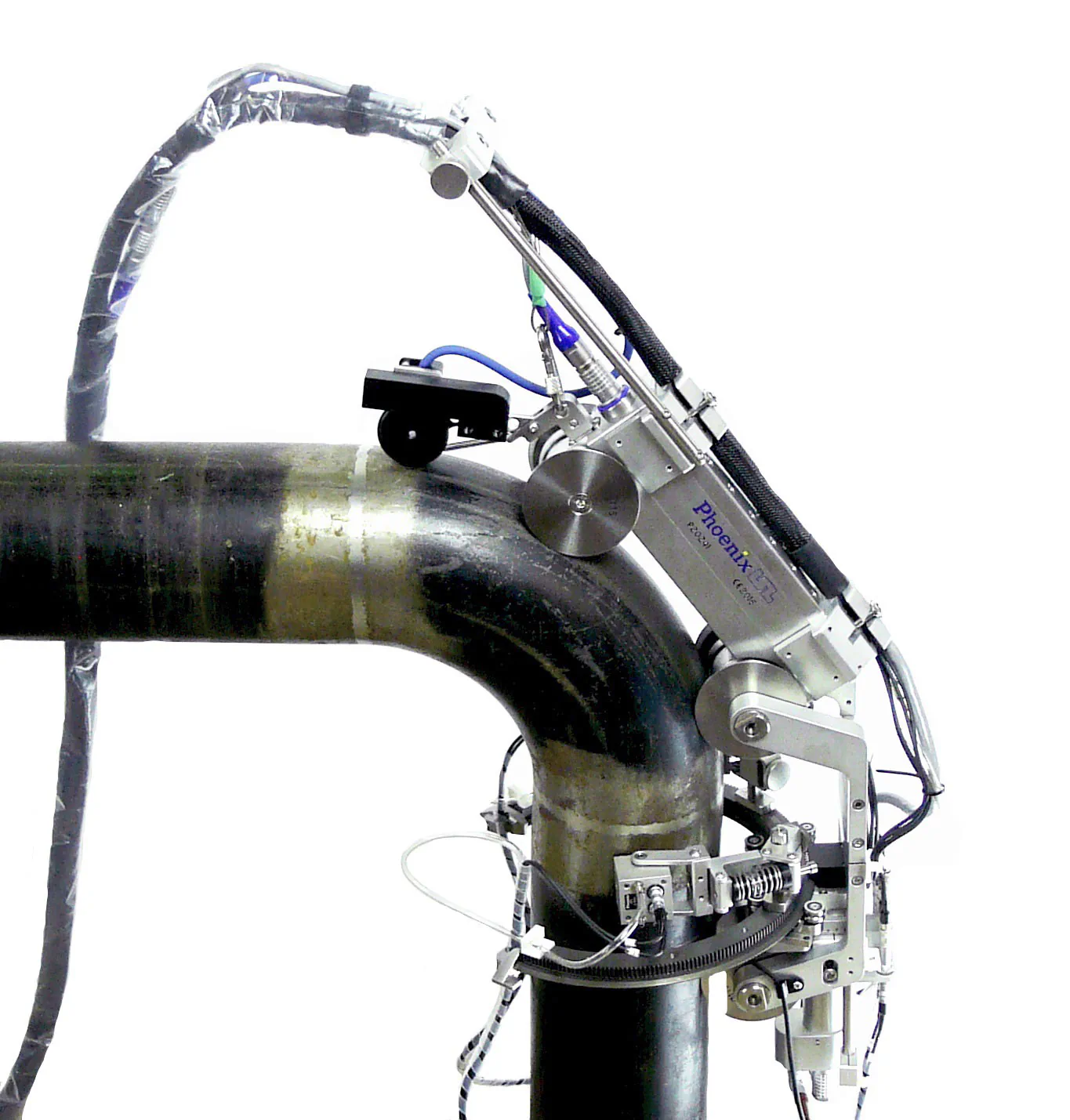

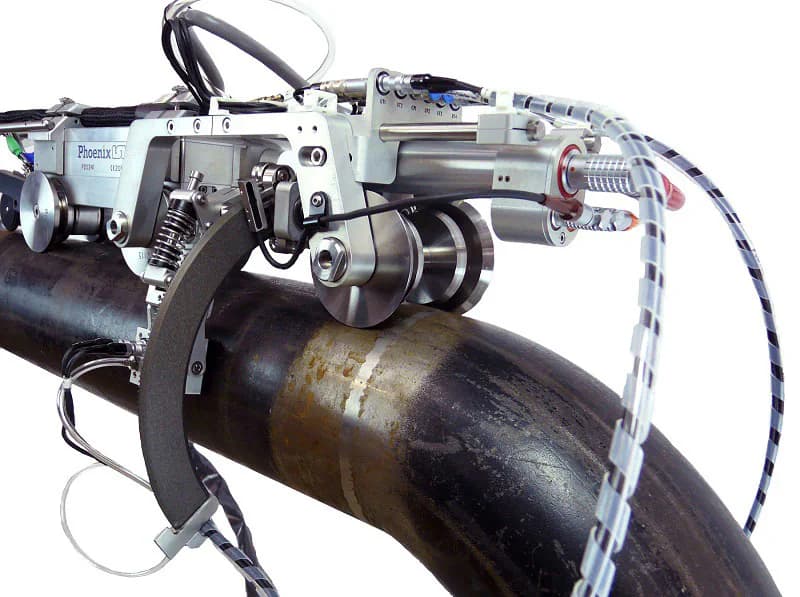

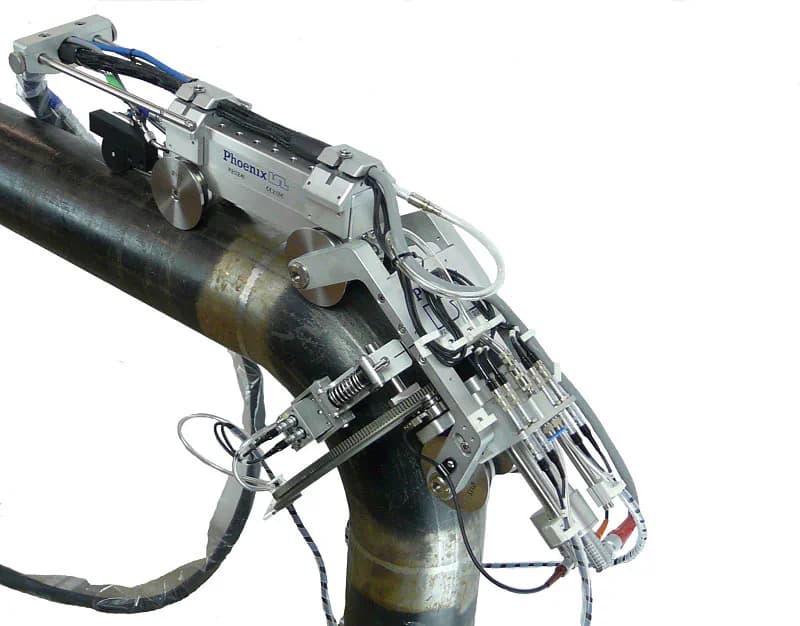

Pipe Elbow Tracker
PET Scanner
- Brand
- Phoenix ISL
- Category
- Custom Solutions > Industry > Nuclear Solutions
- Method / product family
- Model
- PET
Technical Specifications
| Minimum Pipe Size | 4″ |
|---|---|
| Maximum Pipe Size | 24″ or flat |
| Radial clearance above transducer | 1.5x OD |
| Radial clearance above scanner | 120mm (straight pipe) 160mm (pipe elbow) |
| Scanner length | 600mm |
| Axial scan coverage | Unlimited (10m cable) |
| Circumferential scan coverage | 370° on straight pipe 190° on pipe elbows |
| Position repeatability | <3mm |
| Maximum axial speed | 10mm/s |
| Maximum circumferential speed | 25mm/s |
| Motor type | 24V, 1A |
| Primary scanning axis | Circumferential |
| Transducer size | 30mm x 30mm |
| Protection | IP54 |
| Temperature range | 10°C – 50°C |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
