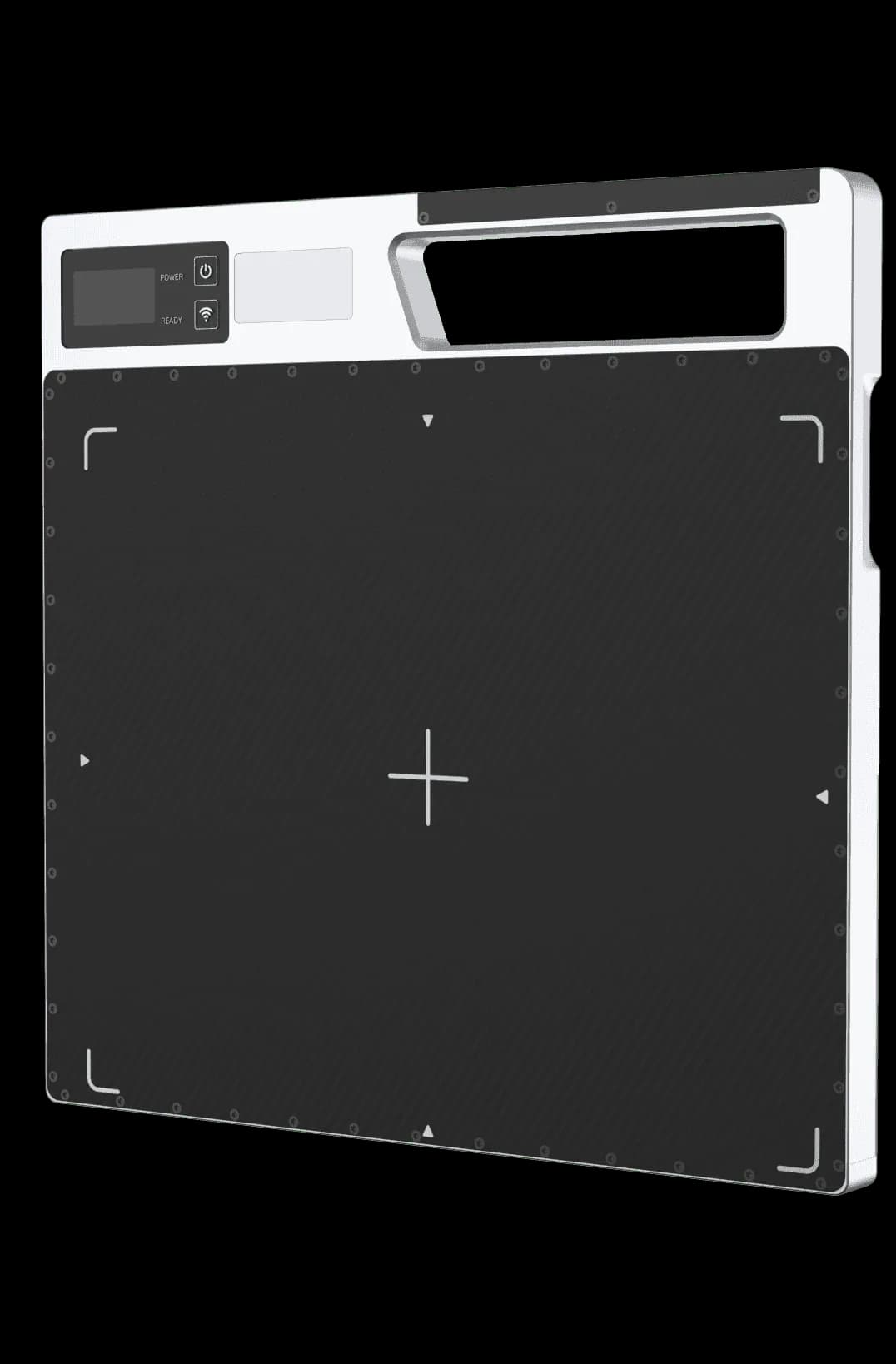

Scansilc 2430UH NDT X-ray Panel
Manufacturer product description
Compact 291 x 233 mm flat-panel DR detector with 76 µm pixel pitch and 16-bit images, built as a shielded IP67 unibody that is drop-tested to over 1 m. It runs in software-trigger mode with an existing generator and laptop, or as a system with a Golden pulsed X-ray generator.
Scansilc 2430UH NDT X-ray Panel
- Brand
- Scanna
- Category
- NDT > Portable NDT – Panels
- Method / product family
- Model
- Scansilc 2430UH NDT
The supply of products in this category is subject to applicable regulations and licensing requirements.
Technical Specifications
| Image area | 291 x 233 mm (11.45 x 9”) |
|---|---|
| Pixel Pitch | 76 μm |
| Resolution | 3840 x 3072 pixels |
| Physical Dimensions | 319 x 325 x 20 mm (12.56 × 12.80 × 0.79 “) |
| Weight | 2.8 kg (6.2 lbs) |
| Environmental Protection | IP67 (dust-tight and waterproof) |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
