Scanna
ScanFlex 1026 NDT Flexible X-ray Imager
Manufacturer product description

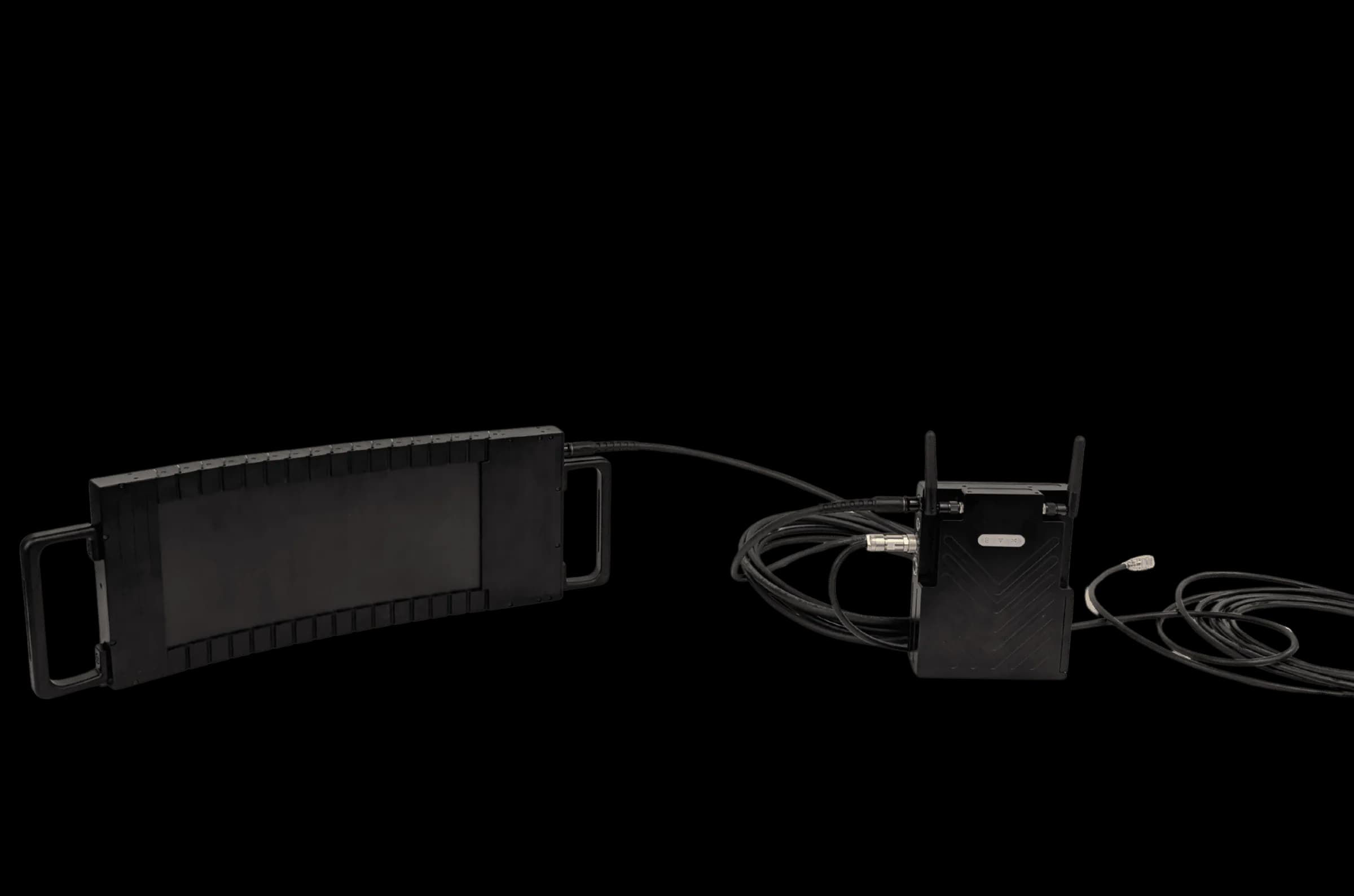

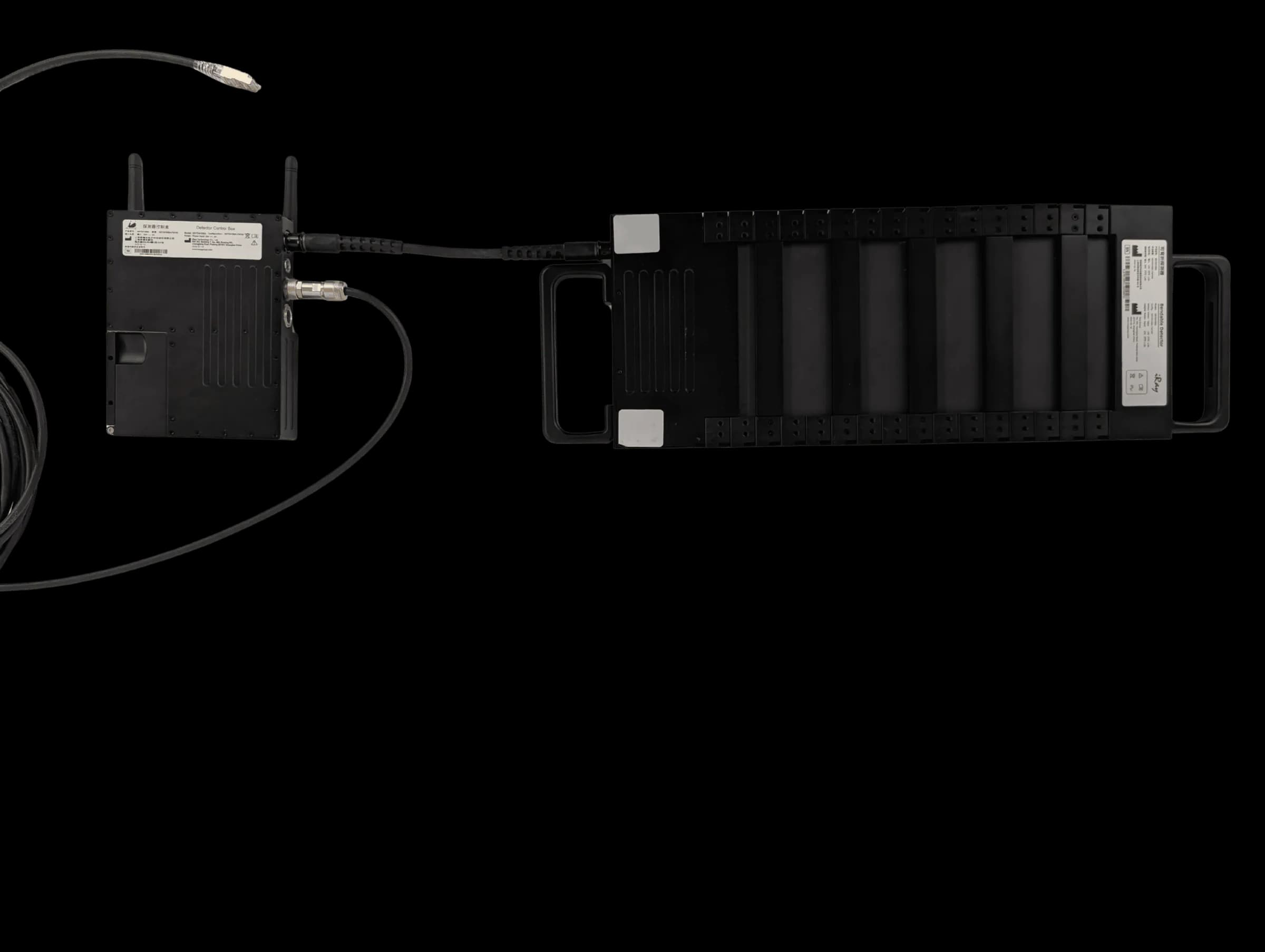

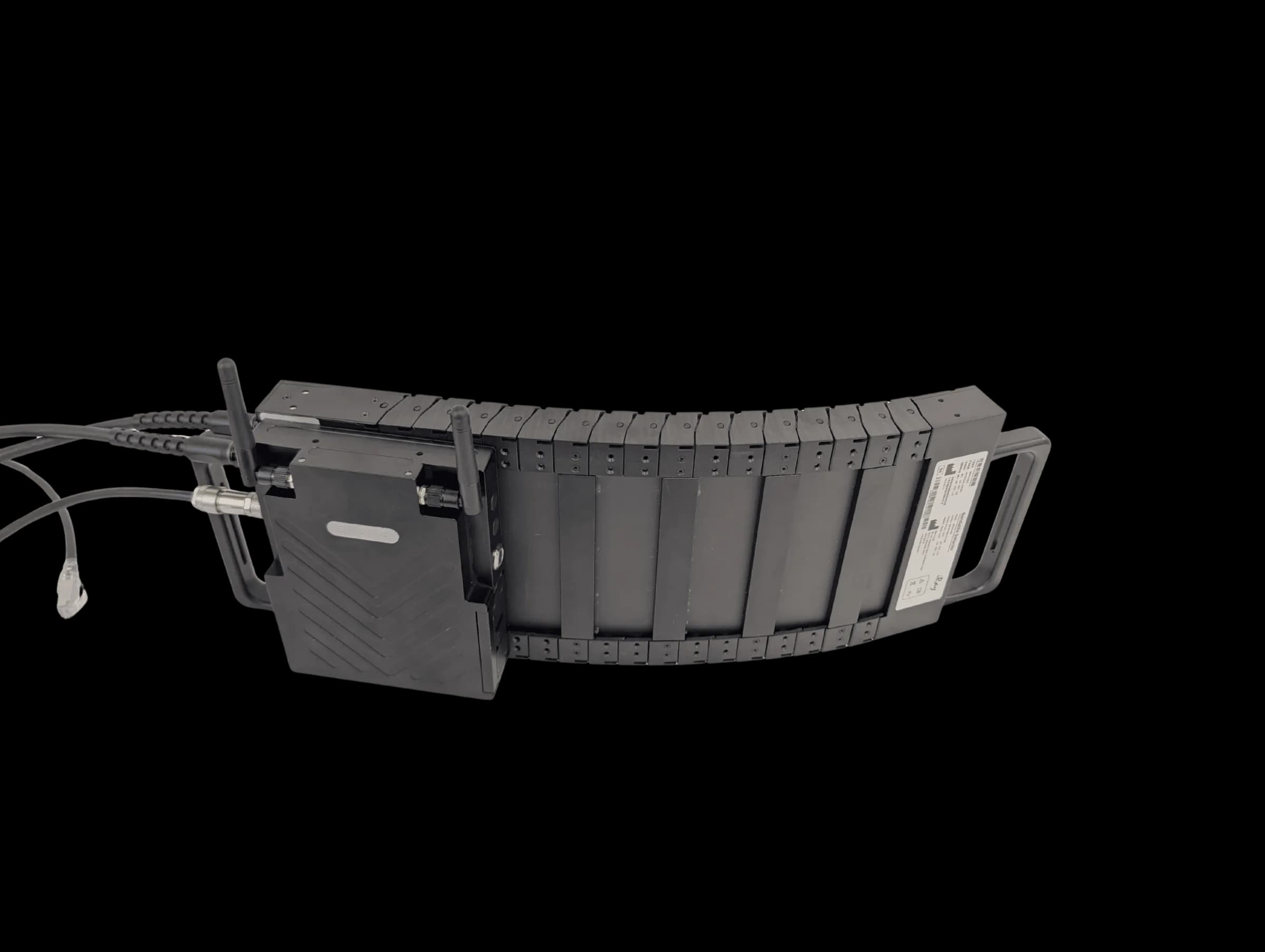

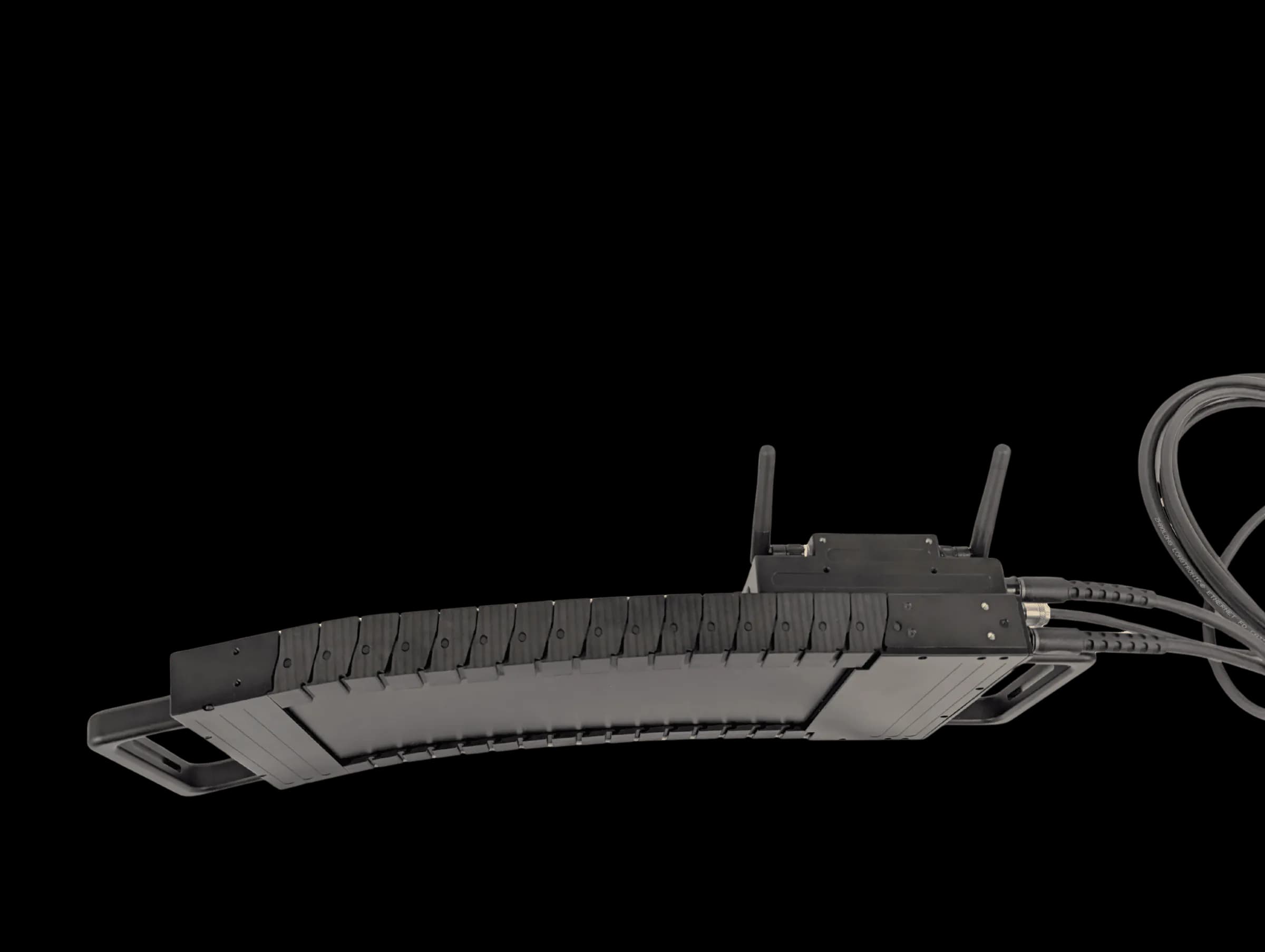

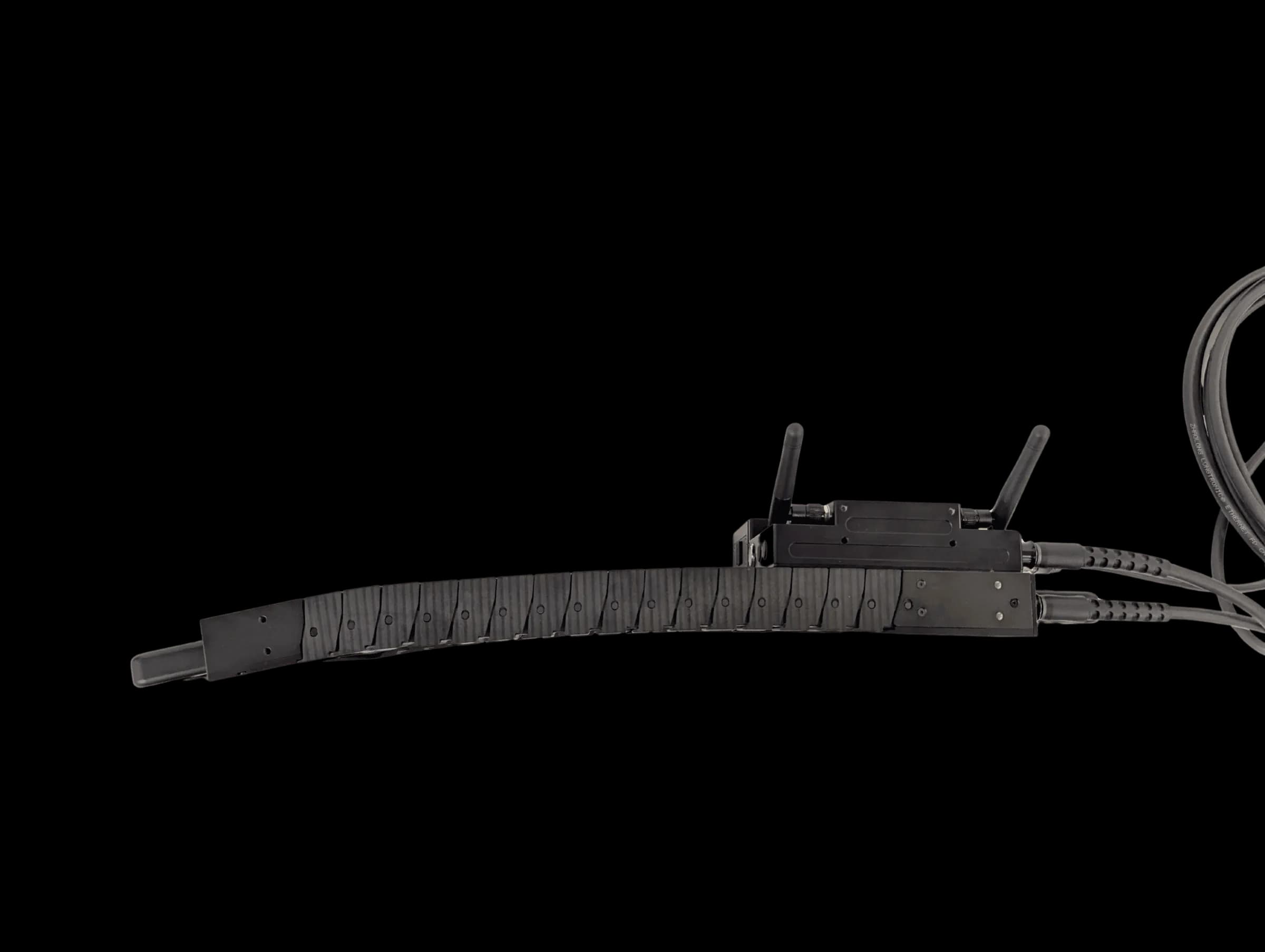

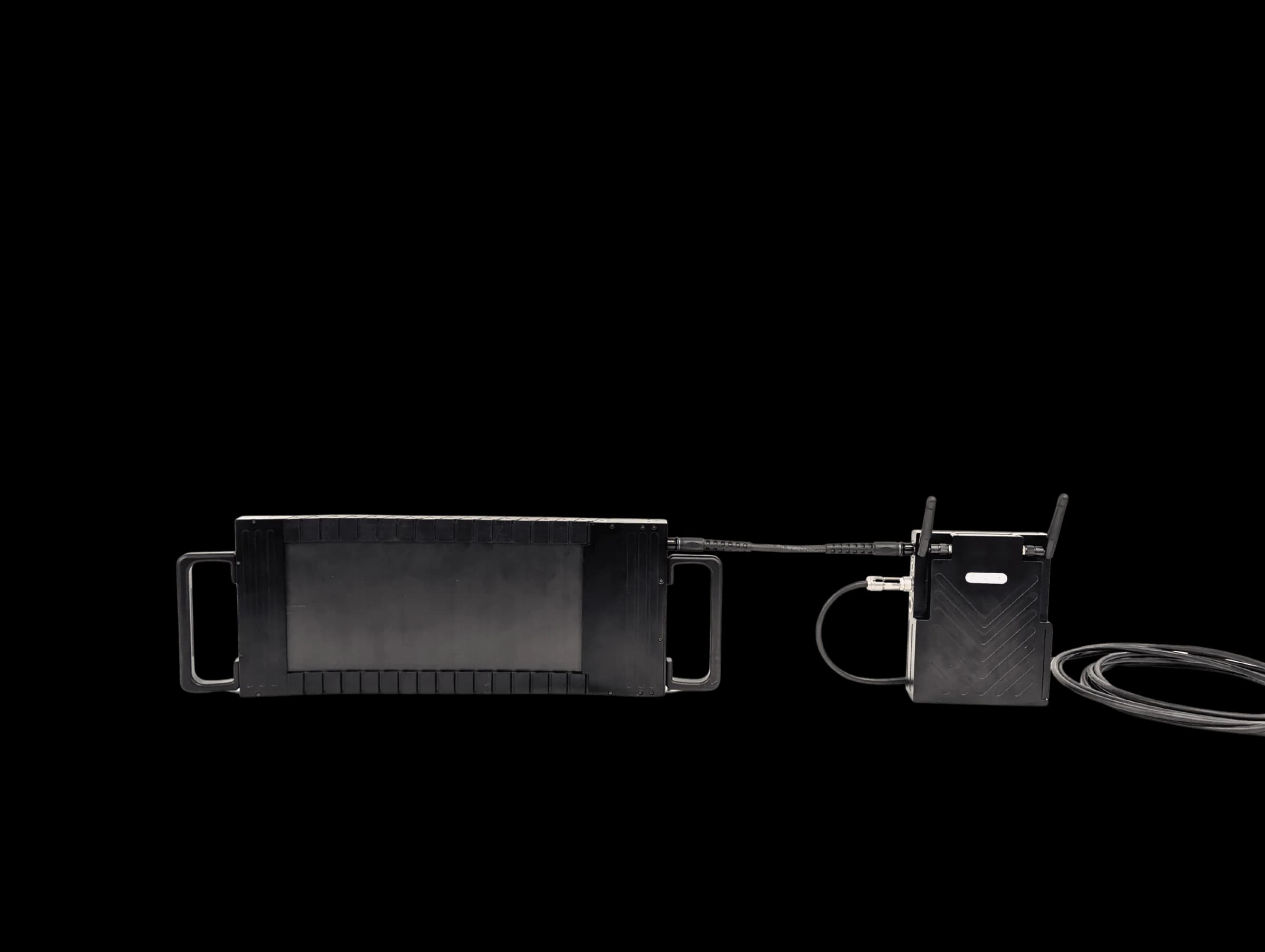

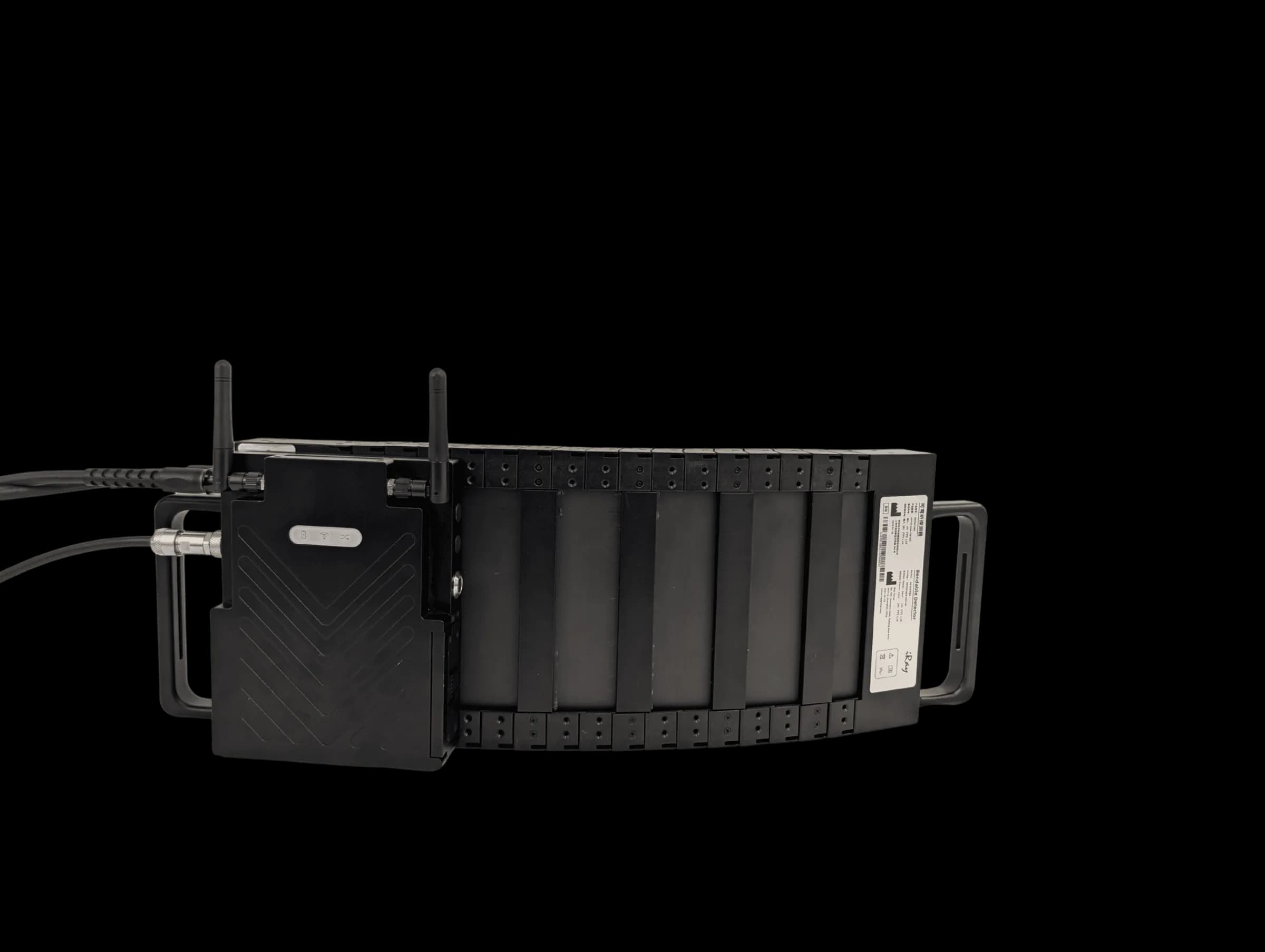

Flexible 10 x 26 cm digital X-ray detector with a hinged TFT design that bends around curved objects for direct-contact imaging, reducing distortion compared with flat panels. It has a 100 µm pixel pitch and an active area similar to common industrial radiography film sizes.
ScanFlex 1026 NDT Flexible X-ray Imager
1 more image is not shown on this page.
- Brand
- Scanna
- Category
- Portable X-Ray > NDT Portable X-ray
- Method / product family
- Model
- ScanFlex 1026 NDT
The supply of products in this category is subject to applicable regulations and licensing requirements.
Technical Specifications
| Active Image Area | 102.4 × 256 mm |
|---|---|
| Pixel Pitch | 100 Microns |
| Environmental Protection | IP67 |
| Image Resolution | 1024 × 2560 |
| Dimensions | 335 X 132 X 30 mm (without the handle) |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
