Texar - Electromagnetic testing system
Manufacturer product description

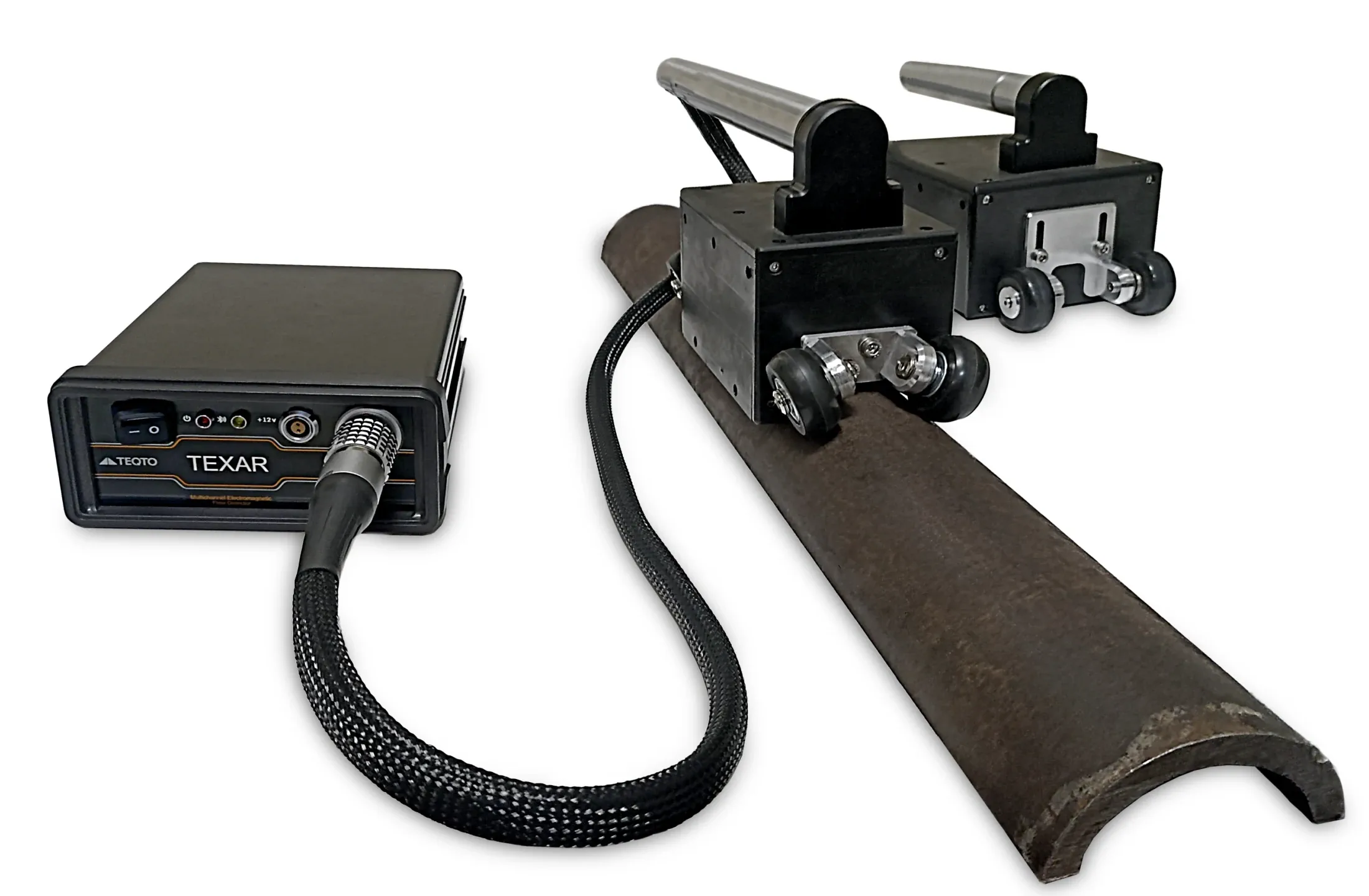

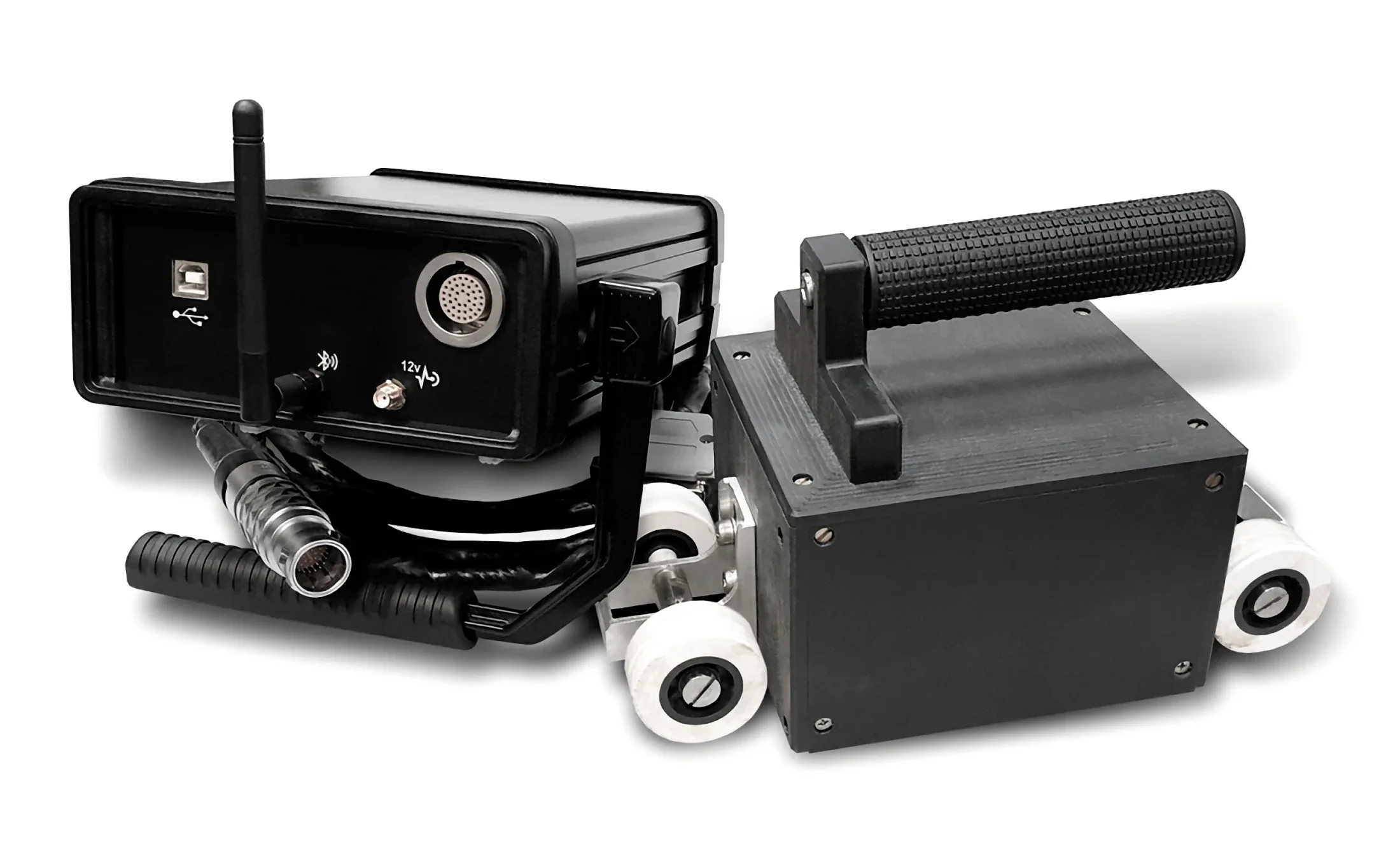

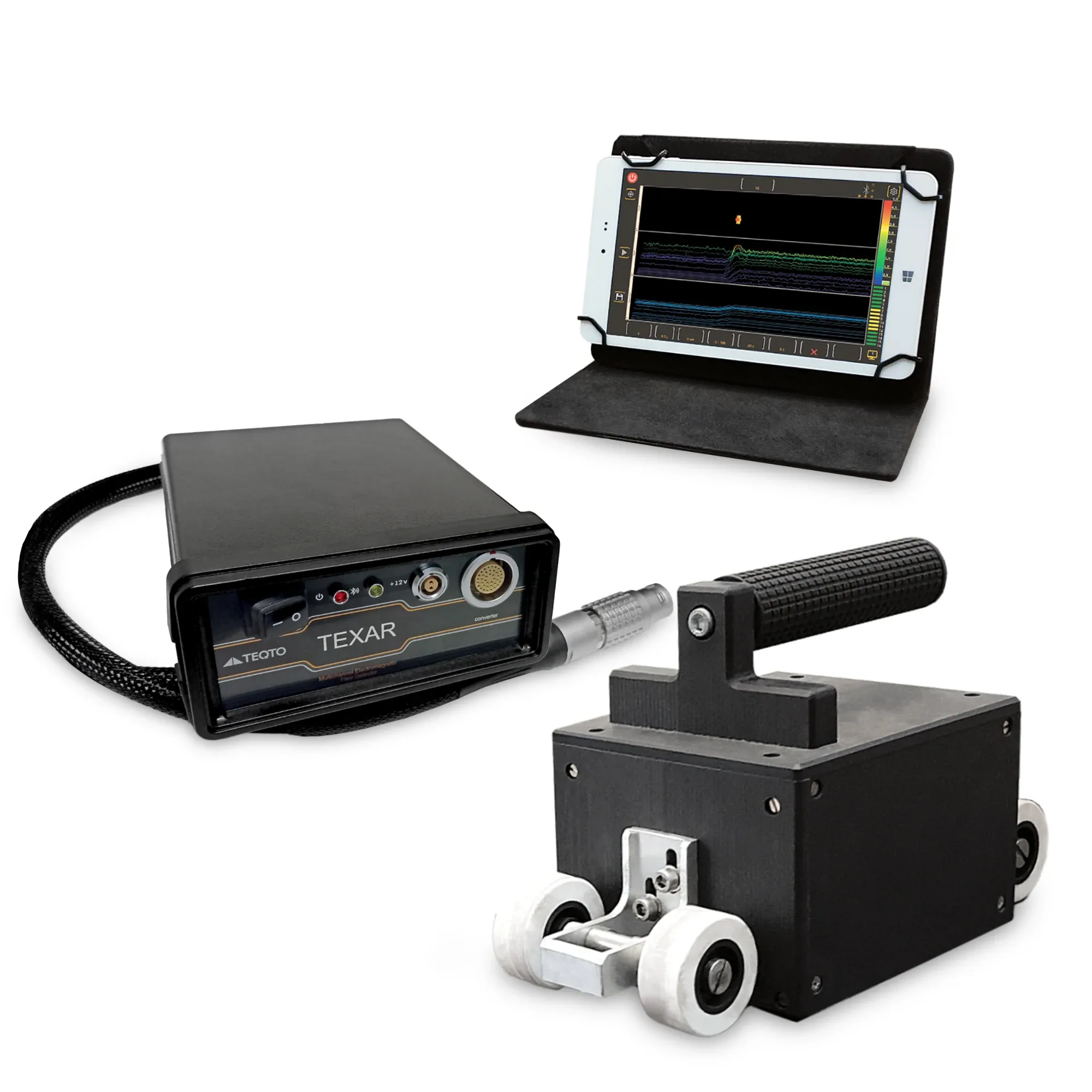

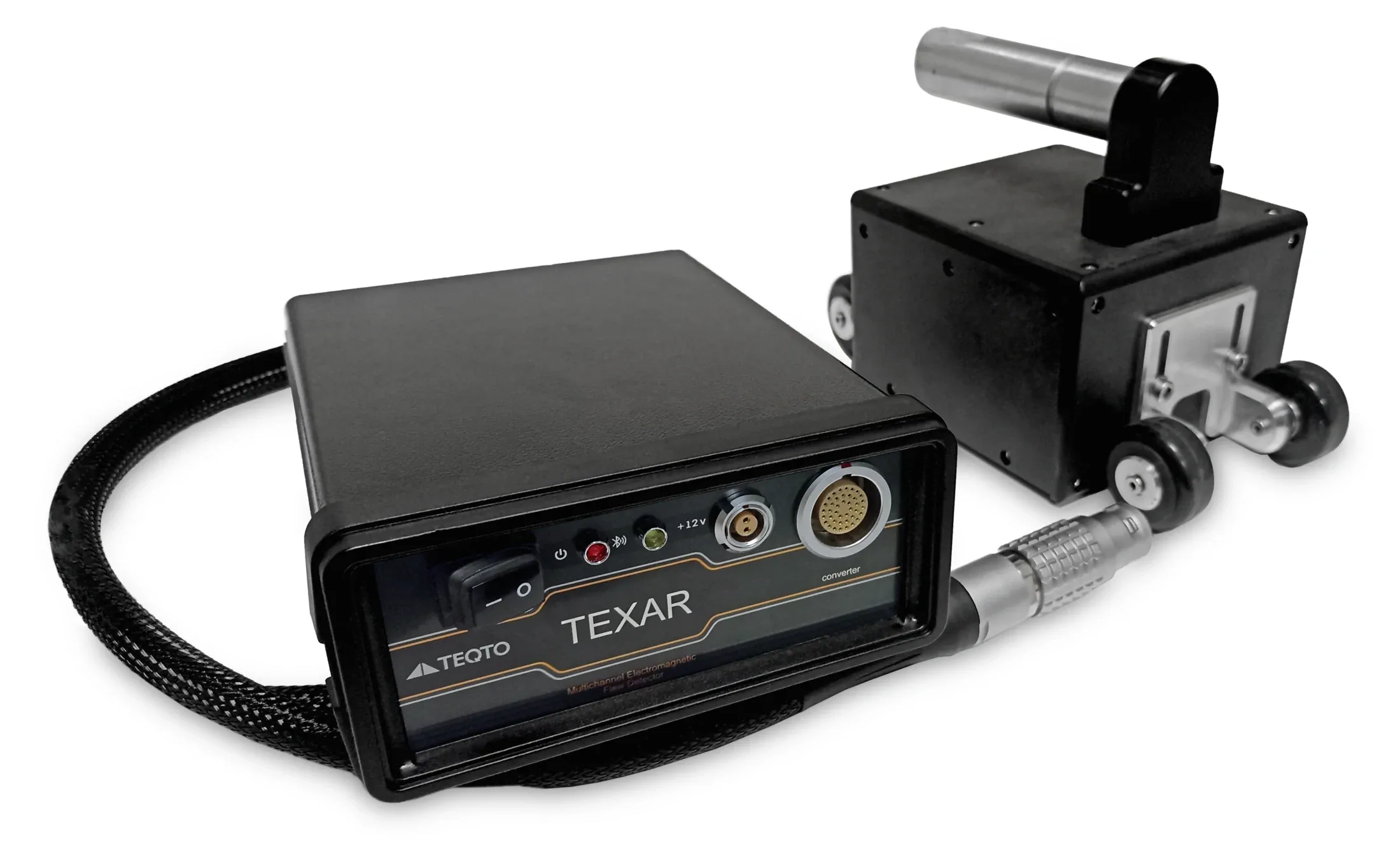

The Texar is a low-frequency electromagnetic testing system designed for non-contact detection of local metal thinning in ferromagnetic items. It is used for inspecting a variety of metal surfaces such as storage tank bottoms, pipelines, and process furnaces.
Texar - Electromagnetic testing system
- Brand
- TEQTO
- Category
- Electromagnetic testing systems
- Method / product family
- Model
- Texar
Technical Specifications
| Minimum detectable defects | Wall thinning: 5% of initial thickness, Pitting: 3 mm dia, 30% depth. Read more in Operation manual. |
|---|---|
| Accuracy of defect size evaluation | Estimative, with defect depths of 20%, 50%, and 70% |
| Used frequencies | 5–30 Hz (ferromagnetic), 1,000–30,000 Hz (non-ferromagnetic) |
| Maximum speed of inspection | 0.3 m/s |
| Testing zone width | 100–165 mm (depends on transducer model) |
| Dimensions (manual 16-channel transducer) | Length х Width х Height: 230 х 119 х 140 mm |
| Mass of transducer | 16-channel flat transducer weights approx. 1,3 kg |
| Battery life | Up to 10 hours |
| Power consumption | 10 W |
| Operating temperature range | -30 to +50 °C |
| Number of channels | from 1 to 16 |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
