Tritex NDT

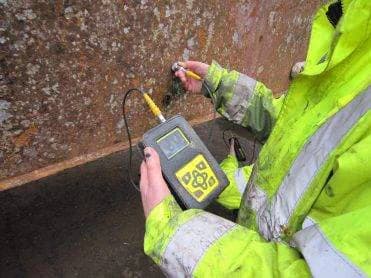

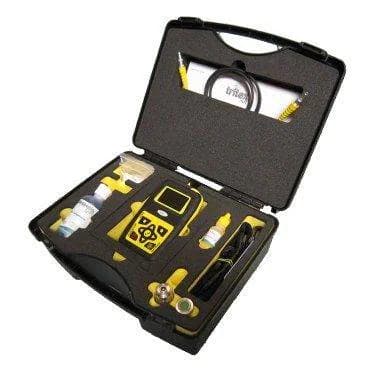

Multigauge 5650 Surveyor Thickness Gauge

Manufacturer product description

Ultrasonic thickness gauge for metal, GRP and plastic measurements with Multiple Echo, Echo-to-Echo and Single Echo modes.

Brand

Tritex NDT

Category

GRP

Method / product family

Model

Multigauge 5650

Sound Velocity Range	From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs)
Probes	Single crystal soft faced – 2.25 MHz, 3.5 MHz & 5 MHz / Single crystal hard faced – 1 MHz
Measurement Range	Steel: 1 – 300 mm (0.04” – 11.8”) depending on probe type. GRP: 2 – 12 mm (0.080” to 0.5”) depending on GRP
Probe Sizes	6 mm (0.25”), 13 mm (0.5”) & 19 mm (0.75”)
Measurement Mode	Multiple Echo / Echo – Echo / Single Echo
Resolution	0.1 mm (0.005”) or 0.05 mm (0.002”)
Accuracy	± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
Display	Colour LCD
Coatings Range	Up to 6mm (Standard Mode); up to 20mm (Coating Plus+)
Batteries	3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD
Battery Life	Up to 50 hours continuous use using alkaline batteries
Gauge Dimensions	147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”)
Gauge Weight	325 g (11.5 ounces) including batteries
Environmental	Case rated to IP65, RoHS and WEEE compliant
Operating Temp	-10°C to +50°C (14°F to 122°F)
Storage Temp	-10°C to +60°C (14°F to 140°F)

Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
