450kv Industrial High Frequency Fixed X-Ray Machine
Manufacturer product description

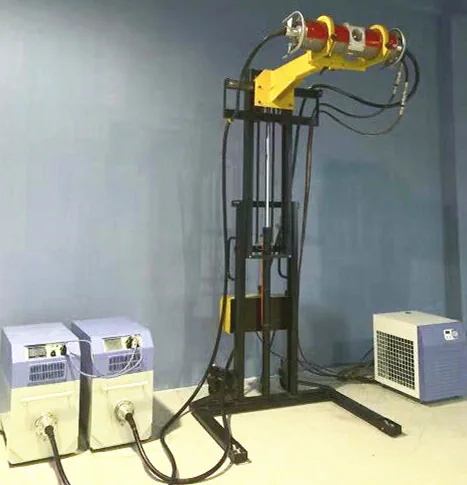

Stationary 450 kV high-frequency X-ray system (0-10 mA, 900 W / 4500 W) consisting of a metal-ceramic tube, high-voltage generator, controller, cooling unit and a tube stand with 600-1800 mm vertical lift and 0-90° tube rotation.
450kv Industrial High Frequency Fixed X-Ray Machine
- Brand
- ZHONG YI NDT
- Category
- X-Ray Flaw Detector
- Method / product family
Technical Specifications

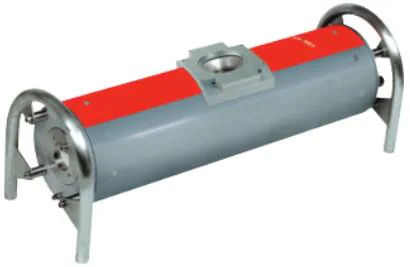

| X-ray Tube | Tube Voltage: 0-450kV; Tube Current: 0-10mA; Power: 900W/4500W; Focus Size: EN12543 d=2.5mm/d=5.5mm; Radiation Angle: 40°; Cooling Flow: 14L/min |
|---|---|

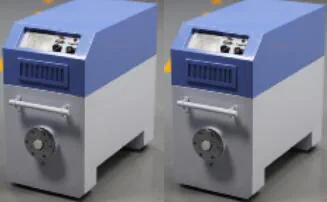

| High Frequency and High Voltage Generator | Cathode + Anode; Working Frequency: 40kHz; Maximum Power: 5000W; Ripple: 0.5%; Insulation Method: oil insulation; Maximum Current: 30mA; Power Supply: 230VAC(±10%), 50Hz; Operating Environment: 0-45℃, 60-90% RH no condensation; High Voltage cable: 7m; Power Cable: 10m |

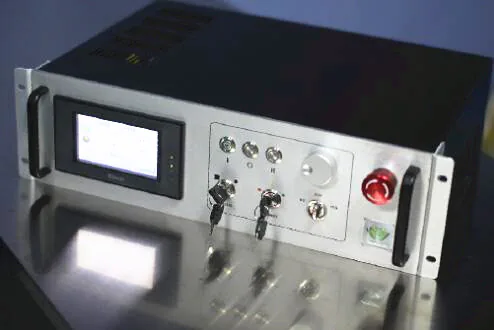

| Controller | Control Cable: 20m; Operation Interface: Chinese and English switching; Focus: Large/small focus switch (in case of dual focus); Voltage Setting and Control: 0~450kV, step size 0.1kV, accuracy ±0.1%; Current Setting and Control: 1~25mA, step length 0.1mA, accuracy ±0.1%; Exposure Time and Control: 0~99min; Automatic Training Machine: automatically select training program according to the downtime (not mandatory); Exposure Parameter Memory: able to record the exposure parameters and recall them according to the record; Fault Protection and Alarm: over voltage, overcurrent, undervoltage, undercurrent, Arc (sparking) protection, high frequency inverter failure,cooler failure, interlock, over temperature failure |

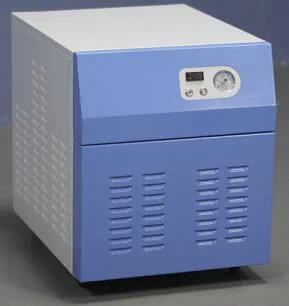

| Cooler | Cooling Power: 4500W (30℃); Cooling Medium: oil (air cooling); Flow Rate: 14L/min; Power Supply: AC 220V, 300W; Size: 705X535X730mm; Weight: 50kg; Output Connector: quick connector 1/4"; Flow Switch: 14l/min is not adjustable, below 4l/min, the signal is open; Thermostat: The start and stop temperature of refrigeration is adjustable, the factory setting is 50℃ alarm for oil cooler; Shutdown Delay Cycle: adjustable, factory setting 3min; Tubing: 2 pieces, 7m |
| Stand | Vertical lift: 600-1800mm; Tube rotation: 0-90° |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
