DC X-Ray Flaw Detector
Manufacturer product description

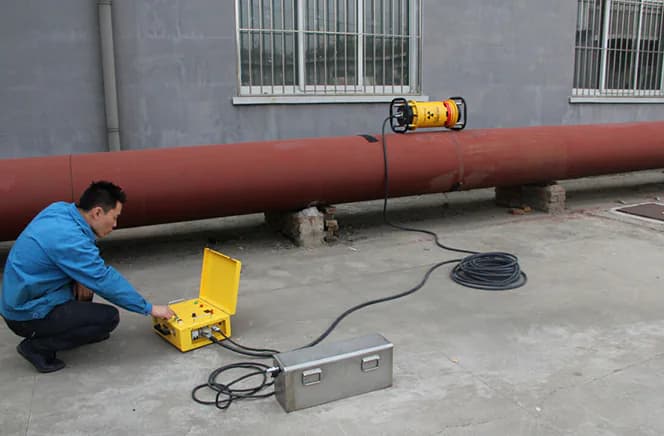

Battery-powered (120 V DC battery pack) portable X-ray flaw detector line for sites without AC mains, such as pipeline work. It is offered with ceramic directional (DCXXG), glass directional (DCXXQ) and glass panoramic (DCXXHA) generators from 60 to 300 kV, with a stated battery run time of 2-3 hours.
DC X-Ray Flaw Detector
- Brand
- ZHONG YI NDT
- Category
- X-Ray Flaw Detector
- Method / product family
Technical Specifications
| Power supply | DC Battery Pack 120V |
|---|---|
| Max. Tube current | 5 mA |
| Insulation | SF6 Gas |
| Temperature | -25℃-40℃ |
| Humidity | No more than 85% |
| Working Conditions | 1. Focus : 600mm, exposure time: 5 min.; 2. Film: KODAK , intensified by double lead foil.; 3. Treatment in the darkroom: Temp. 20 ±2ºC, 5 min. density ≥ 2.0 |
| Safe Pressure | (Operation will be prohibited in the case less than 0.35 Mpa); 0.35-0.5 Mpa |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
