ZHONG YI NDT
MINI-SIZE
Manufacturer product description

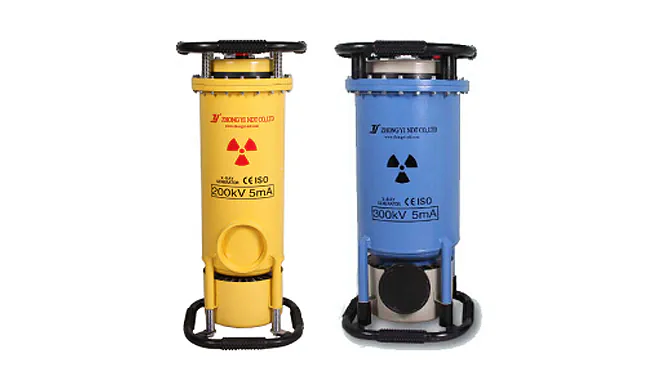

Reduced-size versions of the portable directional and panoramic X-ray generators for confined or elevated work sites. The page table lists ceramic and glass directional, glass panoramic (cone and flat) and ceramic panoramic "L" models plus ZY-2503 and ZY-3003, spanning 80-300 kV.
MINI-SIZE
- Brand
- ZHONG YI NDT
- Category
- X-Ray Flaw Detector
- Method / product family
Technical Specifications
| Tube Current | 5mA |
|---|---|
| Power Supply | AC220V ±10% 50HZ |
| Insulating Material | SF6 gas |
| Working Temperature | -25°~ 40° |
| Relative Humidity | ≤85% |
| Working Conditions | 1. Focus : 600mm; 2. Exposure time: 5 min.; 3. Film: KODAK , intensified by double lead foil.; 4. Treatment in the darkroom: Temp. 20 ±2ºC, 5 min. density ≥ 1.5 |
| Safe Pressure | 0.35 ~ 0.50 Mpa; (Operation will be prohibited in the case less than 0.35 Mpa) |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
