ZHONG YI NDT
XXG- Ceramic Tube Directional
Manufacturer product description

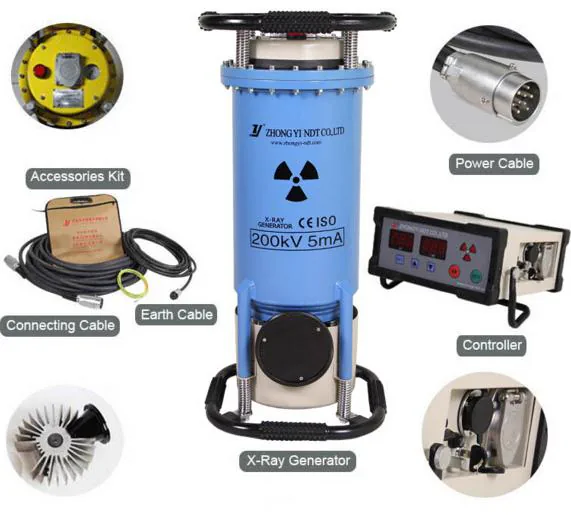

Portable directional X-ray flaw detector family built on ceramic X-ray tubes with SF6 gas insulation and a grounded-anode design. The model table covers XXG-1605 to XXG-3505 (35-350 kV, 40° beam) with stated maximum penetration of 20-70 mm in A3 steel.
XXG- Ceramic Tube Directional
- Brand
- ZHONG YI NDT
- Category
- X-Ray Flaw Detector
- Method / product family
Technical Specifications
| Tube Current | 5mA |
|---|---|
| Power Supply | AC220V ±10% 50HZ |
| Insulating Material | SF6 gas |
| Working Temperature | -25°C~ 40°C |
| Relative Humidity | ≤85% |
| Working Conditions | 1. Focus : 600mm; 2. Exposure time: 5 min.; 3. Film: KODAK , intensified by double lead foil.; 4. Treatment in the darkroom: Temp. 20 ±2ºC, 5 min. |
| Safe Pressure | 0.35 ~ 0.50 Mpa; (Operation will be prohibited in the case less than 0.35 Mpa) |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
