ZHONG YI NDT
XXGHA -Ceramic Tube Panoramic
Manufacturer product description

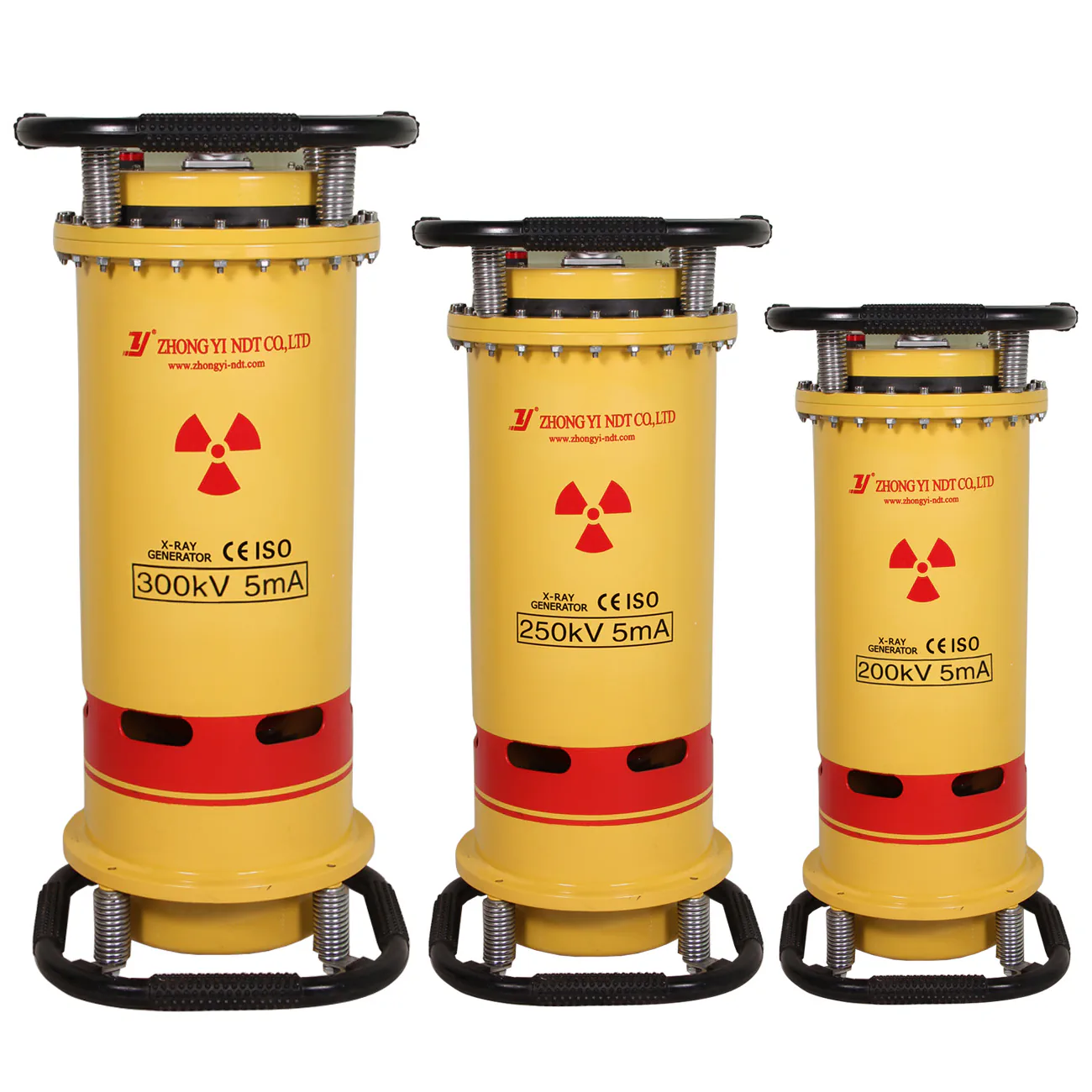

Portable panoramic X-ray flaw detector with a ceramic tube producing a 360°x30° beam, with SF6 gas insulation. Models XXGHA-2005, -2505 and -3005 cover 50-300 kV with stated maximum penetration of 26-40 mm.
XXGHA -Ceramic Tube Panoramic
- Brand
- ZHONG YI NDT
- Category
- X-Ray Flaw Detector
- Method / product family
Technical Specifications
| Tube Current | 5mA |
|---|---|
| Power Supply | AC220V ±10% 50HZ |
| Insulating Material | SF6 gas |
| Working Temperature | -25°C~ 40°C |
| Relative Humidity | ≤85% |
| Working Conditions | 1. Focus : 600mm; 2. Exposure time: 5 min.; 3. Film: KODAK , intensified by double lead foil.; 4. Treatment in the darkroom: Temp. 20 ±2ºC, 5 min. |
| Safe Pressure | 0.35 ~ 0.50 Mpa; (Operation will be prohibited in the case less than 0.35 Mpa) |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
Product Documents
No verified product document has been published for this product yet.
