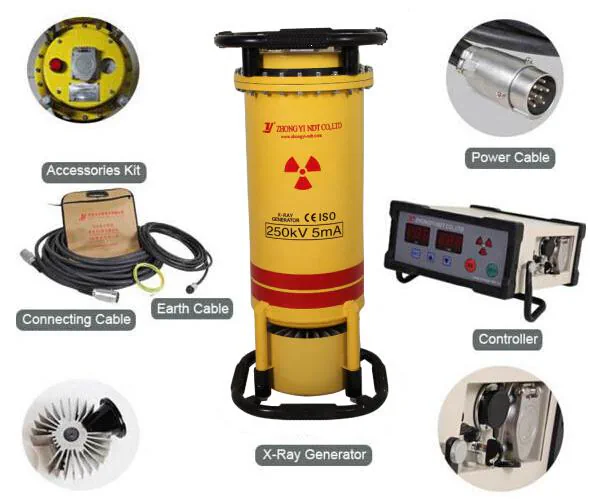

XXHA- Glass Tube Panoramic
Manufacturer product description
Portable panoramic X-ray flaw detectors with glass tubes giving a 360° exposure for circumferential welds such as pipeline and boiler girth welds. The page table lists flat-beam XXH (360°x25°) and cone-beam XXHA (360°x40°) models from 40 to 300 kV.
XXHA- Glass Tube Panoramic
- Brand
- ZHONG YI NDT
- Category
- X-Ray Flaw Detector
- Method / product family
Technical Specifications
| Tube Current | 5mA |
|---|---|
| Power Supply | AC220V ±10% 50HZ |
| Insulating Material | SF6 gas |
| Working Temperature | -25°C~ 40°C |
| Relative Humidity | ≤85% |
| Working Conditions | 1.Focus : 600mm; 2.Exposure time: 5 min.; 3. Film: KODAK , intensified by double lead foil.; 4. Treatment in the darkroom: Temp. 20 ±2oC, 5 min. |
| Safe Pressure | 0.35 ~ 0.50 Mpa; (Operation will be prohibited in the case less than 0.35 Mpa) |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
