XXQ- Glass Tube Directional
Manufacturer product description

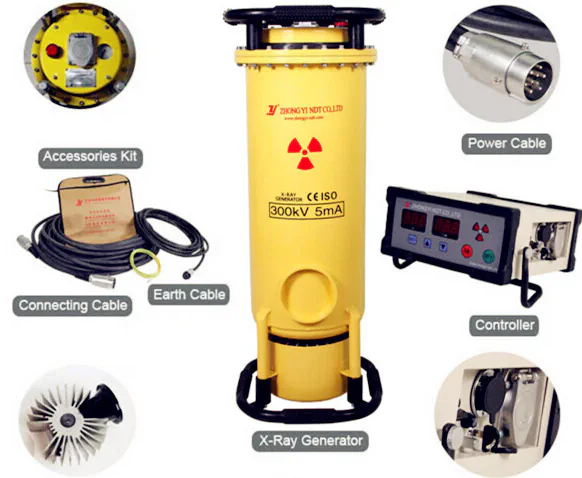

Portable directional X-ray flaw detector family with glass X-ray tubes and SF6 gas insulation, positioned by the maker as an economical option. Models XXQ-1005 to XXQ-3505 cover 40-350 kV with a 40° beam and stated maximum penetration of 8-59 mm.
XXQ- Glass Tube Directional
- Brand
- ZHONG YI NDT
- Category
- X-Ray Flaw Detector
- Method / product family
Technical Specifications
| Tube Current | 5mA |
|---|---|
| Power Supply | AC220V ±10% 50HZ |
| Insulating Material | SF6 gas |
| Working Temperature | -25°C~ 40°C |
| Relative Humidity | ≤85% |
| Working Conditions | 1.Focus : 600mm; 2.Exposure time: 5 min.; 3. Film: KODAK , intensified by double lead foil.; 4. Treatment in the darkroom: Temp. 20 ±2oC, 5 min. |
| Safe Pressure | 0.35 ~ 0.50 Mpa; (Operation will be prohibited in the case less than 0.35 Mpa) |
Technical specifications are taken from data published by the supplier; refer to the supplier source for final and binding values.
