QSA Global, Inc.
880 Series Delta Gamma-Ray Source Projector
Üretici ürün açıklaması
The 880 Series Delta gamma-ray source projector stands as the industry's most preferred gamma-ray source projector for high-activity field radiography. Designed to house Ir-192 sources up to 150 Ci (5.55 TBq), the 880 Series Delta enables shorter exposure times and full penetration when inspecting new pipeline welds, pressure vessels, and thick-wall castings. You can also load Se-75 or Yb-169 sources for lighter components or tighter geometries, making it a versatile solution across a wide range of non-destructive testing (NDT) applications. As the highest-capacity model in the 880 Series, the 880 Series Delta is best suited for demanding field applications, while the 880 Series Elite and 880 Series Omega offer lighter-weight options for moderate or low-activity inspections. The 880 Series Delta complies with ANSI N432-1980, ISO 3999:2004(E), IAEA TS-R-1 (2009), IAEA SSR-6 (2012), USNRC 10CFR34 and 10CFR71, and USDOT 49CFR173 to help ensure safe, compliant operation in any field environment.

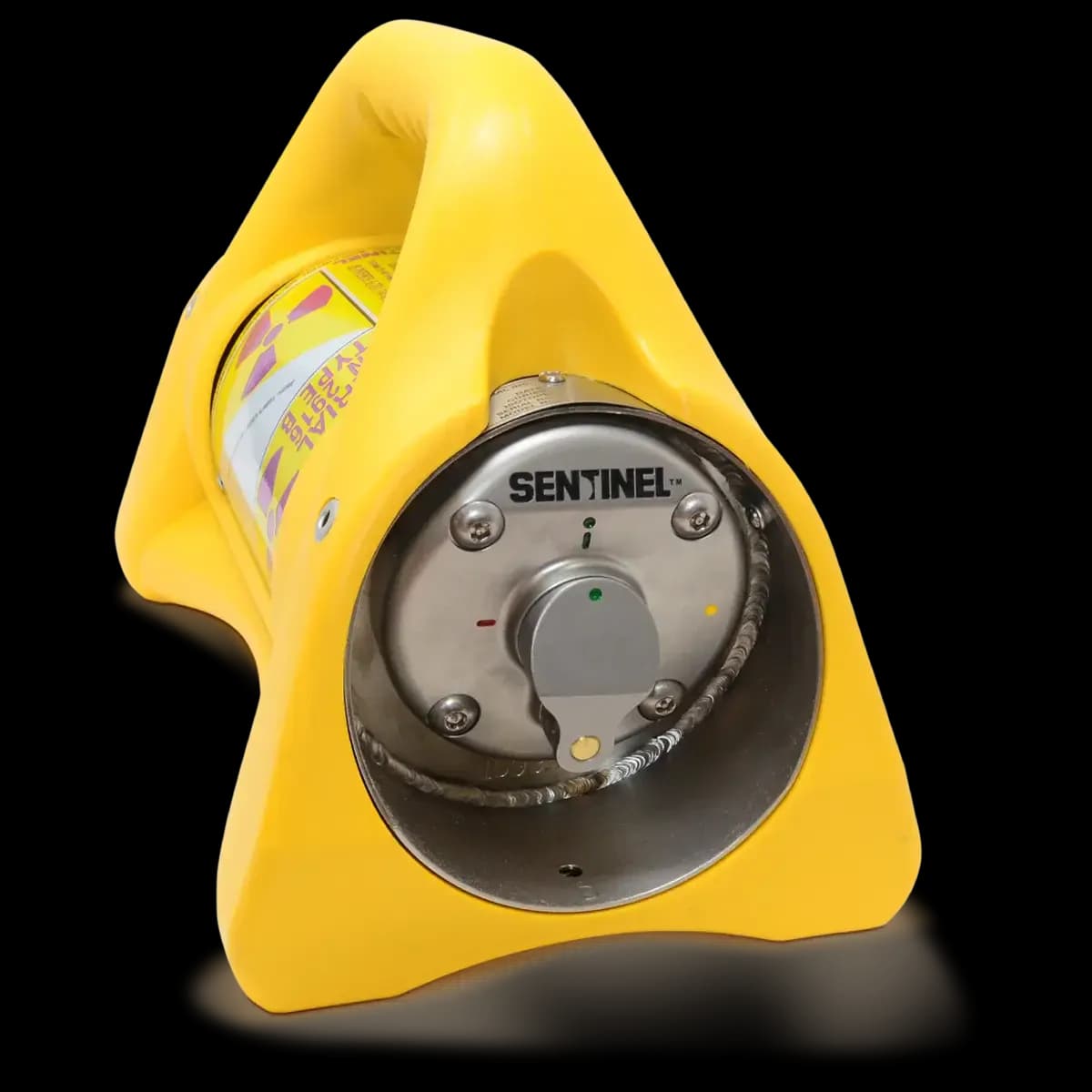

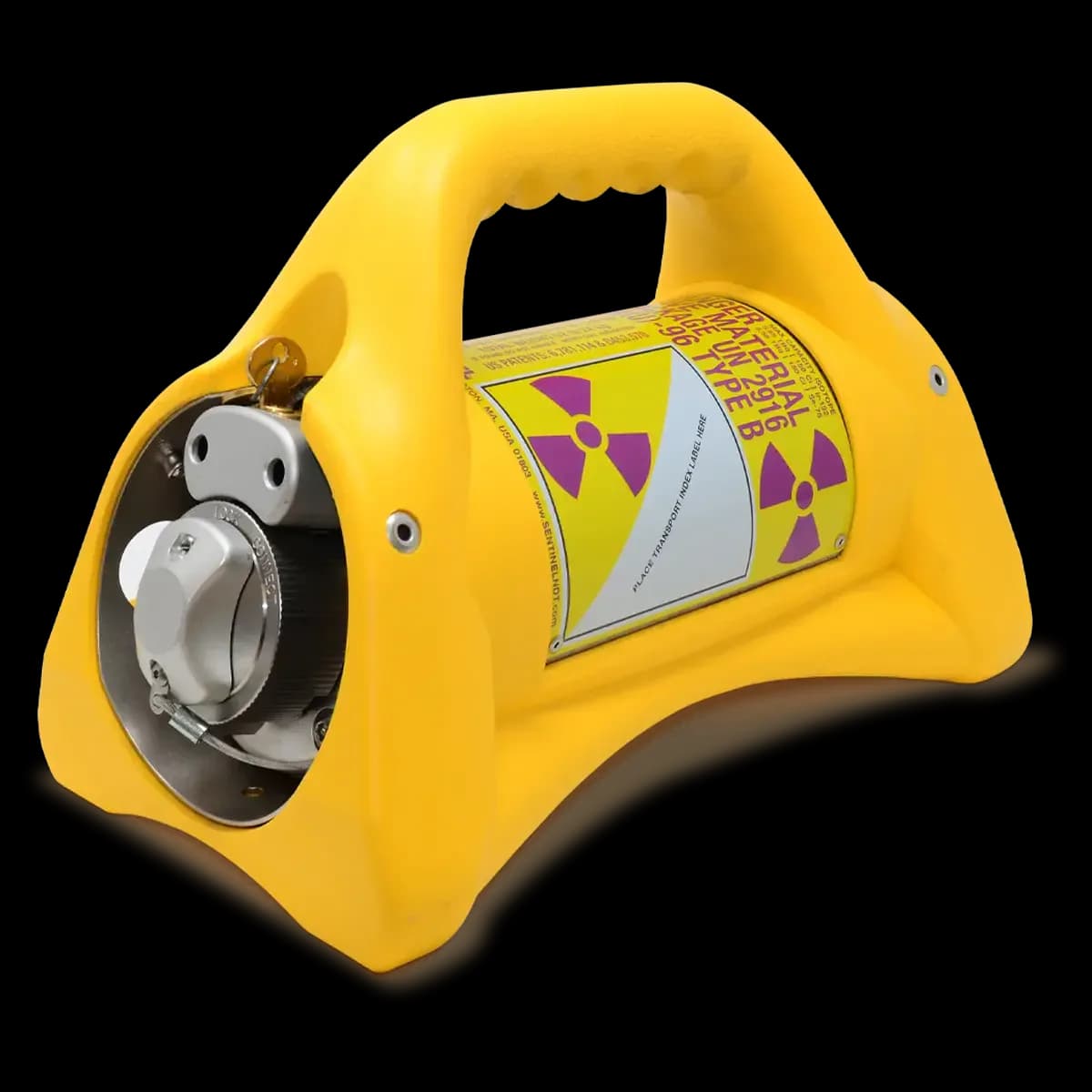

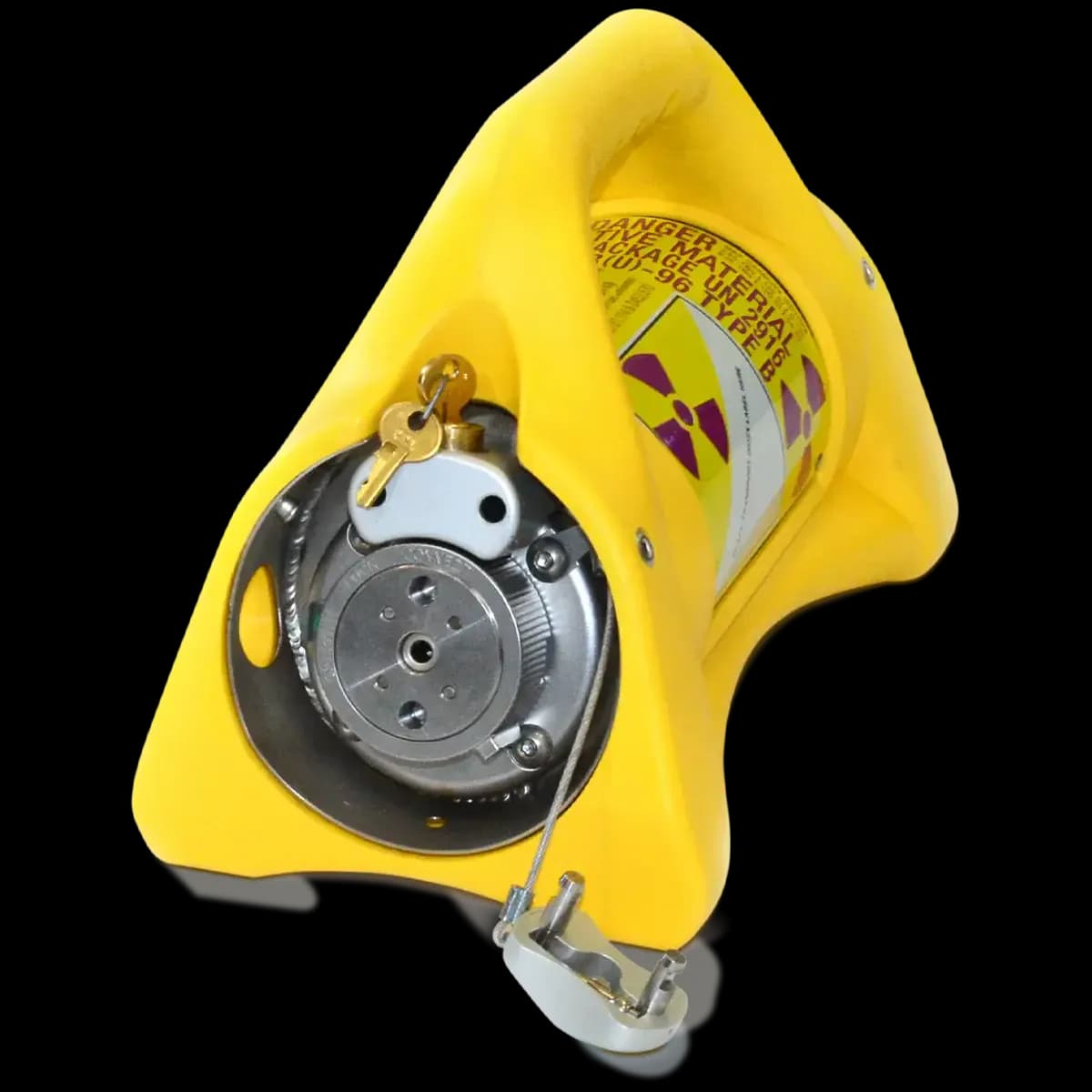

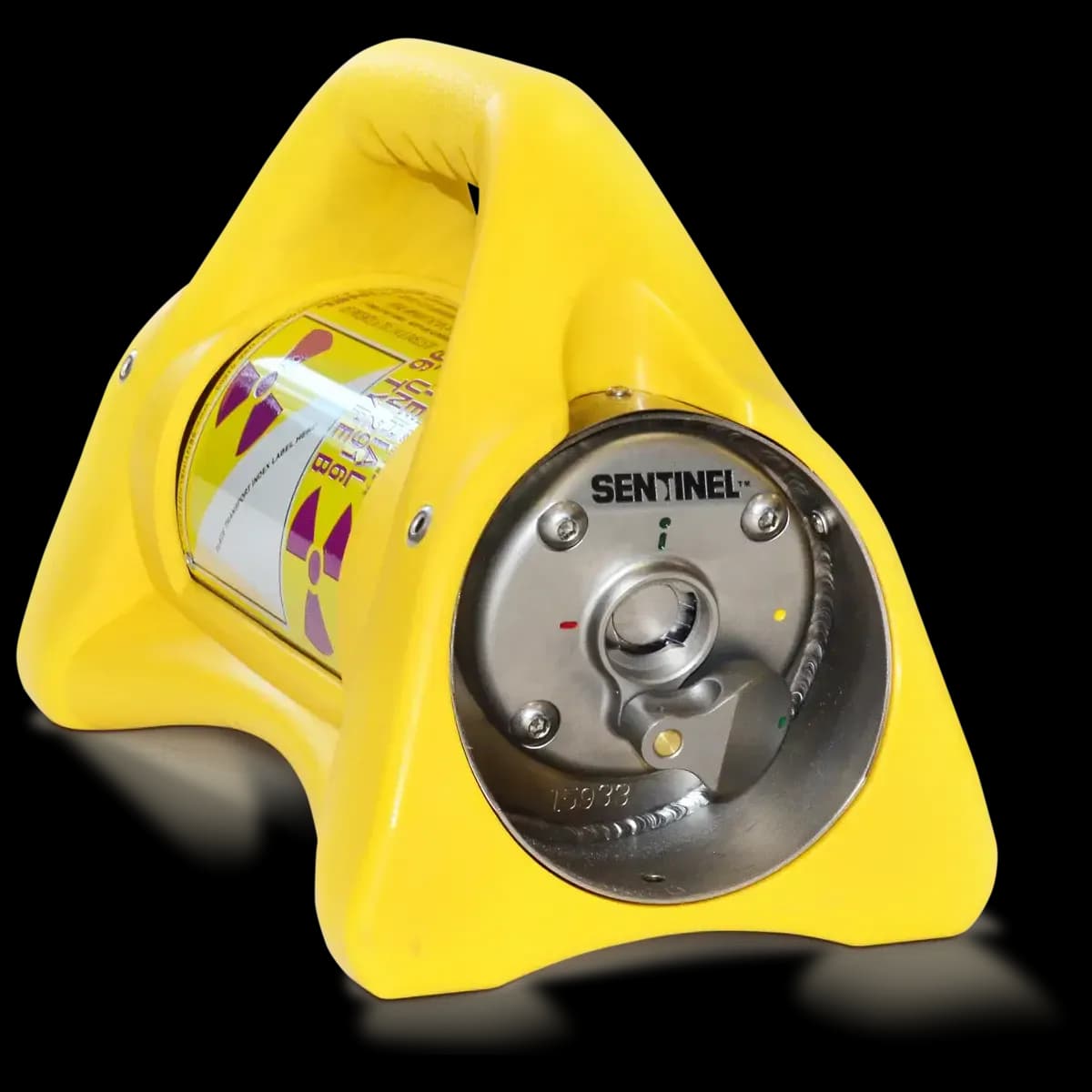

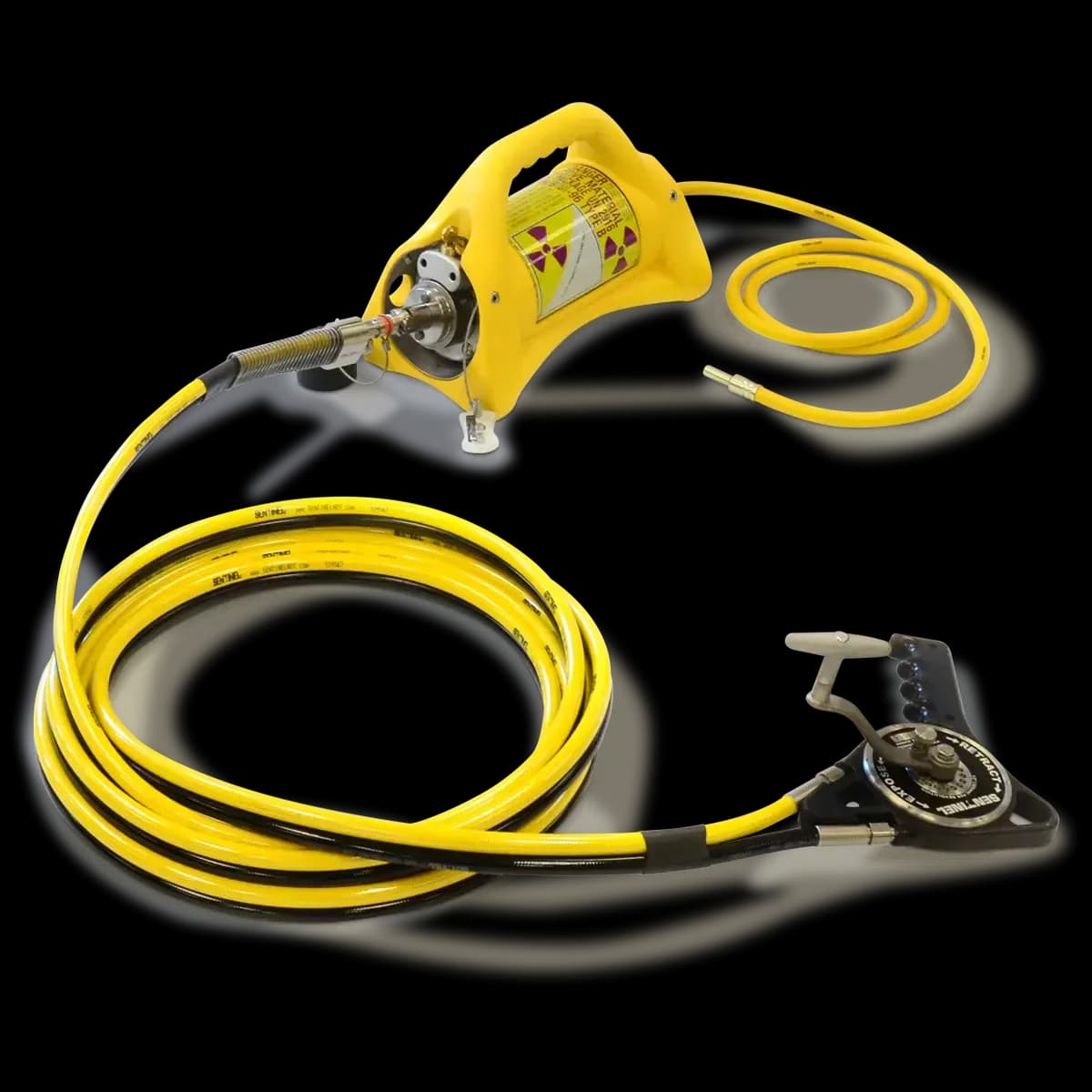

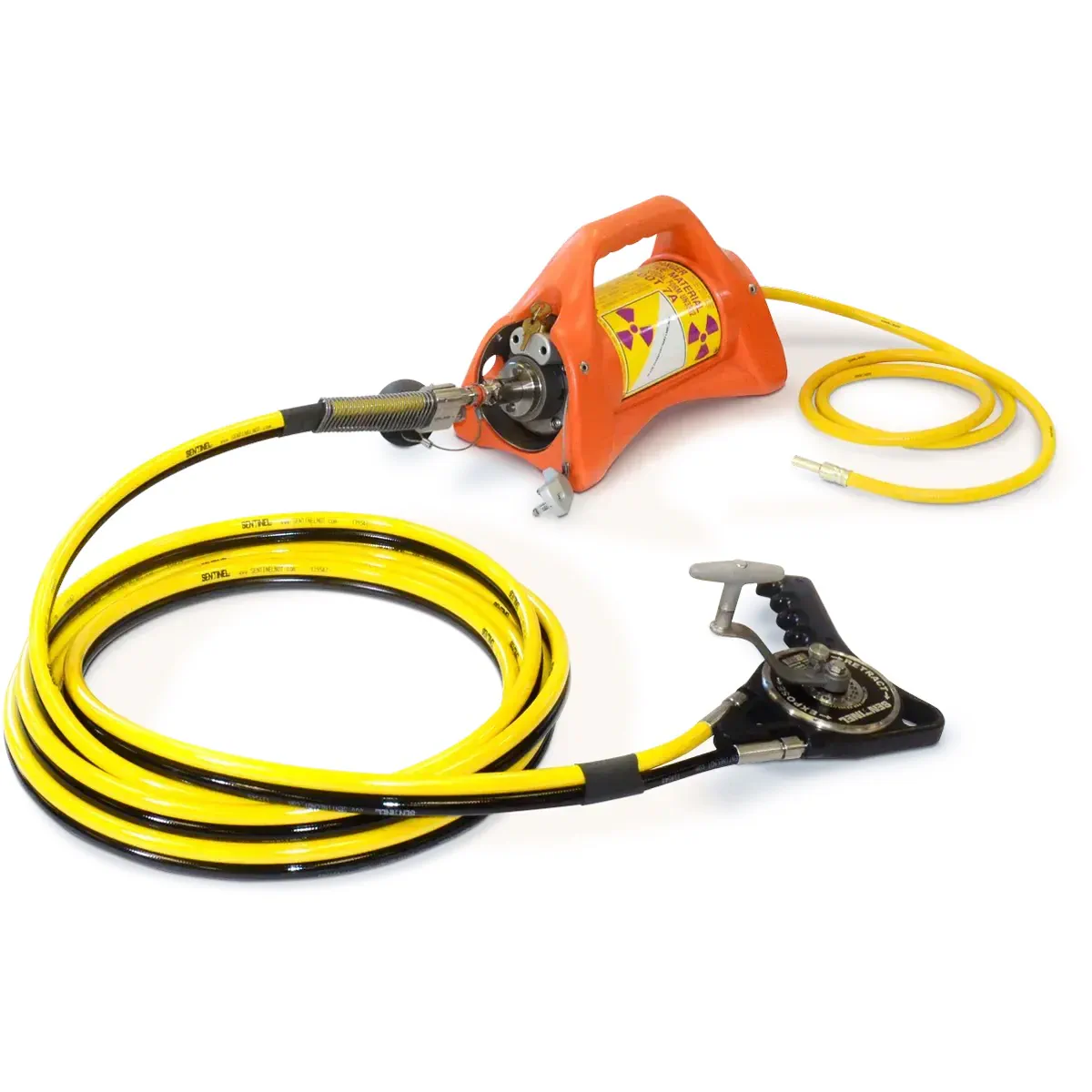

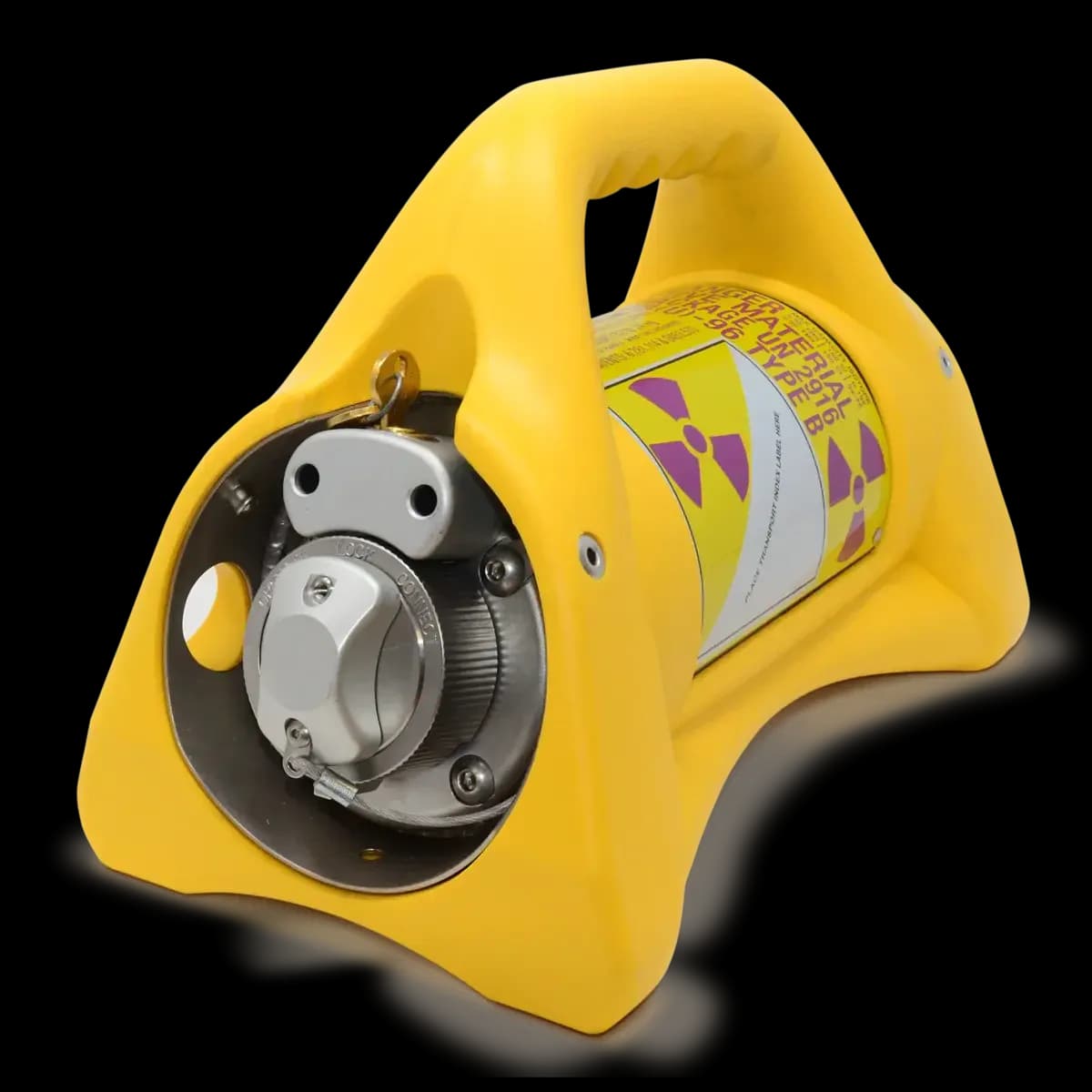

880 Series Delta Gamma-Ray Source Projector
4 görsel daha bu sayfada gösterilmiyor.
- Marka
- QSA Global, Inc.
- Kategori
- Devices / Gamma-Ray Source Projectors (880 Series & 1100)
- Yöntem / ürün ailesi
- Model
- 880 Delta
Bu kategorideki ürünlerin tedariki, ilgili mevzuata ve yetkilendirme şartlarına tabidir.
Teknik Özellikler
| Isotopes | Ir-192, Se-75, Yb-169 |
|---|---|
| Max Activity | Ir-192: 150 Ci (5.55 TBq); Se-75: 150 Ci (5.55 TBq); Yb-169: 108 Ci (4.00 TBq) |
| Steel Thickness Range | Ir-192: 10-90 mm; Se-75: 5-40 mm; Yb-169: <=20 mm |
| Focal Size | Ir-192 down to 1.80 mm; Se-75 down to 1.0 mm |
| Weight | 52 lb (23.6 kg) |
| Compliance | ANSI N432-1980, ISO 3999:2004(E), IAEA TS-R-1 (2009), IAEA SSR-6 (2012), USNRC 10CFR34/10CFR71, USDOT 49CFR173 |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
