QSA Global, Inc.
880 Series Omega Gamma-Ray Source Projector
Üretici ürün açıklaması
The 880 Series Omega gamma-ray source projector is designed for non-destructive testing (NDT) environments where lower-activity sources are required to meet strict regulatory or dose limitations. Designed to house Ir-192 sealed source assemblies up to 15 Ci (0.55 TBq), the Omega can also be loaded with Se-75 or Yb-169 sources, offering flexibility for field radiography in settings with constrained licensing or exposure requirements. As the lowest-capacity gamma camera in the 880 Series, the Omega is often selected for offshore applications and inspection sites where reduced radiation output is essential for safety or compliance. QSA Global designed the 880 Series Omega to comply with ANSI N432-1980, ISO 3999:2004(E), IAEA TS-R-1 (2009), IAEA SSR-6 (2012), USNRC 10CFR34 and 10CFR71, and USDOT 49CFR173, ensuring safe, compliant operation across global NDT job sites.

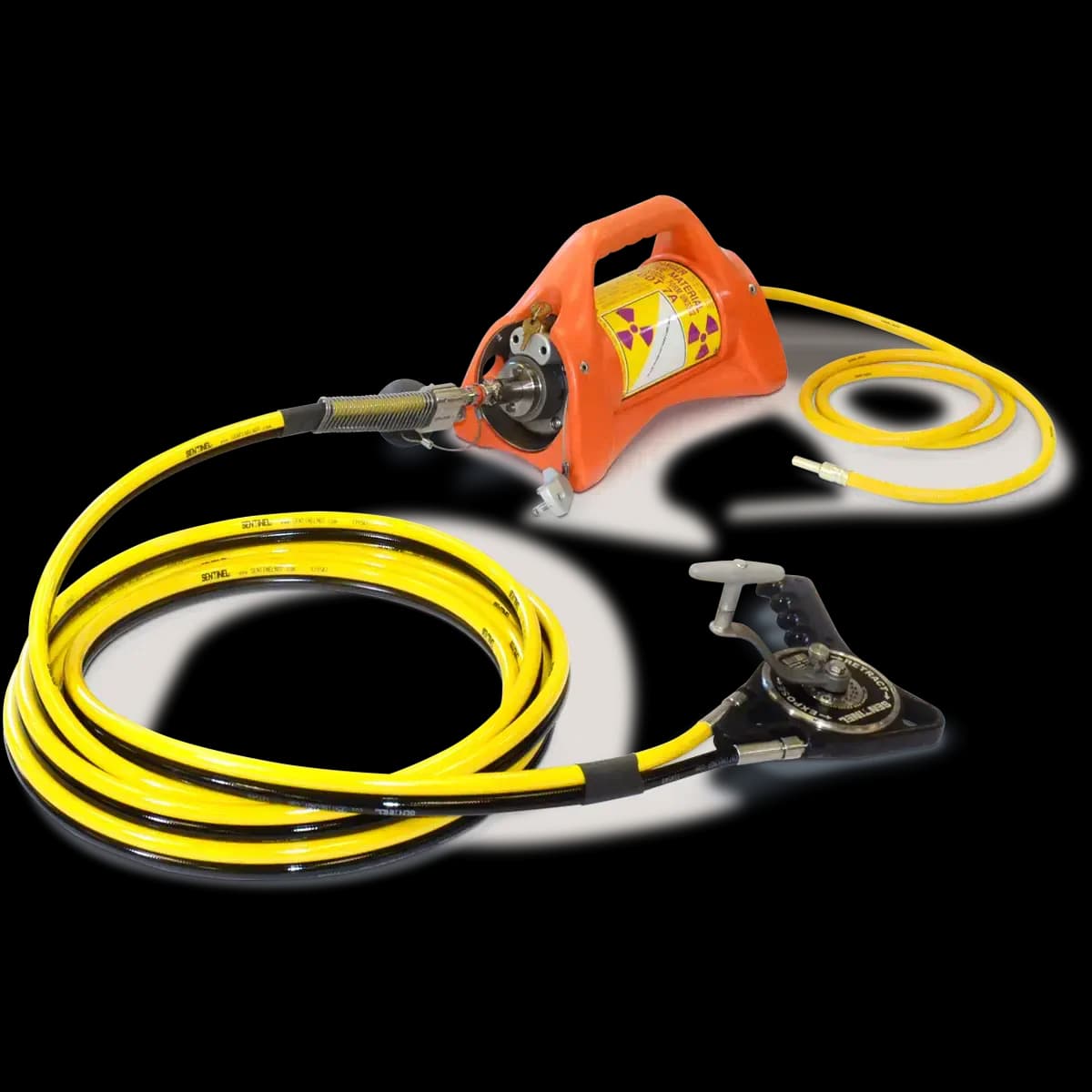

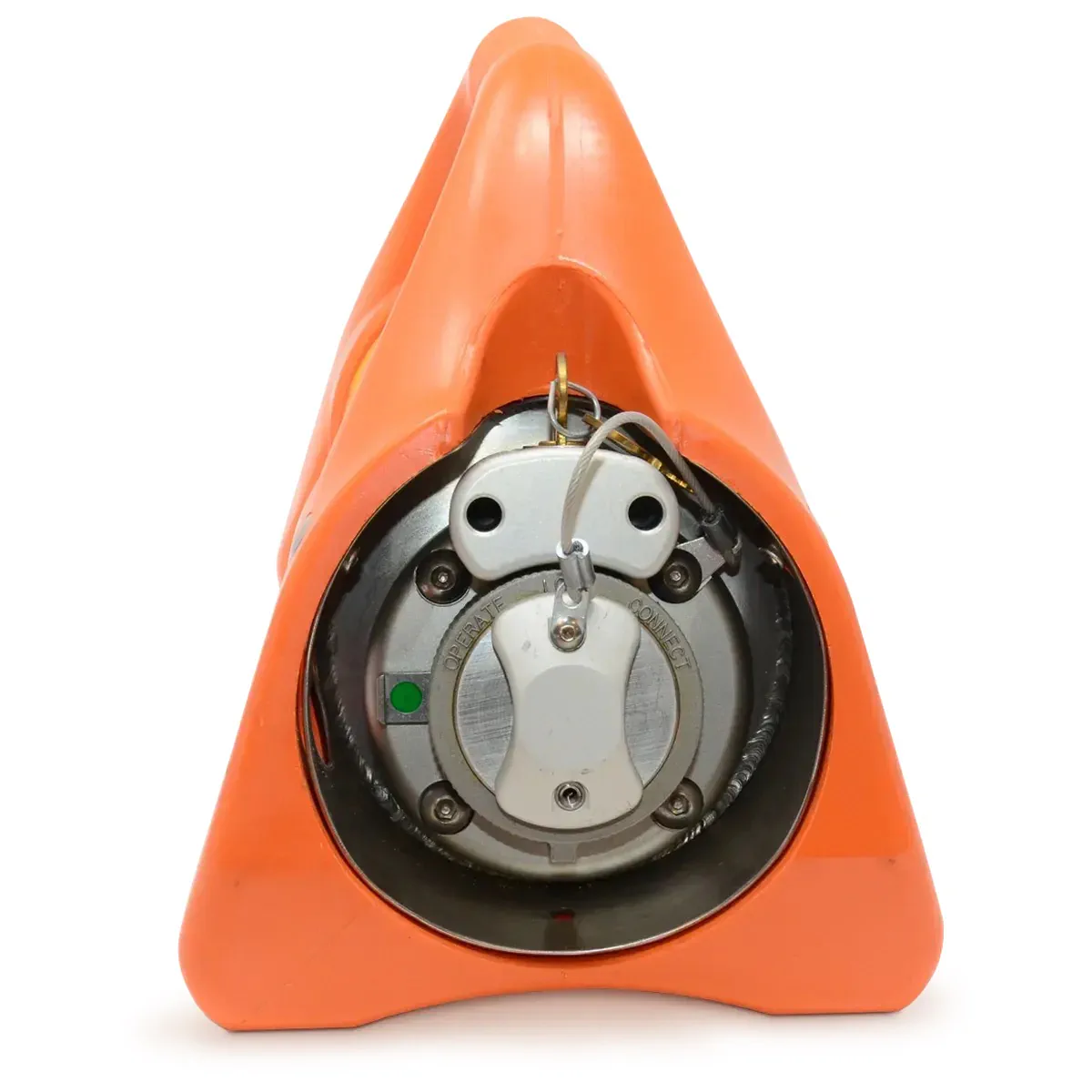

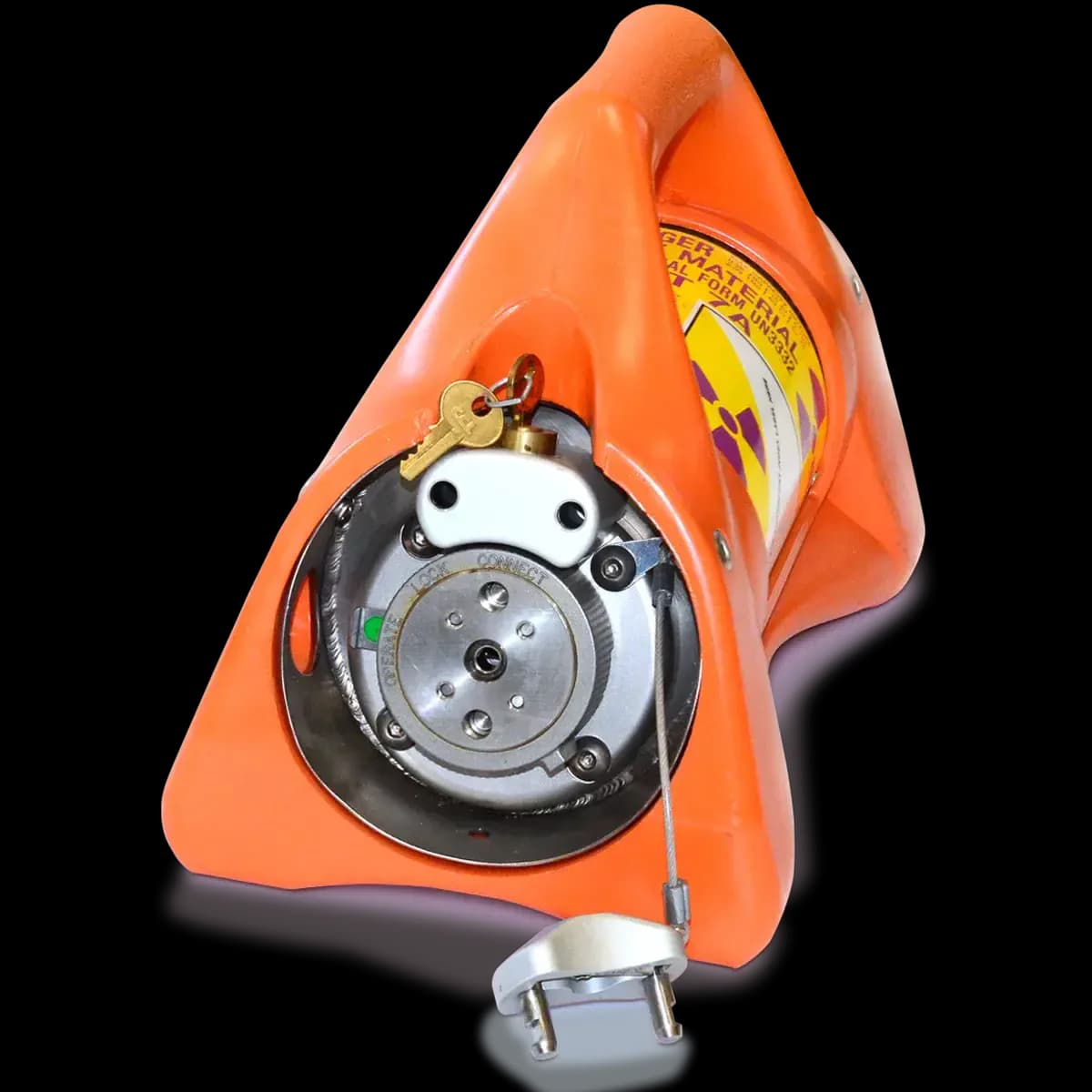

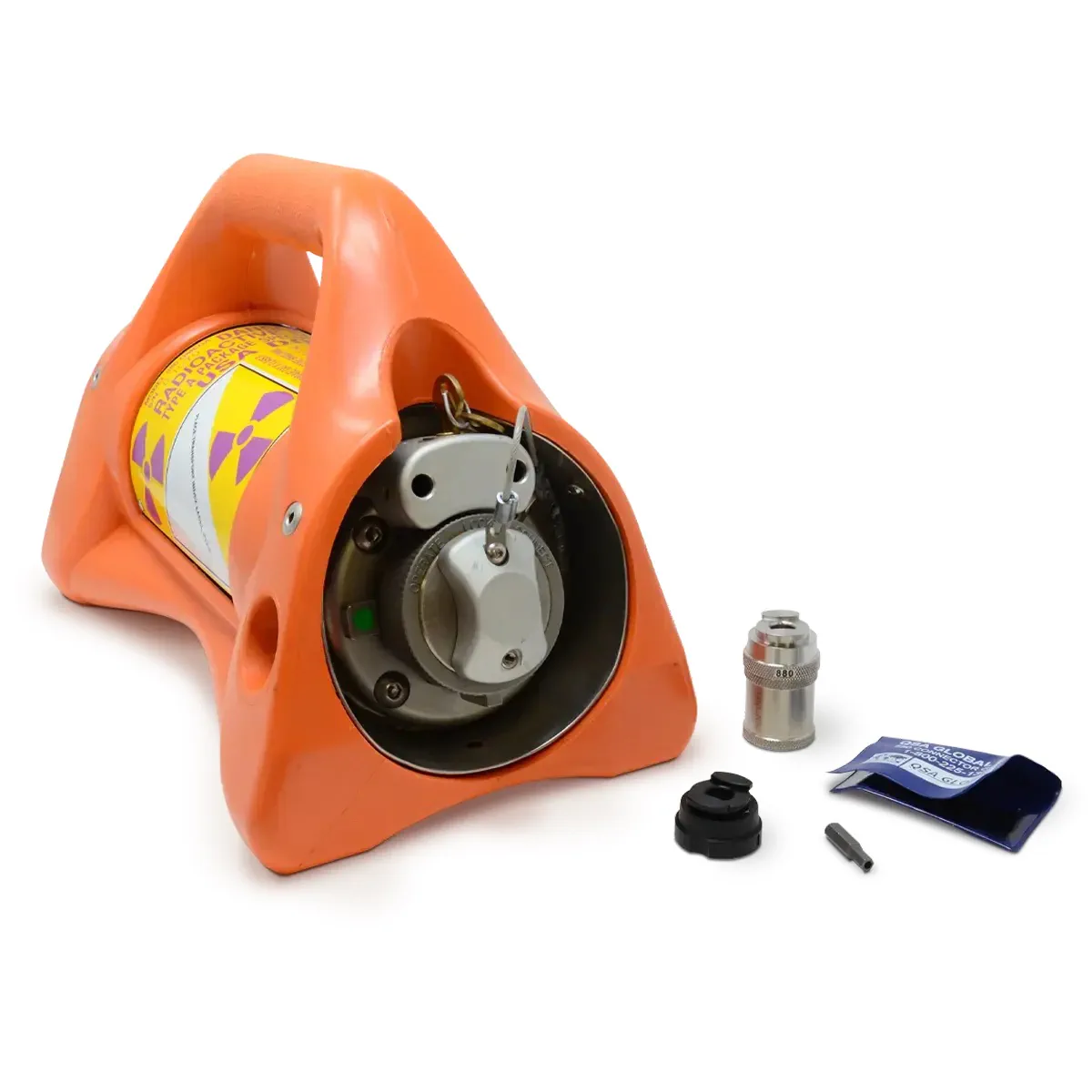

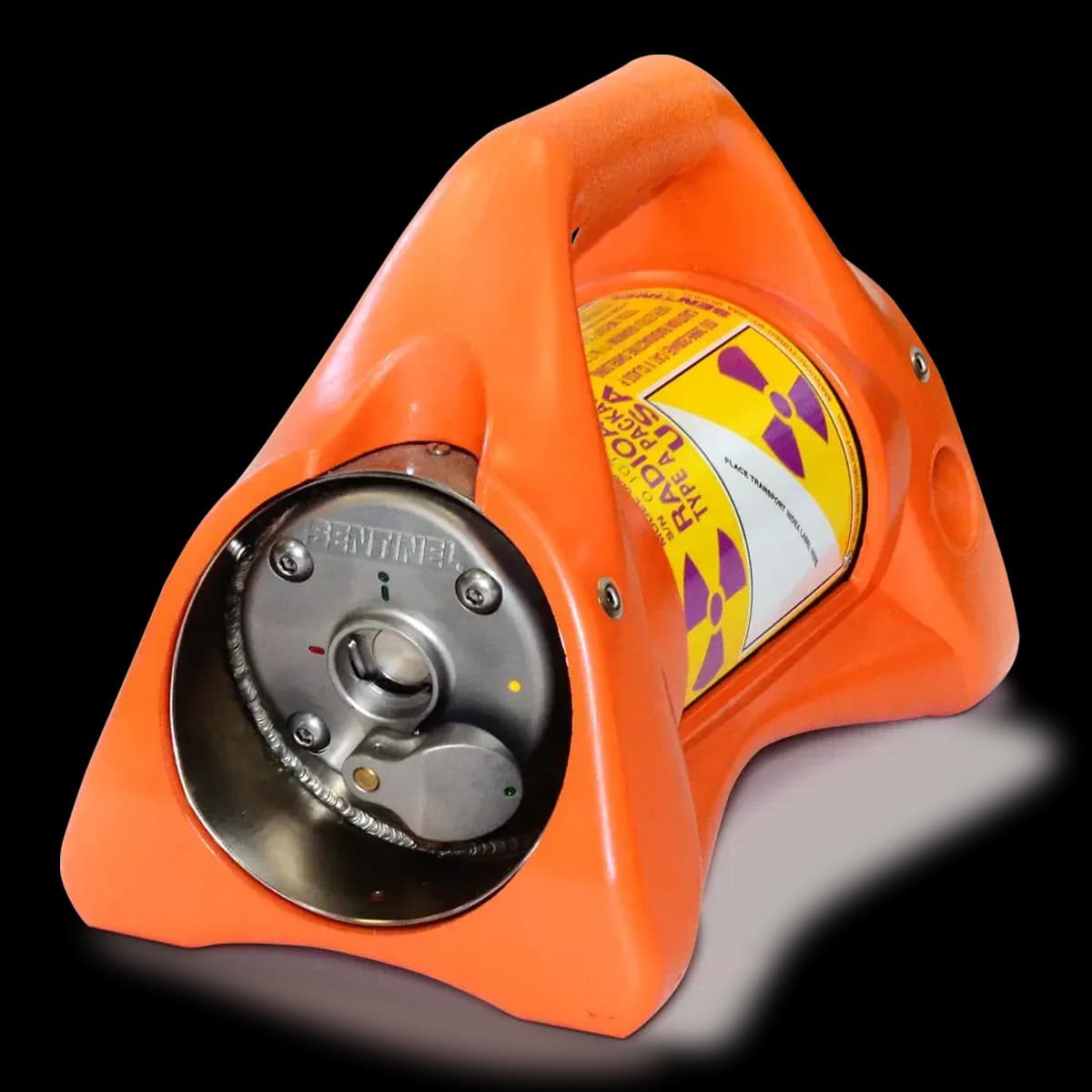

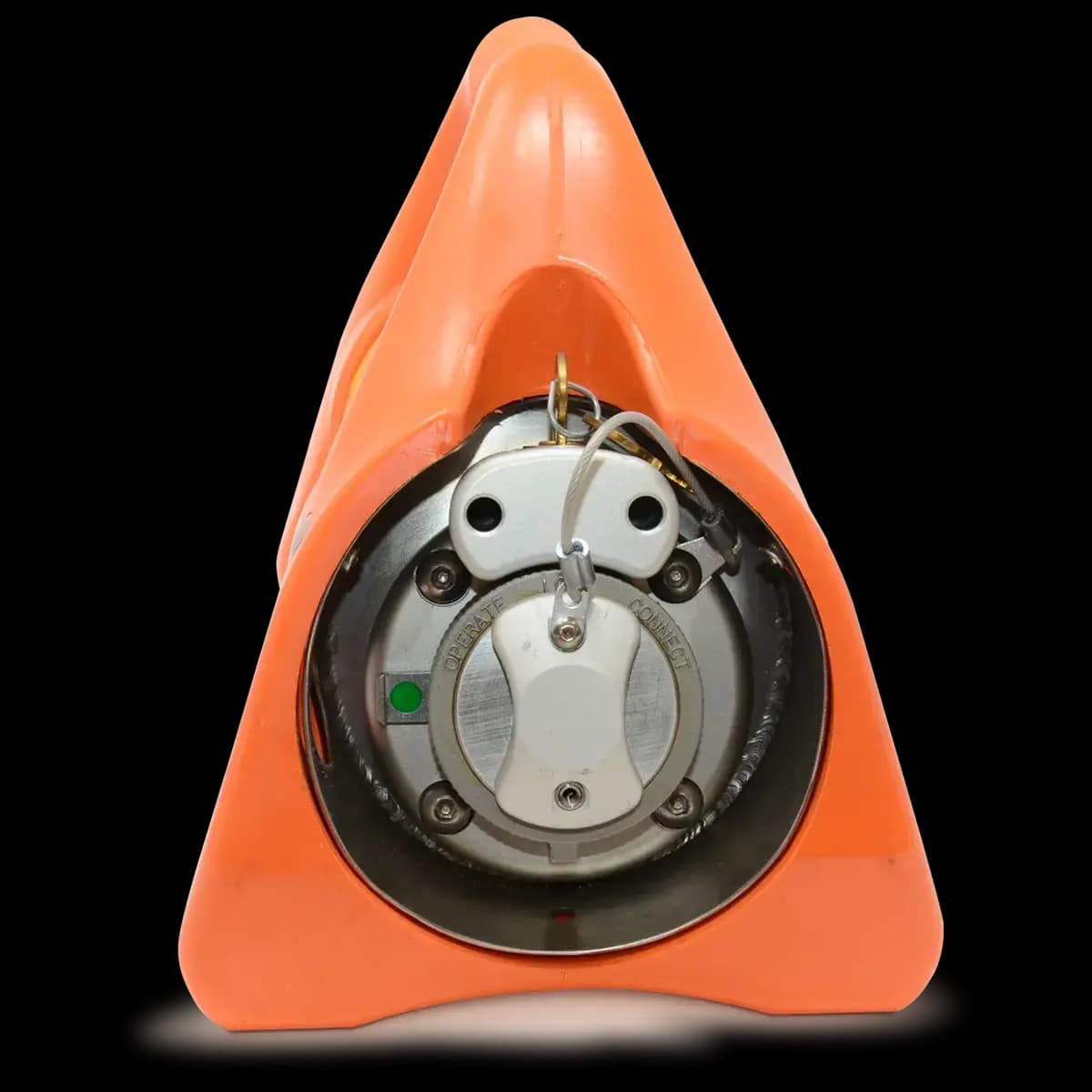

880 Series Omega Gamma-Ray Source Projector
3 görsel daha bu sayfada gösterilmiyor.
- Marka
- QSA Global, Inc.
- Kategori
- Devices / Gamma-Ray Source Projectors (880 Series & 1100)
- Yöntem / ürün ailesi
- Model
- 880 Omega
Bu kategorideki ürünlerin tedariki, ilgili mevzuata ve yetkilendirme şartlarına tabidir.
Teknik Özellikler
| Isotopes | Ir-192, Se-75, Yb-169 |
|---|---|
| Max Activity | Ir-192: 15 Ci (0.55 TBq); Se-75: 80 Ci (3.00 TBq); Yb-169: 108 Ci (4.00 TBq) |
| Steel Thickness Range | Ir-192: 10-90 mm; Se-75: 5-40 mm; Yb-169: <=20 mm |
| Focal Size | Ir-192 down to 1.80 mm; Se-75 down to 1.0 mm |
| Weight | 33 lb (15.0 kg) |
| Compliance | ANSI N432-1980, ISO 3999:2004(E), IAEA TS-R-1 (2009), IAEA SSR-6 (2012), USNRC 10CFR34/10CFR71, USDOT 49CFR173 |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
