QSA Global, Inc.

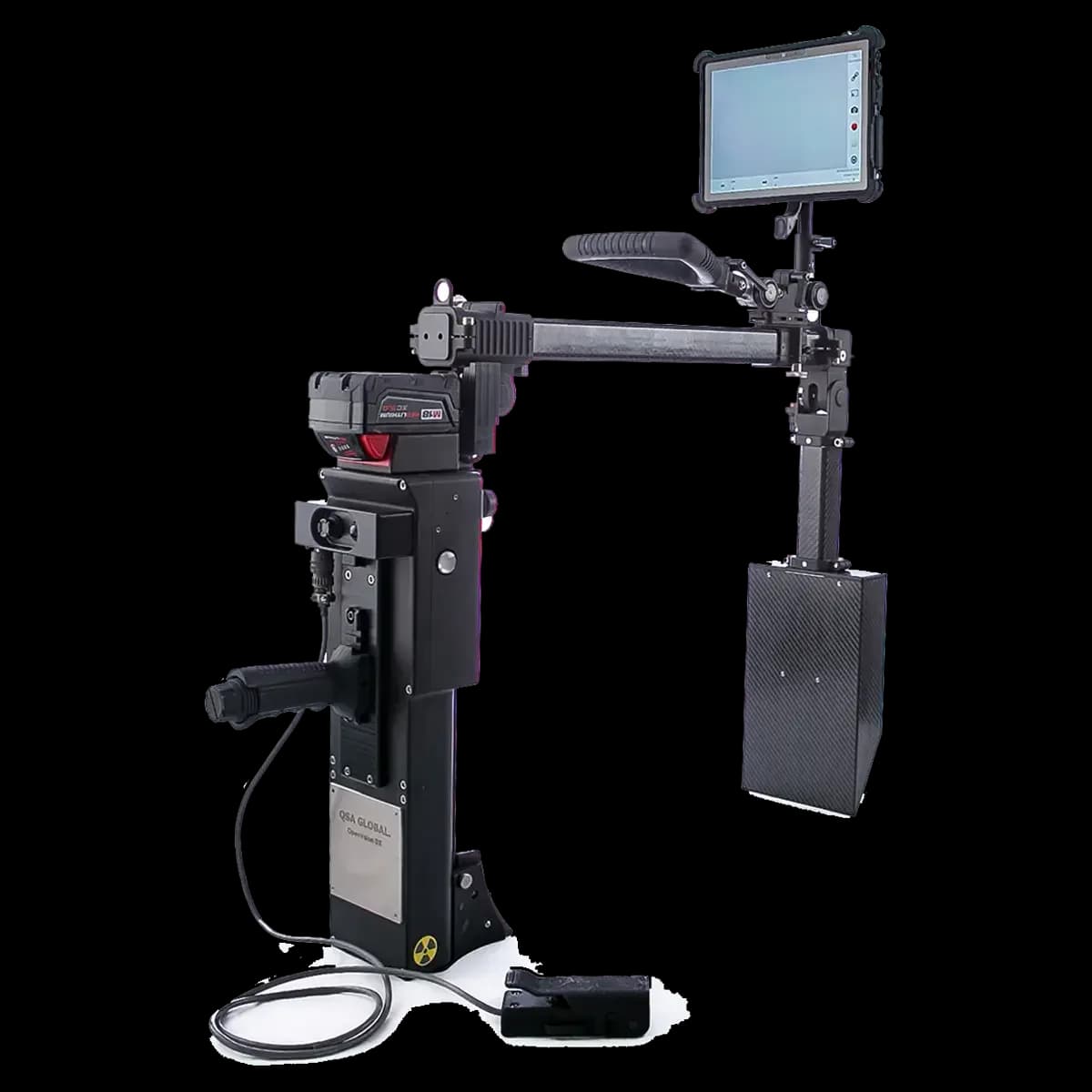

OpenVision DX Real-Time Radiography X-Ray System
Üretici ürün açıklaması

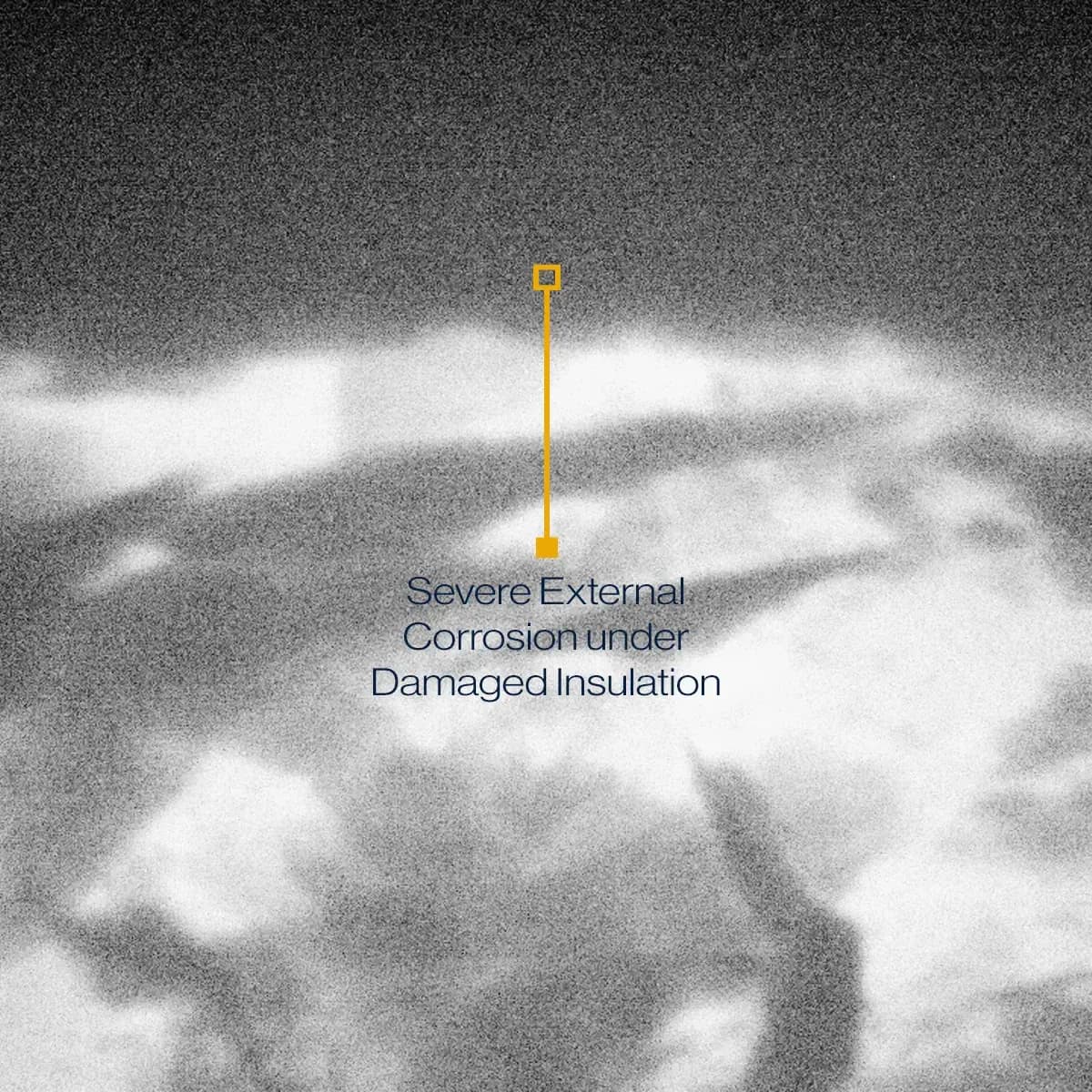

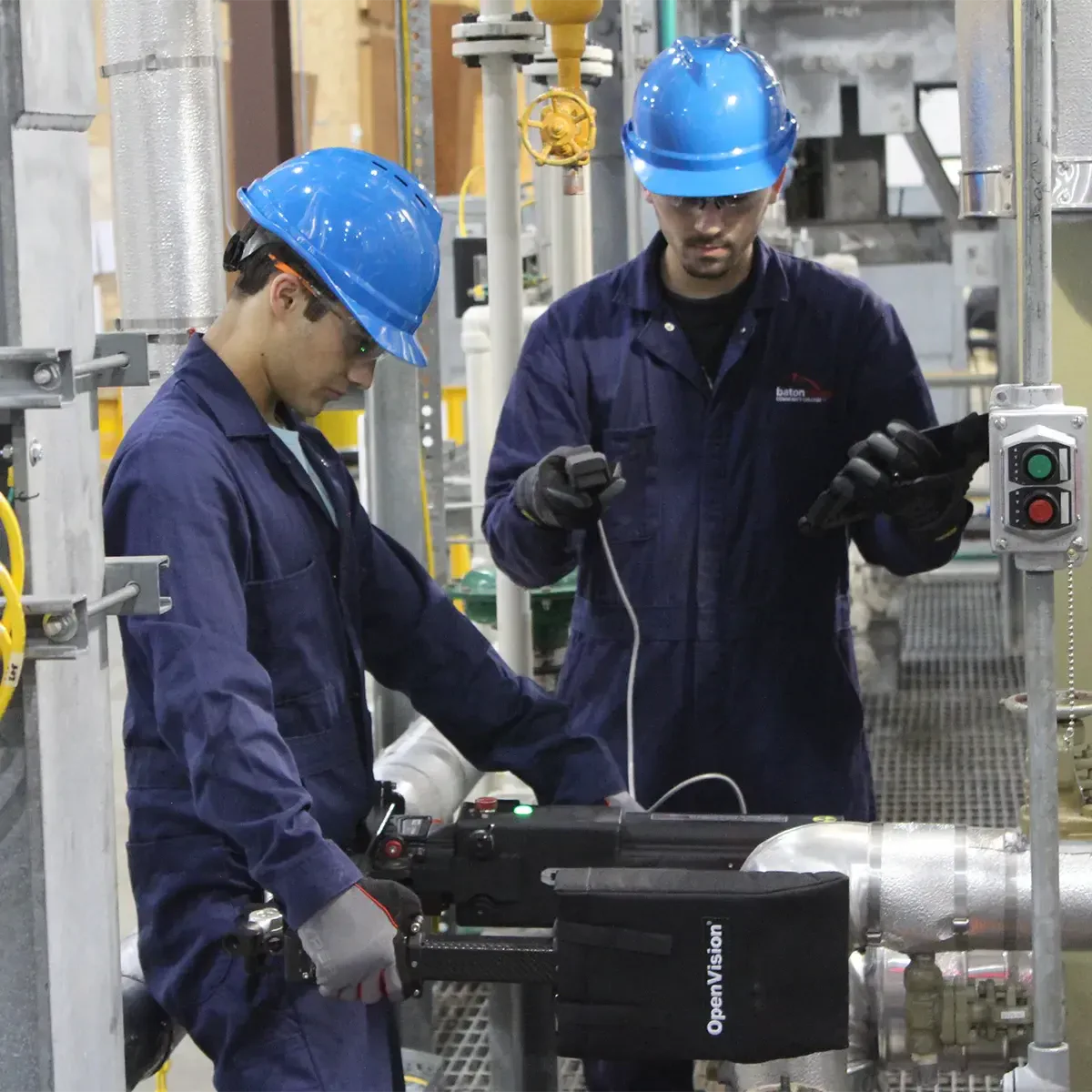

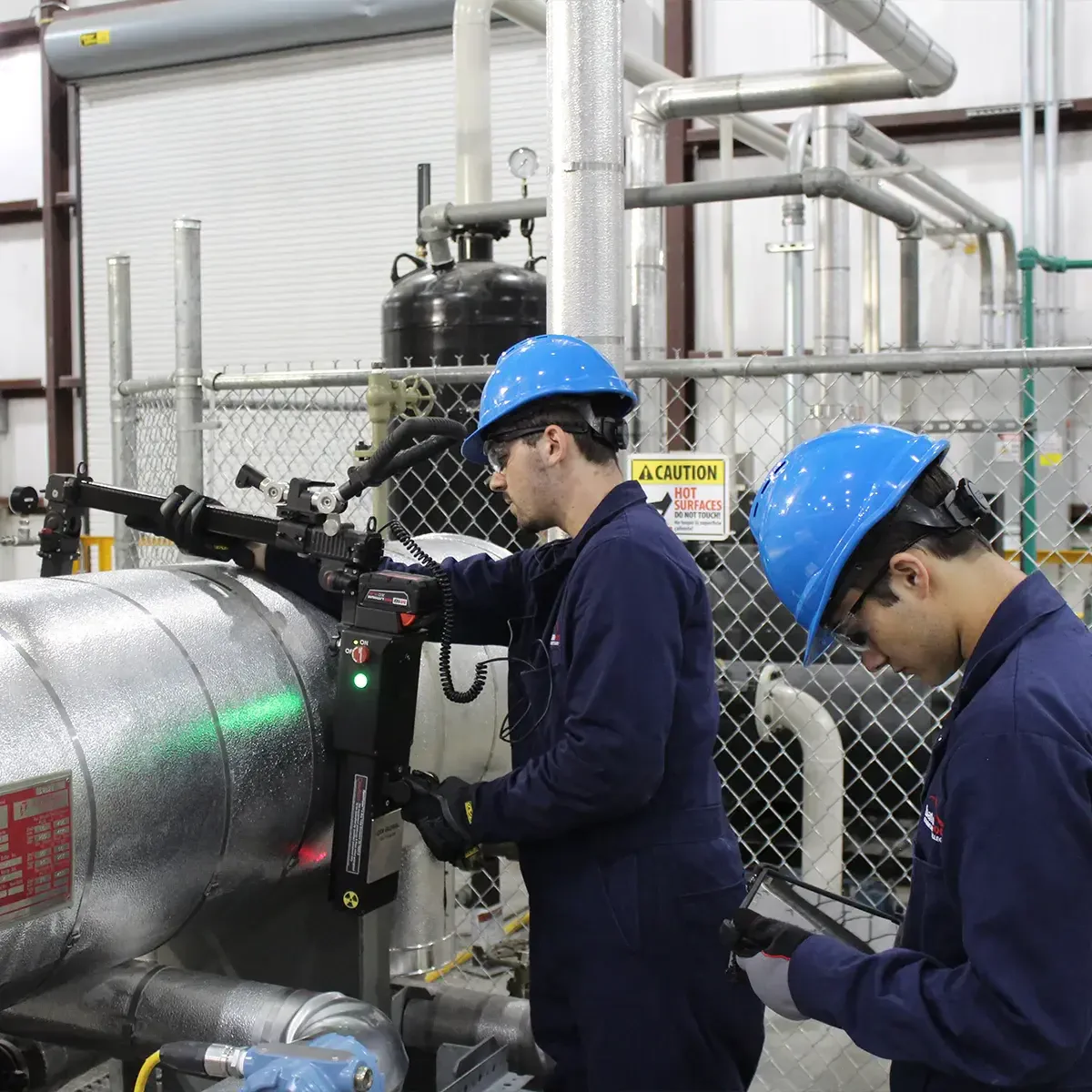

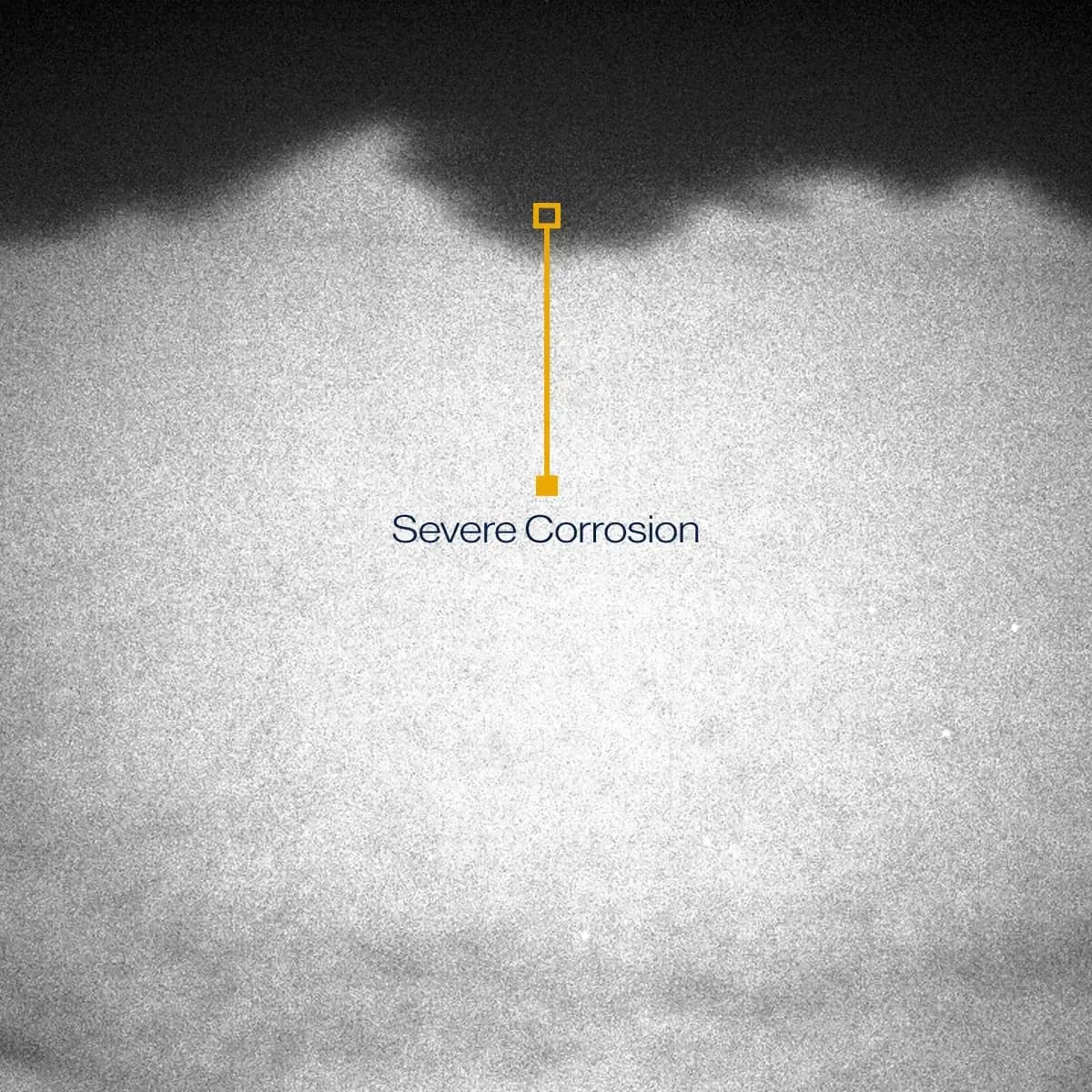

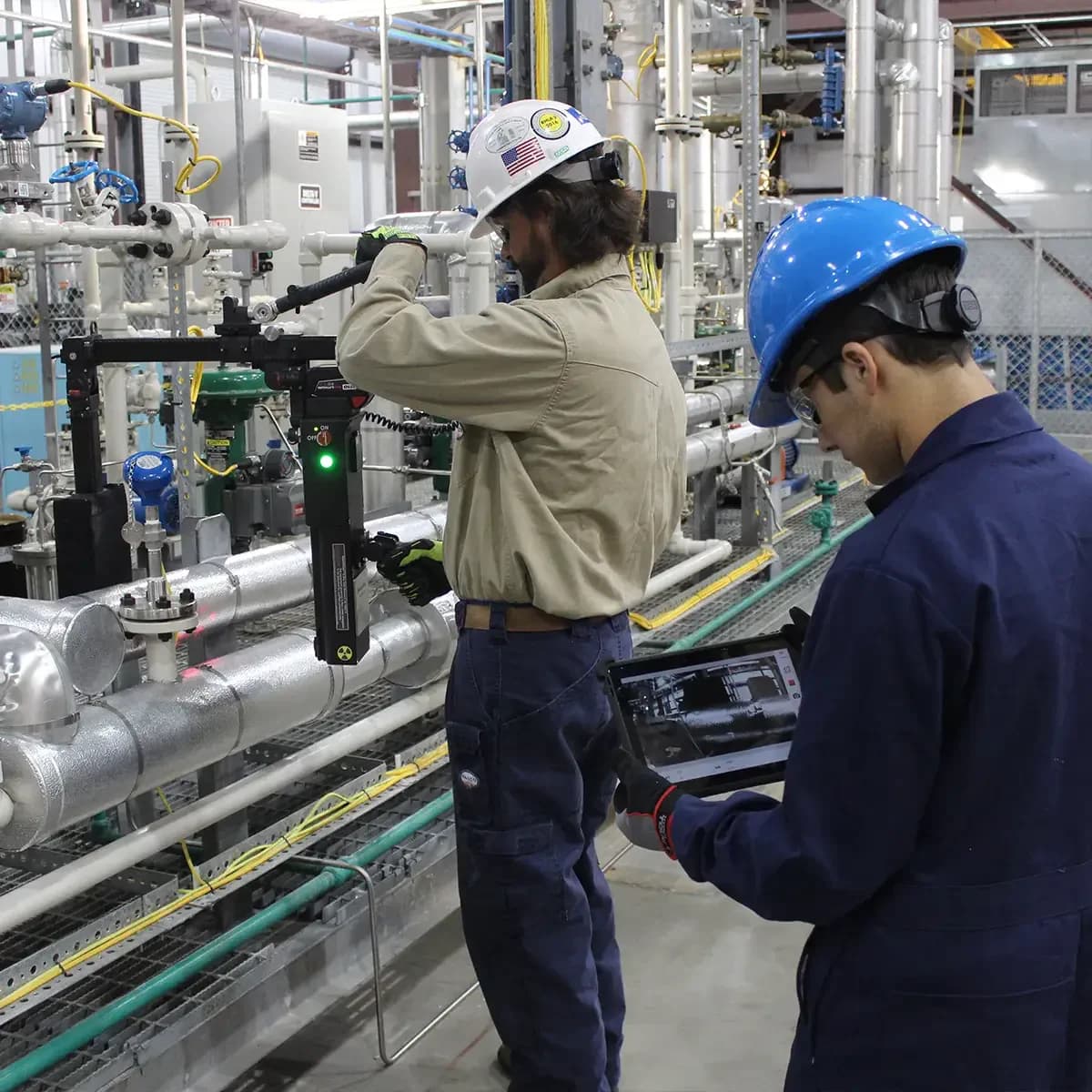

OpenVision DX is an easy-to-use, handheld real-time radiography (RTR) X-ray system used for qualitative CUI screening on insulated piping. Radiographers capture real-time video and still images of CUI indicators such as pitting, scaling, wall loss, and wet insulation without stripping insulation or disrupting revenue-generating production. OpenVision DX’s low-energy 70 kV X-ray source, with highly collimated output and internal shielding, minimizes radiation exposure and confines the radiation footprint to just a few feet (about 1 meter). Radiographers can inspect insulation and cladding combinations up to 36 inches (91 cm) in diameter, including mineral wool, calcium silicate, and galvanized steel, stainless steel, and aluminum. Inspection teams also use OpenVision DX for heat tracer inspection and weld location mapping when CUI screening is part of a broader inspection scope. OpenVision DX is ANSI/HPS N43.5 (2005), ISTA 3A, MIL-STD-810 Method 514 Annex C Cat 4, REACH/ROHS, and CE compliant. FDA Accession #: 1680071-000.
OpenVision DX Real-Time Radiography X-Ray System
8 görsel daha bu sayfada gösterilmiyor.
- Marka
- QSA Global, Inc.
- Kategori
- Devices / OpenVision RTR X-Ray Systems
- Yöntem / ürün ailesi
- Model
- OpenVision DX
Teknik Özellikler
| Xray Source | Integrated 70 kV X-ray tube |
|---|---|
| Detector | CS-mount camera, 9.7 um pixel pitch |
| Active Imaging Area | 6 x 4 in (15 x 10 cm) |
| Still Image Resolution | 1280 x 720 px |
| Video Resolution | 1280 x 720 px |
| Grayscale | 16-bit |
| Smallest Detectable Defect | 0.010 in (250 um) |
| C Arm Weight | 15 lb (6.8 kg) |
| Monitor Weight | 2 lb (0.9 kg) |
| Shipping Weight | 50 lb (23 kg) |
| Storage | 128 GB internal + 128 GB Wi-Fi tablet |
| Battery Life | 3 h continuous / 8 h standby (5 Ah) |
| Operating Temperature | -29 to 49 C |
| Screening Speed | ~30 s per foot (0.30 m) |
| Max Pipe Diameter | up to 36 in (91 cm) total insulated diameter |
| Xray Output | Low: 40 kV / 0.300 mA; Medium: 55 kV / 0.218 mA; High: 70 kV / 0.171 mA (at 12 in / 30.5 cm) |
| Construction | Aircraft-grade aluminum, carbon fiber C-arm |
| Compliance | ANSI/HPS N43.5 (2005), ISTA 3A, MIL-STD-810 Method 514, REACH/RoHS, CE; FDA accession 1680071-000 |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
