NDT Ekipmanları

Isotopes / Oil Well Logging Sources

Ürün bilgileri ve teknik özellikler QSA Global, Inc. kaynağından derlenmiştir.

7 ürün

Bu kategorideki ürünlerin tedariki, ilgili mevzuata ve yetkilendirme şartlarına tabidir.

  • Cs-137 Oil Well Logging Source X2170

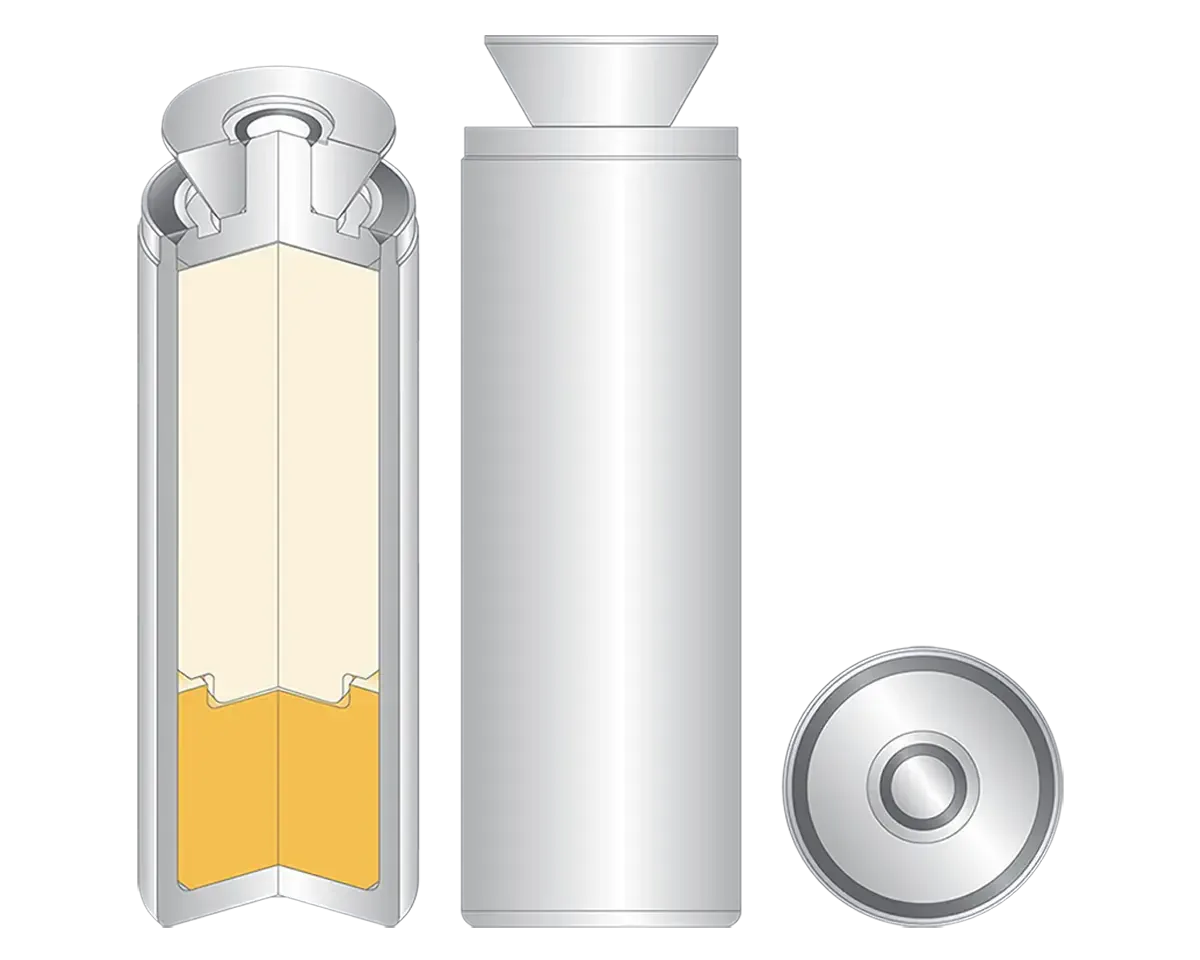

    Cs-137 Oil Well Logging Source X2170

    Model: X2170 / CDC.CY3

    Isotope
    Cs-137
    Activity
    1.78 Ci (+0%/-15%)
    Encapsulation
    double (typically triple across OWL range)
    Material
    MP35N
    Iso Ansi Rating
    C6X646 (60,000 psi)
    Special Form Cert
    USA/0650/S-96
    Gamma Energy
    0.662 MeV
    Half Life
    30.17 years
    Working Life
    15 years recommended
    Core Material
    insoluble fused glass
    Application
    density measurement
  • Cs-137 Oil Well Logging Source X2063

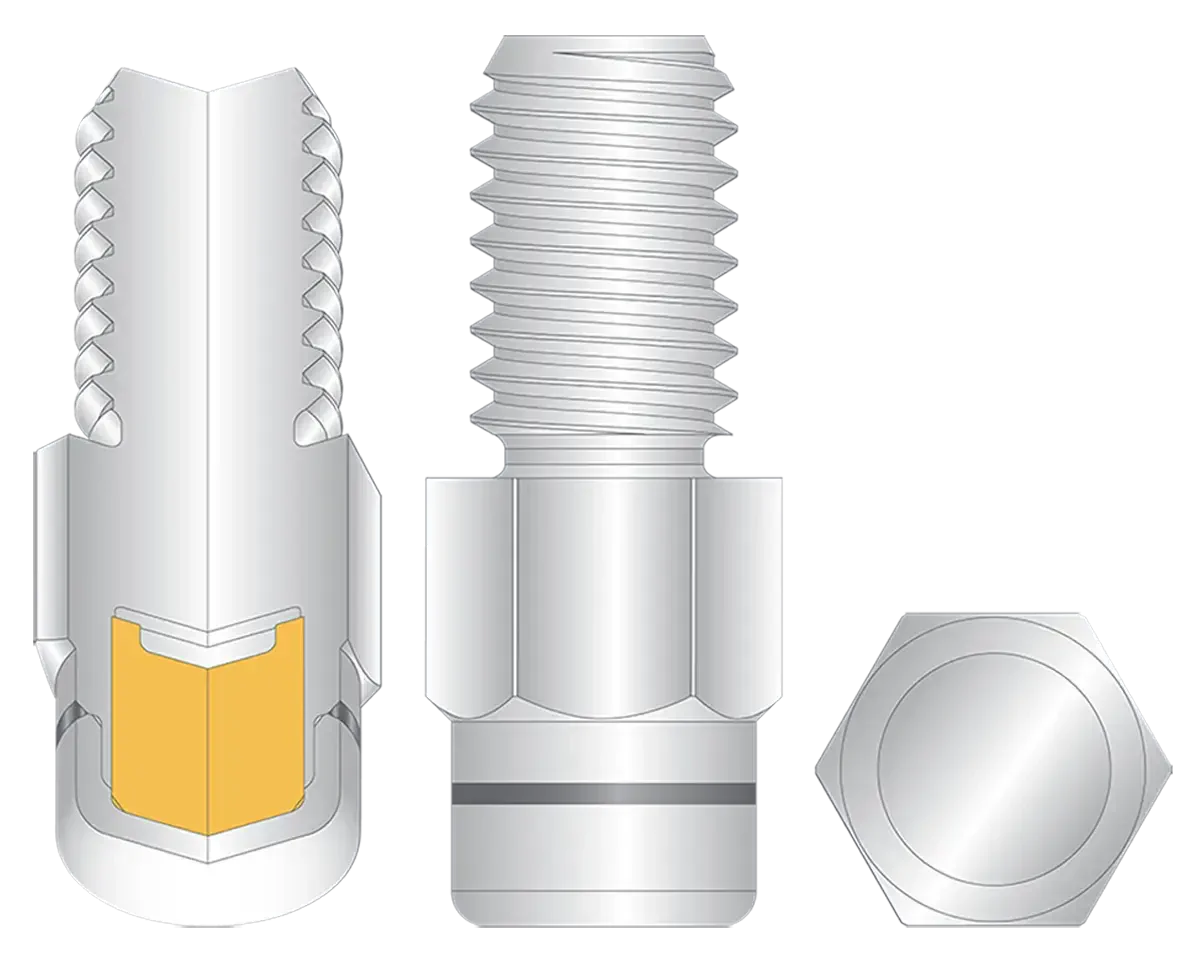

    Cs-137 Oil Well Logging Source X2063

    Model: X2063 / CDC.CY6

    Isotope
    Cs-137
    Activity
    1.78 Ci (+0%/-15%)
    Encapsulation
    double (typically triple across OWL range)
    Material
    ARMCO 17-4 PH stainless steel
    Iso Ansi Rating
    C6X646 (60,000 psi)
    Special Form Cert
    USA/0650/S-96
    Gamma Energy
    0.662 MeV
    Half Life
    30.17 years
    Working Life
    15 years recommended
    Core Material
    insoluble fused glass
    Application
    density measurement
  • Cs-137 Oil Well Logging Source X2112/3

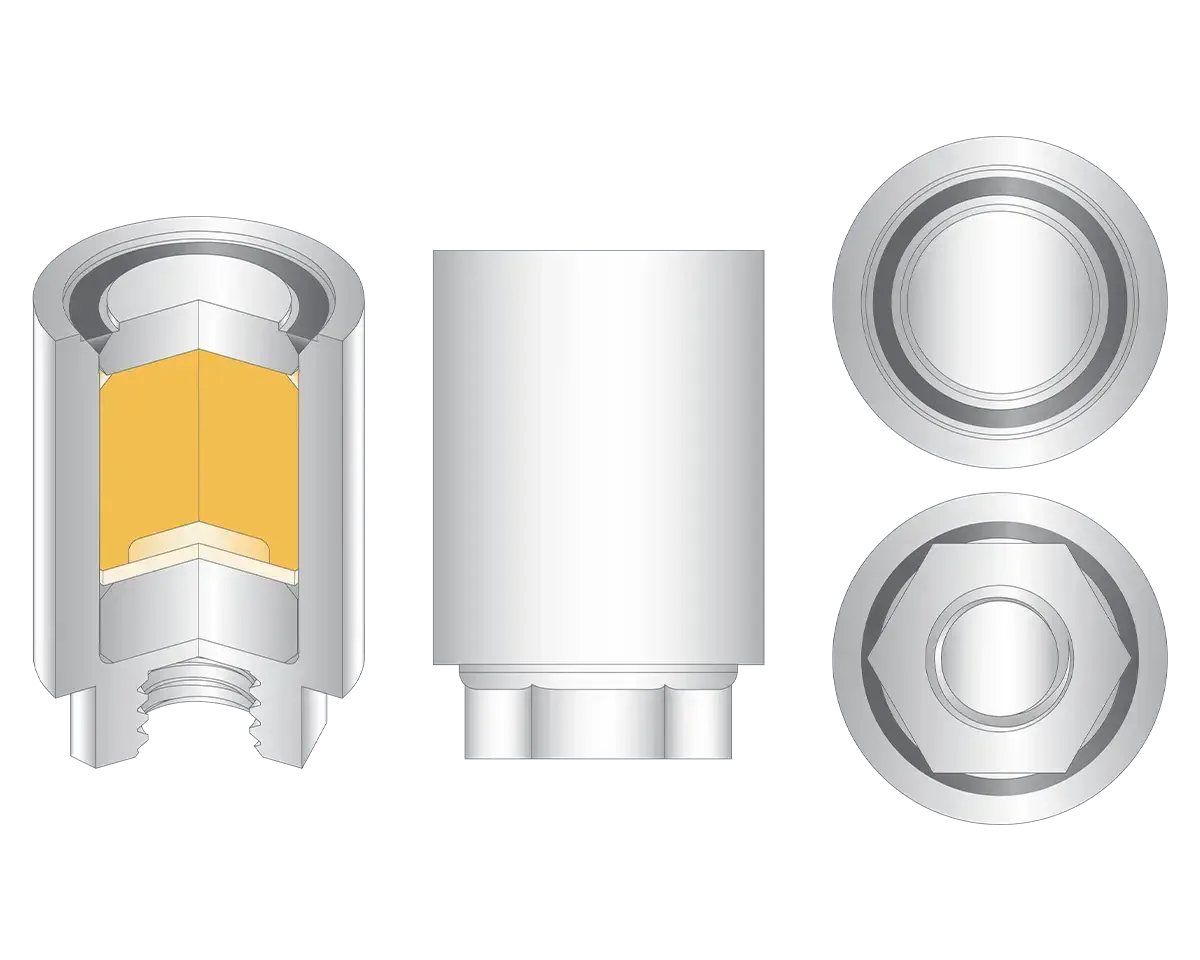

    Cs-137 Oil Well Logging Source X2112/3

    Model: X2112/3 / CDC.CY13

    Isotope
    Cs-137
    Activity
    2.00 Ci (+/-20%)
    Encapsulation
    double (typically triple across OWL range)
    Material
    ARMCO 17-4 PH stainless steel
    Iso Ansi Rating
    C6X646 (60,000 psi)
    Special Form Cert
    USA/0650/S-96
    Gamma Energy
    0.662 MeV
    Half Life
    30.17 years
    Working Life
    15 years recommended
    Core Material
    insoluble fused glass
    Application
    density measurement
  • Cs-137 Oil Well Logging Source X2178

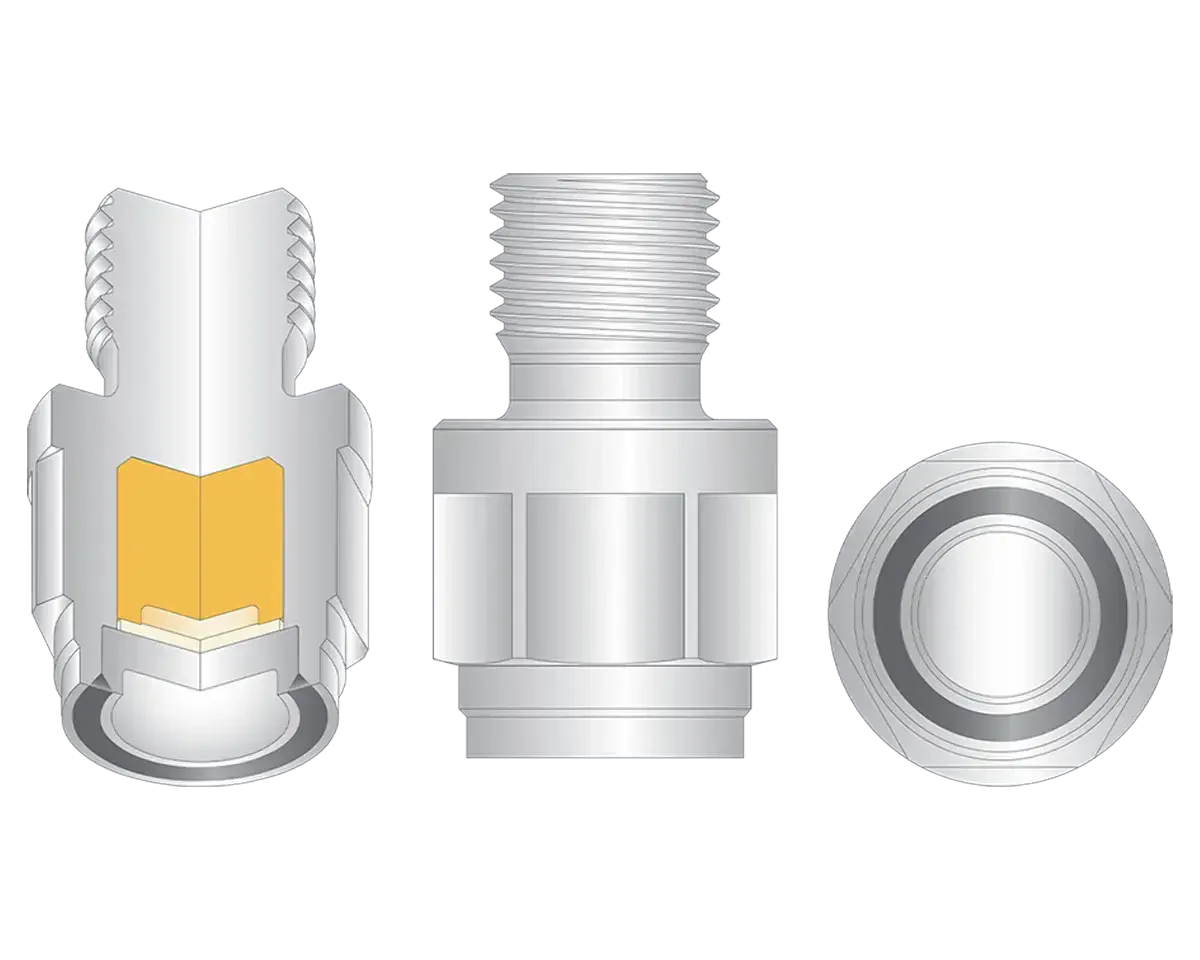

    Cs-137 Oil Well Logging Source X2178

    Model: X2178 / CDC.CY16

    Isotope
    Cs-137
    Activity
    2.00 Ci (+/-10%)
    Encapsulation
    double (typically triple across OWL range)
    Material
    MP35N
    Iso Ansi Rating
    C66646
    Special Form Cert
    USA/0650/S-96
    Gamma Energy
    0.662 MeV
    Half Life
    30.17 years
    Working Life
    15 years recommended
    Core Material
    insoluble fused glass
    Application
    density measurement
  • Cs-137 Oil Well Logging Source X2080

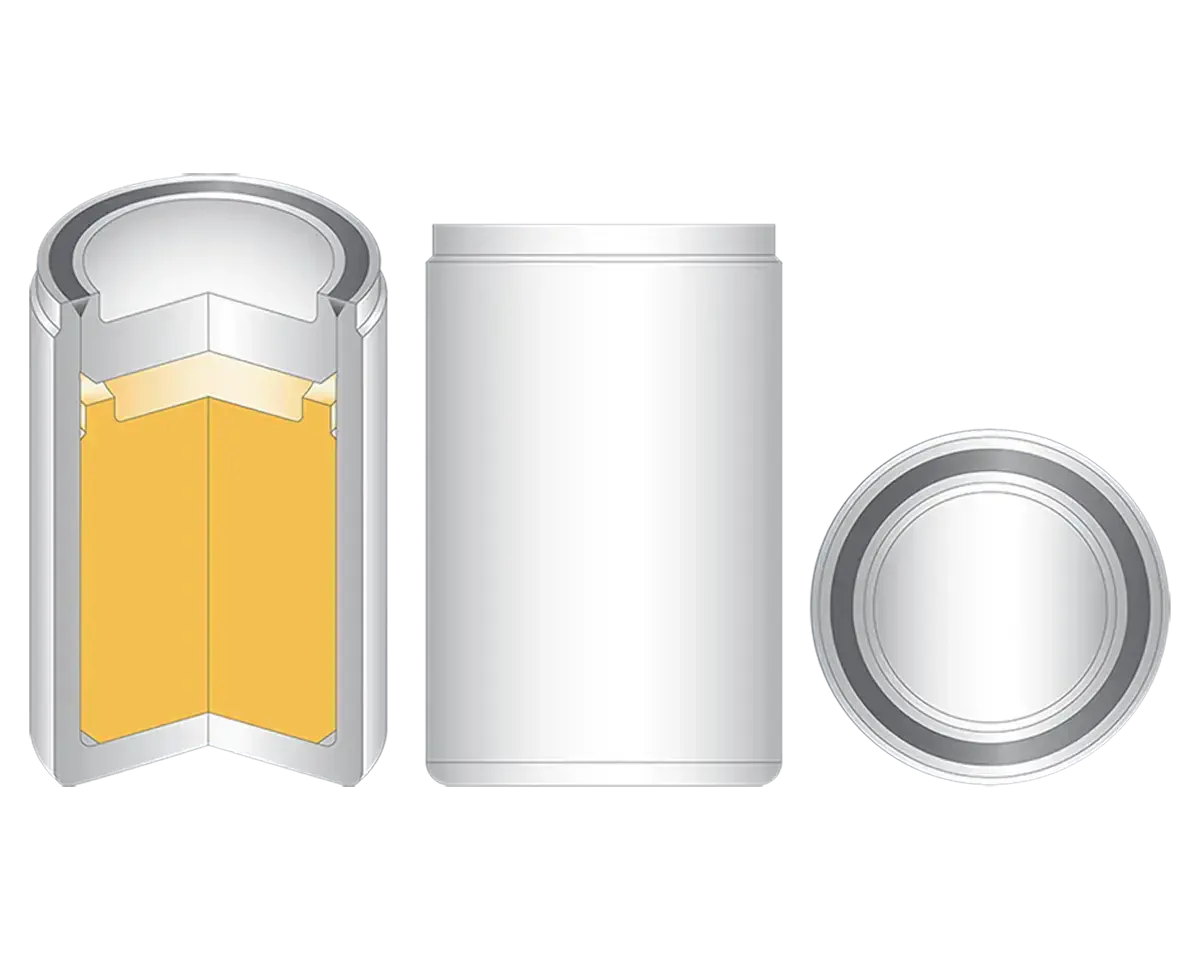

    Cs-137 Oil Well Logging Source X2080

    Model: X2080 / CDC.CY11

    Isotope
    Cs-137
    Activity
    1.5 Ci (+/-10%)
    Encapsulation
    double (typically triple across OWL range)
    Material
    ARMCO 17-4 PH stainless steel
    Iso Ansi Rating
    C66646
    Special Form Cert
    USA/0612/S-96
    Gamma Energy
    0.662 MeV
    Half Life
    30.17 years
    Working Life
    15 years recommended
    Core Material
    insoluble fused glass
    Application
    density measurement
  • Cs-137 Oil Well Logging Source X2074

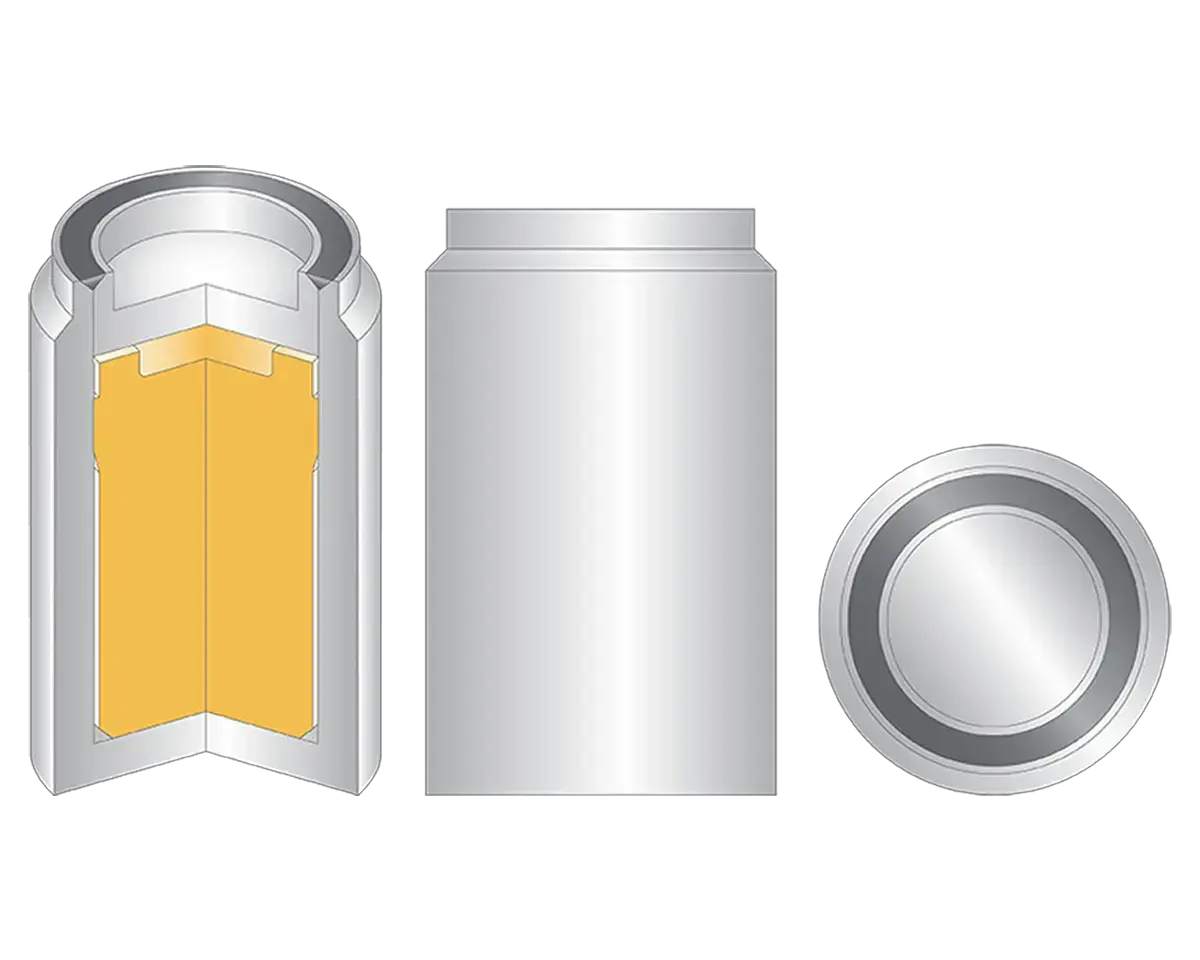

    Cs-137 Oil Well Logging Source X2074

    Model: X2074 / CDC.CY4

    Isotope
    Cs-137
    Activity
    2.00 Ci (+/-20%)
    Encapsulation
    double (typically triple across OWL range)
    Material
    ARMCO 17-4 PH stainless steel
    Iso Ansi Rating
    C66646
    Special Form Cert
    USA/0612/S-96
    Gamma Energy
    0.662 MeV
    Half Life
    30.17 years
    Working Life
    15 years recommended
    Core Material
    insoluble fused glass
    Application
    density measurement
  • Am-241/Be Oil Well Logging Neutron Source X9089

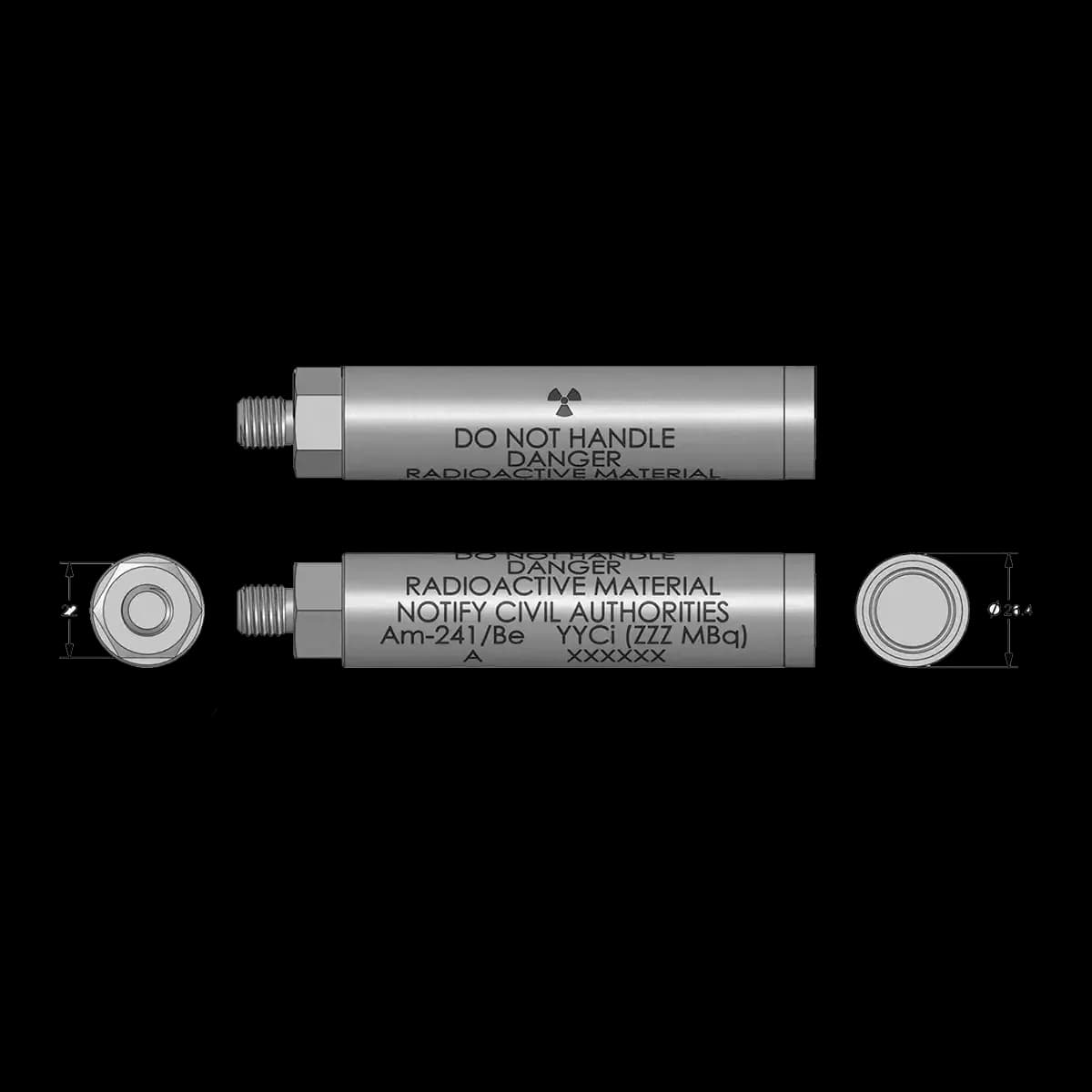

    Am-241/Be Oil Well Logging Neutron Source X9089

    Model: X9089

    Isotope
    Am-241/Be
    Activity Range
    3-20 Ci (111-740 GBq)
    Application
    porosity measurement
    Testing
    ISO 2919/ANSI N43.6; pressure to 60,000 psi; temperature to 800 C
