JW-F Series Motorized Industrial Videoscope
Üretici ürün açıklaması

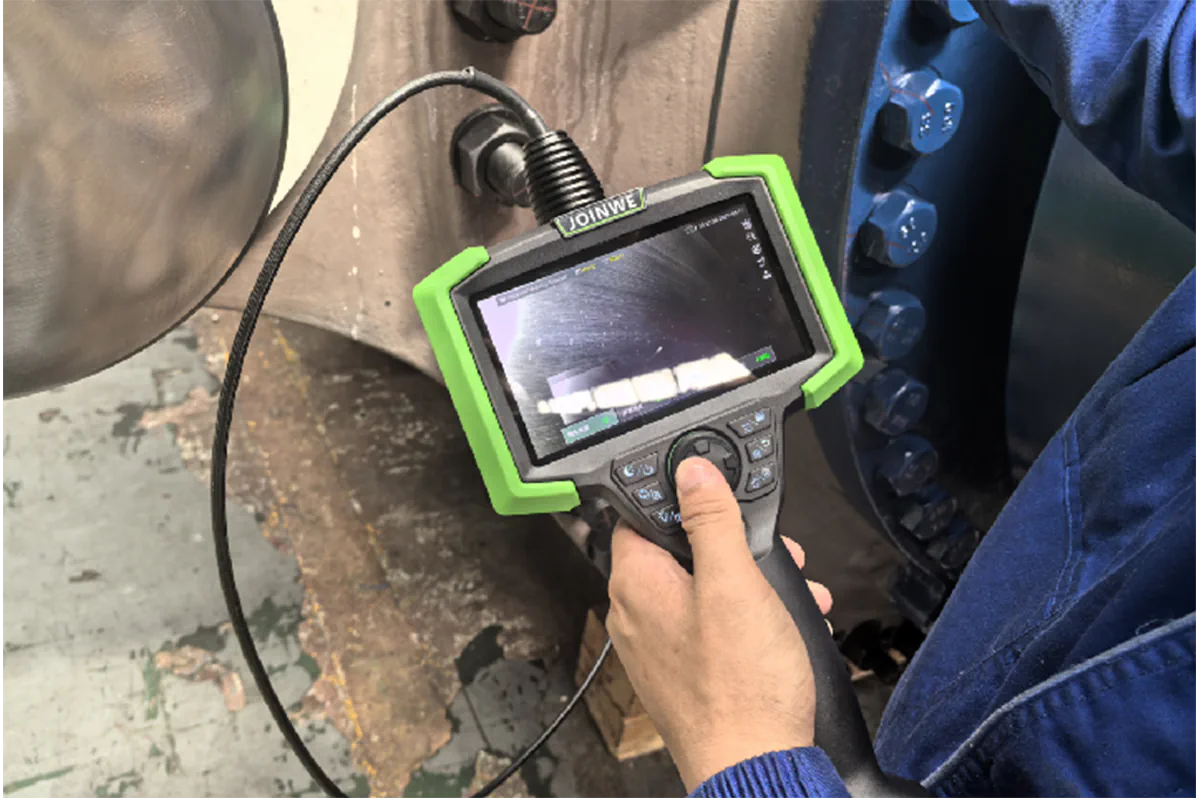

The Motorized Industrial Endoscope is an advanced visual inspection tool engineered for high-precision, non-destructive testing in complex industrial environments. Featuring motorized articulation, this endoscope allows smooth, joystick-controlled movement of the camera head for fast, accurate inspections without manual bending—perfect for applications where precision and repeatability are critical.

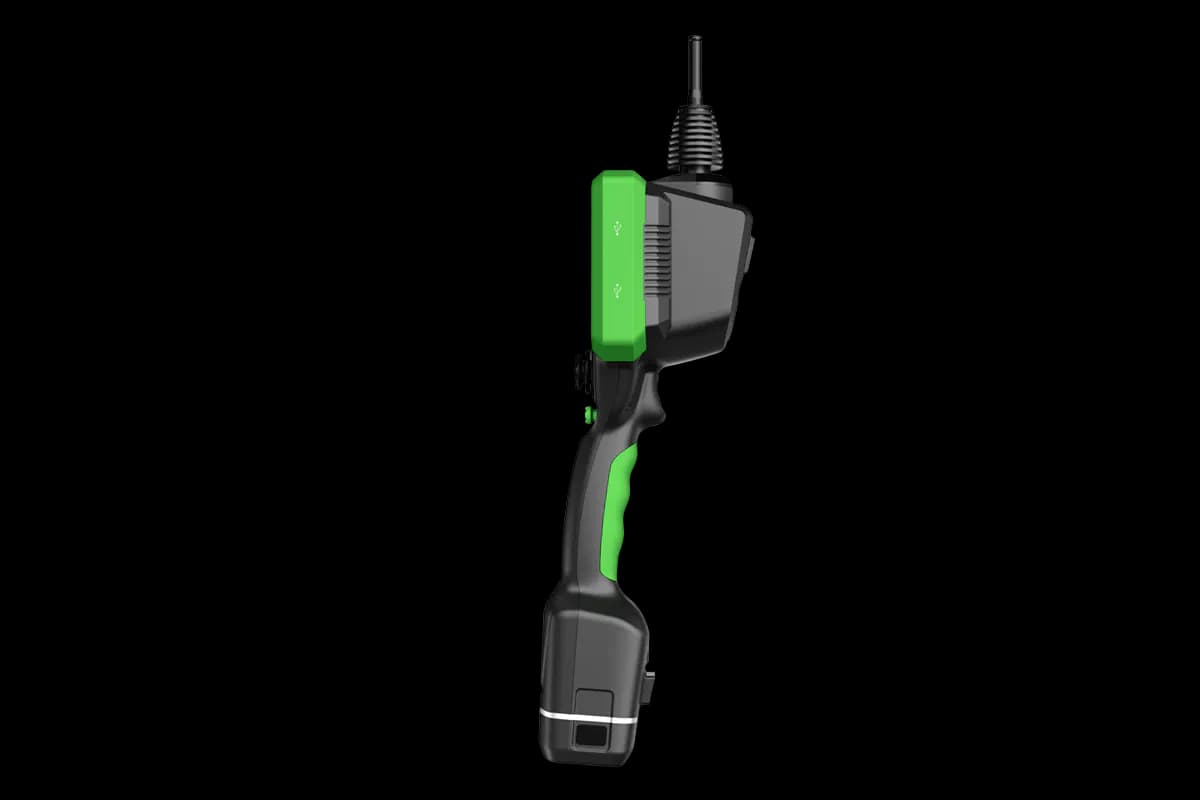

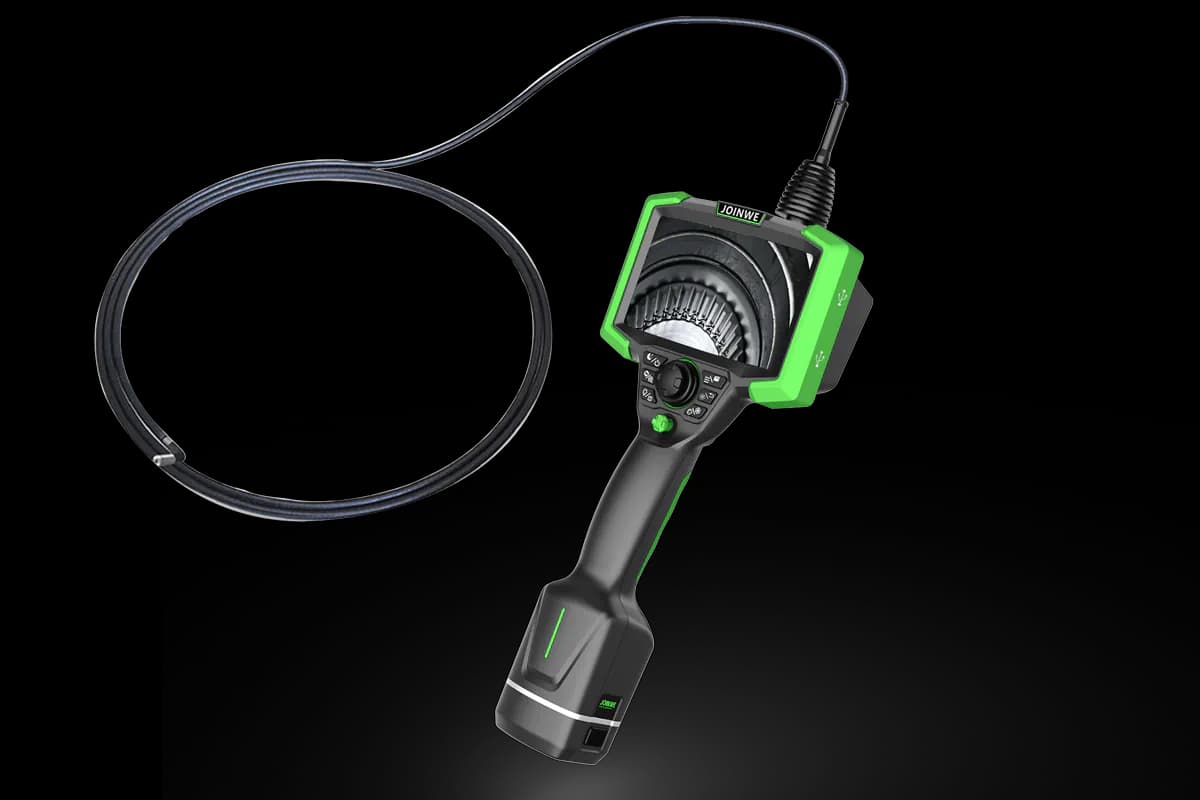

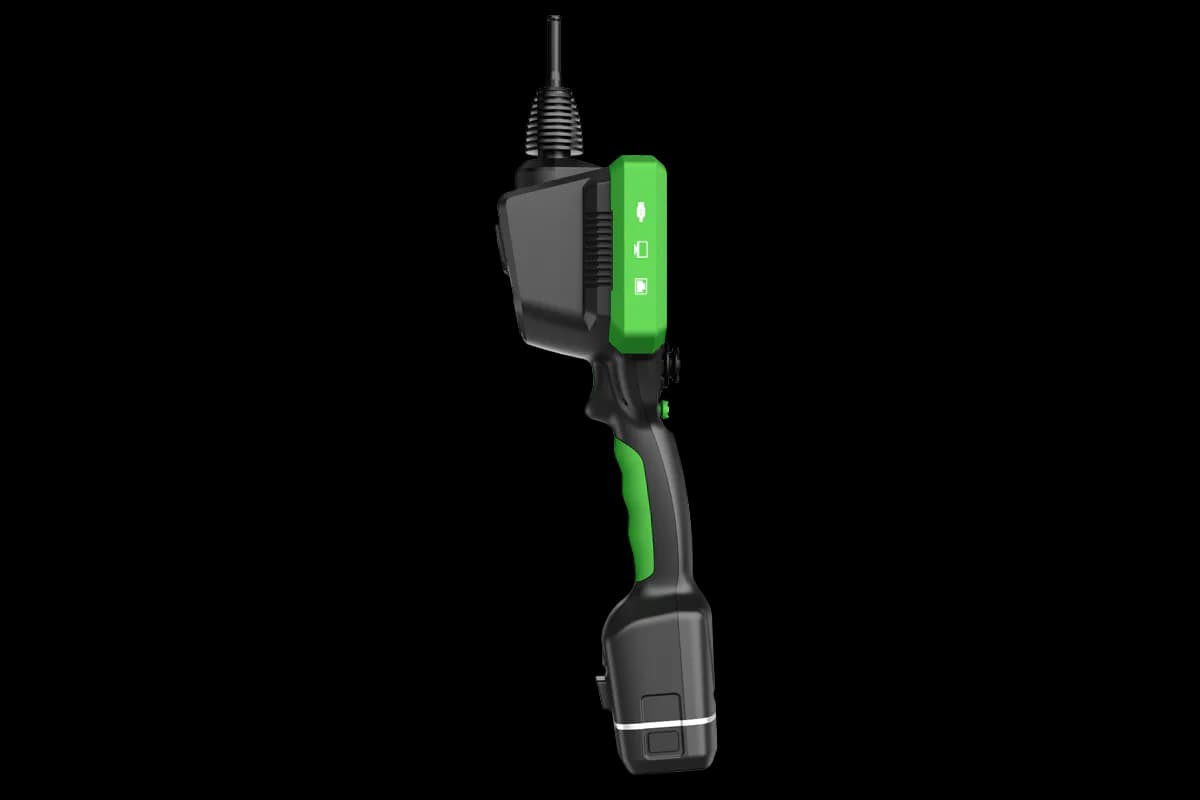

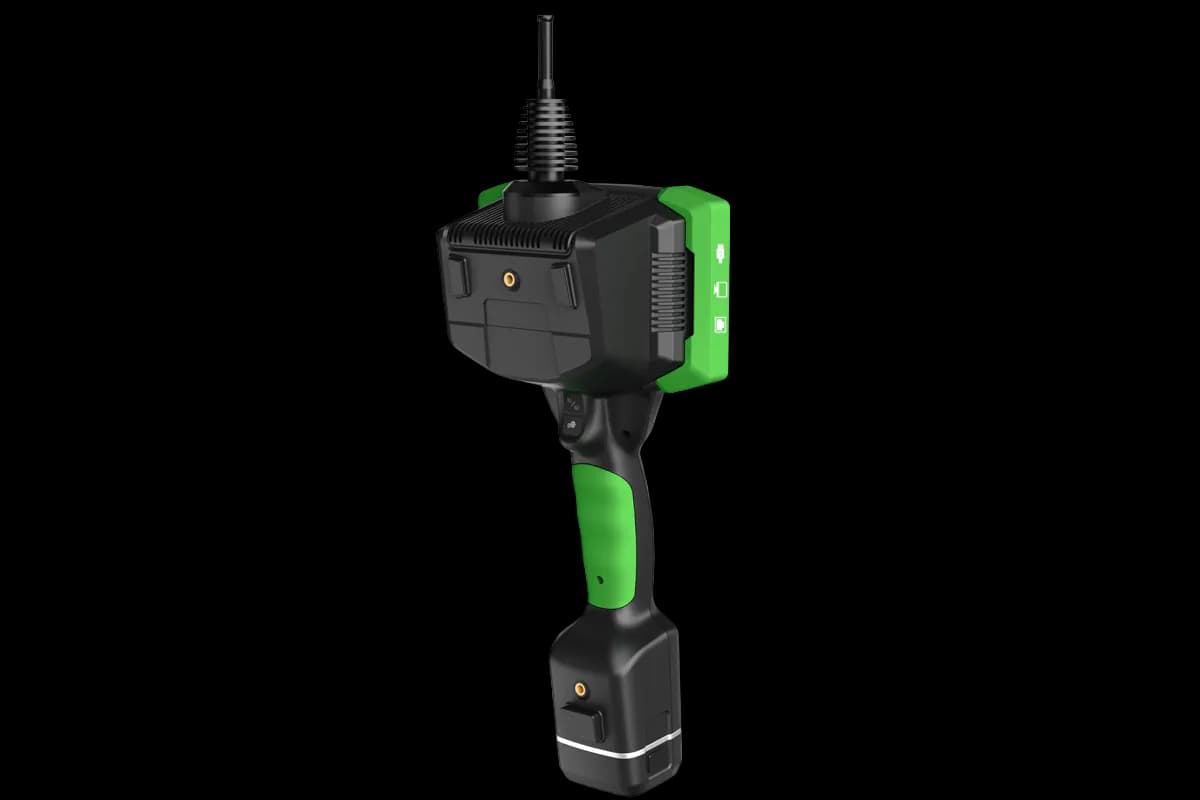

JW-F Series Motorized Industrial Videoscope
2 görsel daha bu sayfada gösterilmiyor.
- Marka
- JOINWE
- Kategori
- Industrial Videoscope
- Yöntem / ürün ailesi
- Model
- JW-F Series
Teknik Özellikler
| System — CPU | RK3588 high-performance processor, Octa-core processor |
|---|---|
| System — Display screen | 5.5'' Industrial HD touch OLED screen, 1920x1080 |
| System — Memory | 128G internal storage and external 64G USB flash drive |
| System — Button function | Access user features, measurement fuction, digital function |
| System — Data I/O port | Type-C ports, two USB interface, Upgrading Expansion interface, network ports RJ-45 (optional) |
| System — Video output | HDMI interface |
| System — Joystick control | electric rocker for 360°rotation |
| System — Joystick mode | Fast and slow mode, guided stepping, fixed-point freedom, follow lock, overload protection |
| System — Battery | 7.4V, 5000mA, Working hours per group longer than 4H (standard 2 sets) |
| Software — Operating system | Multi-task intelligent operating system, menu driven and key operation |
| Software — File management | Support file copy, create and deletion. Image/video copy, paste, deletion, edit, rename, output and report generation |
| Software — Image control | Take photo, video recording, brightness control, image mode, color setting, image reversal, freeze-frame, image zoom, intelligent file management |
| Software — Digital zoom | 5 steps |
| Software — White balance | Auto/Manual White Balance |
| Software — Image color | Normal, Negative, Custom color modes |
| Software — Language | Support multiple languages |
| Software — Software upgrading | Software upgrade via USB drive |
| Software — Picture-in-Picture | Switching between main screen image and picture-in-picture window |
| Software — Side by side | Simultaneous display of front view and side view on the same screen |
| Software — Black box | Open the real-time recording setting will automatically record the detection video, the recording length can be set |
| Software — Recording tags | During video recording, tags can be added. When recording is activated, the recording time and number of tags are displayed. |
| Software — Text annotation | It has the function of adding text annotation, which can be annotated at any time according to the detection situation |
| Software — Video format | AVI, MP4 |
| Software — Image format | JPG, PNG, BMP |
| Software — 3 D dimensional measurement | Option |
| Insertion Tube Parameters — Diameter | 1.0mm, 1.2mm, 1.8mm, 2.2mm, 2.8mm, 4.0 mm, 6.0 mm |
| Insertion Tube Parameters — Illumination | LED or Fiber-optic (available in white light) |
| Insertion Tube Parameters — View direction | Forward View/ Side View/ Forward View and Side View(Dual view) |
| Insertion Tube Parameters — Insertion tube length | 1~10m |
| Insertion Tube Parameters — Insertion tube material | Four layers of tungsten wire braid |
| Operating Environment — Protection class | Probe IP67 |
| Operating Environment — Relative humidity | Up to 95% |
| Operating Environment — Host operating temperature | -10°C to +50°C |
| Operating Environment — Probe operating temperature | -20°C to +80°C |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
