JW-T Series 3D Measurement Videoscope
Üretici ürün açıklaması

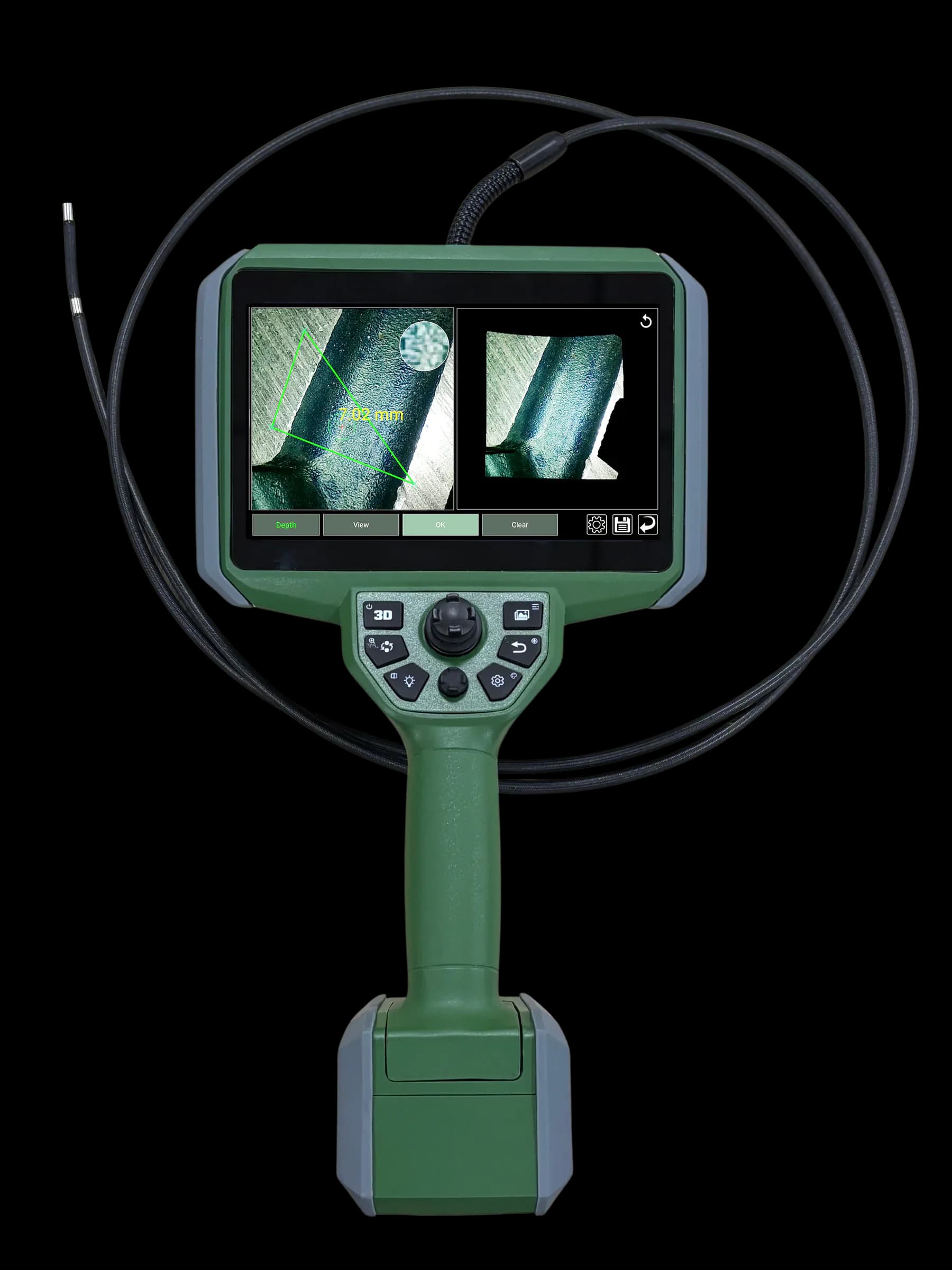

JW-T series 3D measurement industrial endoscopes use the new algorithm of binocular 3D measurement technology, which improves the measurement speed and accuracy. The high-performance GPU enables fast conversion of observation images to 3D point cloud maps and supports multiple measurement modes.
JW-T Series 3D Measurement Videoscope
- Marka
- JOINWE
- Kategori
- Industrial Videoscope
- Yöntem / ürün ailesi
- Model
- JW-T Series
Teknik Özellikler
| Host System — Display | 7 '' IPS LCD display (1920*1 200 ), high brightness≧450cd/m²,10 level brightness adjustment |
|---|---|
| Host System — Function | Photo, Video, Brightness adjustment, Image mode, Color Settings, image rotation, image freeze, image magnification, Intelligent file management, report generation |
| Host System — Main joystick | Motorized joystick 360° guide with mode of fast and slow, guide d stepping, follow lock, fixed-point freedom, overload protection |
| Host System — Assistant joystick | Control interface UI options selection, setting up customized menus |
| Host System — Processor | RK3588 high performance processor, A76 core frequency 2.4GHz, A55 core 1.8GHz |
| Host System — Data I/O port | Type-C charging interface, 2 USB interface, Upgrading Expansion interface, RJ45 network port (optional) |
| Host System — Storage | Host machine 128 G, external 64G USB flash disk |
| Host System — WIFI/4 G | Optional |
| Host System — Language | Chinese, English, French, Spanish, Russian, Portuguese, German, Korean, Traditional Chinese, Japanese |
| Host System — Battery | 7. 4 V, 7 000mAh(2 sets are standard) |
| Host System — Work time | 3 h |
| Host System — Host work temperature | -10~50℃ |
| Host System — Host ingress protection | IP55 |
| Insertion tube System — Probe diameter | 4.0 mm/6 .0 mm |
| Insertion tube System — Probe material | Double titanium probe braid for added crush resistance |
| Insertion tube System — Illumination | Front LED or Rear-mounted fiber light ≥ 100,000Lux |
| Insertion tube System — Camera technology | CMOS |
| Insertion tube System — View direction | B inocular f ront view / binocular side view |
| Insertion tube System — Insertion tube length | 1-1 0 m (customizable) |
| Insertion tube System — Insertion tube material | 4-layer tungsten alloy steel wire braided tube |
| Insertion tube System — Probe rotation | Motorized joystick 360° guide,omnidirectional lens orientation |
| Insertion tube System — Bending angle | 80°~170° |
| Insertion tube System — Effective pixel | 160,000/ 520,000 /1 million |
| Insertion tube System — Depth of view | 3-50/8-150/50~+∞ |
| Insertion tube System — Field of view | 70°~120° |
| Insertion tube System — Probe operation temperature | -20~ 8 0℃ |
| Insertion tube System — Probe ingress protection | IP67, can withstand 10 meters of water pressure, weak acid and alkali, gasoline, diesel, hydraulic oil, commonly used lubricants |
| Software System — Operating system | Android |
| Software System — User interface | Menu-driven and soft button operation or use touchscreen and joystick for menu navigation |
| Software System — Operating methods | Touch screen/use joystick, small joystic k allows quick operation of menu functions |
| Software System — File management | Support file copy, create and deletion. Image/video copy, paste, deletion, edit, rename, output and report generation |
| Software System — Image control | Take photo, video recording, brightness control, image mode, color setting, image reversal, freeze-frame, image zoom, intelligent file management |
| Software System — Digital zoom | 5 steps |
| Software System — White balance | Auto White Balance, Manual White Balance |
| Software System — Image color | Normal, Negative |
| Software System — Language | Multiple languages, includes English, Chinese, Russian, German, etc. |
| Software System — Side by side | D isplay and switch front view and side view on the same screen |
| Software System — Constant video | The videoscope automatically records the last 30 minutes (optional duration in the settings) of the inspection |
| Software System — Recording bookmarks | Bookmarks can be added during video recording |
| Software System — Logo function | Customized logos can be printed on the screens taken |
| Software System — Video format | AVI, MP4 |
| Software System — Image format | JPG, PNG, BMP |
| Software System — Report generation | |
| Software System — Scalar measurements | To size objects using a reference defect |
| Software System — Software upgrading | Software upgrade via USB drive |
| 3 D Measurement — Depth | Distance between two points / Orthogonal depth/height distance between a point and a user-defined plane |
| 3 D Measurement — Point to line | Perpendicular distance between a point and a user-defined line |
| 3 D Measurement — Camber Depth | In the case of curved surfaces, select two points, the system calculates their distances to the camera, and the height difference is taken as the depth value |
| 3 D Measurement — Area | The area of the first and last connection between multiple points |
| 3 D Measurement — Multi-Segment | Select multi point, click on OK and the system will calculates the total length |
| 3 D Measurement — Depth p rofile | Selecting two points will make a sectional view to this actual object, automatically finding the highest or lowest point |
| Operating environment — Protection class | Probe IP67 |
| Operating environment — Relative humidity | Up to 95% |
| Operating environment — Host operating temperature | -10°C to +50°C |
| Operating environment — Probe operating temperature | -20°C to +80°C |
| 2 D Videoscope | 3D Measurement Videoscope |
| Visual only | Quantitative measurement |
| No depth data | True depth calculation |
| Manual estimation | Software-calculated accuracy |
| Basic documentation | 3D reports & data export |
