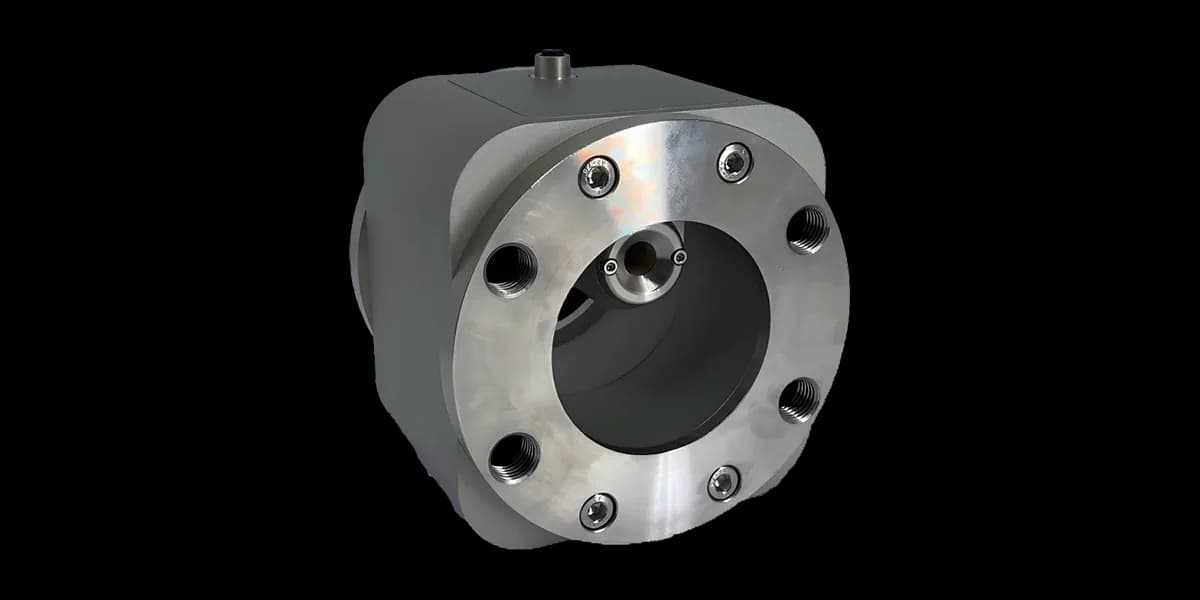

JW-V6M8S Oil Condition Sensor for Wind Turbine Gearbox
Üretici ürün açıklaması
JW-V6M8S multi-functional oil condition sensor for wind turbine gearbox is a highly integrated oil condition monitoring device, integrating multiple detection components such as ferromagnetic and non-ferromagnetic metal wear particles, viscosity, density, temperature, water activity, and micro moisture content. It can also be optionally equipped with dielectric constant and free water detection components to achieve integrated detection of oil wear state and oil product characteristics.
JW-V6M8S Oil Condition Sensor for Wind Turbine Gearbox
- Marka
- JOINWE
- Kategori
- Online Oil Monitoring System
- Yöntem / ürün ailesi
- Model
- JW-V6M8S
Teknik Özellikler
| Measurement indicators for wear particles of ferromagnetic and non-ferromagnetic — Ferromagnetic Particles ( 5 range ) | Measurement Range: 40 ～ 99μm / 100 ～ 199μm / 200 ～ 299μm / 300 ～ 399μ m / ≥400μm |
|---|---|
| Measurement indicators for wear particles of ferromagnetic and non-ferromagnetic — Ferromagnetic Particles Content | Measurement Range: ALL; Accuracy: ≥ 80 % |
| Measurement indicators for wear particles of ferromagnetic and non-ferromagnetic — Non-Ferromagnetic particle ( 5 range ) | Measurement Range: 150 ～ 199μm / 200 ～ 299μm / 300 ～ 399μm / 400 ～ 499μm / ≥500μm |
| Measurement indicators for wear particles of ferromagnetic and non-ferromagnetic — Non-Ferromagnetic Particle Content | Measurement Range: ALL; Accuracy: ≥ 80 % |
| Measurement indicators for wear particles of ferromagnetic and non-ferromagnetic — Effective detection of particle count | Measurement Range: ≤100 pcs /S |
| Measurement indicators of oil product characteristics — Dynamic Viscosity | Measurement Range: 1 ～ 1000c P; Resolution: 0 . 1c P; Accuracy: ±5 % or ± 5c P Take the greater of the two |
| Measurement indicators of oil product characteristics — Density | Measurement Range: 600 ～ 1250kg / m 3; Resolution: 0.1kg / m 3; Accuracy: ±5 % or ± 5kg / m 3 Take the greater of the two |
| Measurement indicators of oil product characteristics — Micro moisture Content | Measurement Range: 1 ～ 5000ppm; Resolution: 1ppm; Accuracy: ± 10% or ± 10ppm |
| Measurement indicators of oil product characteristics — Water Activity | Measurement Range: 0 ～ 1aw; Resolution: 0.001aw; Accuracy: ± 5% |
| Measurement indicators of oil product characteristics — Temperature | Measurement Range: -40 ～ 85℃; Resolution: 0. 1 ℃; Accuracy: ± 0. 5 ℃ |
| Measurement indicators of oil product characteristics — Dielectric Constant ( Optional ) | Measurement Range: 1 ～ 6; Resolution: 0.01; Accuracy: ±5% |
| Measurement indicators of oil product characteristics — Free Water ( Optional ) | Measurement Range: 0 ～ 20%; Resolution: 0.1%; Accuracy: ± 0.3% ( Classics ) ± 0.5% ( Maximum ) |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
