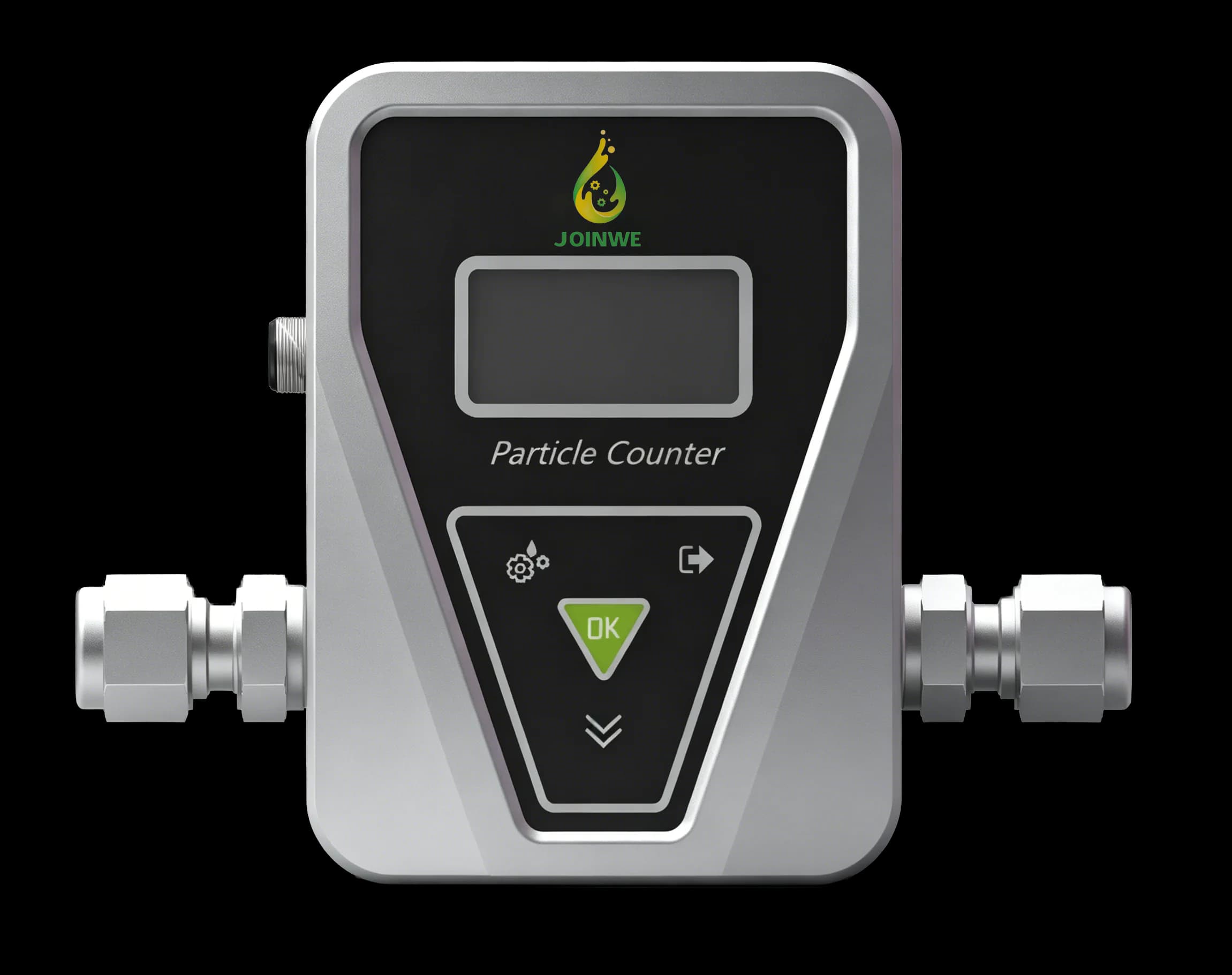

JWJ5 Oil Particle Counter Sensor
Üretici ürün açıklaması
JWJ5 Oil Particle Counter Sensor is developed based on the light blockage method (photoresistance method) principle, adopting an adaptive flow algorithm that accommodates fluctuating on-site pipeline flow to guarantee the long-term accuracy of particle detection.
JWJ5 Oil Particle Counter Sensor
- Marka
- JOINWE
- Kategori
- Online Oil Monitoring System
- Yöntem / ürün ailesi
- Model
- JWJ5
Teknik Özellikler
| Measurement Indicators — Testing range | 1~100µm | 4~70µm |
|---|---|
| Measurement Indicators — Detection channel | 1µm, 2µm, 5µm, 10µm, 15µm, 25µm, 50µm, 100µm / 4µm(c), 4.6µm(c), 6µm(c), 10µm(c), 14µm(c), 21µm(c), 38µm(c), 70µm(c) |
| Measurement Indicators — Detection flow speed | 10~300mL/min(recommend 25mL/min) |
| Measurement Indicators — Detection period | 5~60S (5S/time) |
| Measurement Indicators — Repeatability | RSD < 5% |
| Measurement Indicators — Accuracy | Particle count ±20% (or ±1 pollution degree) |
| Measurement Indicators — Built-in standard | NAS1638, ISO4406 |
| Measurement Indicators — Note | Measurement accuracy to ensure that the test environment temperature at 20±5℃, flow rate of 25mL/min range ( Adaptive flow algorithm accommodates fluctuating on-site pipeline flow to guarantee long-term accuracy of particle detection.) |
| Electrical parameters — Signal Output | RS485 MODBUS RTU |
| Electrical parameters — Working voltage | DC24V ±10% |
| Electrical parameters — Working current | ＜ 200mA |
| Electrical parameters — Illumination type | Diode Laser |
| Temperature parameters — Temperature | Working temperature: -20℃-60℃; Liquid temperature: 0℃-80℃; Storage temperature: -40℃-85℃ |
| Structural parameters — Oil Inlet and Outlet Ports | G1/8-φ6, with 6mm OD low-pressure tubing |
| Structural parameters — IP rate | IP65 |
| Structural parameters — Size | 90 mm* 65 mm* 56 mm |
| Other parameters — Allowable Probe Pressure | ≤2 MPa (recommend < 0.6Mpa); 2~40 MPa (need a pressure reducing valves) |
| Other parameters — Sensor weight | 500 g |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
