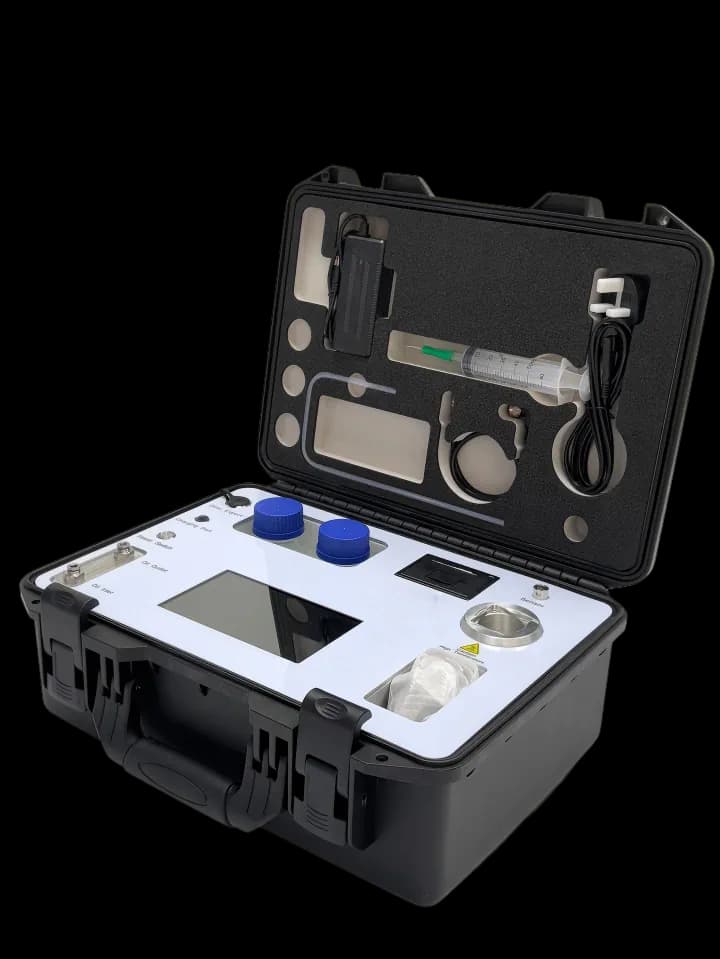

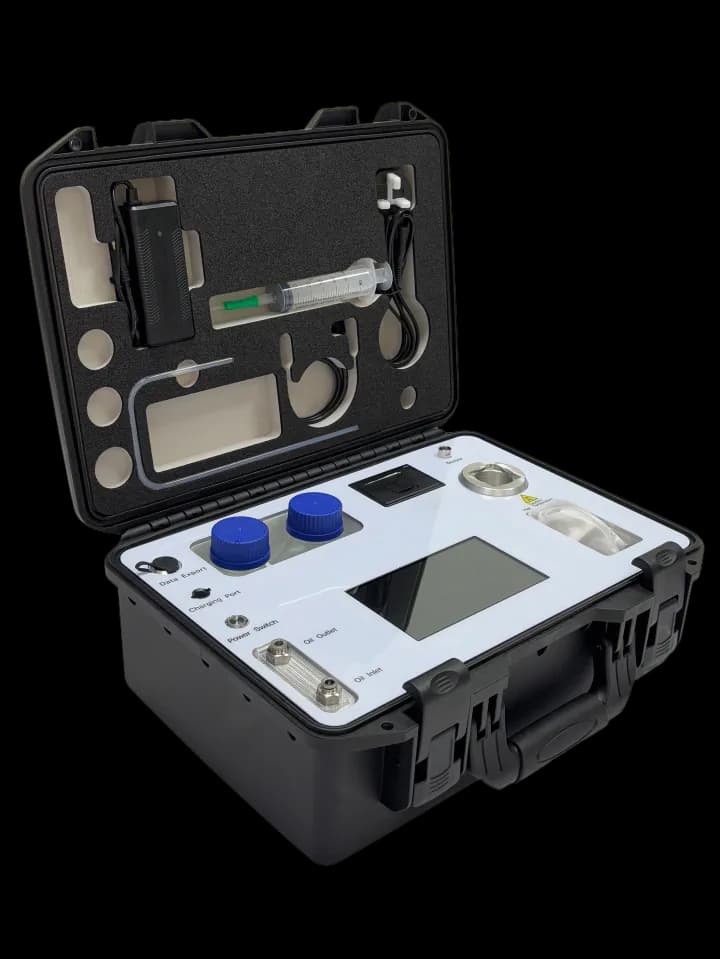

JWL-VS Portable Oil Analyzer (Built-in 6-in-1 and particle counter oil sensor)
Üretici ürün açıklaması
It adopts polymer film capacitance sensing technology, fluid vibration sensing technology, fluid dielectric constant sensing technology, optical particle counting technology and micro-fast heating temperature control technology, which can achieve 40℃ precise temperature control, quickly detect the kinematic viscosity of oil products, and use a high-precision particle counter to detect the contamination.
JWL-VS Portable Oil Analyzer (Built-in 6-in-1 and particle counter oil sensor)
- Marka
- JOINWE
- Kategori
- Portable Oil Analysis Instrument
- Yöntem / ürün ailesi
Teknik Özellikler
| Viscosity | Measurement Range 1 ～ 400cP; Resolution 0.1; Accuracy±5% |
|---|---|
| Temperature | Measurement Range 0 ～ 100℃; Resolution 0.1; Accuracy±0.5℃ |
| Density | Measurement Range 600 ～ 1250kg/m³, Resolution 0.1; Accuracy±5% |
| Dielectric Constant | Measurement Range 1 ～ 6; Resolution 0.01; Accuracy±5% |
| Water Content | Measurement Range 0 ～ 1000ppm; Resolution 1%; Accuracy±5% |
| Particle Counter | 1. Light source: semiconductor laser; 2. Detection range: 1~100μm or 4~70μm (C); 3. Sensitivity: 1μm (ISO4402) or 4μm (C) (ISO11171, GB/T18854-2002); 4. Measurement channel: built-in GJB420A-96, GJB420B-06, NAS1638, ISO4406 and other standards; 5. Particle size: 1µm, 2µm, 5µm, 10µm, 15µm, 25µm, 50µm, 100µm; 4µm(c), 4.6µm(c), 6µm(c), 10µm(c), 14µm(c), 21µm(c), 38µm(c), 70µm(c); 6. Test accuracy: ±0.5 contamination level; 7. Online pressure: 0~10MPa; 0~40MPa (with pressure reducing valve); 8. Detection flow rate: 10~300mL/min（default: 25 mL/min） |
| Display | 7-inch LCD Touch Screen |
| Power supply | AC 220V±10%, 50Hz±10% |
| Power | 50W |
| Weight | 9 kg |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
