Eddycon C Portable Eddy Current Flaw Detector
Üretici ürün açıklaması

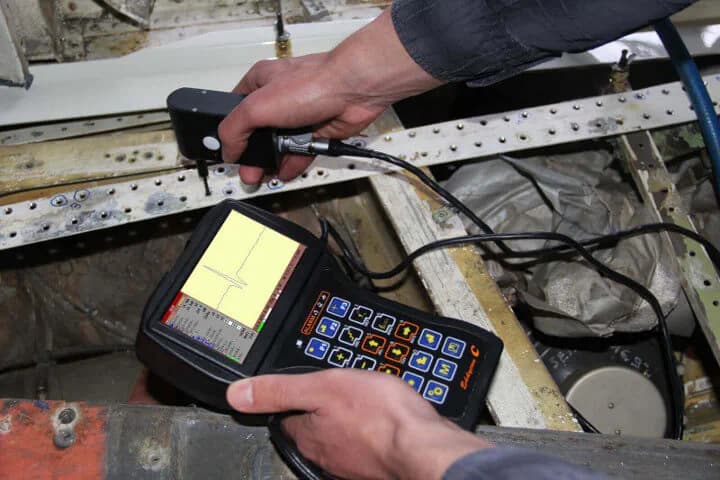

EDDYCON C portable eddy current flaw detector is a flagship of our eddy current instruments family. It combines the best features of earlier predecessors
Eddycon C Portable Eddy Current Flaw Detector
11 görsel daha bu sayfada gösterilmiyor.
- Marka
- OKOndt Group
- Kategori
- Eddy current testing
- Yöntem / ürün ailesi
Teknik Özellikler
| Housing — Overall dimensions | 9.5" × 4.4" × 5.3" (241 mm × 112 mm × 135 mm) |
|---|---|
| Housing — Weight | up to 2 lbs (0.9 kg) |
| Housing — Applicable standards | СЕ, ISO 15548 |
| Housing — Supply mains | 100 V to 240 V, 50 Hz - 60 Hz |
| Housing — Inputs & outputs | 2.0 USB-port (hub), Ethernet (Lemo 4-way), headphones (Lemo 4-way) |
| Housing — Keypad | American, International (icons) |
| Operation conditions — Operation temperature | -4 to +122° F (-20 to +50°C) |
| Operation conditions — Storage temperature | -4 to +122° F (-20 to +50°C) |
| Operation conditions — IP rating | IP 64 |
| Battery — Type | Li-Ion 12V/4500 mA·h |
| Battery — Operation time | Normal mode — up to 7 hours; If using rotary scanners — 4 to 5 hours |
| Display — Display size | 4.3" |
| Display — Type | Color TFT (800×480 pixels) |
| Display — Display modes | Normal, full-screen; three color schemes |
| Display — Grid | Three types: coarse, fine, polar |
| Connectivity and data storage — PC software | Test results processing program |
| Connectivity and data storage — Data storage | MicroSD 4 Gb internal memory card (up to 64 Gb as an option) |
| ET specifications — Frequency range | 10 Hz to 16 MHz |
| ET specifications — Gain | 70 dB |
| ET specifications — Probe supply voltage | 0.5 V; 1V; 2V; 4V; 6V |
| ET specifications — Additional gain | 30 dB |
| ET specifications — Phase rotation | 0 to 359.9 |
| ET specifications — Digital scale | 1/16 to 16, with a step of 6 dB |
| ET specifications — Test frequency | 1 to 11 kHz |
| ET specifications — Signal indication time | 0.1 s; 0.3 s; 0.5 s; 1 s; 2 s; 3 s; 4 s; 5 s; 8 s |
| ET specifications — Filter | Low-pass: 1 to 5 000 Hz High-pass: 1 to 5 000 Hz Bandpass Averaging Differential |
| ET specifications — Connected probes | Single, Reflection, Bridge |
| ET specifications — Probe connector | Lemo 00, Lemo 12-way / Lemo 16-way |
| ET specifications — Signal display modes | Complex plane – X(y); Time base – X(t), Y(t); Dual-frequency mode |
| ET specifications — Threshold level types | Circle, Threshold, Sector, Trapezium |
| ET specifications — Multi-frequency operation | Dual-frequency multiplexing; Independent control of both frequencies; Mix of two frequencies (F1 - F2, F1 + F2) |
| Additional delivery set for American version: — 1.1 | Description: Connecting cable Lemo 16 – Lemo 16 (for rotary scanner SVR-05), 70 in. (1800 mm) | Notes: For rotary scanners |
| Additional delivery set for American version: — 1.2 | Description: Connecting cable Lemo 16 – Lemo 04 (for Reflection type probes), 70 in. (1800 mm) | Notes: For Lemo 4-way probes (EGG.0B) |
| Additional delivery set for American version: — 1.3 | Description: Connecting cable Lemo 16 – Lemo 04 (for Bridge type probes), 70 in. (1800 mm) |
| Additional delivery set for American version: — 1.4 | Description: Connecting cable Lemo 16 – Lemo Triax (for Reflection type probes), 70 in. (1800 mm) | Notes: For Lemo Triax probes (ERN.0S650.CTA) |
| Additional delivery set for American version: — 1.5 | Description: Connecting cable Lemo 16 – Lemo Triax (for Bridge type probes), 70 in. (1800 mm) |
| Additional delivery set for American version: — 1.6 | Description: Connecting cable Lemo 16 – Lemo 04 (for Conductivity probes), 47 in. (1200 mm) | Notes: For CP-13 (conductivity probe) |
| Additional delivery set for American version: — 1.7 | Description: Connecting cable Lemo 00 – Microdot/М5 (for single coil probes), 70 in. (1800 mm) | Notes: For probes with Microdot connector |
| Additional delivery set for American version: — 2.1 | Description: Rotary scanner SVR-05 | Notes: Lemo 16-way connector |
| Additional delivery set for American version: — 3.1 | Description: Replaceable battery pack |
| Additional delivery set for American version: — 3.2 | Description: Adapter for charging the replaceable battery pack |
| Additional delivery set for International version: — 1.1 | Description: Connecting cable Lemo 12 – Lemo 12 (for rotary scanner SVR-04), 70 in. (1800 mm) | Notes: For rotary scanners |
| Additional delivery set for International version: — 1.2 | Description: Connecting cable Lemo 12 – Lemo 04 (for Reflection type probes), 70 in. (1800 mm) | Notes: For Lemo 4-way probes (EGG.0B) |
| Additional delivery set for International version: — 1.3 | Description: Connecting cable Lemo 12 – Lemo 04 (for Bridge type probes), 70 in. (1800 mm) |
| Additional delivery set for International version: — 1.4 | Description: Connecting cable Lemo 12 – Lemo Triax (for Reflection type probes), 70 in. (1800 mm) | Notes: For Lemo Triax probes (ERN.0S650.CTA) |
| Additional delivery set for International version: — 1.5 | Description: Connecting cable Lemo 12 – Lemo Triax (for Bridge type probes), 70 in. (1800 mm) |
| Additional delivery set for International version: — 1.6 | Description: Connecting cable Lemo 12 – Lemo 04 (for Conductivity probes), 47 in. (1200 mm) | Notes: For CP-13 (conductivity probe) |
| Additional delivery set for International version: — 1.7 | Description: Connecting cable Lemo 00 – Microdot/М5 (for single coil probes), 70 in. (1800 mm) | Notes: For probes with Microdot connector |
| Additional delivery set for International version: — 2.1 | Description: Rotary scanner SVR-04 | Notes: Lemo 12-way connector |
| Additional delivery set for International version: — 3.1 | Description: Replaceable battery pack |
| Additional delivery set for International version: — 3.2 | Description: Adapter for charging the replaceable battery pack |
