ETS2-73 Eddy Current Double Rail Flaw Detector
Üretici ürün açıklaması
Eddy current flaw detectors produced by OKOndt Group
ETS2-73 Eddy Current Double Rail Flaw Detector
16 görsel daha bu sayfada gösterilmiyor.
- Marka
- OKOndt Group
- Kategori
- Eddy current testing
- Yöntem / ürün ailesi
- Model
- ETS2-73
Teknik Özellikler
| SPECIFICATIONS — Waterproof grade | IP65 |
|---|---|
| SPECIFICATIONS — OS | Windows 10 |
| SPECIFICATIONS — Display | 15.6inch IPS 1920*1080 FHD |
| SPECIFICATIONS — CPU | 8th Generation KBL-R Intel® Core™ i5-8250U |
| SPECIFICATIONS — Storage | 8GB RAM, 1 TB ROM |
| DATA COMMUNICATION — WLAN | WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G dual WIFI, BT4.2 (BLE) |
| DATA COMMUNICATION — Battery | 2000mHA/7.4V +6300mHA/7.4V |
| DATA COMMUNICATION — I/O port | USB3.0*3 , USB2.0*1 , ∮3.5mm standard headphone port, HDMIx1 (type-A)DB9 (RS232 or RS485) ×1SD cardx1RJ45x2(10/100/1000M self-adaption) Network card chip model 1219+I210 |
| DATA COMMUNICATION — Products size | 397*271*37 mm/3300g |
| Product model | ETS2-73 |
| Flaw detector type | manual, double rail |

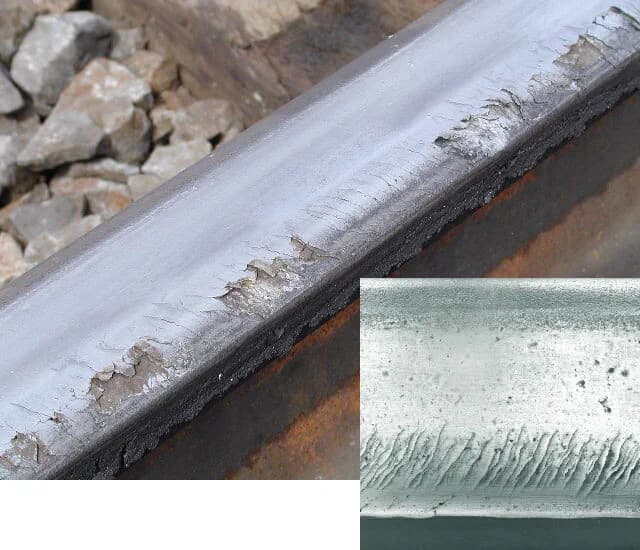

| Areas of testing | rail gauge corner rail running surface |

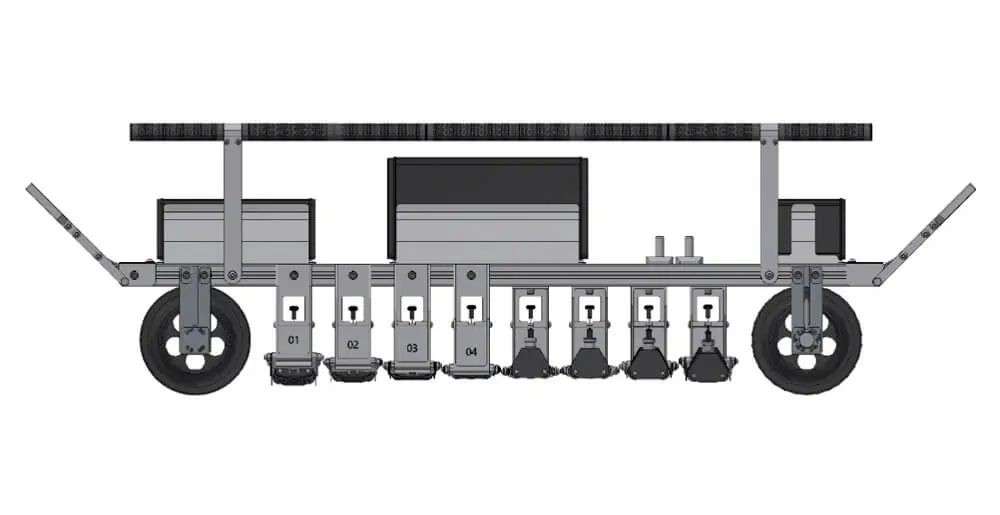

| Quantity of EC Ps of the flaw detector | 16 |
| Quantity of EC Ps for one rail testing | 8 |
| Testing speed | up to 2 m/s |
| Overall dimensions of the flaw detector when stowed | 1200 mm × 350 mm × 350 mm |
| Eddy current channel | Eddycon D |
| ECP protection from mechanical damage and wear | ceramic protector |
| Signalization (ADS) | visual |

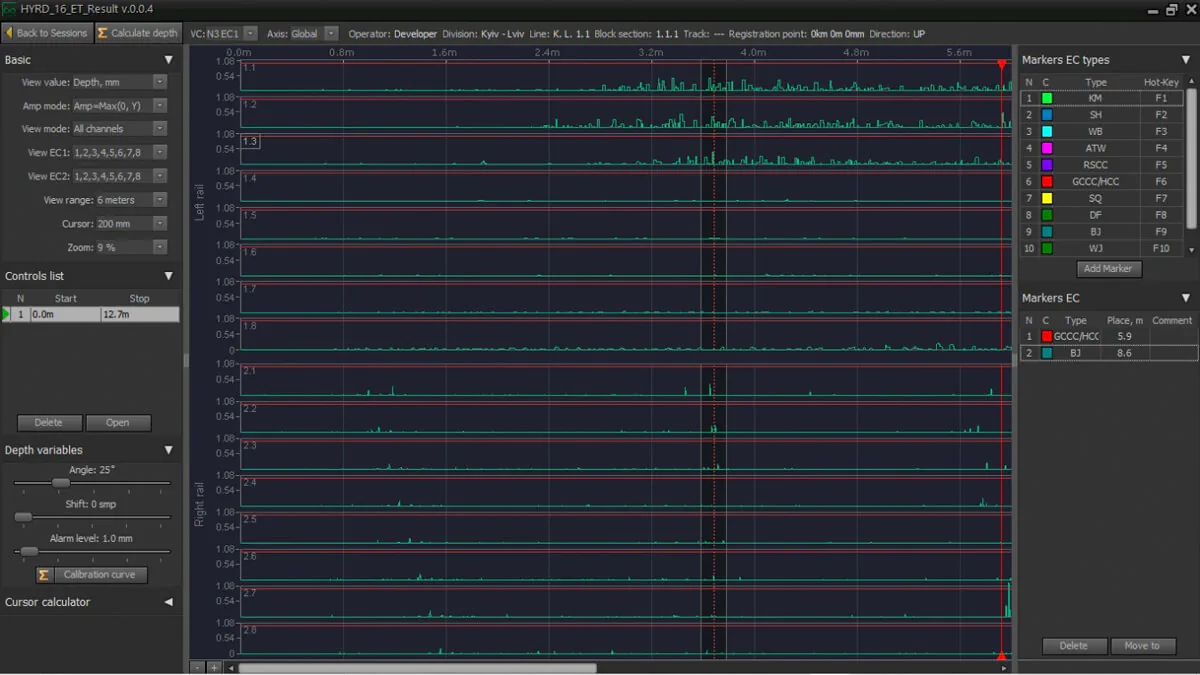

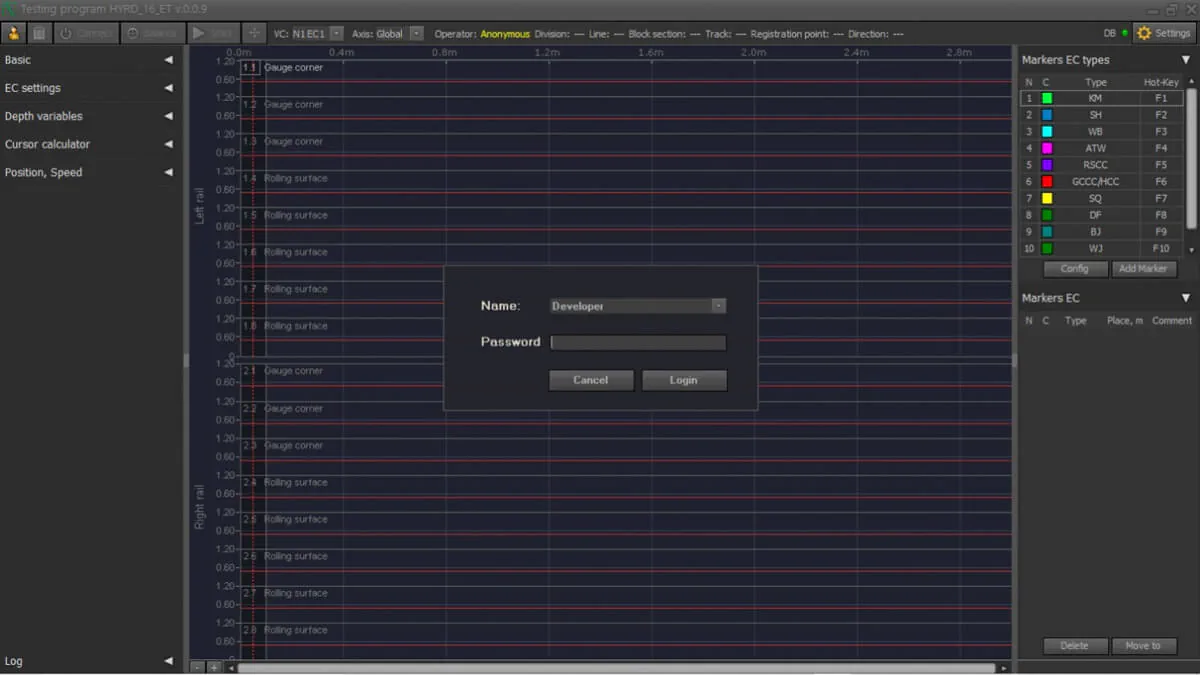

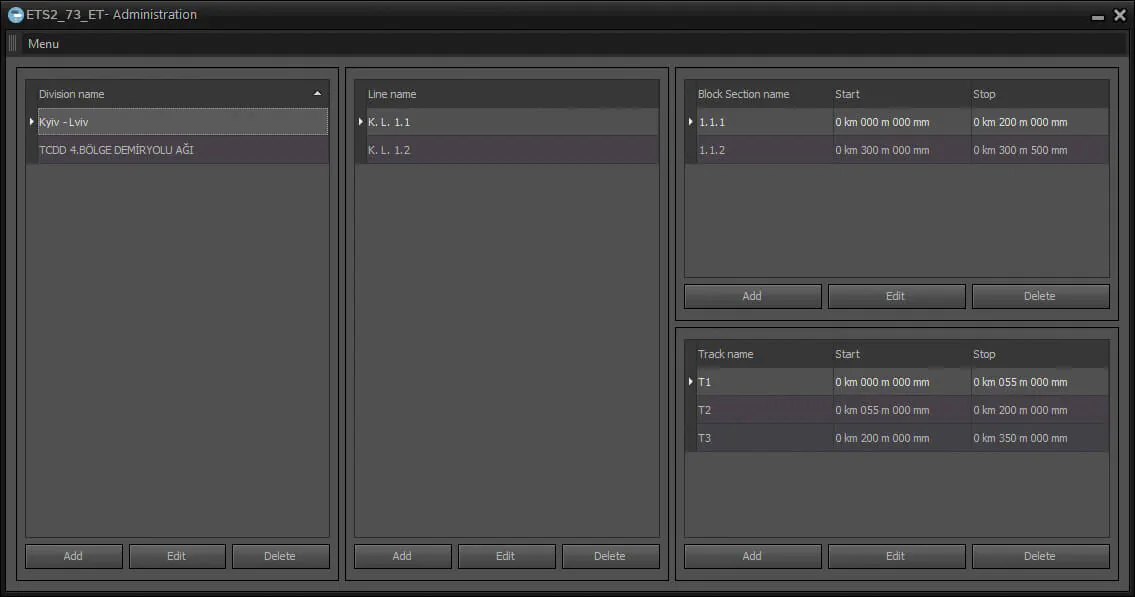

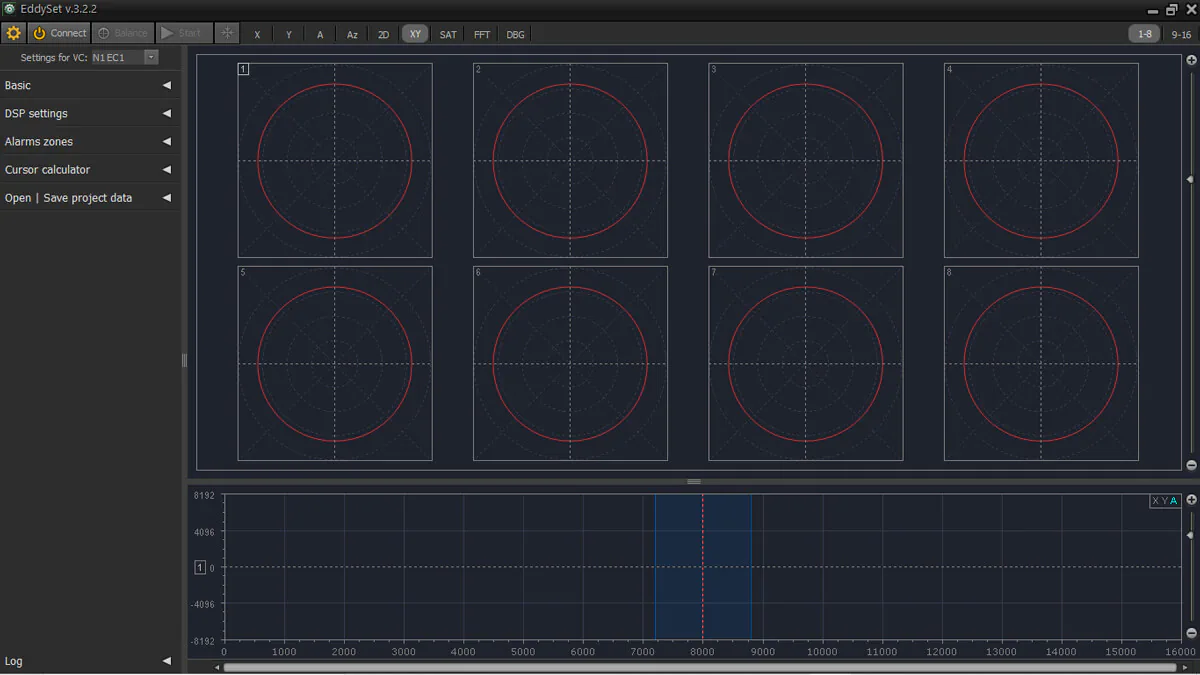

| Specialized software | - setting program - testing program - results viewing program |
| Time of continuous operation | 8 hours |

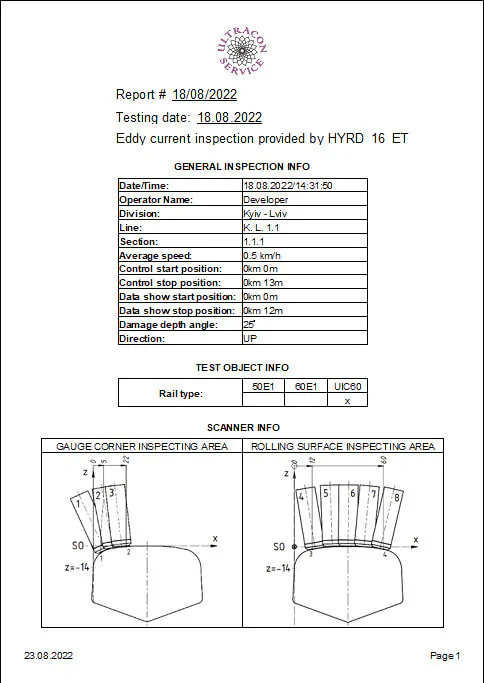

| Data record and storage | PC’s hard drive |
| Operating PC | Industrial PC with IP 65 protection class |
Teknik özellikler tedarikçinin yayınladığı verilerden alınmıştır; nihai ve bağlayıcı değerler için tedarikçi kaynağına başvurunuz.
